023 - IGNITION SYSTEM

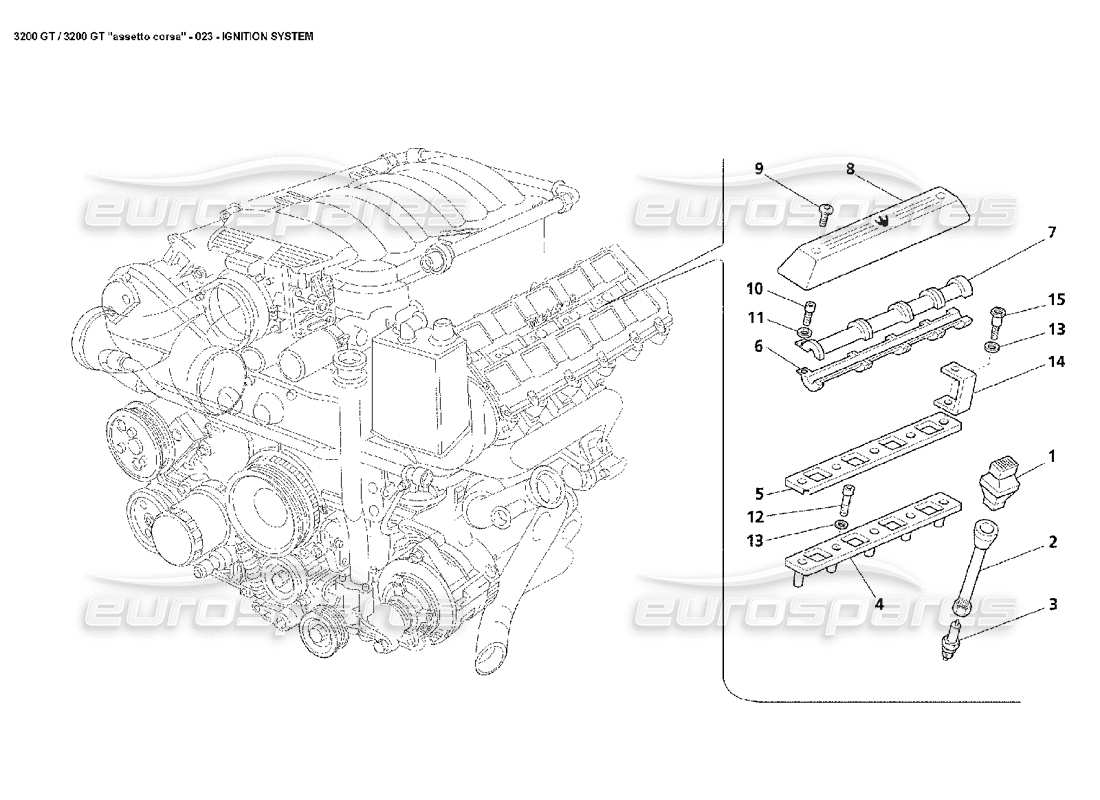

Maserati 3200 GT/GTA/Assetto Corsa Ignition System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001

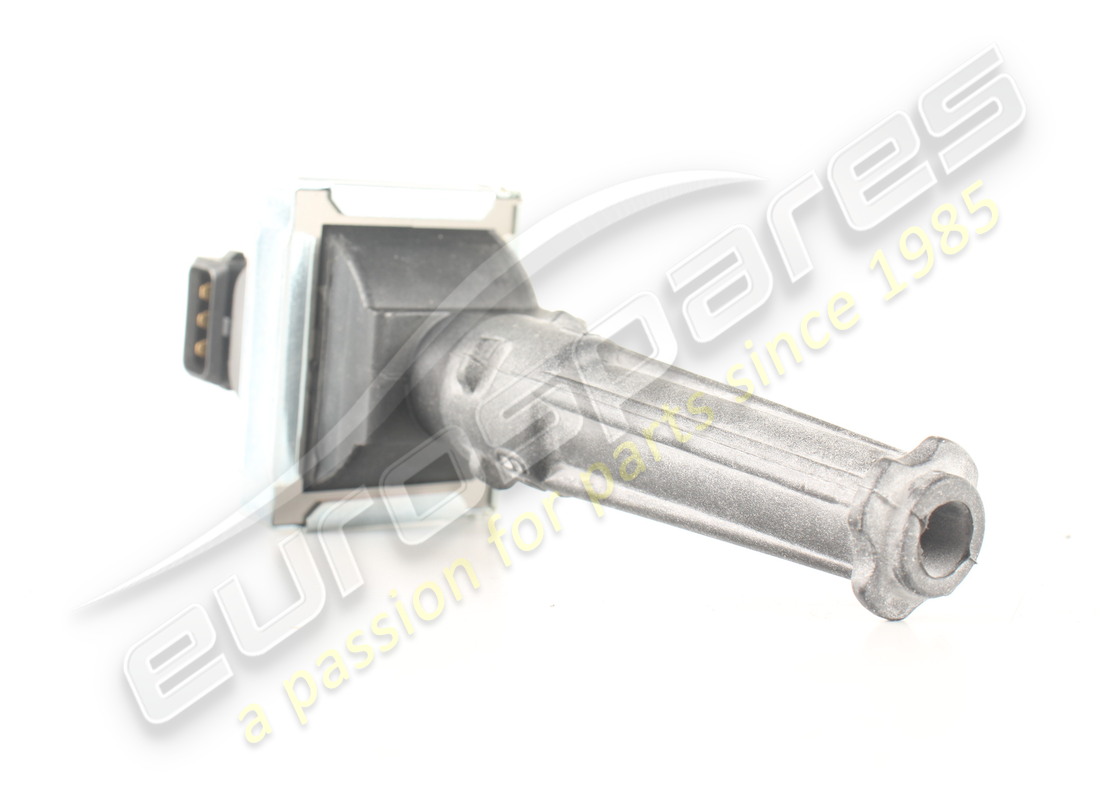

MPN: 571084200
COIL ON SPARK PLUGS
from £63.63
from £63.63
This part replaces part number 571084201 - and 1 more. Click to view details
# 002
MPN: 571085101
EXTENSION
from £69.95
from £69.95
# 003
MPN: 192637
SPARK PLUG
from £14.74
from £14.74
This part replaces part number 168325 which we have in stock - and 1 more. Click to view details
# 003
MPN: 98177
CHAMPION SPARK PLUG
not as spare part - use part number: 585088400
Supersession
Supersession
# 004
MPN: 578982700
COIL FASTENING ASSY PLATE
from £26.25
from £26.25
# 005
MPN: 578982000
COIL RETAINING COVER
from £15.97
from £15.97
# 006
MPN: 479061400
LOWER HALF-SHELL
from £1.93
from £1.93
# 007
MPN: 479061300
UPPER HALF-SHELL
from £13.60
from £13.60
# 008
MPN: 585000801
COIL RETAINING COVER RH
-Only GS-
from £25.81
from £25.81
# 008
MPN: 585000860
COIL RETAINING COVER RH
-Only GD-
from £31.45
from £31.45
# 008
MPN: 585000901
COIL RETAINING COVER LH
from £33.48
from £33.48
# 009
MPN: 46401657
SCREW
from £0.53
from £0.53
# 010
MPN: 14305521
SCREW
from £0.48
from £0.48
# 011
MPN: 14496400
WASHER
from £0.85
from £0.85
# 012
MPN: 14306021
SCREW
from £0.51
from £0.51
# 013
MPN: 12604279
WASHER
from £0.53
from £0.53
# 014
MPN: 585009602
BRACKET
from £30.52
from £30.52
# 015
MPN: 585414300
STUD
from £13.13
from £13.13
