151 - Ventilation Cockpit

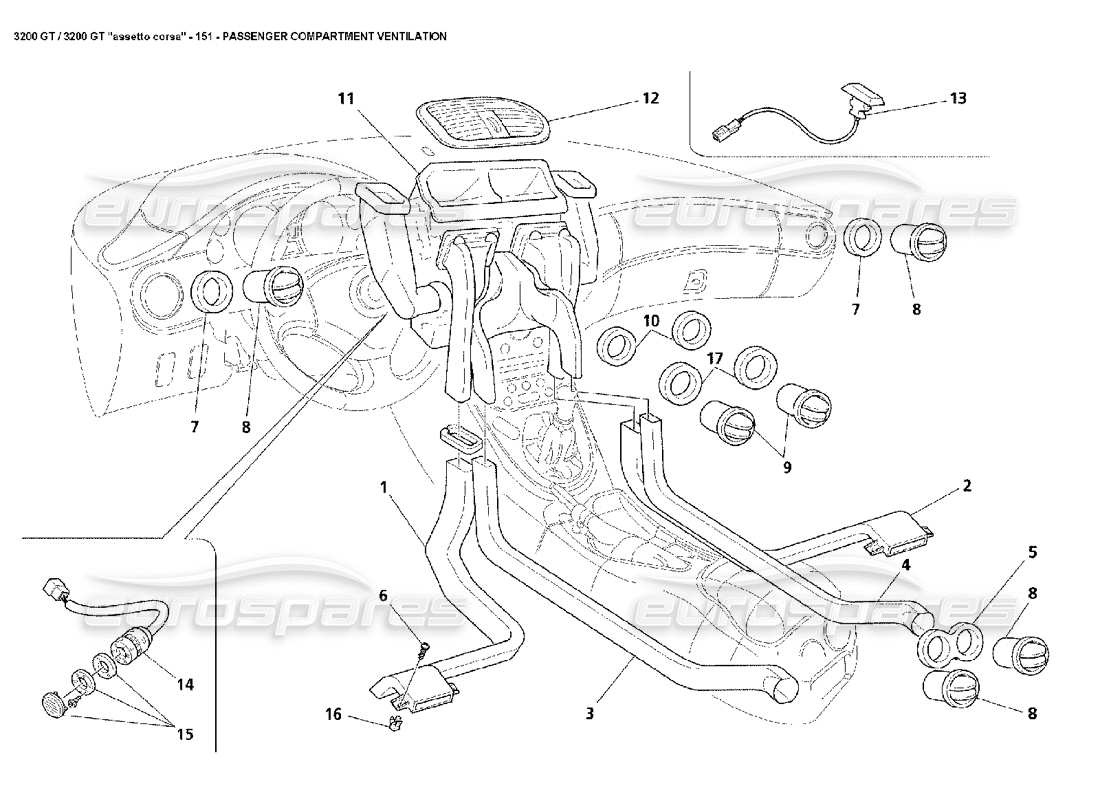

Maserati 3200 GT/GTA/Assetto Corsa Ventilation Cockpit Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 382300466
LH LATERAL AIR DUCTING
-Not for J-
from £27.59
from £27.59
# 001
MPN: 382300467
RH SIDE AIR DUCT
from £27.59
from £27.59
# 002
MPN: 382330466
RH SIDE AIR DUCT
-Only for J-
from £56.85
from £56.85
# 003
MPN: 382300150
AIR DUCT TO REAR NOZZLE
See also 382300352
from £99.49
from £99.49
This part replaces part number 382300352
# 003
MPN: 382300352
AIR DUCT TO REAR NOZZLE
-Only for J-
Supersession
Supersession
This part replaces part number 382300351
# 003
MPN: 382330352
AIR DUCT TO REAR NOZZLE
-Only for J-
Supersession
Supersession
This part replaces part number 382330351
# 004
MPN: 382300351
AIR DUCT TO REAR NOZZLE
-Not for J-
Supersession
Supersession
# 004
MPN: 382330351
AIR DUCT TO REAR NOZZLE
-Only for J-
Supersession
Supersession
# 005
MPN: 382300375
GASKET FOR REAR NOZZLE
from £2.00
from £2.00
# 006
MPN: 15530107
SCREW
from £2.56
from £2.56
# 007
MPN: 382300371
SIDE NOZZLE GASKET
-Valid for Manual Transmission - Only GS-
from £14.97
from £14.97
# 008
MPN: 382300802
SIDE DASHBOARD NOZZLE (BLACK SOFT) AND CONSOLLE
from £84.15
from £84.15
This part replaces part number 382300596
# 009
MPN: 382300800
CENTRE DASHBOARD NOZZLE (BLACK SOFT)
from £153.78
from £153.78
This part replaces part number 382300318
# 010
MPN: 382300372
CENTRE FRONT PANEL GASKET
from £3.59
from £3.59
# 011
MPN: 385500005

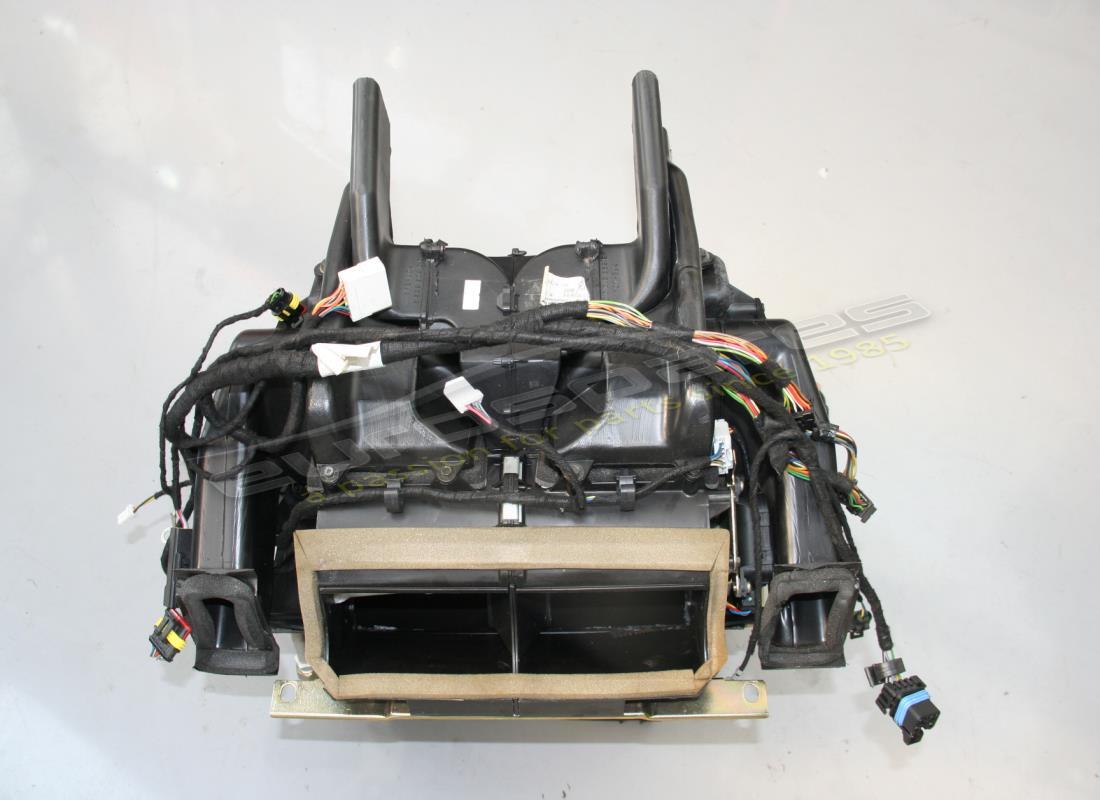

Air Conditioning Unit
-Only GS - Valid till Ass. Nr.3675-
from £1,115.00
from £1,115.00
# 011
MPN: 385500010
Air Conditioning Unit
-Only GS - Valid from Ass. Nr.3676-
from £1,306.57
from £1,306.57
# 011
MPN: 385510005
Air Conditioning Unit
-Only GD - Valid till Ass. Nr.4061-
from £645.03
from £645.03
# 011
MPN: 385510010
Air Conditioning Unit
-Only GD - Valid from Ass. Nr.4062-
from £857.99
from £857.99
# 012
MPN: 382300805
SOFT BLACK AIR DEFLECTOR CENT.DASHBOARD
from £163.84
from £163.84
This part replaces part number 382300325
# 013
MPN: 60663086
SOLAR SENSOR
from £56.58
from £56.58
This part replaces part number 60629310 - and 1 more. Click to view details
# 014
MPN: 385500199
INNER TEMPERATURE SENSOR
from £84.02
from £84.02
This part replaces part number 82488323
# 015
MPN: 375530050
PLATE KIT
from £5.76
from £5.76
# 016
MPN: 14202380
NUT SCREW
from £0.90
from £0.90
# 017
MPN: 382300803
CHROME AIR VENT SURROUND
from £80.86
from £80.86
This part replaces part number 382300444
