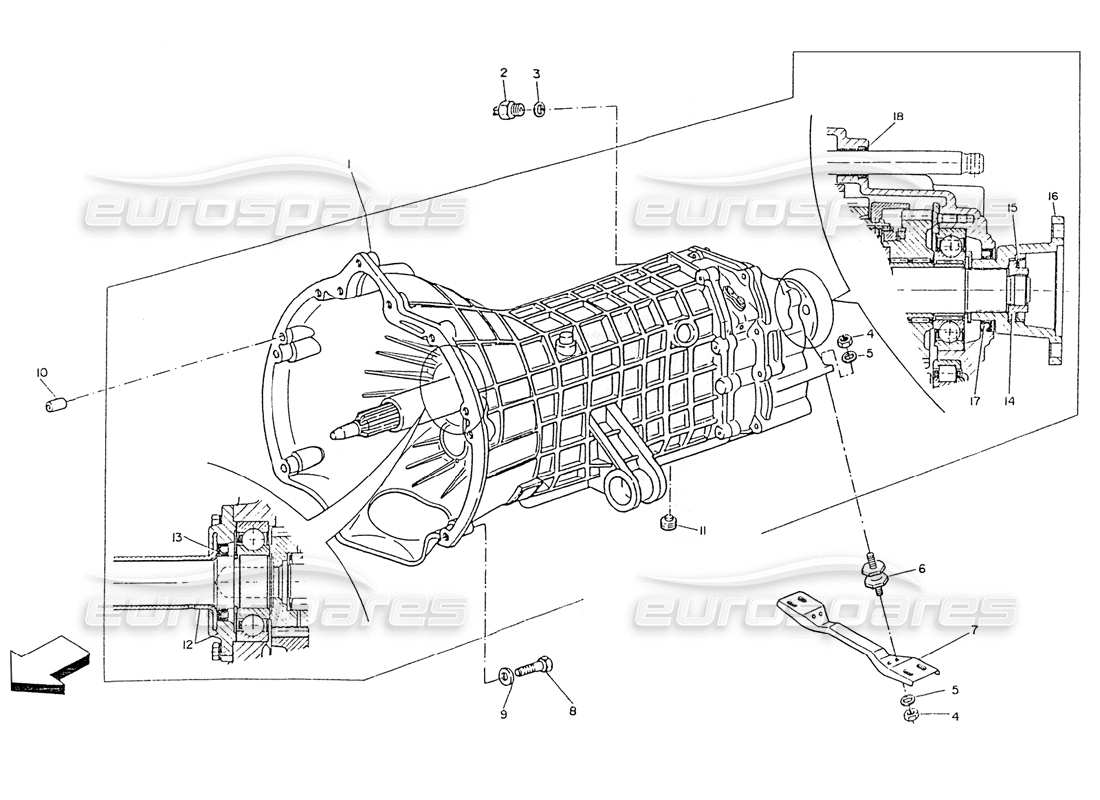

009 - Mechanical Gearbox, 6 Speed
Maserati Ghibli 2.8 (Non ABS) Mechanical Gearbox, 6 Speed Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 394850006
6-SPEED GEARBOX (GETRAG)
Valid for 01
Supersession
Supersession
# 002
MPN: 323353131
REVERSE GEAR SWITCH
Valid for 01
from £11.80
from £11.80
# 003
MPN: 317851380
GASKET
Valid for 01
# 004
MPN: 314632309
SELF LOCKING NUT
Valid for 01
Supersession
Supersession
This part replaces part number 128350080
# 005
MPN: 314855306
WASHER
Valid for 01
from £2.13
from £2.13
# 006
MPN: 324853120
SPRING MOUNT
Valid for 01
from £11.05
from £11.05
This part replaces part number 314855119 - and 1 more. Click to view details
# 007
MPN: 394850305
MOUNT
Valid for 01
from £155.44
from £155.44
# 008
MPN: 108010040
SCREW
Valid for 01
# 009
MPN: 138410100
UASHER
Valid for 01
# 010
MPN: 310420311
DOWEL
Valid for 01
from £9.50
from £9.50
# 011
MPN: 394850408
DRAIN PLUG MAGNETIC
Valid for 01
from £4.56
from £4.56
# 012
MPN: 394850410
COVER
Valid for 01
Supersession
Supersession
# 013
MPN: 394850412
OIL SEAL
Valid for 01
from £5.88
from £5.88
# 014
MPN: 394850415
FLANGE
Valid for 01
from £4.11
from £4.11
# 015
MPN: 394850417
SECURING SHIM
Valid for 01
from £24.49
from £24.49
# 016
MPN: 324253425
OUTPUT FLANGE
Valid for 01
# 017
MPN: 324853420
OIL SEAL
Valid for 01
from £13.77
from £13.77
# 018
MPN: 324353419
OIL SEAL
Valid for 01
