026 - Bodywork- Internal Frame

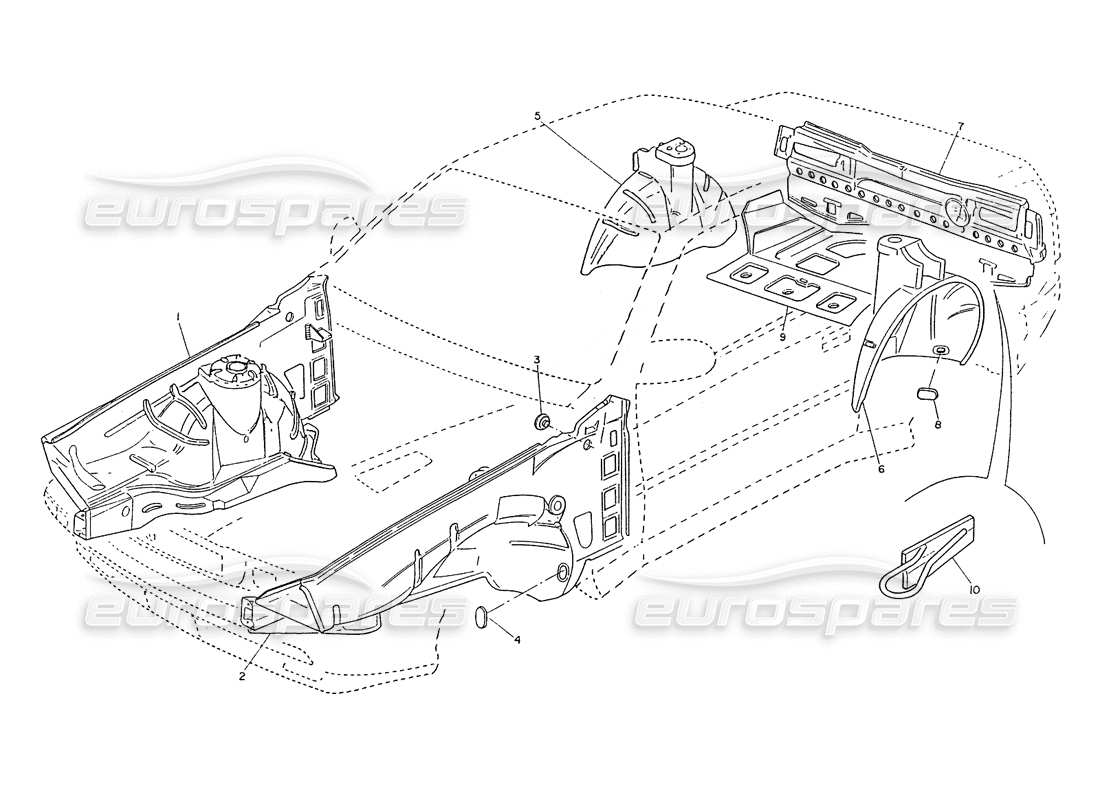

Maserati Ghibli 2.8 (Non ABS) Bodywork- Internal Frame Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 361300112
RH BODY SIDE FRONT SECTION ASSY
from £1,022.44
from £1,022.44
# 002
MPN: 361300111
LH BODY SIDE FRONT SECTION ASSY
from £1,038.43
from £1,038.43
# 003
MPN: 312120313
PLUG
from £1.07
from £1.07
# 004
MPN: 53211300
PLUG
Supersession
Supersession
# 005
MPN: 331320220
RH INSIDE REAR CASE, ASSY
from £147.99
from £147.99
# 006
MPN: 331320219
LH INSIDE REAR CASE, ASSY
from £155.79
from £155.79
# 007
MPN: 361300228
REAR COVERING ASSY
from £2,709.41
from £2,709.41
# 007
MPN: 361300228
REAR COVERING ASSY
from £2,709.41
from £2,709.41
# 008
MPN: 312120307
REAR WHEELHOUSE THROUGH HOLE PLUG
from £0.69
from £0.69
# 009
MPN: 311320191
TRUNK FLOOR
from £233.60
from £233.60
# 010
MPN: 361300237
REAR PINTLE
from £18.17
from £18.17
