ferrari 330 gtc coupe timing - controls parts diagram

010 - timing - controls

Ferrari 330 GTC Coupe Timing - Controls Parts Diagram

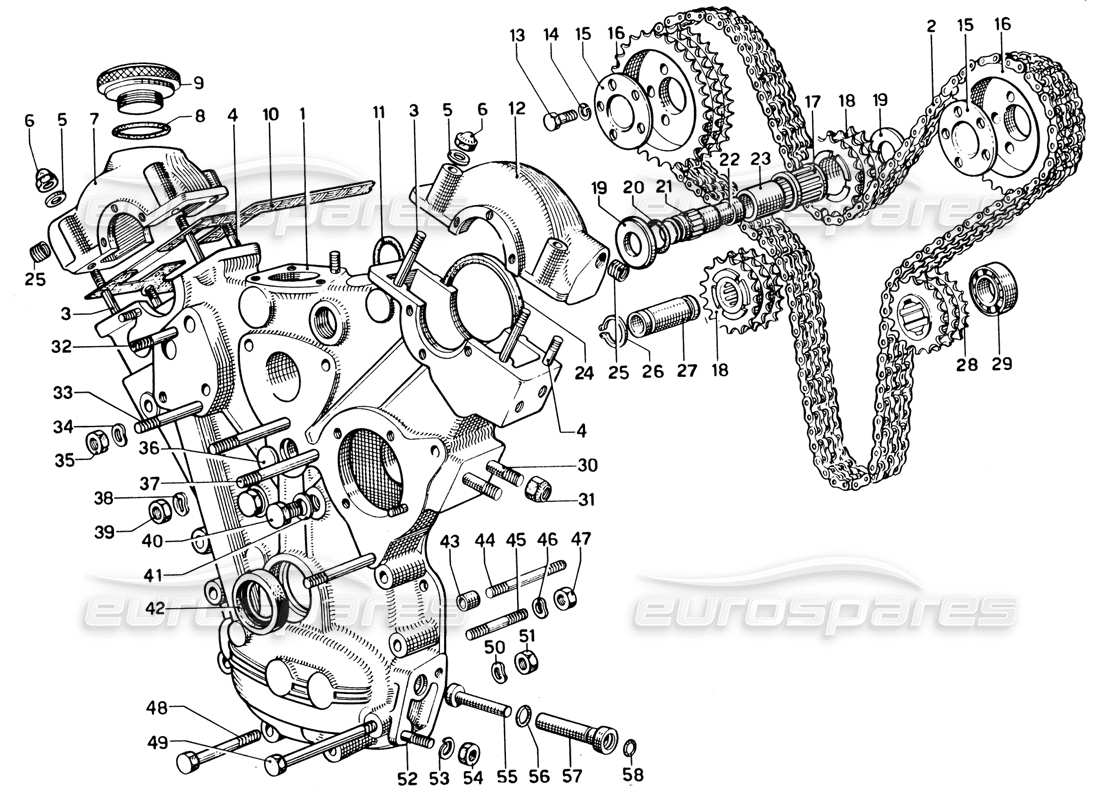

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                #
                                                                                                                Part number
                                                                                                                Description
                                                                                                                Key
                                                                                                                Price
                                                                                                                # 001
                                                                                                                MPN: 220023
                                                                                                                SCATOLA DISTRIBUZIONE
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                                # 002
                                                                                                                MPN: 22507
                                                                                                                CATENA COMANDO DISTRIBUZIONE
                                                                                                                (148 links)
                                                                                                                from £435.66
                                                                                                                from £435.66

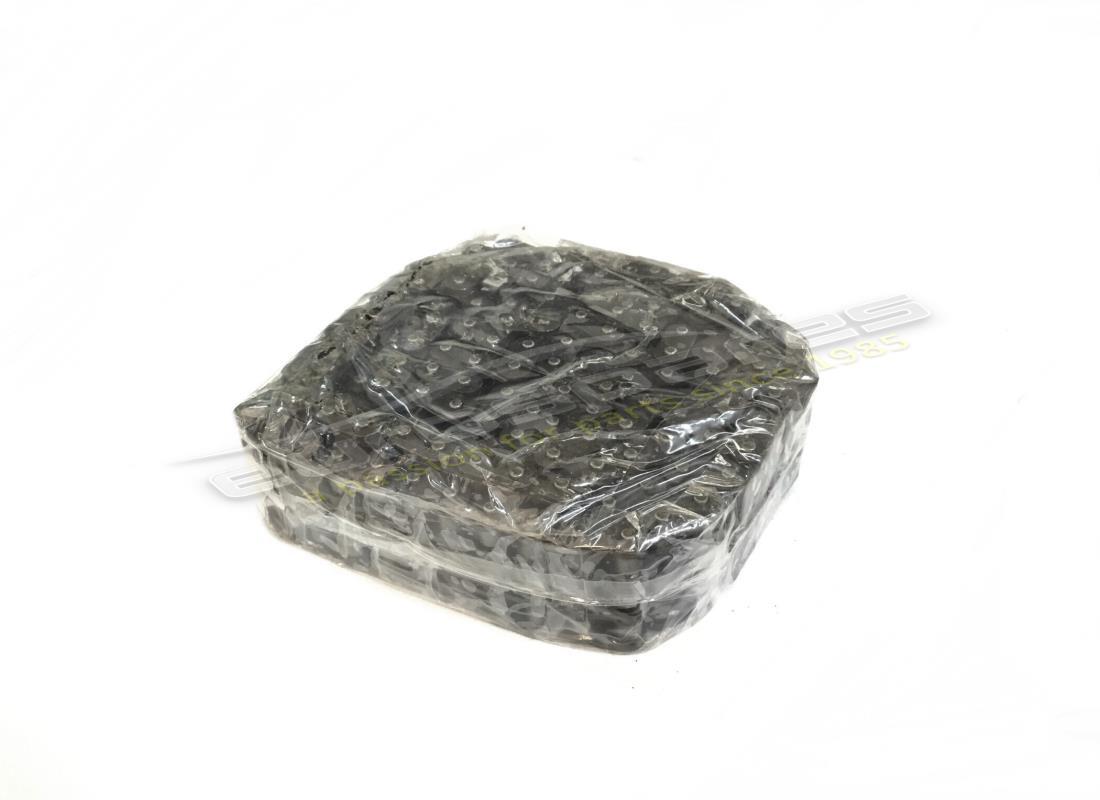

                                                                                                                330MK1+2 TRIPLEX TIMING CHAIN OE Genuine Ferrari Part - New In stock
                                                                                                                # 003
                                                                                                                MPN: 95920110
                                                                                                                STUD
                                                                                                                from £1.97
                                                                                                                from £1.97
                                                                                                                STUD 6X22 P1 Genuine Ferrari Part - New (to order)
                                                                                                                # 004
                                                                                                                MPN: 95920110
                                                                                                                STUD
                                                                                                                from £1.97
                                                                                                                from £1.97
                                                                                                                STUD 6X22 P1 Genuine Ferrari Part - New (to order)
                                                                                                                # 005
                                                                                                                MPN: 6R5
                                                                                                                WASHER
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                                # 006
                                                                                                                MPN: 101239
                                                                                                                NUT
                                                                                                                from £1.60
                                                                                                                from £1.60
                                                                                                                This part replaces part number 92310
                                                                                                                SELF-LOCKING DOMED NUT 6X12 Genuine Ferrari Part - New (to order)
                                                                                                                # 007
                                                                                                                MPN: 22993
                                                                                                                DISTRIBUTION HAT D.
                                                                                                                CAMCOVER END CAP Genuine Ferrari Part - New (to order)
                                                                                                                # 008
                                                                                                                MPN: 144
                                                                                                                OIL SEAL
                                                                                                                SEAL Genuine Ferrari Part - New (to order)
                                                                                                                # 009
                                                                                                                MPN: 9220028
                                                                                                                OIL CAP
                                                                                                                from £38.76
                                                                                                                from £38.76
                                                                                                                OIL FILLER CAP Genuine Ferrari Part - New (to order)
                                                                                                                # 010
                                                                                                                MPN: 9160479
                                                                                                                CAM COVER GASKET
                                                                                                                Alternative Use : FCCG009 Gasket kit
                                                                                                                from £36.00
                                                                                                                from £36.00
                                                                                                                This part replaces part number 17972

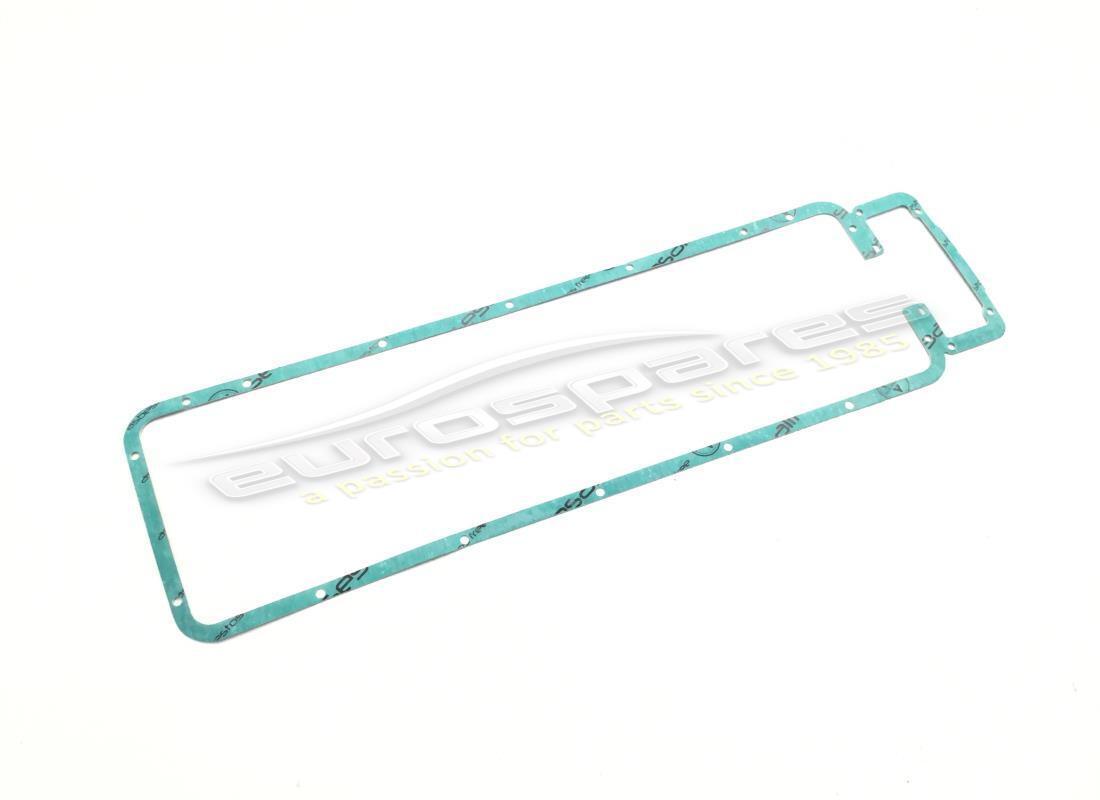

                                                                                                                CAM COVER GASKET Genuine Ferrari Part - New In stock
                                                                                                                # 011
                                                                                                                MPN: 22108
                                                                                                                SEAL
                                                                                                                from £16.35
                                                                                                                from £16.35
                                                                                                                O-RING RC TO TC OE Genuine Ferrari Part - New In stock
                                                                                                                # 012
                                                                                                                MPN: 220026
                                                                                                                DISTRIBUTION HAT S.
                                                                                                                Ferrari PART 220026 Genuine Ferrari Part - New (to order)
                                                                                                                # 013
                                                                                                                MPN: 92266
                                                                                                                BOLT
                                                                                                                from £23.45
                                                                                                                from £23.45
                                                                                                                CAMSHAFT SPROCKET RETAINING BOLT Genuine Ferrari Part - New (to order)
                                                                                                                # 014
                                                                                                                MPN: 8R4
                                                                                                                WASHER
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                                # 015
                                                                                                                MPN: 22575
                                                                                                                WHEEL RETAINING FLANGE
                                                                                                                from £66.44
                                                                                                                from £66.44
                                                                                                                CAM SPROCKET PLATE Genuine Ferrari Part - New (to order)
                                                                                                                # 016
                                                                                                                MPN: 22505
                                                                                                                WHEEL ON CAMSHAFT
                                                                                                                from £728.82
                                                                                                                from £728.82
                                                                                                                330 GT CAMSHAFT SPROCKET Genuine Ferrari Part - New (to order)
                                                                                                                330 GT CAMSHAFT SPROCKET Original Equipment - New (to order)
                                                                                                                # 017
                                                                                                                MPN: K 19x24x25,2
                                                                                                                GABBIA A RULLI
                                                                                                                GABBIA A RULLI Genuine Ferrari Part - New (to order)
                                                                                                                # 018
                                                                                                                MPN: 22710
                                                                                                                IDLER AND CHAIN ​​TENSIONER
                                                                                                                from £1,247.49
                                                                                                                from £1,247.49
                                                                                                                330 GT TIMING CHAIN SPROCKET Genuine Ferrari Part - New (to order)
                                                                                                                330 GT TIMING CHAIN SPROCKET Original Equipment - New (to order)
                                                                                                                # 019
                                                                                                                MPN: 22718
                                                                                                                SPACER
                                                                                                                from £94.89
                                                                                                                from £94.89
                                                                                                                TIMING SPROCKET SPACER Genuine Ferrari Part - New (to order)
                                                                                                                # 020
                                                                                                                MPN: 105329
                                                                                                                SEALING RING
                                                                                                                from £1.45
                                                                                                                from £1.45
                                                                                                                O-RING Genuine Ferrari Part - New In stock
                                                                                                                # 021
                                                                                                                MPN: BN. 15x14
                                                                                                                RING
                                                                                                                RING Genuine Ferrari Part - New (to order)
                                                                                                                # 022
                                                                                                                MPN: 22716
                                                                                                                PIVOT
                                                                                                                from £60.68
                                                                                                                from £60.68
                                                                                                                TMING IDLER GEAR PIN Genuine Ferrari Part - New (to order)
                                                                                                                # 023
                                                                                                                MPN: 22717
                                                                                                                CENTERING DOWEL
                                                                                                                from £96.28
                                                                                                                from £96.28
                                                                                                                IDLER GEAR BUSH Genuine Ferrari Part - New (to order)
                                                                                                                # 024
                                                                                                                MPN: 22108
                                                                                                                RUBBER GASKET
                                                                                                                from £16.35
                                                                                                                from £16.35
                                                                                                                O-RING RC TO TC OE Genuine Ferrari Part - New In stock
                                                                                                                # 025
                                                                                                                MPN: 10-BF 2
                                                                                                                BUSH
                                                                                                                BUSH Genuine Ferrari Part - New (to order)
                                                                                                                # 026
                                                                                                                MPN: AAe-19
                                                                                                                SEEGER RING
                                                                                                                SEEGER RING Genuine Ferrari Part - New (to order)
                                                                                                                # 027
                                                                                                                MPN: 22712
                                                                                                                PIVOT
                                                                                                                from £87.98
                                                                                                                from £87.98
                                                                                                                TIMING CHAIN IDLER GEAR BUSH Genuine Ferrari Part - New (to order)
                                                                                                                # 029
                                                                                                                MPN: 95890204
                                                                                                                CUSCINETTO A SFERE
                                                                                                                from £101.90
                                                                                                                from £101.90
                                                                                                                This part replaces part number 93457
                                                                                                                BALL RACE BEARING Genuine Ferrari Part - New (to order)
                                                                                                                # 030
                                                                                                                MPN: P 2
                                                                                                                GENERATOR PRISONERS
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                                # 032
                                                                                                                MPN: P 2
                                                                                                                THREADED STUD
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                                # 033
                                                                                                                MPN: P 2
                                                                                                                THREADED STUD
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                                # 034
                                                                                                                MPN: 8R 5
                                                                                                                WASHER
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                                # 035
                                                                                                                MPN: 1 D 8-UNI-210
                                                                                                                NUT
                                                                                                                NUT Genuine Ferrari Part - New (to order)
                                                                                                                # 036
                                                                                                                MPN: 10158700
                                                                                                                EXPANSION PLUG
                                                                                                                from £11.85
                                                                                                                from £11.85
                                                                                                                CORE PLUG OE Genuine Ferrari Part - New (to order)

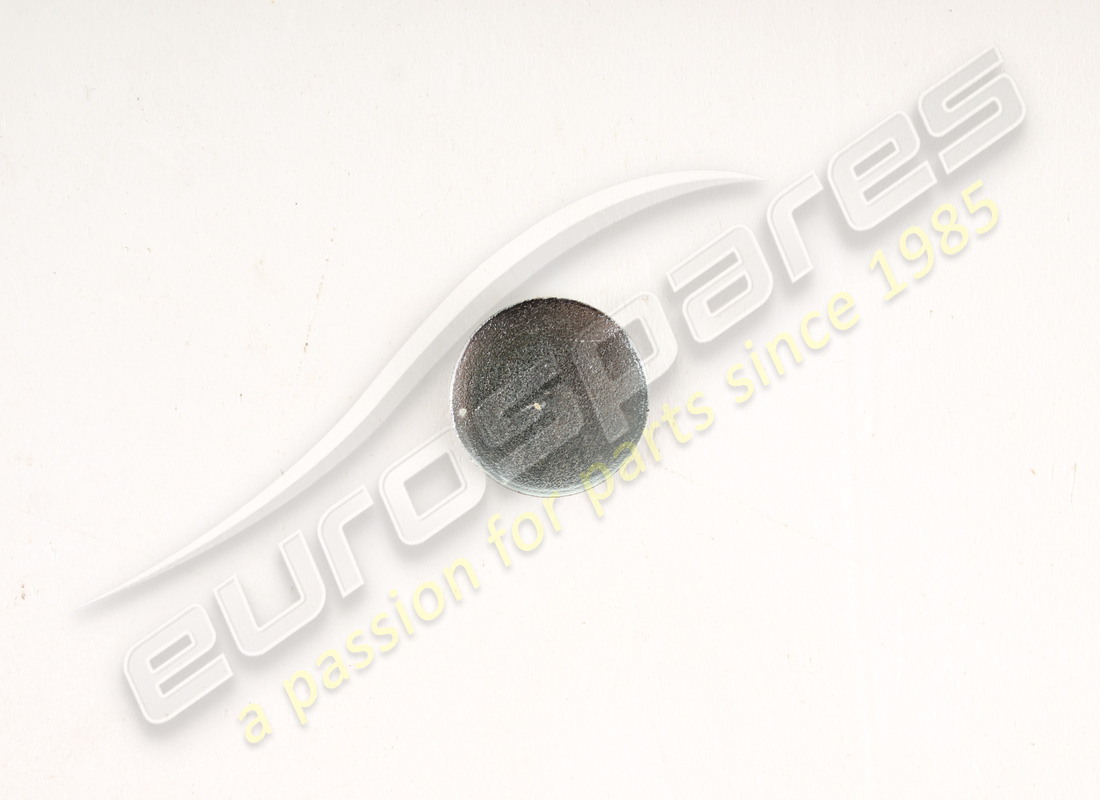

                                                                                                                CORE PLUG OE Eurospares Approved Part - New In stock
                                                                                                                # 037
                                                                                                                MPN: P 2
                                                                                                                STUD
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                                # 038
                                                                                                                MPN: 8R 5
                                                                                                                WASHER
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                                # 039
                                                                                                                MPN: 1 D 8-UNI 208
                                                                                                                NUT
                                                                                                                NUT Genuine Ferrari Part - New (to order)
                                                                                                                # 040
                                                                                                                MPN: 10x12 UNI 187
                                                                                                                BOLT
                                                                                                                BOLT Genuine Ferrari Part - New (to order)
                                                                                                                # 041
                                                                                                                MPN: 94385
                                                                                                                WASHER
                                                                                                                from £1.85
                                                                                                                from £1.85
                                                                                                                WASHER Genuine Ferrari Part - New (to order)
                                                                                                                # 042
                                                                                                                MPN: 95850302
                                                                                                                SEALING RING
                                                                                                                from £25.77
                                                                                                                from £25.77
                                                                                                                OIL SEAL OE Genuine Ferrari Part - New (to order)
                                                                                                                # 042
                                                                                                                MPN: MIM 4056
                                                                                                                SEALING RING
                                                                                                                not as spare part - use part number: 95850302
                                                                                                                SEALING RING Genuine Ferrari Part - New (to order)
                                                                                                                # 043
                                                                                                                MPN: 100041
                                                                                                                GRAIN FOR OIL PUMP
                                                                                                                from £4.66
                                                                                                                from £4.66
                                                                                                                DOWEL BOLT Genuine Ferrari Part - New (to order)
                                                                                                                # 044
                                                                                                                MPN: P 2
                                                                                                                STUD
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                                # 045
                                                                                                                MPN: P 2
                                                                                                                STUD
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                                # 046
                                                                                                                MPN: 8R 5
                                                                                                                WASHER
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                                # 047
                                                                                                                MPN: 1 D 8-UNI 208
                                                                                                                NUT
                                                                                                                NUT Genuine Ferrari Part - New (to order)
                                                                                                                # 048
                                                                                                                MPN: 8x80 UNI 184
                                                                                                                BOLT
                                                                                                                BOLT Genuine Ferrari Part - New (to order)
                                                                                                                # 049
                                                                                                                MPN: 8x100 UNI 184
                                                                                                                BOLT
                                                                                                                BOLT Genuine Ferrari Part - New (to order)
                                                                                                                # 050
                                                                                                                MPN: 8R 5
                                                                                                                WASHER
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                                # 051
                                                                                                                MPN: 1 D 8-UNI 208
                                                                                                                NUT
                                                                                                                NUT Genuine Ferrari Part - New (to order)
                                                                                                                # 052
                                                                                                                MPN: P 2
                                                                                                                THREADED STUD
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                                # 053
                                                                                                                MPN: 8R 5
                                                                                                                WASHER
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                                # 054
                                                                                                                MPN: 1 D 8-UNI 208
                                                                                                                NUT
                                                                                                                NUT Genuine Ferrari Part - New (to order)
                                                                                                                # 055
                                                                                                                MPN: 34380
                                                                                                                PUNTALINO
                                                                                                                from £45.26
                                                                                                                from £45.26
                                                                                                                FUEL PUMP DRIVE PIN Genuine Ferrari Part - New (to order)
                                                                                                                # 056
                                                                                                                MPN: 2037
                                                                                                                SEALING RING
                                                                                                                SEALING RING Genuine Ferrari Part - New (to order)
                                                                                                                # 058
                                                                                                                MPN: 95860041
                                                                                                                SEALING RING
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Ferrari Part (no longer available to order)
                                                                                                                # 058
                                                                                                                MPN: 95860041
                                                                                                                SEALING RING
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Ferrari Part (no longer available to order)
