027 - Pedal Board - Brake Control

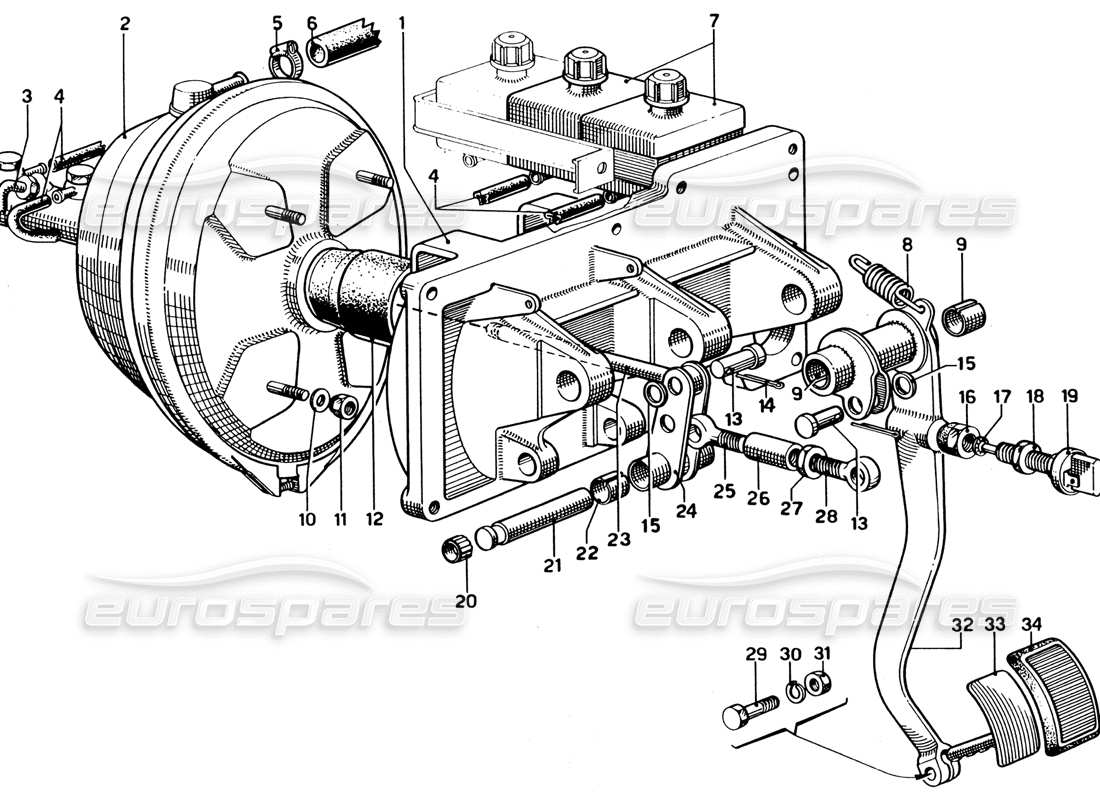

Ferrari 330 GTC Coupe Pedal Board - Brake Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 1246
PEDAL ASSEMBLY
# 001
MPN: 660466
SUPPORT
from £290.48
from £290.48
# 002
MPN: MC3111/2

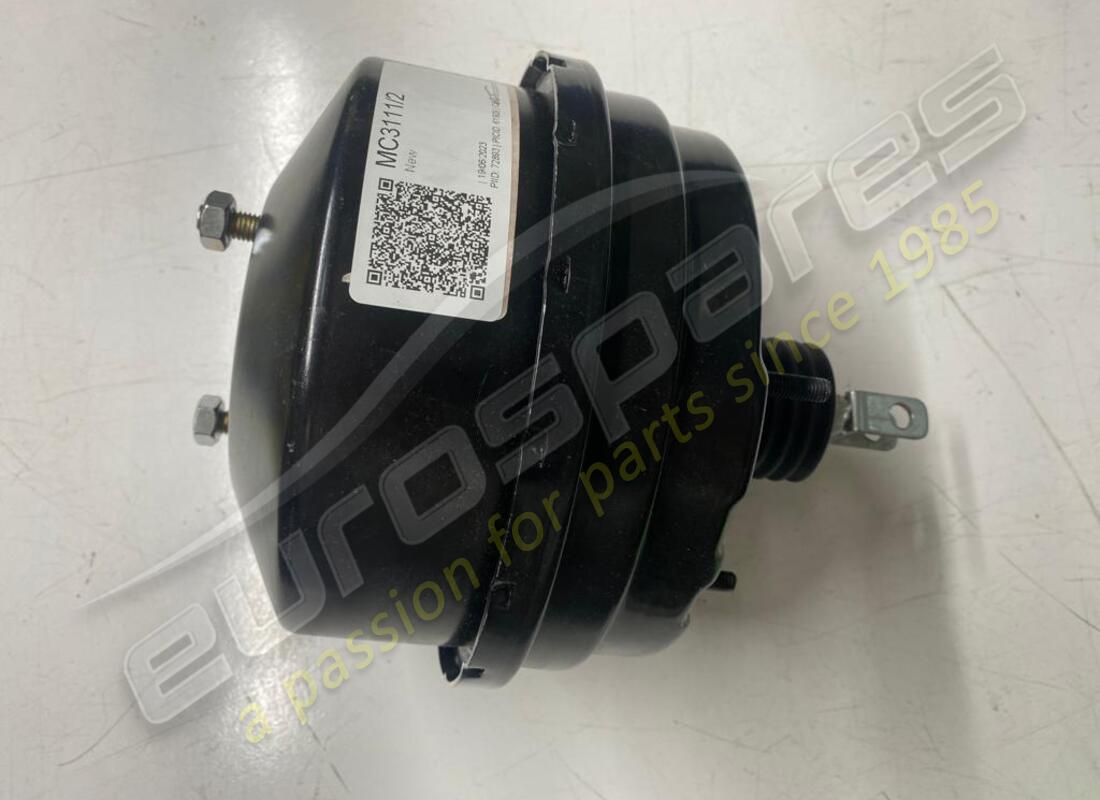

BRAKE SERVO UNIT
from £1,788.36
from £1,788.36
# 003
MPN: 680329
OIL PIPE ASSEMBLY FROM BRAKE TO FRONT 3 WAY
# 004
MPN: 680150
RUBBER HOSE FROM THE TANKS
Supersession
Supersession
# 005
MPN: 94101
HOSE CLAMP
Supersession
Supersession
# 006
MPN: 23x18
Rubber hose for brake booster
# 007
MPN: 103168

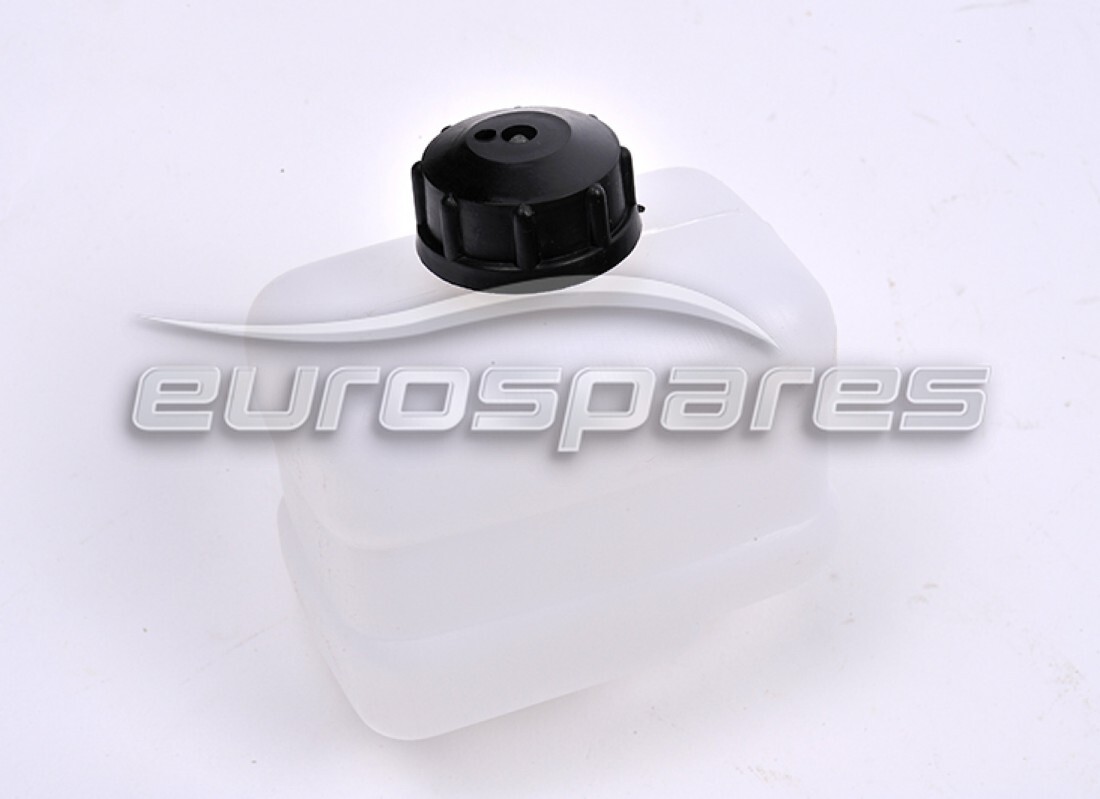

BRAKE OIL TANKS
from £68.08
from £68.08
This part replaces part number 660442 - and 1 more. Click to view details
# 008
MPN: 660343
SPRING
Supersession
Supersession
# 009
MPN: 1820 DU
BUSH
# 010
MPN: 8 R 3
WASHER
# 011
MPN: NC.A.M. 170
NUT
# 012
MPN: 660473
BRAKE SERVO REGISTER PROTECTION
from £4.39
from £4.39
# 013
MPN: 660169
PIVOT
from £15.49
from £15.49
# 014
MPN: C1
SPLIT PIN
Supersession
Supersession
# 015
MPN: 10 R 2
WASHER
# 016
MPN: 660523
NUT
Supersession
Supersession
# 017
MPN: 660525
WASHER
# 018
MPN: 660521
NUT
# 019
MPN: 101663
STOP LIGHT SWITCH (2 TERMINALS)
from £23.05
from £23.05
This part replaces part number 4177124 - and 13 more. Click to view details
# 020
MPN: BN 12x7
RING
# 021
MPN: 660333
PIVOT
from £11.70
from £11.70
# 022
MPN: 660347
BUSH
from £4.26
from £4.26
This part replaces part number 680347
# 023
MPN: 680239
TIE ROD
from £26.03
from £26.03
# 024
MPN: 660456
TRANSFER LEVER ASSEMBLY
from £61.42
from £61.42
# 025
MPN: 660462
TIE ROD
# 026
MPN: 660460
SLEEVE
from £12.36
from £12.36
# 027
MPN: 660459
NUT
from £3.30
from £3.30
# 028
MPN: 660461
TIE ROD
from £12.21
from £12.21
# 029
MPN: B2
BOLT
Supersession
Supersession
# 030
MPN: 8R4
WASHER
Supersession
Supersession
# 031
MPN: 1 D 8-UNI 208
NUT
# 032
MPN: 660464
BRAKE LEVER ASSEMBLY
from £107.38
from £107.38
# 033
MPN: 660517
BRAKE PEDAL ASSEMBLY
from £43.13
from £43.13
# 034
MPN: 102360
COPERTURA PEDALE FRENO
from £55.41
from £55.41
This part replaces part number 660469
