Ferrari 330 GTC Coupe Gearbox - Differential Parts Diagram

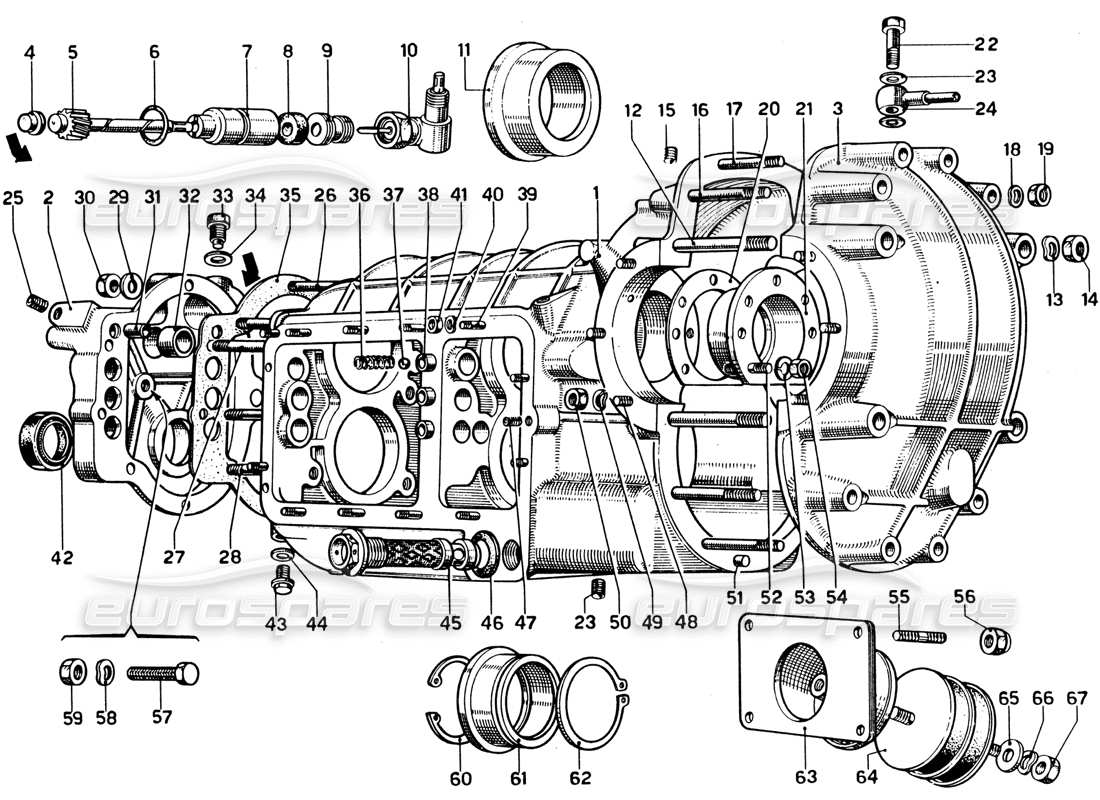

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                      #
                                                                                                                                      Part number
                                                                                                                                      Description
                                                                                                                                      Key
                                                                                                                                      Price
                                                                                                                                      # 001
                                                                                                                                      MPN: 1223
                                                                                                                                      OVERALL GEARBOX
                                                                                                                                      COMPLETE GEARBOX ASSY Genuine Ferrari Part - New (to order)
                                                                                                                                      # 001
                                                                                                                                      MPN: 521225
                                                                                                                                      SCATOLA CAMBIO
                                                                                                                                      GEARBOX CASING Genuine Ferrari Part - New (to order)
                                                                                                                                      # 004
                                                                                                                                      MPN: 101354
                                                                                                                                      THRUST BUTTON
                                                                                                                                      from £20.09
                                                                                                                                      from £20.09
                                                                                                                                      This part replaces part number 520708
                                                                                                                                      LOCATION PEG Genuine Ferrari Part - New (to order)
                                                                                                                                      # 005
                                                                                                                                      MPN: 520765
                                                                                                                                      PIGNONE CONTA KM. RAPP. 9/31 - 10/33
                                                                                                                                      from £95.83
                                                                                                                                      from £95.83
                                                                                                                                      SPEEDO DRIVE PINION 10/33 Genuine Ferrari Part - New (to order)
                                                                                                                                      # 005
                                                                                                                                      MPN: 520923
                                                                                                                                      SPEEDOMETER CONTROL PINION R. 9/32
                                                                                                                                      from £91.55
                                                                                                                                      from £91.55
                                                                                                                                      SPEEDO DRIVE PINION 9/32 Genuine Ferrari Part - New (to order)
                                                                                                                                      # 006
                                                                                                                                      MPN: 95860096
                                                                                                                                      SEALING RING
                                                                                                                                      from £2.88
                                                                                                                                      from £2.88
                                                                                                                                      O-RING Genuine Ferrari Part - New (to order)
                                                                                                                                      # 007
                                                                                                                                      MPN: 520704
                                                                                                                                      BODY FOR KM COUNT
                                                                                                                                      SPEEDO DRIVE HOUSING Genuine Ferrari Part - New (to order)
                                                                                                                                      # 009
                                                                                                                                      MPN: 520707
                                                                                                                                      UNION
                                                                                                                                      from £59.61
                                                                                                                                      from £59.61
                                                                                                                                      SPEEDO DRIVE HOUSING Genuine Ferrari Part - New (to order)
                                                                                                                                      # 010
                                                                                                                                      MPN: 101353
                                                                                                                                      ANGLE TRANSMISSION FOR ODOMETERS
                                                                                                                                      from £1,019.23
                                                                                                                                      from £1,019.23
                                                                                                                                      This part replaces part number 524541 - and 1 more. Click to view details
                                                                                                                                      ANGLE DRIVE Genuine Ferrari Part - New (to order)
                                                                                                                                      ANGLE DRIVE Genuine Ferrari Part - Used In stock
                                                                                                                                      CAP MISSING ON CASE (SEE PHOTOS)
                                                                                                                                      # 011
                                                                                                                                      MPN: 520696
                                                                                                                                      BUSH
                                                                                                                                      from £62.26
                                                                                                                                      from £62.26
                                                                                                                                      CARRIER Genuine Ferrari Part - New (to order)
                                                                                                                                      # 012
                                                                                                                                      MPN: P6
                                                                                                                                      THREADED STUD
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                                                      # 013
                                                                                                                                      MPN: 11198074
                                                                                                                                      WASHER 8 MM
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                                                                      WASHER Genuine Ferrari Part - New In stock
                                                                                                                                      TAPERED RUBBER WASHER D8.5-15X1.8 Genuine Maserati Part - New (to order)
                                                                                                                                      # 015
                                                                                                                                      MPN: 14326150
                                                                                                                                      PLUG FOR CROWN OIL HOLE
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      This part replaces part number 12326150
                                                                                                                                      PLUG Genuine Ferrari Part - New (to order)
                                                                                                                                      TAPERED THREADED PLUG D.8X1.2 Genuine Maserati Part - New (to order)
                                                                                                                                      # 016
                                                                                                                                      MPN: P6
                                                                                                                                      THREADED STUD
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                                                      # 017
                                                                                                                                      MPN: P6
                                                                                                                                      THREADED STUD
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                                                      # 020
                                                                                                                                      MPN: 520692
                                                                                                                                      RING
                                                                                                                                      from £56.45
                                                                                                                                      from £56.45
                                                                                                                                      SHIM REFER TO SIZES /1 TO /12 Genuine Ferrari Part - New (to order)
                                                                                                                                      # 021
                                                                                                                                      MPN: 520693
                                                                                                                                      SEAT FOR BEARING
                                                                                                                                      from £76.52
                                                                                                                                      from £76.52
                                                                                                                                      CARRIER Genuine Ferrari Part - New (to order)
                                                                                                                                      # 022
                                                                                                                                      MPN: 92929
                                                                                                                                      UNION
                                                                                                                                      from £48.66
                                                                                                                                      from £48.66
                                                                                                                                      BANJO BOLT OIL Genuine Ferrari Part - New (to order)
                                                                                                                                      # 024
                                                                                                                                      MPN: 92575
                                                                                                                                      ADJUSTABLE FOR VENT
                                                                                                                                      from £22.57
                                                                                                                                      from £22.57
                                                                                                                                      BANJO BOLT Genuine Ferrari Part - New (to order)
                                                                                                                                      # 025
                                                                                                                                      MPN: 14326150
                                                                                                                                      PLUG FOR OIL DUCT
                                                                                                                                      from £0.50
                                                                                                                                      from £0.50
                                                                                                                                      This part replaces part number 12326150
                                                                                                                                      PLUG Genuine Ferrari Part - New (to order)
                                                                                                                                      TAPERED THREADED PLUG D.8X1.2 Genuine Maserati Part - New (to order)
                                                                                                                                      # 026
                                                                                                                                      MPN: P 2
                                                                                                                                      THREADED STUD
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                                                      # 027
                                                                                                                                      MPN: P 2
                                                                                                                                      THREADED STUD
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                                                      # 028
                                                                                                                                      MPN: 95054
                                                                                                                                      THREADED STUD
                                                                                                                                      from £2.99
                                                                                                                                      from £2.99
                                                                                                                                      STUD BOLT Genuine Ferrari Part - New In stock
                                                                                                                                      # 029
                                                                                                                                      MPN: 8R 5
                                                                                                                                      WASHER
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                                                      # 031
                                                                                                                                      MPN: 100041
                                                                                                                                      CENTERING DOWEL
                                                                                                                                      from £4.66
                                                                                                                                      from £4.66
                                                                                                                                      DOWEL BOLT Genuine Ferrari Part - New (to order)
                                                                                                                                      # 032
                                                                                                                                      MPN: 520686
                                                                                                                                      SEAT FOR SEAL RING
                                                                                                                                      from £17.97
                                                                                                                                      from £17.97
                                                                                                                                      BUSH Genuine Ferrari Part - New (to order)
                                                                                                                                      # 033
                                                                                                                                      MPN: 520709
                                                                                                                                      BOLT
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                                                      # 034
                                                                                                                                      MPN: 8R 5
                                                                                                                                      WASHER
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                                                      # 035
                                                                                                                                      MPN: 520648
                                                                                                                                      GASKET
                                                                                                                                      from £8.62
                                                                                                                                      from £8.62
                                                                                                                                      GASKET OE Genuine Ferrari Part - New In stock
                                                                                                                                      BOLT 3/8 UNF X 6 Genuine Aston Martin - New (to order)
                                                                                                                                      # 036
                                                                                                                                      MPN: 53684
                                                                                                                                      SPRING
                                                                                                                                      from £33.45
                                                                                                                                      from £33.45
                                                                                                                                      SELECTOR SPRING Genuine Ferrari Part - New In stock
                                                                                                                                      # 038
                                                                                                                                      MPN: 52123
                                                                                                                                      BOCCOLINA PER MOLLA
                                                                                                                                      DETENT SPRING HOUSING Genuine Ferrari Part - New (to order)
                                                                                                                                      # 039
                                                                                                                                      MPN: 95920110
                                                                                                                                      THREADED STUD
                                                                                                                                      from £1.97
                                                                                                                                      from £1.97
                                                                                                                                      STUD 6X22 P1 Genuine Ferrari Part - New (to order)
                                                                                                                                      # 040
                                                                                                                                      MPN: 6R5
                                                                                                                                      WASHER
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                                                      # 042
                                                                                                                                      MPN: 2540
                                                                                                                                      SEALING RING
                                                                                                                                      SEALING RING Genuine Ferrari Part - New (to order)
                                                                                                                                      # 043
                                                                                                                                      MPN: TF2
                                                                                                                                      Cap for rod rollers
                                                                                                                                      Cap for rod rollers Genuine Ferrari Part - New (to order)
                                                                                                                                      # 045
                                                                                                                                      MPN: 520687
                                                                                                                                      COMPLESSIVO FILTRO OLIO
                                                                                                                                      from £249.11
                                                                                                                                      from £249.11
                                                                                                                                      This part replaces part number 522410
                                                                                                                                      GEARBOX DRAIN PLUG/FILTER OE Genuine Ferrari Part - New (to order)
                                                                                                                                      # 046
                                                                                                                                      MPN: 520161
                                                                                                                                      GASKET
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                                                      # 047
                                                                                                                                      MPN: 14326150
                                                                                                                                      RM OIL CAP
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      This part replaces part number 12326150
                                                                                                                                      PLUG Genuine Ferrari Part - New (to order)
                                                                                                                                      TAPERED THREADED PLUG D.8X1.2 Genuine Maserati Part - New (to order)
                                                                                                                                      # 048
                                                                                                                                      MPN: P6
                                                                                                                                      THREADED STUD
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                                                      # 049
                                                                                                                                      MPN: 8R4
                                                                                                                                      WASHER
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                                                      # 051
                                                                                                                                      MPN: GC2
                                                                                                                                      Rear cover grain
                                                                                                                                      Rear cover grain Genuine Ferrari Part - New (to order)
                                                                                                                                      # 052
                                                                                                                                      MPN: P 2
                                                                                                                                      STUD
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                                                      # 053
                                                                                                                                      MPN: 8R4
                                                                                                                                      WASHER
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                                                      # 055
                                                                                                                                      MPN: P 2
                                                                                                                                      STUD
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                                                      # 056
                                                                                                                                      MPN: 110MB
                                                                                                                                      NUT
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                                                      # 057
                                                                                                                                      MPN: 12x45 UNI188
                                                                                                                                      BOLT
                                                                                                                                      BOLT Genuine Ferrari Part - New (to order)
                                                                                                                                      # 059
                                                                                                                                      MPN: 12x1.5 UNI 208
                                                                                                                                      NUT
                                                                                                                                      NUT Genuine Ferrari Part - New (to order)
                                                                                                                                      # 060
                                                                                                                                      MPN: 520694
                                                                                                                                      SEEGER RING
                                                                                                                                      from £11.03
                                                                                                                                      from £11.03
                                                                                                                                      INTERNAL CIRCLIP Genuine Ferrari Part - New (to order)
                                                                                                                                      # 061
                                                                                                                                      MPN: 520691
                                                                                                                                      SEAT FOR BEARING
                                                                                                                                      from £32.76
                                                                                                                                      from £32.76
                                                                                                                                      CARRIER Genuine Ferrari Part - New In stock
                                                                                                                                      # 062
                                                                                                                                      MPN: 520695
                                                                                                                                      SEEGER RING
                                                                                                                                      from £23.18
                                                                                                                                      from £23.18
                                                                                                                                      EXTERNAL CIRCLIP Genuine Ferrari Part - New (to order)
                                                                                                                                      # 063
                                                                                                                                      MPN: 523213
                                                                                                                                      Zampa suppoto cambio
                                                                                                                                      Zampa suppoto cambio Genuine Ferrari Part - New (to order)
                                                                                                                                      # 064
                                                                                                                                      MPN: 131251
                                                                                                                                      SUPPORT MOUNT
                                                                                                                                      (90 mm diameter)
                                                                                                                                      from £116.03
                                                                                                                                      from £116.03
                                                                                                                                      This part replaces part number 100825 - and 1 more. Click to view details
                                                                                                                                      ENGINE MOUNTING OD 86MM Genuine Ferrari Part - New In stock
                                                                                                                                      # 065
                                                                                                                                      MPN: 10R1
                                                                                                                                      WASHER
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                                                      # 066
                                                                                                                                      MPN: 10R4
                                                                                                                                      WASHER
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                                                      # 067
                                                                                                                                      MPN: 95009
                                                                                                                                      NUT
                                                                                                                                      from £0.88
                                                                                                                                      from £0.88
                                                                                                                                      This part replaces part number 95900703
                                                                                                                                      NUT Genuine Ferrari Part - New (to order)
