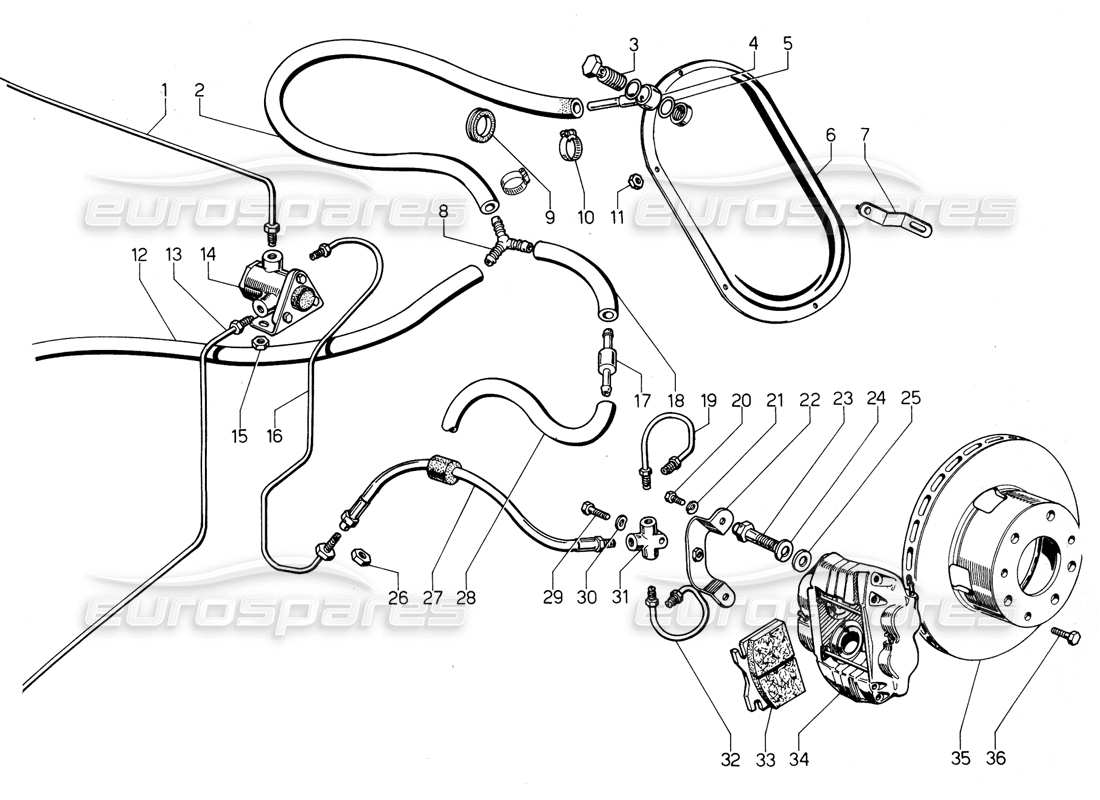

Lamborghini Urraco P300 Rear Brakes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
003211423
Hose from regulator to right hose
#
002
MPN:
003211467
Hose from vacuum tank to 3 way
#
003
MPN:
003201511
BOLT
from
£28.98
from
£28.98
#
004
MPN:
003204607
UNION
from
£64.35
from
£64.35
#
005
MPN:
003101513
WASHER
from
£0.97
from
£0.97
#
006
MPN:
003204974
VACUM TANK
from
£166.92
from
£166.92
#
007
MPN:
003211470
FASCETTA FISSAGGIO SERBATOIO VACUUM
from
£5.31
from
£5.31
#
008
MPN:
003208361
UNION 3-WAY
from
£5.39
from
£5.39
#
009
MPN:
008612505
GOMMINODI PROTEZIONE
from
£3.70
from
£3.70
#
010
MPN:
008830205
JUBILEE CLIP
from
£4.27
from
£4.27
#
011
MPN:
N0211963
NUT
from
£0.53
from
£0.53
#
012
MPN:
003211466
HOSE FROM 3 WAY TO THE BRAKE SERVO
#
013
MPN:
003211424
HOSE FROM PRESSURE REGULATOR TO BRAKE SERVO
#
014
MPN:
003211515
PRESSURE REGULATOR
from
£186.56
from
£186.56
#
015
MPN:
008200804
NUT
from
£0.73
from
£0.73
#
016
MPN:
003211428
HOSE FROM REGULATOR TO LEFT HOSE
from
£10.87
from
£10.87
#
017
MPN:
003209326
VALVOLA DI NON RITORNO
from
£44.45
from
£44.45
#
018
MPN:
003211468
PIPE / TUBE / HOSE
#
019
MPN:
003208687
HOSE FROM CALIPER TO FITTING
from
£408.75
from
£408.75
#
020
MPN:
008100631
BOLT
from
£0.53
from
£0.53
#
021
MPN:
008410603
WASHER
Supersession
Supersession
#
022
MPN:
003208690
SUPPORT
from
£32.39
from
£32.39
#
023
MPN:
008101224
BOLT
from
£10.87
from
£10.87
#
024
MPN:
008411303
WASHER
from
£1.80
from
£1.80
#
025
MPN:
008401305
WASHER
from
£0.54
from
£0.54
#
026
MPN:
008201014
NUT
from
£3.86
from
£3.86
#
027
MPN:
003208683
FLEXIBLE PIPE
from
£31.20
from
£31.20
#
028
MPN:
003211469
Pipe from non-return valve B' engine
#
029
MPN:
008100629
BOLT
from
£0.53
from
£0.53
#
030
MPN:
008410602
WASHER
from
£28.28
from
£28.28
#
031
MPN:
003208682
UNION 3-WAY
from
£34.66
from
£34.66
#
032
MPN:
003208686
HOSE FROM CALIPER TO FITTING
from
£240.38
from
£240.38
#
033
MPN:
003207473
PASTGILA
#
034
MPN:
003206922

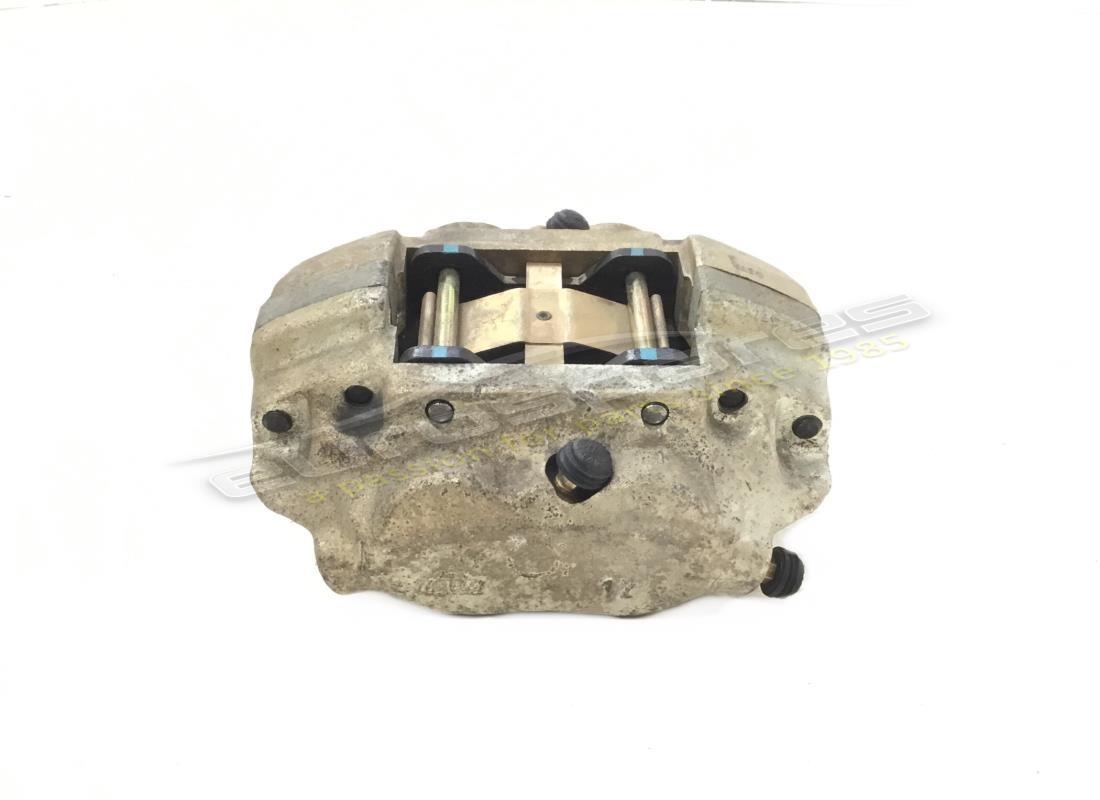

RIGHT CALIPER FOR REAR BRAKES
from
£795.00
from
£795.00
#
034
MPN:
003206923

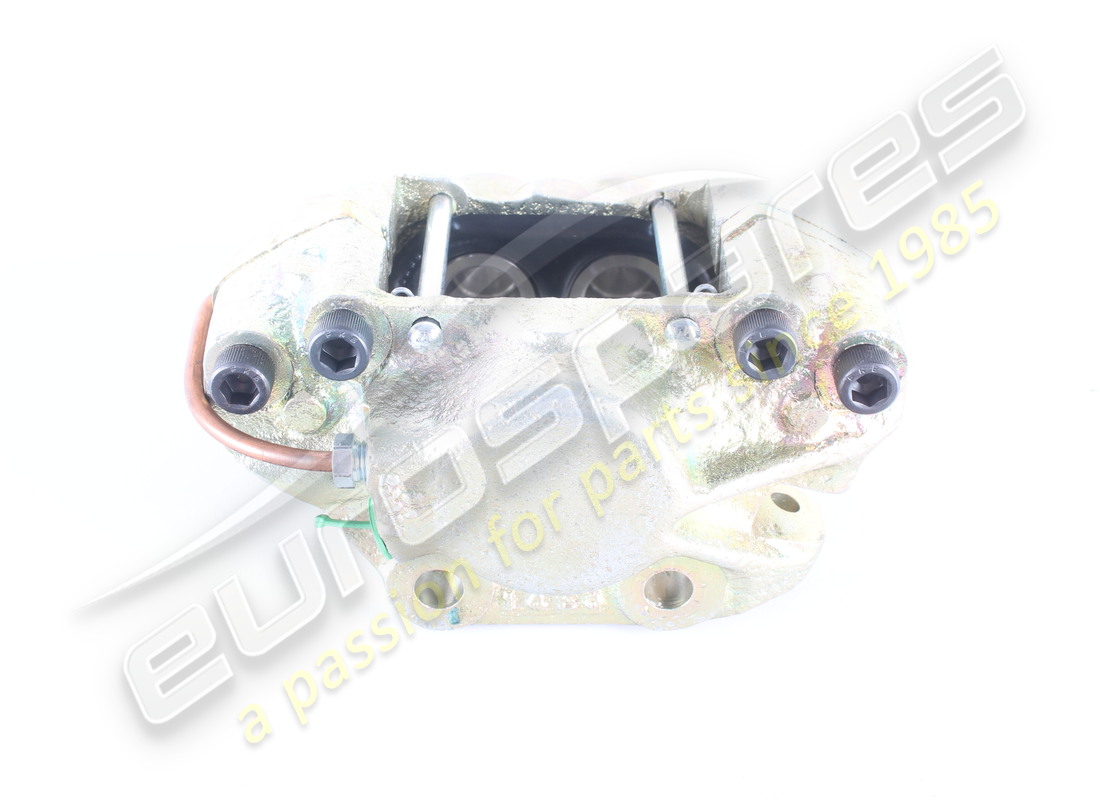

LEFT REAR BRAKE CALIPER
from
£691.22
from
£691.22
#
035
MPN:
003106919
BRAKE DISC
from
£985.69
from
£985.69
#
036
MPN:
N01029315
BOLT
from
£0.82
from
£0.82
