007 - injection device - ignition

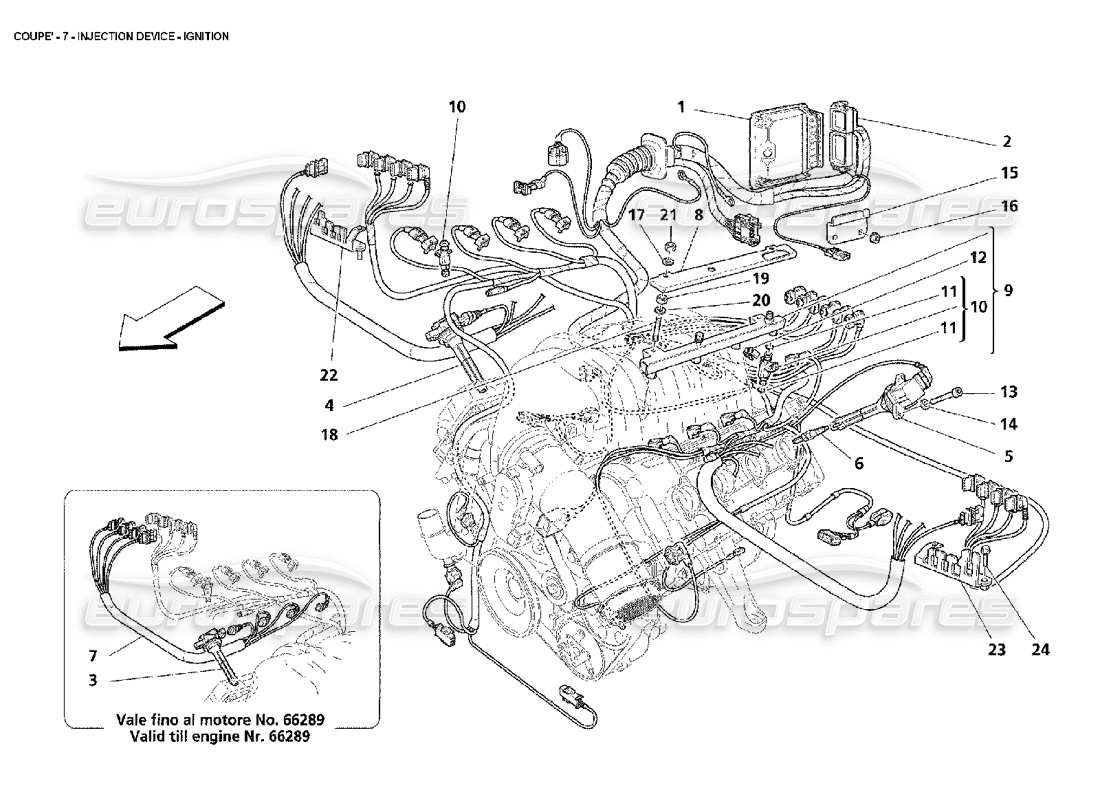

Maserati 4200 Coupe (2002) Injection Device - Ignition Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
180251
CONTROL UNIT IGNITION
- Valid for F1 - Not for USA and CDN - Valid for GS till car Ass. Nr. 9679 - Valid for GD till car Ass. Nr. 9695
from
£797.81
from
£797.81
This part replaces part number 192657 which we have in stock
- and 29 more. Click to view details
#
001
MPN:
180251
CONTROL UNIT IGNITION
from
£797.81
from
£797.81
This part replaces part number 192657 which we have in stock
- and 29 more. Click to view details
#
001
MPN:
188634
IGNITION CONTROL ECU
from
£687.17
from
£687.17
#
001
MPN:
193588
CONTROL UNIT IGNITION
- Not for F1 - Not for USA and CDN - Valid for GS till car Ass. Nr. 9679 - Valid for GD till car Ass. Nr. 9695
from
£1,401.48
from
£1,401.48
#
001
MPN:
193592
CONTROL UNIT IGNITION
- Valid for F1 - Valid for USA and CDN
Supersession
Supersession
#
001
MPN:
194723
CONTROL UNIT IGNITION
- Valid for F1 - Not for USA and CDN - Valid for GS from car Ass. Nr. 9680 - Valid for GD from car Ass. Nr. 9696
from
£708.75
from
£708.75
#
001
MPN:
194724
CONTROL UNIT IGNITION
- Not for F1 - Not for USA and CDN - Valid for GS from car Ass. Nr. 9680 - Valid for GD from car Ass. Nr. 9696
Supersession
Supersession
#
001
MPN:
198865
CONTROL UNIT IGNITION
from
£861.00
from
£861.00
#
002
MPN:
190041
IGNITION DEVICE CABLES
- Valid for USA and CDN
from
£653.52
from
£653.52
#
002
MPN:
191271
INJECTION DEVICE CABLES
- Not for USA, CDN and GD - Valid till car Ass. Nr. 9679
from
£644.88
from
£644.88
This part replaces part number 187684
#
002
MPN:
191275
INJECTION DEVICE CABLES
- Valid for GD - Valid till car Ass. Nr. 9695
from
£597.00
from
£597.00
#
002
MPN:
195032
INJECTION DEVICE CABLES
- Not for USA, CDN and GD - Valid from car Ass. Nr. 9680
from
£2,306.40
from
£2,306.40
#
002
MPN:
195034
INJECTION DEVICE CABLES
- Valid for GD - Valid from car Ass. Nr. 9696
from
£686.18
from
£686.18
#
003
MPN:
186915
IGNITION COIL
- Valid till engine Nr. 66289
from
£66.46
from
£66.46
#
004
MPN:
188504
FRONT IGNITION COIL
- Complete of cable - Valid from engine Nr. 66290
from
£57.87
from
£57.87
#
005
MPN:
186914
REAR IGNITION COIL
- Complete of cable - Valid from engine Nr. 66290
from
£57.87
from
£57.87
#
006
MPN:
192637
SPARK PLUG
from
£14.31
from
£14.31
This part replaces part number 168325 which we have in stock
- and 1 more. Click to view details
#
007
MPN:
189549
RH HEAD SIDE CABLE
- Valid till engine Nr. 66289
from
£75.02
from
£75.02
#
007
MPN:
189550
LH HEAD SIDE CABLE
- Valid till engine Nr. 66289
from
£75.02
from
£75.02
#
008
MPN:
189123
RH FLAUTES FUEL COVER
from
£11.73
from
£11.73
This part replaces part number 187172
- and 1 more. Click to view details
#
008
MPN:
189124
LH FLAUTES FUEL COVER
from
£11.73
from
£11.73
This part replaces part number 187171
- and 1 more. Click to view details
#
009
MPN:
180257
COMPLETE LH INJECTORS PIPE
from
£289.91
from
£289.91
This part replaces part number 181293
- and 1 more. Click to view details
#
009
MPN:
181292
COMPLETE RH INJECTORS PIPE
from
£289.91
from
£289.91
This part replaces part number 181294
- and 1 more. Click to view details
#
010
MPN:
171723

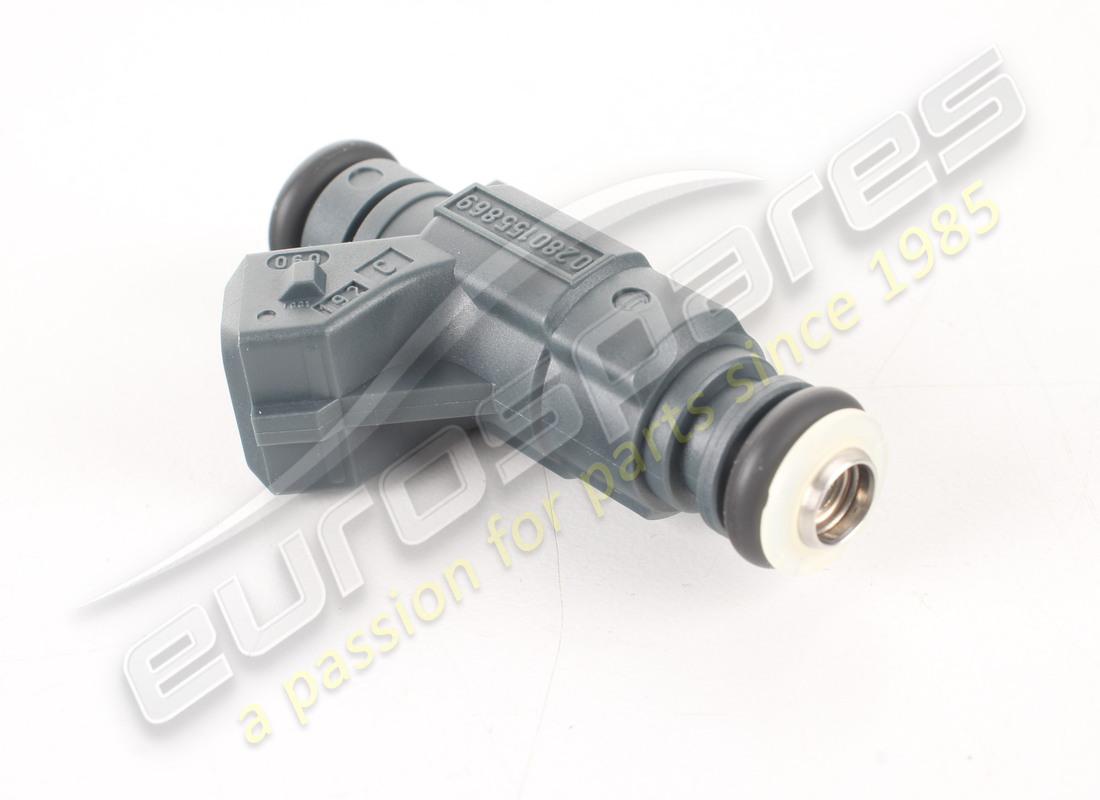

ELECTRO-INJECTOR
See also 197808
from
£133.03
from
£133.03
This part replaces part number 197808
#
010
MPN:
197808
ELECTRO-INJECTOR
from
£143.82
from
£143.82
This part replaces part number 171723 which we have in stock
#
011
MPN:
133902
O.R. GASKET
from
£3.29
from
£3.29
#
012
MPN:
144730
INJECTORS RETAINING CLIP
from
£2.13
from
£2.13
#
013
MPN:
14305324
SCREW
from
£0.48
from
£0.48
This part replaces part number 14305321
#
014
MPN:
11197774
WASHER
from
£0.52
from
£0.52
#
015
MPN:
66313100
MOTRONIC BRACKET
from
£3.58
from
£3.58
#
016
MPN:
14084211
NUT
from
£0.71
from
£0.71
This part replaces part number 14084217
#
017
MPN:
11193874
WASHER
from
£0.53
from
£0.53
#
018
MPN:
13516924
STUD
from
£1.24
from
£1.24
#
019
MPN:
16102314
NUT
from
£0.47
from
£0.47
#
020
MPN:
12604474
WASHER
from
£0.53
from
£0.53
This part replaces part number 12604479
#
021
MPN:
14042321
CAP NUT
from
£1.30
from
£1.30
This part replaces part number 14042311
#
022
MPN:
190009
RH BRACKET FOR COIL CABLES
from
£6.40
from
£6.40
#
023
MPN:
190010
LH BRACKET FOR COIL CABLES
from
£6.40
from
£6.40
#
024
MPN:
18750121
SCREW
from
£0.53
from
£0.53
-part-diagram-008.webp "MASERATI 4200 COUPE (2002) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-009.webp "MASERATI 4200 COUPE (2002) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-010.webp "MASERATI 4200 COUPE (2002) FUEL TANKS AND UNION PARTS DIAGRAM")
-part-diagram-011.webp "MASERATI 4200 COUPE (2002) ANTIEVAPORATION DEVICE -NOT FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-012.webp "MASERATI 4200 COUPE (2002) ANTIEVAPORATION DEVICE -VALID FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-013.webp "MASERATI 4200 COUPE (2002) AIR INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-014.webp "MASERATI 4200 COUPE (2002) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "MASERATI 4200 COUPE (2002) EXHAUST SYSTEM -VARIATIONS FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-016.webp "MASERATI 4200 COUPE (2002) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "MASERATI 4200 COUPE (2002) LUBRICATION SYSTEM - TANK - HEATER EXCHANGER PARTS DIAGRAM")
-part-diagram-018.webp "MASERATI 4200 COUPE (2002) WATER-OIL PUMP PARTS DIAGRAM")
-part-diagram-019.webp "MASERATI 4200 COUPE (2002) NOURICE - COOLING SYSTEM -NOT FOR GD PARTS DIAGRAM")
-part-diagram-020.webp "MASERATI 4200 COUPE (2002) NOURICE - COOLING SYSTEM -VALID FOR GD PARTS DIAGRAM")
-part-diagram-021.webp "MASERATI 4200 COUPE (2002) COOLING SYSTEM RADIATOR PARTS DIAGRAM")
-part-diagram-022.webp "MASERATI 4200 COUPE (2002) CLUTCH AND CONTROLS -NOT FOR F1 PARTS DIAGRAM")
-part-diagram-023.webp "MASERATI 4200 COUPE (2002) CLUTCH AND CONTROLS -VALID FOR F1 PARTS DIAGRAM")
-part-diagram-024.webp "MASERATI 4200 COUPE (2002) PEDALS AND ELECTRONIC ACCELERATOR CONTROL -NOT FOR GD PARTS DIAGRAM")
-part-diagram-025.webp "MASERATI 4200 COUPE (2002) PEDALS AND ELECTRONIC ACCELERATOR CONTROL -VALID FOR GD PARTS DIAGRAM")
-part-diagram-026.webp "MASERATI 4200 COUPE (2002) F1 CLUTCH HYDRAULIC CONTROLS -VALID FOR F1 PARTS DIAGRAM")
-part-diagram-027.webp "MASERATI 4200 COUPE (2002) POWER UNIT AND TANK -VALID FOR F1 PARTS DIAGRAM")
-part-diagram-028.webp "MASERATI 4200 COUPE (2002) GEARBOX - COVER - GEARBOX OIL RADIATOR PARTS DIAGRAM")
-part-diagram-029.webp "MASERATI 4200 COUPE (2002) DIFFERENTIAL BOX - REAR UNDERBODY PARTS DIAGRAM")
-part-diagram-030.webp "MASERATI 4200 COUPE (2002) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "MASERATI 4200 COUPE (2002) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "MASERATI 4200 COUPE (2002) INNER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "MASERATI 4200 COUPE (2002) OUTER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "MASERATI 4200 COUPE (2002) ENGINE-TRANSMISSION CONNECTION TUBE AND INSULATIONS PARTS DIAGRAM")
-part-diagram-035.webp "MASERATI 4200 COUPE (2002) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-036.webp "MASERATI 4200 COUPE (2002) BRAKES AND CLUTCH HYDRAULIC CONTROLS PARTS DIAGRAM")
-part-diagram-037.webp "MASERATI 4200 COUPE (2002) BRAKING SYSTEM -NOT FOR GD PARTS DIAGRAM")
-part-diagram-038.webp "MASERATI 4200 COUPE (2002) BRAKING SYSTEM -VALID FOR GD PARTS DIAGRAM")
-part-diagram-039.webp "MASERATI 4200 COUPE (2002) BRAKE CALIPERS PARTS DIAGRAM")
-part-diagram-040.webp "MASERATI 4200 COUPE (2002) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-041.webp "MASERATI 4200 COUPE (2002) FRONT UNDER FRAME AND UNDERMOTOR SHIELDS PARTS DIAGRAM")
-part-diagram-042.webp "MASERATI 4200 COUPE (2002) STEERING BOX PARTS DIAGRAM")
-part-diagram-043.webp "MASERATI 4200 COUPE (2002) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-044.webp "MASERATI 4200 COUPE (2002) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "MASERATI 4200 COUPE (2002) FRONT SUSPENSION - WISHBONES AND STABILIZER BAR PARTS DIAGRAM")
-part-diagram-046.webp "MASERATI 4200 COUPE (2002) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISK PARTS DIAGRAM")
-part-diagram-047.webp "MASERATI 4200 COUPE (2002) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "MASERATI 4200 COUPE (2002) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "MASERATI 4200 COUPE (2002) SPARE WHEEL AND EQUIPMENT -OPTIONAL PARTS DIAGRAM")
-part-diagram-050.webp "MASERATI 4200 COUPE (2002) BATTERY PARTS DIAGRAM")
-part-diagram-051.webp "MASERATI 4200 COUPE (2002) CURRENT GENERATOR-STARTING MOTOR PARTS DIAGRAM")
-part-diagram-052.webp "MASERATI 4200 COUPE (2002) TOOLS EQUIPMENT AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-100.webp "MASERATI 4200 COUPE (2002) BODY - FRONT OUTER TRIMS PARTS DIAGRAM")
-part-diagram-101.webp "MASERATI 4200 COUPE (2002) BODY CENTRAL OUTER TRIMS PARTS DIAGRAM")
-part-diagram-102.webp "MASERATI 4200 COUPE (2002) BODY REAR OUTER TRIMS PARTS DIAGRAM")
-part-diagram-103.webp "MASERATI 4200 COUPE (2002) FRONT STRUCTURE PARTS DIAGRAM")
-part-diagram-104.webp "MASERATI 4200 COUPE (2002) CENTRAL STRUCTURE PARTS DIAGRAM")
-part-diagram-105.webp "MASERATI 4200 COUPE (2002) REAR STRUCTURE PARTS DIAGRAM")
-part-diagram-106.webp "MASERATI 4200 COUPE (2002) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-107.webp "MASERATI 4200 COUPE (2002) REAR BUMPER PARTS DIAGRAM")
-part-diagram-108.webp "MASERATI 4200 COUPE (2002) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-109.webp "MASERATI 4200 COUPE (2002) TRUNK HOOD COMPARTMENT TRIMS - AIR INLET AND HEATH SHIELDS PARTS DIAGRAM")
-part-diagram-110.webp "MASERATI 4200 COUPE (2002) ROOF PANEL UPHOLSTERY AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-111.webp "MASERATI 4200 COUPE (2002) INNER COVERING - CENTRAL AND FRONT POST COVERING - SIDE RAIL COVER PARTS DIAGRAM")
-part-diagram-112.webp "MASERATI 4200 COUPE (2002) INNER COVERINGS - POST COVERING AND REAR MOULDING PARTS DIAGRAM")
-part-diagram-113.webp "MASERATI 4200 COUPE (2002) INNER COVERINGS - REAR UNDER WINDOW PANEL PARTS DIAGRAM")
-part-diagram-114.webp "MASERATI 4200 COUPE (2002) ENGINE BONNET AND OPENING DEVICE PARTS DIAGRAM")
-part-diagram-115.webp "MASERATI 4200 COUPE (2002) TRUNK HOOD BONNET AND GAS DOOR PARTS DIAGRAM")
-part-diagram-116.webp "MASERATI 4200 COUPE (2002) DOORS - FRAMEWORK AND COVERINGS PARTS DIAGRAM")
-part-diagram-117.webp "MASERATI 4200 COUPE (2002) DOORS - OPENING CONTROL AND HINGES PARTS DIAGRAM")
-part-diagram-118.webp "MASERATI 4200 COUPE (2002) DOORS - POWER WINDOW AND REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-119.webp "MASERATI 4200 COUPE (2002) GLASSES - GASKETS AND INNER REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-120.webp "MASERATI 4200 COUPE (2002) FRONT SEAT AND SEAT BELTS PARTS DIAGRAM")
-part-diagram-121.webp "MASERATI 4200 COUPE (2002) FRONT SEAT - GUIDE AND MOVEMENT PARTS DIAGRAM")
-part-diagram-122.webp "MASERATI 4200 COUPE (2002) REAR SEAT AND SEAT BELT PARTS DIAGRAM")
-part-diagram-123.webp "MASERATI 4200 COUPE (2002) DASHBOARD -NOT FOR GD PARTS DIAGRAM")
-part-diagram-124.webp "MASERATI 4200 COUPE (2002) DASHBOARD -VALID FOR GD PARTS DIAGRAM")
-part-diagram-125.webp "MASERATI 4200 COUPE (2002) DASHBOARD DRAWER PARTS DIAGRAM")
-part-diagram-126.webp "MASERATI 4200 COUPE (2002) TUNNEL - FRAMEWORK AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-127.webp "MASERATI 4200 COUPE (2002) AIR-BAGS PARTS DIAGRAM")
-part-diagram-128.webp "MASERATI 4200 COUPE (2002) DASHBOARD INSTRUMENTS PARTS DIAGRAM")
-part-diagram-129.webp "MASERATI 4200 COUPE (2002) TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-130.webp "MASERATI 4200 COUPE (2002) FRONT AND REAR LIGHTS PARTS DIAGRAM")
-part-diagram-131.webp "MASERATI 4200 COUPE (2002) XENON HEADLIGHTS AND WASHER -OPTIONAL PARTS DIAGRAM")
-part-diagram-132.webp "MASERATI 4200 COUPE (2002) SHIELDS AND OUTSIDE FINISHING PARTS DIAGRAM")
-part-diagram-133.webp "MASERATI 4200 COUPE (2002) WINDSHIELD - GLASS WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-134.webp "MASERATI 4200 COUPE (2002) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-135.webp "MASERATI 4200 COUPE (2002) ENGINE BONNET SENSOR AND CONTROL STATIONS PARTS DIAGRAM")
-part-diagram-136.webp "MASERATI 4200 COUPE (2002) FRONT PASSENGERS COMPARTMENT CONTROL STATION PARTS DIAGRAM")
-part-diagram-137.webp "MASERATI 4200 COUPE (2002) PASSENGERS SIDE CONTROL UNITS PARTS DIAGRAM")
-part-diagram-138.webp "MASERATI 4200 COUPE (2002) RH SIDE TRUNK BONNET SENSOR AND CONTROL UNITS PARTS DIAGRAM")
-part-diagram-139.webp "MASERATI 4200 COUPE (2002) LH SIDE TRUNK BONNET CONTROL UNIT PARTS DIAGRAM")
-part-diagram-140.webp "MASERATI 4200 COUPE (2002) ANTI THEFT ELECTRICAL BOARDS AND DEVICES PARTS DIAGRAM")
-part-diagram-141.webp "MASERATI 4200 COUPE (2002) IMMOBILIZER KIT PARTS DIAGRAM")
-part-diagram-142.webp "MASERATI 4200 COUPE (2002) EVAPORATOR GROUP PARTS DIAGRAM")
-part-diagram-143.webp "MASERATI 4200 COUPE (2002) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-144.webp "MASERATI 4200 COUPE (2002) CAR STEREO SYSTEM PARTS DIAGRAM")
-part-diagram-145.webp "MASERATI 4200 COUPE (2002) STEREO EQUIPMENT - ACCESORIES PARTS DIAGRAM")
-part-diagram-146.webp "MASERATI 4200 COUPE (2002) PLATES PARTS DIAGRAM")
-part-diagram-000.webp "MASERATI 4200 COUPE (2002) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-001.webp "MASERATI 4200 COUPE (2002) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "MASERATI 4200 COUPE (2002) CRANKSHAFT CONRODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "MASERATI 4200 COUPE (2002) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-004.webp "MASERATI 4200 COUPE (2002) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-005.webp "MASERATI 4200 COUPE (2002) TIMING - TAPPETS PARTS DIAGRAM")
-part-diagram-006.webp "MASERATI 4200 COUPE (2002) TIMING - CONTROLS PARTS DIAGRAM")
