022 - Overdrive and Gearbox Clamping

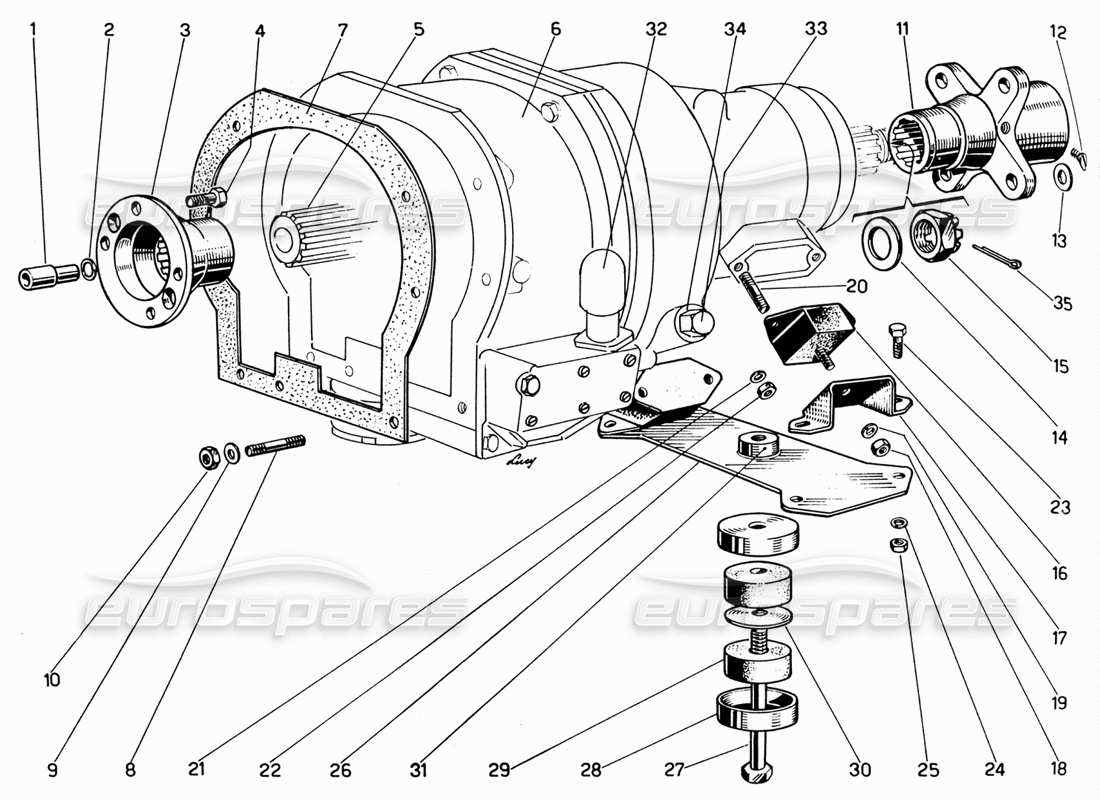

Ferrari 330 GT 2+2 Overdrive and Gearbox Clamping Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 55922
UNION
from £10.05
from £10.05
# 002
MPN: OR 108
SEALING RING
not as spare part - use part number: 95860004
# 003
MPN: 55924
FLANGE WITH CLUTCH CONNECTING GEARBOX TO THE OV
from £74.04
from £74.04
# 004
MPN: 57000
BOLT
# 005
MPN: 520549
ALBERO FRA CAMBIO ED O.V
from £168.56
from £168.56
# 006
MPN: Autotrass.
OVERDRIVE 64-28,6% CON 12 MOLLE
# 007
MPN: 55737
GASKET OR SEAL
from £1.52
from £1.52
This part replaces part number 520074
# 008
MPN: 94824
STUD
# 009
MPN: 8115
WASHER
# 010
MPN: 8D4
NUT
# 011
MPN: 57333
FLANGE ON THE OV FOR SAGA JOINT
from £845.13
from £845.13
# 012
MPN: 59230
SCREW
# 013
MPN: 94076
GASKET OR SEAL
from £0.75
from £0.75
# 014
MPN: 94771
WASHER
from £0.71
from £0.71
# 015
MPN: 94773
NUT
# 016
MPN: 520925
TAMPONE LATERALE SULL'O.V.
from £205.80
from £205.80
# 017
MPN: 55778
SQUADRETTA PORTA TAMPONE SULL'O.V
from £10.35
from £10.35
# 018
MPN: 2 D-5/16
NUT
# 019
MPN: 8R4
WASHER
Supersession
Supersession
# 020
MPN: 94676
STUD
# 021
MPN: 81141
WASHER
# 022
MPN: 95900412
NUT
from £6.36
from £6.36
This part replaces part number 92401
# 023
MPN: UNI 188
BOLT
# 024
MPN: 81141
WASHER
# 025
MPN: 95900412
NUT
from £6.36
from £6.36
This part replaces part number 92401
# 026
MPN: 620288
PIASTRA ANCORA IO SU ORTO CAMBIO
from £117.34
from £117.34
# 027
MPN: 94777
BOLT
from £87.23
from £87.23
# 028
MPN: 53136
SCODELLINO PER TAMPONE
Supersession
Supersession
# 029
MPN: 53135
TAMPONE SOSPENSIONE CAMBIO
from £32.67
from £32.67
# 030
MPN: 55335
DISTANZIALE FRA TAMPONI SOSTEGNO CAMBIO
from £6.56
from £6.56
# 031
MPN: 620307
BUSSOLA FILETTATA PER PIASTRA ANCORAGGIO
# 032
MPN: 7615 F
SONENOIDE COMANDO O.V
# 033
MPN: 22 T f 1
OIL CAP
# 034
MPN: 22 Gr 2
GASKET OR SEAL
