ferrari 430 challenge (2006) lay shaft gears parts diagram

027 - Lay Shaft Gears

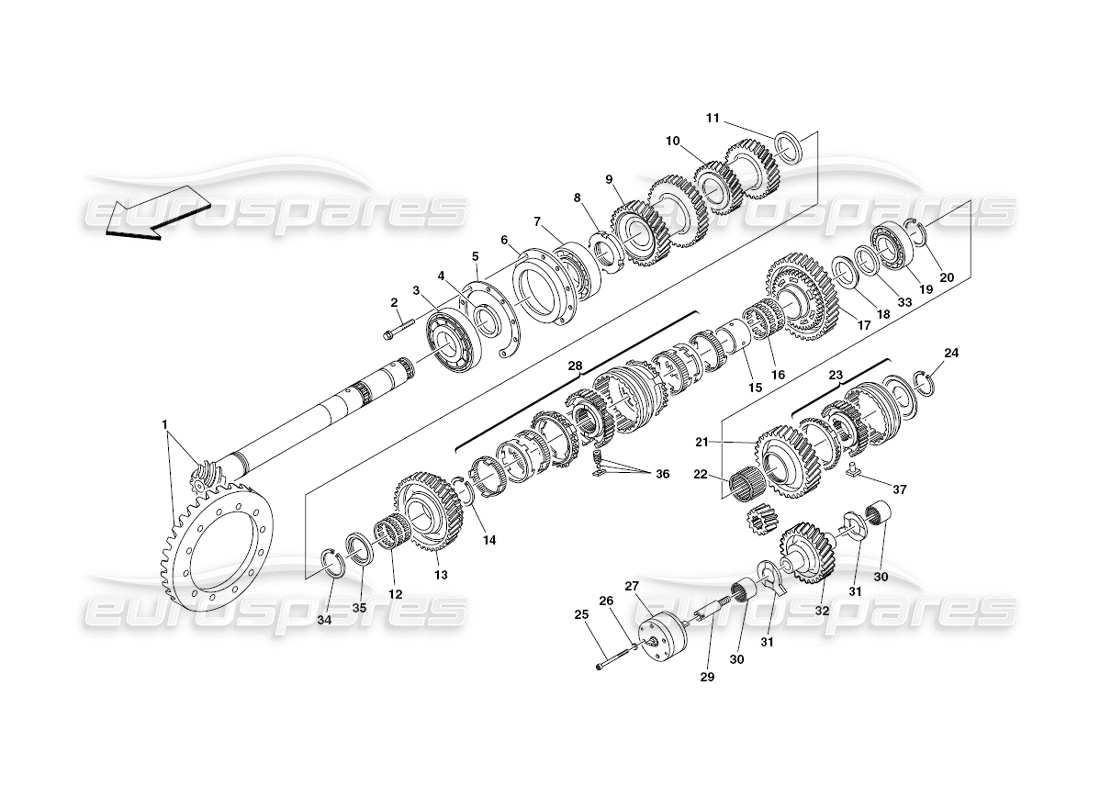

Ferrari 430 Challenge (2006) Lay Shaft Gears Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Key
                                                                  Price
                                                                  # 001
                                                                  MPN: 220949
                                                                  COMPETE BEVEL SET
                                                                  from £3,097.20
                                                                  from £3,097.20
                                                                  COMPLETE BEVEL SET Genuine Ferrari Part - New (to order)
                                                                  # 002
                                                                  MPN: 16287730
                                                                  SCREW
                                                                  from £2.87
                                                                  from £2.87
                                                                  SCREW Genuine Ferrari Part - New In stock
                                                                  FLANGED HEX HEAD SCREW M8X1.25X50 Genuine Maserati Part - New (to order)
                                                                  # 003
                                                                  MPN: 185022
                                                                  ROLLER BEARING
                                                                  from £85.26
                                                                  from £85.26
                                                                  ROLLER BEARING Genuine Ferrari Part - New (to order)
                                                                  TAPERED ROLLER BEARING 45X100X27 Genuine Maserati Part - New (to order)
                                                                  # 004
                                                                  MPN: 185045
                                                                  REGISTER RING
                                                                  -Thickness mm. 7,10-
                                                                  from £21.86
                                                                  from £21.86
                                                                  REGISTER RING Genuine Ferrari Part - New (to order)
                                                                  BEARING RING Genuine Maserati Part - New (to order)
                                                                  # 004
                                                                  MPN: 185046
                                                                  REGISTER RING
                                                                  -Thickness mm. 6,4- -Possible fitting-
                                                                  from £21.86
                                                                  from £21.86
                                                                  REGISTER RING Genuine Ferrari Part - New (to order)
                                                                  BEARING RING Genuine Maserati Part - New In stock
                                                                  # 004
                                                                  MPN: 185047
                                                                  REGISTER RING
                                                                  -Thickness mm. 6,0- -Possible fitting-
                                                                  from £21.86
                                                                  from £21.86
                                                                  REGISTER RING Genuine Ferrari Part - New (to order)
                                                                  BEARING RING Genuine Maserati Part - New In stock
                                                                  # 005
                                                                  MPN: 185042
                                                                  REGISTER RING
                                                                  -Thickness mm. 2,8-
                                                                  from £6.91
                                                                  from £6.91
                                                                  REGISTER RING Genuine Ferrari Part - New (to order)
                                                                  ADJUSTMENT RING Genuine Maserati Part - New (to order)
                                                                  # 005
                                                                  MPN: 185043
                                                                  REGISTER RING
                                                                  -Thickness mm. 2,5-
                                                                  from £9.56
                                                                  from £9.56
                                                                  REGISTER RING Genuine Ferrari Part - New (to order)
                                                                  ADJUSTMENT RING Genuine Maserati Part - New (to order)
                                                                  # 005
                                                                  MPN: 185044
                                                                  REGISTER RING
                                                                  -Thickness mm. 2,2- -Possible fitting-
                                                                  from £14.77
                                                                  from £14.77
                                                                  REGISTER RING Genuine Ferrari Part - New (to order)
                                                                  ADJUSTMENT RING Genuine Maserati Part - New (to order)
                                                                  # 006
                                                                  MPN: 185020
                                                                  BEARING SUPPORT
                                                                  from £75.26
                                                                  from £75.26
                                                                  BEARING SUPPORT Genuine Ferrari Part - New (to order)
                                                                  TAPERED ROLLER BEARING SUPPORT Genuine Maserati Part - New In stock
                                                                  # 007
                                                                  MPN: 185021
                                                                  ROLLER BEARING
                                                                  from £75.54
                                                                  from £75.54
                                                                  ROLLER BEARING Genuine Ferrari Part - New (to order)
                                                                  TAPERED ROLLER BEARING 45X85X24 Genuine Maserati Part - New (to order)
                                                                  # 008
                                                                  MPN: 196667
                                                                  RING NUT
                                                                  from £39.84
                                                                  from £39.84
                                                                  This part replaces part number 185019
                                                                  RING NUT. Genuine Ferrari Part - New (to order)
                                                                  RING NUT M45X1.5 Genuine Maserati Part - New (to order)
                                                                  # 009
                                                                  MPN: 185018
                                                                  3RD AND 4TH DRIVEN GEAR
                                                                  from £919.83
                                                                  from £919.83
                                                                  3RD AND 4TH DRIVEN GEAR Genuine Ferrari Part - New (to order)
                                                                  # 010
                                                                  MPN: 188461
                                                                  5TH AND 6TH DRIVEN GEAR
                                                                  from £433.56
                                                                  from £433.56
                                                                  5/6TH gear Genuine Ferrari Part - New (to order)
                                                                  # 011
                                                                  MPN: 188497
                                                                  SPACER
                                                                  from £27.75
                                                                  from £27.75
                                                                  SPACER. Genuine Ferrari Part - New (to order)
                                                                  SPACER Genuine Maserati Part - New (to order)
                                                                  # 012
                                                                  MPN: 184014
                                                                  ROLLER CAGE
                                                                  from £10.20
                                                                  from £10.20
                                                                  ROLLER CAGE Genuine Ferrari Part - New In stock
                                                                  ROLLER CAGE 42X47X30 Genuine Maserati Part - New (to order)
                                                                  # 013
                                                                  MPN: 183946
                                                                  PINION FOR 2ND GEAR
                                                                  from £846.78
                                                                  from £846.78
                                                                  PINION FOR 2ND GEAR Genuine Ferrari Part - New In stock
                                                                  # 014
                                                                  MPN: 183976
                                                                  FLEXIBLE RING
                                                                  -Thickness mm. 2,10-
                                                                  from £6.56
                                                                  from £6.56
                                                                  FLEXOBLE RING Genuine Ferrari Part - New (to order)
                                                                  HUB RETAINING CIRCLIP 1ST/2ND GEA Genuine Maserati Part - New (to order)
                                                                  # 014
                                                                  MPN: 185036
                                                                  FLEXIBLE RING
                                                                  -Thickness mm. 1,85- -Possible fi tting-
                                                                  from £24.00
                                                                  from £24.00
                                                                  FLEXIBLE RING Genuine Ferrari Part - New (to order)
                                                                  HUB RETAINING CIRCLIP 1ST/2ND GEA Genuine Maserati Part - New (to order)
                                                                  # 014
                                                                  MPN: 185037
                                                                  FLEXIBLE RING
                                                                  -Thickness mm. 1,60- -Possible fi tting-
                                                                  from £23.35
                                                                  from £23.35
                                                                  FLEXIBLE RING Genuine Ferrari Part - New (to order)
                                                                  HUB RETAINING CIRCLIP 1ST/2ND GEA Genuine Maserati Part - New (to order)
                                                                  # 015
                                                                  MPN: 183971
                                                                  BUSHING
                                                                  from £43.71
                                                                  from £43.71
                                                                  BUSCHING Genuine Ferrari Part - New (to order)
                                                                  1ST SPEED GEAR BUSHING Genuine Maserati Part - New (to order)
                                                                  # 016
                                                                  MPN: 184016
                                                                  ROLLER CAGE
                                                                  from £15.32
                                                                  from £15.32
                                                                  ROLLER CAGE Genuine Ferrari Part - New In stock
                                                                  ROLLER CAGE 45X50X30 ZTWN Genuine Maserati Part - New (to order)
                                                                  # 017
                                                                  MPN: 183945
                                                                  PINION FOR 1ST GEAR
                                                                  from £464.46
                                                                  from £464.46
                                                                  PINION FOR 1ST GEAR Genuine Ferrari Part - New (to order)
                                                                  # 018
                                                                  MPN: 183972
                                                                  RING
                                                                  -Spessore mm. 5,10- -Thickness mm. 5,10-
                                                                  from £42.04
                                                                  from £42.04
                                                                  RING Genuine Ferrari Part - New (to order)
                                                                  SHOULD.RING 1ST SPEED GEAR THICK. Genuine Maserati Part - New In stock
                                                                  # 019
                                                                  MPN: 184020
                                                                  ROLLER BEARING
                                                                  from £77.23
                                                                  from £77.23
                                                                  ROLLER BEARING Genuine Ferrari Part - New In stock
                                                                  BEARING WITH CYLINDER ROLLERS 40X Genuine Maserati Part - New (to order)
                                                                  # 020
                                                                  MPN: 184042
                                                                  FLEXIBLE RING
                                                                  from £6.76
                                                                  from £6.76
                                                                  FLEXIBLE RING Genuine Ferrari Part - New (to order)
                                                                  SAFETY CIRCLIP FOR SHAFT A40X1 Genuine Maserati Part - New (to order)
                                                                  # 021
                                                                  MPN: 199752
                                                                  REVERSE GEAR
                                                                  from £316.51
                                                                  from £316.51
                                                                  REVERSE GEAR Genuine Ferrari Part - New In stock
                                                                  INGRANAGGIO COMPLETO DI R.M. Genuine Maserati Part - New (to order)
                                                                  # 022
                                                                  MPN: 184018
                                                                  ROLLER CAGE
                                                                  from £15.29
                                                                  from £15.29
                                                                  ROLLER CAGE Genuine Ferrari Part - New (to order)
                                                                  ROLLER CAGE 40X45X27 Genuine Maserati Part - New (to order)
                                                                  # 023
                                                                  MPN: 193439
                                                                  REVERSE GEAR COMPLETE SYNCHRONIZER
                                                                  from £1,184.72
                                                                  from £1,184.72
                                                                  RM GEAR SYNCHRO KIT Genuine Ferrari Part - New (to order)
                                                                  Genuine Maserati Part (no longer available to order)
                                                                  # 024
                                                                  MPN: 184041
                                                                  FLEXIBLE RING
                                                                  from £3.09
                                                                  from £3.09
                                                                  FLEXIBLE RING Genuine Ferrari Part - New (to order)
                                                                  SAFETY CIRCLIP FOR SHAFT A35X Genuine Maserati Part - New (to order)
                                                                  # 025
                                                                  MPN: 14302424
                                                                  SCREW
                                                                  from £0.53
                                                                  from £0.53
                                                                  SCREW Genuine Ferrari Part - New (to order)
                                                                  # 026
                                                                  MPN: 10571379
                                                                  WASHER
                                                                  from £0.53
                                                                  from £0.53
                                                                  WASHER Genuine Ferrari Part - New In stock
                                                                  WASHER FOR OIL PUMP ASSEMBLY Genuine Maserati Part - New (to order)
                                                                  # 027
                                                                  MPN: 185049
                                                                  Gearbox Oil Pump
                                                                  from £514.83
                                                                  from £514.83
                                                                  Gearbox Oil Pump Genuine Ferrari Part - New (to order)
                                                                  # 028
                                                                  MPN: 185164
                                                                  1ST AND 2ND GEAR COMPLETE SYNCHRONIZER
                                                                  from £718.68
                                                                  from £718.68
                                                                  This part replaces part number 182298
                                                                  1ST AND 2ND GEAR COMPLETE. Genuine Ferrari Part - New (to order)
                                                                  3-CONE SYNCHR. D67/71/76 I/II SPE Genuine Maserati Part - New (to order)
                                                                  # 029
                                                                  MPN: 185050
                                                                  PIN
                                                                  from £34.24
                                                                  from £34.24
                                                                  PIN Genuine Ferrari Part - New (to order)
                                                                  # 030
                                                                  MPN: 184017
                                                                  ROLLER CASING
                                                                  from £4.88
                                                                  from £4.88
                                                                  ROLLER CASING Genuine Ferrari Part - New (to order)
                                                                  ROLLER BOX 18X24X16 Genuine Maserati Part - New (to order)
                                                                  # 031
                                                                  MPN: 183975
                                                                  RING
                                                                  from £13.71
                                                                  from £13.71
                                                                  RING Genuine Ferrari Part - New (to order)
                                                                  SHOULD.RING FOR IDLE GEAR Genuine Maserati Part - New (to order)
                                                                  # 032
                                                                  MPN: 199737
                                                                  IDLE GEAR FOR REVERSE
                                                                  from £130.27
                                                                  from £130.27
                                                                  IDLE GEAR FOR REVERSE Genuine Ferrari Part - New In stock
                                                                  IDLE GEAR FOR REVERSE. Genuine Maserati Part - New (to order)
                                                                  # 033
                                                                  MPN: 200924
                                                                  SPACER
                                                                  from £7.41
                                                                  from £7.41
                                                                  SPACER Genuine Ferrari Part - New (to order)
                                                                  # 034
                                                                  MPN: 183976
                                                                  FLEXIBLE RING
                                                                  from £6.56
                                                                  from £6.56
                                                                  FLEXOBLE RING Genuine Ferrari Part - New (to order)
                                                                  HUB RETAINING CIRCLIP 1ST/2ND GEA Genuine Maserati Part - New (to order)
                                                                  # 035
                                                                  MPN: 203800
                                                                  RING
                                                                  from £14.08
                                                                  from £14.08
                                                                  RING Genuine Ferrari Part - New (to order)
                                                                  SHOULD.RING,2ND GEAR Genuine Maserati Part - New (to order)
                                                                  # 035
                                                                  MPN: 203801
                                                                  RING
                                                                  -In alternativa- -As an alternative-
                                                                  from £43.14
                                                                  from £43.14
                                                                  RING Genuine Ferrari Part - New (to order)
                                                                  RING Genuine Maserati Part - New (to order)
                                                                  # 036
                                                                  MPN: 188320
                                                                  PAD FOR SYNCHRONIZER/BALL/SPRING REPLACEMENT KIT
                                                                  from £6.75
                                                                  from £6.75
                                                                  KIT FOR SOSTITUTION SINCRONI Genuine Ferrari Part - New In stock
                                                                  PLATE REP.KIT FOR SYNC/BALL/B.SPR Genuine Maserati Part - New (to order)
                                                                  # 037
                                                                  MPN: 193440
                                                                  PADS/SYNCHRO REVERSE GEAR KIT
                                                                  from £2.32
                                                                  from £2.32
                                                                  PADS/SYNCRO REVERSE GEAR KIT Genuine Ferrari Part - New (to order)
                                                                  PADS/SYNCHRO REVERSE GEAR KIT Genuine Maserati Part - New (to order)
