119 - DASHBOARD

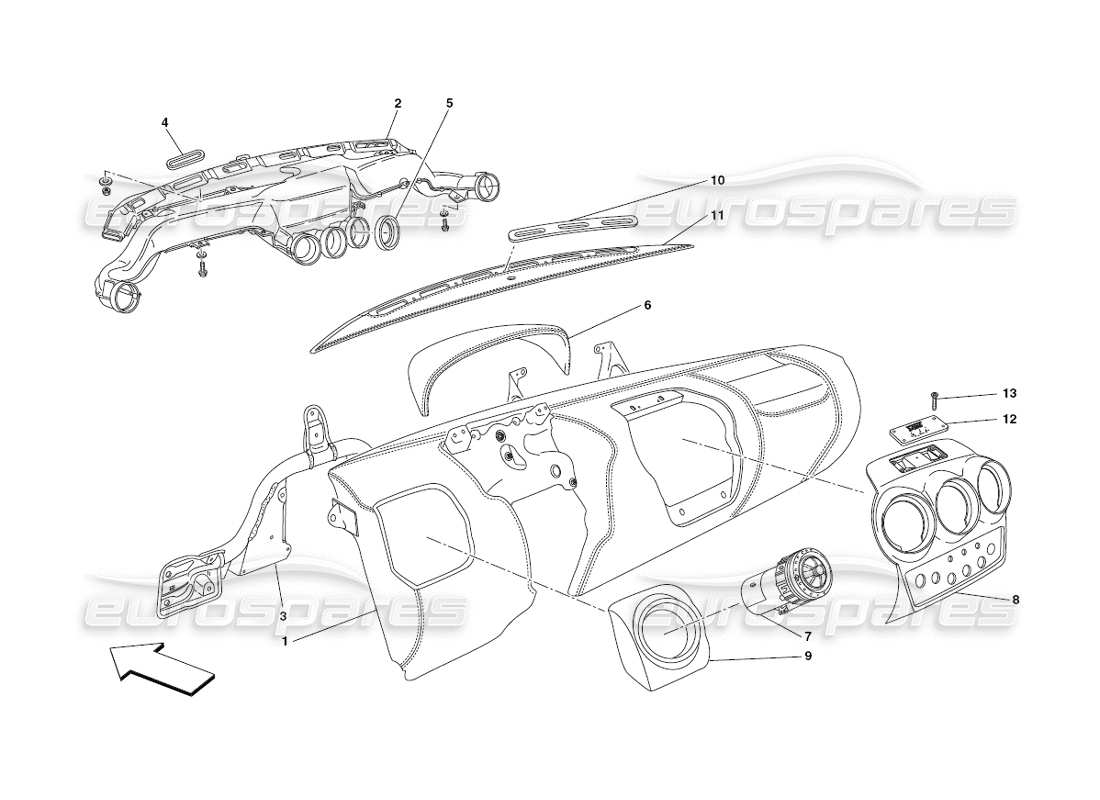

Ferrari 430 Challenge (2006) dashboard Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 69336900
DASHBOARD WITH INSTRUMENTS
Supersession
Supersession
# 002
MPN: 63352900
LHD AIR DUCT
from £91.51
from £91.51
# 003
MPN: 69484000
DASHBOARD FRAME ASSEMBLY
from £95.40
from £95.40
# 004
MPN: 66050600
GASKET
from £3.80
from £3.80
This part replaces part number 63352700
# 005
MPN: 63353300
CENTRAL AIR OPENING GASKET
from £0.57
from £0.57
This part replaces part number 68603400 - and 1 more. Click to view details
# 005
MPN: 68135000
LH AIR OPENING GASKET
from £4.75
from £4.75
# 006
MPN: 69336500
DASH BOARD
# 007
MPN: 68811300
AIR DIFFUSOR OPENING
from £69.57
from £69.57
# 008
MPN: 69336400

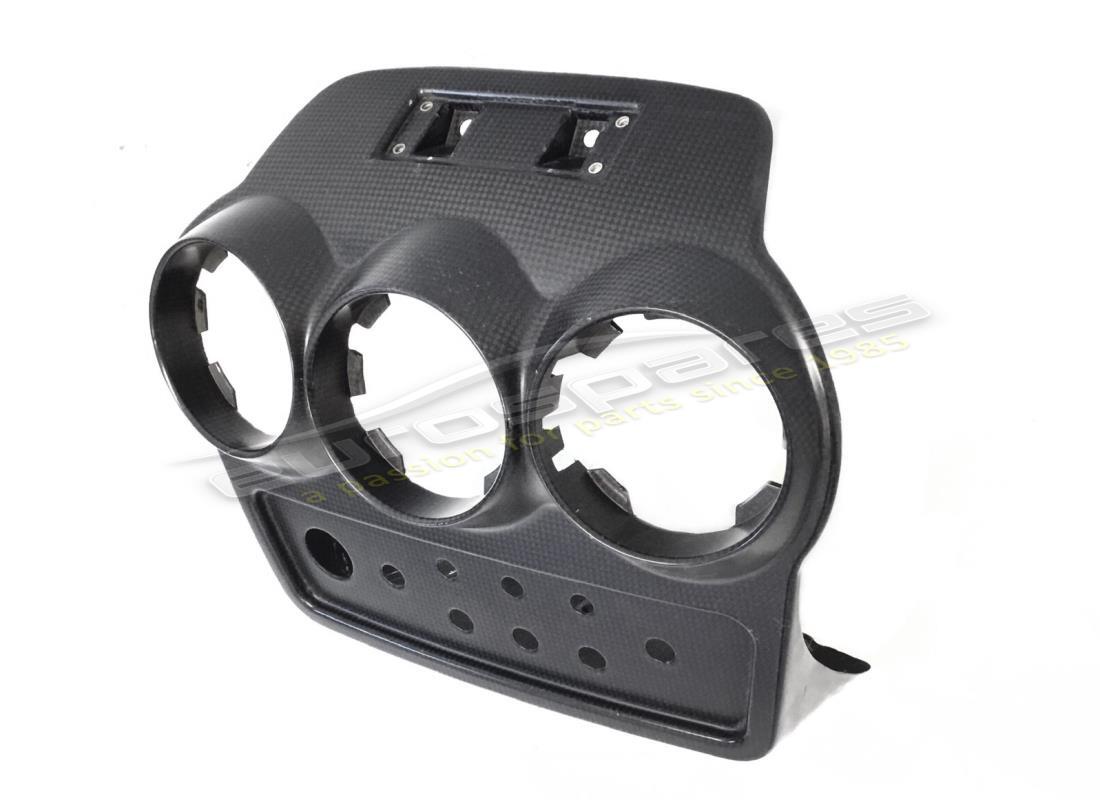

CONSOLE PLATE
from £456.75
from £456.75
# 009
MPN: 69339100
LH AIR OUTLET PLATE
from £103.16
from £103.16
# 010
MPN: 65018200
RH AIR OUTLET PLATE
from £50.25
from £50.25
# 010
MPN: 65018300
LH AIR OUTLET PLATE
from £50.25
from £50.25
# 011
MPN: 69337000
MOULDING FOR WINDSCREEN AIR PLATE
# 012
MPN: 69698700
CAR MODEL PLATE
from £18.77
from £18.77
# 013
MPN: 68927600
SCREW
from £0.53
from £0.53
