116 - Capote Closings and Cover

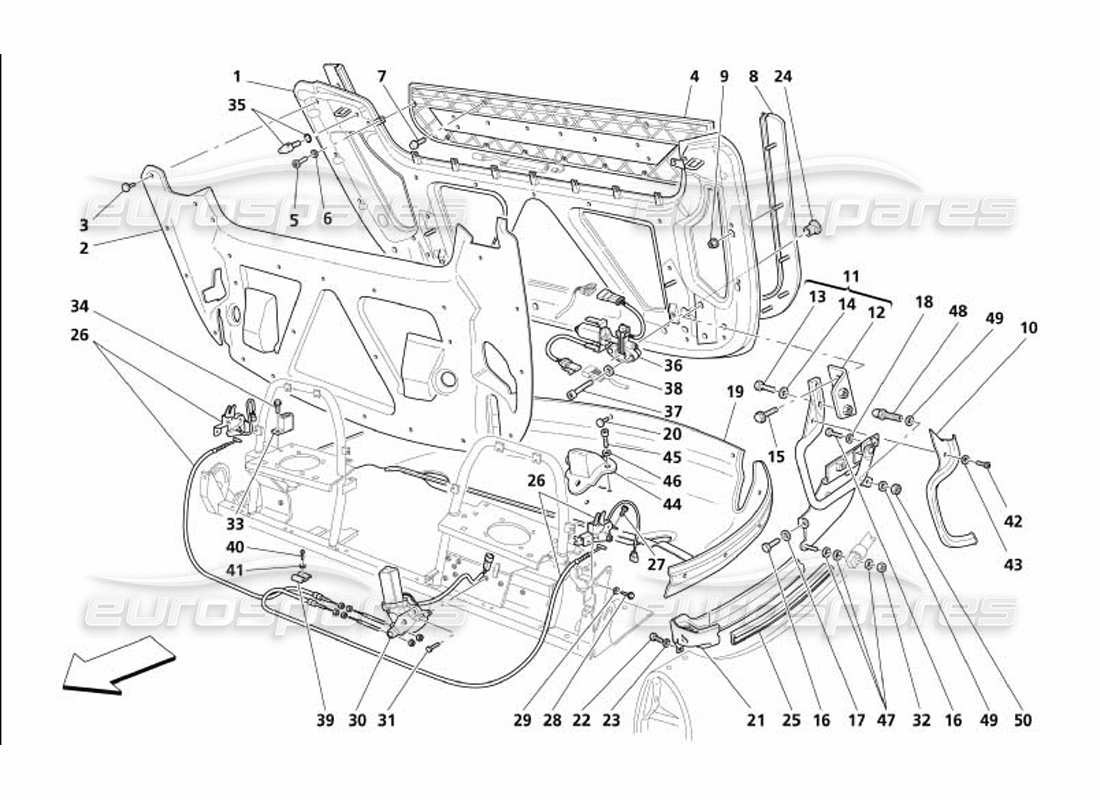

Maserati 4200 Spyder (2005) Capote Closings and Cover Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 980002009
COMPLETE CAPOTE COVER HOOD
from £1,019.67
from £1,019.67
This part replaces part number 66100800 - and 1 more. Click to view details
# 002
MPN: 66727100
INNER COVER MOULDING
from £29.91
from £29.91
# 003
MPN: 7560860
FIXING BUTTON
from £1.70
from £1.70
# 004
MPN: 676961..
CAPOTE COVER MOULDING
Supersession
Supersession
# 005
MPN: 13273811
SCREW
from £0.47
from £0.47
# 006
MPN: 12638101
WASHER
from £0.71
from £0.71
This part replaces part number 12638121
# 007
MPN: 66736100
PIN
from £5.41
from £5.41
# 008
MPN: 66107600
GASKET
from £398.31
from £398.31
# 009
MPN: 14059111
NUT
from £0.47
from £0.47
# 010
MPN: 66956200
RH HINGE COVER
from £9.19
from £9.19
# 010
MPN: 66956300
LH HINGE COVER
from £16.70
from £16.70
# 011
MPN: 980002010
COMPLETE RH HINGE
from £84.21
from £84.21
This part replaces part number 66103100 - and 1 more. Click to view details
# 011
MPN: 980002011
COMPLETE LH HINGE
from £84.21
from £84.21
This part replaces part number 66103200 - and 1 more. Click to view details
# 012
MPN: 980002012
RH HINGE FIXING BRACKET
from £36.25
from £36.25
This part replaces part number 66651100
# 012
MPN: 980002013
LH HINGE FIXING BRACKET
from £36.25
from £36.25
This part replaces part number 66651200
# 013
MPN: 16043624
SCREW
from £0.51
from £0.51
# 014
MPN: 14496501
WASHER
from £0.85
from £0.85
# 015
MPN: 16297921
SCREW
Supersession
Supersession
# 016
MPN: 10902324
SCREW
from £0.52
from £0.52
# 017
MPN: 12643701
WASHER
Supersession
Supersession
# 018
MPN: 12648901
WASHER
from £0.51
from £0.51
# 019
MPN: 66583200
CAPOTE LINING
from £83.94
from £83.94
This part replaces part number 66650000
# 020
MPN: 14593487
FIXING BUTTON
from £10.58
from £10.58
# 021
MPN: 66429200
COVER GASKET
from £52.16
from £52.16
# 022
MPN: 13274211
SCREW
from £0.53
from £0.53
# 023
MPN: 12637801
WASHER
from £0.53
from £0.53
# 024
MPN: 66102600
RH PLATE FOR COVER
from £2.24
from £2.24
# 024
MPN: 66102700
LH PLATE FOR COVER
from £2.85
from £2.85
# 025
MPN: 66429300
RH GASKET
from £36.25
from £36.25
# 025
MPN: 66650800
LH GASKET
from £36.25
from £36.25
# 026
MPN: 980001075
LH LOCK WITH BOWDEN
from £437.59
from £437.59
# 026
MPN: 980001076
RH LOCK WITH BOWDEN
from £566.65
from £566.65
# 027
MPN: 16296924
SCREW
from £0.53
from £0.53
# 028
MPN: 16286124
SCREW
from £0.51
from £0.51
# 029
MPN: 12640601
WASHER
from £3.16
from £3.16
# 030
MPN: 66193500
CONTROL MOTOR
from £475.53
from £475.53
# 031
MPN: 14306021
SCREW
from £0.53
from £0.53
# 032
MPN: 104030
NUT
from £0.53
from £0.53
# 033
MPN: 66315700
BLOCK FOR COVER
from £6.42
from £6.42
# 034
MPN: 10902411
SCREW
from £1.08
from £1.08
# 035
MPN: 980001080
PIN KIT
from £67.47
from £67.47
# 036
MPN: 66103700
RH PULL DOWN ENGINE
from £587.75
from £587.75
# 036
MPN: 66103800
LH PULL DOWN ENGINE
from £587.75
from £587.75
# 037
MPN: 14306424
SCREW
from £0.51
from £0.51
This part replaces part number 14306421
# 038
MPN: 12642724
WASHER
Supersession
Supersession
# 039
MPN: 66669700
BRACKET
from £3.24
from £3.24
# 040
MPN: 14303021
SCREW
from £1.08
from £1.08
# 041
MPN: 14446821
WASHER
from £9.81
from £9.81
# 042
MPN: 13274077
SCREW
from £0.53
from £0.53
# 043
MPN: 13577778
WASHER
from £0.53
from £0.53
# 044
MPN: 67020400
CAPOTE ARCH SMALL BLOCK
from £9.20
from £9.20
# 045
MPN: 14433121
SCREW
from £1.14
from £1.14
# 046
MPN: 12648201
WASHER
from £1.39
from £1.39
# 047
MPN: 67016000
SPACER FOR COVER HINGE
from £1.93
from £1.93
# 048
MPN: 67377400
PIN
from £12.68
from £12.68
This part replaces part number 66430000
# 049
MPN: 14496501
WASHER
from £0.85
from £0.85
# 050
MPN: 16104421
NUT
from £0.81
from £0.81
