020 - Rear Suspension

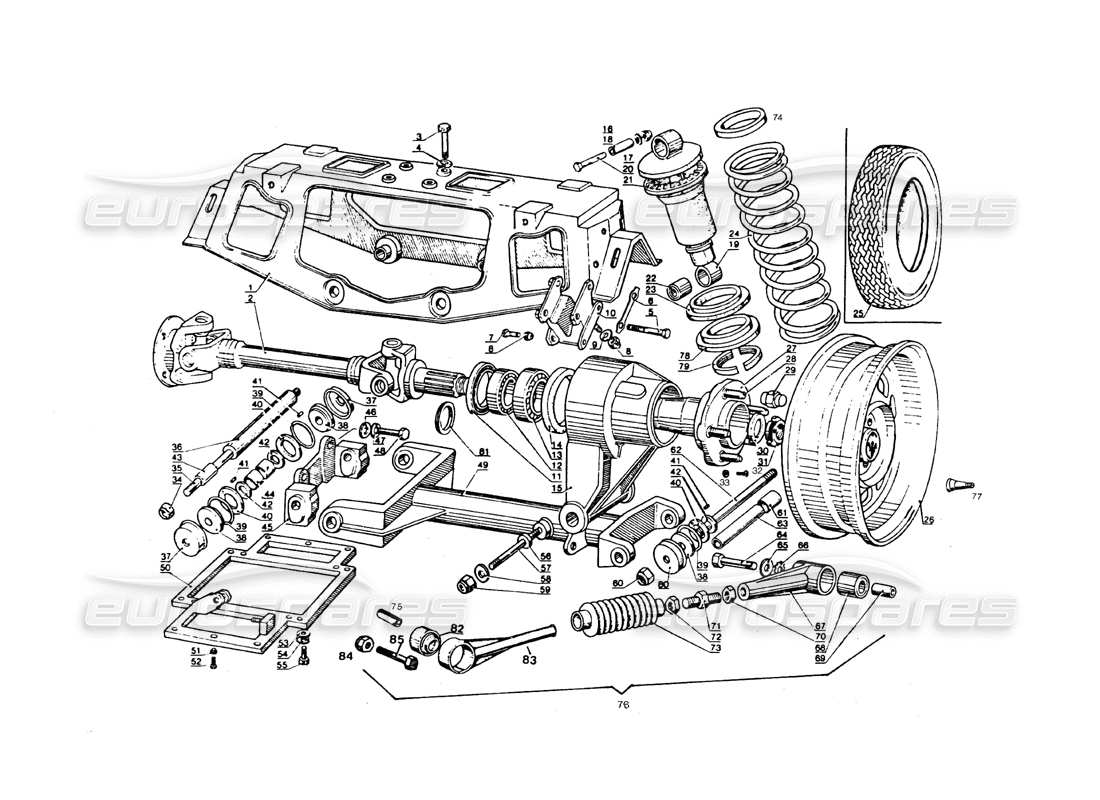

Maserati QTP.V8 4.9 (S3) 1979 Rear Suspension Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
329-17-55-00
REAR CROSS MEMBER
#
002
MPN:
329173100
UNIVERSAL AXLE SHAFT
from
£312.77
from
£312.77
#
003
MPN:
BNT 90438
DIFFERENTIAL FIXING BOLT
#
004
MPN:
RSN57782
WASHER
#
005
MPN:
BNT54001
BRACKET FIXING BOLT
#
006
MPN:
329-18-62-00
RETAINER
#
007
MPN:
BNT. 47015
BOLT
#
008
MPN:
DST 53397
NUT
This part replaces part number 53397
#
009
MPN:
RNT 55379
WASHER
#
010
MPN:
329173900
CROSS MEMBER BRACKET, LH FRONT, RH REAR
from
£82.86
from
£82.86
#
010
MPN:
329174000
CROSS MEMBER BRACKET, RH FRONT, LH REAR
from
£82.86
from
£82.86
#
011
MPN:
ANT 93550
INNER RETAINING RING
#
012
MPN:
CSC 91478
OUTER BEARING
#
012
MPN:
CSC 91479
INNER BEARING
#
013
MPN:
CSC 93549
OUTER BEARING
#
014
MPN:
ANT57793
OUTER RETAINING RING
from
£72.80
from
£72.80
#
015
MPN:
329-17-10-20
RH hub holder with 10' inclination (starting with chassis No. 0226)
#
015
MPN:
329-17-11-20
LH hub holder with 10' inclination (starting with chassis No. 0226)
#
016
MPN:
DST 65851
Rear suspension fixing nut
This part replaces part number DST 68049
#
017
MPN:
RNT 88658
WASHER
#
018
MPN:
317-42-71-00
BUSH
#
019
MPN:
329-42-65-00
REAR SHOCK ABSORBER
#
020
MPN:
BNT 65441
Shock absorber fixing bolt
#
021
MPN:
329-42-68-00
RETAINING RING
#
022
MPN:
50621040
RUBBER BUSHING
from
£27.08
from
£27.08
#
023
MPN:
329-42-69-00
SPRING RETAINER
#
024
MPN:
330-42-78-00
SPRING (EUROPE)
#
024
MPN:
330-42-78-40
SPRING (USA)
#
025
MPN:
PNM 92963
FRONT AND REAR TIRE (PIRELLI 225/70 VR 15 CN12)
#
025
MPN:
PNM 93103
FRONT AND REAR TIRE (MICHELIN 225/70 VR 15 XWX)
#
026
MPN:
329-44-01-20
WHEEL DISC (SEE TABLE 17)
#
027
MPN:
329-17-03-00
HUB SHAFT
#
028
MPN:
329-17-24-00
WHEEL STUD
#
029
MPN:
50322014
WHEEL BOLT
from
£6.97
from
£6.97
#
030
MPN:
329-17-80-00
RETAINING NUT WASHER
#
031
MPN:
GH 93659
Retaining nut Ø 30X1.5X14
#
032
MPN:
VNT 73707
ALLEN SCREW Ø 5X0.8X12
#
033
MPN:
RDI 84152
ALLEN SCREW WASHER Ø 5
#
034
MPN:
DST 68392
PIN NUT
#
035
MPN:
329-42-20-00
LINK PIN
#
036
MPN:
329-42-87-00
LINK SPACER
#
037
MPN:
329-17-23-00
CAP
#
038
MPN:
329175400
RETAINING RING WASHER
from
£16.04
from
£16.04
#
039
MPN:
329179900
RETAINING RING
from
£2.29
from
£2.29
#
040
MPN:
329-42-59-00
WASHER
#
041
MPN:
329-42-89-00
PIN
from
£4.20
from
£4.20
This part replaces part number GRN 48095
#
042
MPN:
329-42-90-00
WASHER SP. 10/10
#
042
MPN:
329-42-90-01
WASHER SP. 12/10
#
042
MPN:
329-42-90-02
WASHER SP. 15/10
#
043
MPN:
329-42-14-00
LINK BUSH
#
044
MPN:
329429300
BUSH
from
£2.29
from
£2.29
#
045
MPN:
329-17-01-00
LH LOWER ARM BRACKET
#
045
MPN:
329-17-02-00
RH LOWER ARM BRACKET
#
046
MPN:
RNT/47084
WASHER
#
047
MPN:
RSN 33667
WASHER
#
048
MPN:
BNT 90439
BOLT
#
049
MPN:
329420300
LOWER SUSPENSION ARM
from
£702.52
from
£702.52
#
050
MPN:
329-18-48-20
CROSS MEMBER PLATE
#
051
MPN:
DST 51417
Nut Ø 6X1
#
052
MPN:
BNT 84149
Bolt Ø 6X16
#
053
MPN:
RNT 55379
PLATE WASHER Ø 8
#
054
MPN:
RSN 3 2 6 3 5
Washer Ø 8
#
055
MPN:
BNT. 47015
BOLT Ø 8 M.X20
#
056
MPN:
329-42-70-00
SHOCK ABSORBER FIXING BUSH
#
057
MPN:
329-42-31-00
PIN
#
058
MPN:
RNT 88658
WASHER
#
059
MPN:
DST 65851
Nut Ø 12X1.25
This part replaces part number DST 68049
#
060
MPN:
DST 54896
BUSH NUT Ø 14X1.5
#
061
MPN:
329429200
BUSH
from
£3.20
from
£3.20
#
062
MPN:
329429400
HUB HOLDER PIN
from
£20.46
from
£20.46
#
063
MPN:
329429100
LINK BUSH
from
£22.14
from
£22.14
#
064
MPN:
BNT 65442
FIXING BOLT
#
065
MPN:
RNT 88658
WASHER
#
066
MPN:
RDI55938
TOOTHED WASHER
#
067
MPN:
329185400
REAR ARM
from
£14.85
from
£14.85
#
068
MPN:
329186000
ARM JOINT
from
£35.67
from
£35.67
#
069
MPN:
329186100
BUSH
from
£3.20
from
£3.20
#
070
MPN:
DNT 48671
NUT
#
071
MPN:
329-18-58-00
ADJUSTING PIN
#
072
MPN:
DN 91719
LH THREAD NUT
#
073
MPN:
329185900
DUST SHIELD
from
£5.47
from
£5.47
#
074
MPN:
329-42-79-00
SPRING SPACER
#
075
MPN:
329-18-63-00
BUSH
#
076
MPN:
329421600
SPRAG ASSY
from
£127.27
from
£127.27
#
077
MPN:
117 SR 73349
VALVE
#
078
MPN:
329-42-66-00
LOWER RING
#
079
MPN:
329-42-67-00
RING RETAINERS
#
080
MPN:
329-17-23-00
CAP
#
081
MPN:
329-17-22-00
REAR HUB SPACER
#
082
MPN:
329186800
RUBBER BUSHING
from
£179.92
from
£179.92
#
083
MPN:
329-18-64-00
FRONT ARM
#
084
MPN:
DST 68392
FIXING NUT Ø 14X1.5
#
085
MPN:
BNT 62248
Bolt Ø 14
