002 - crankcase - covers

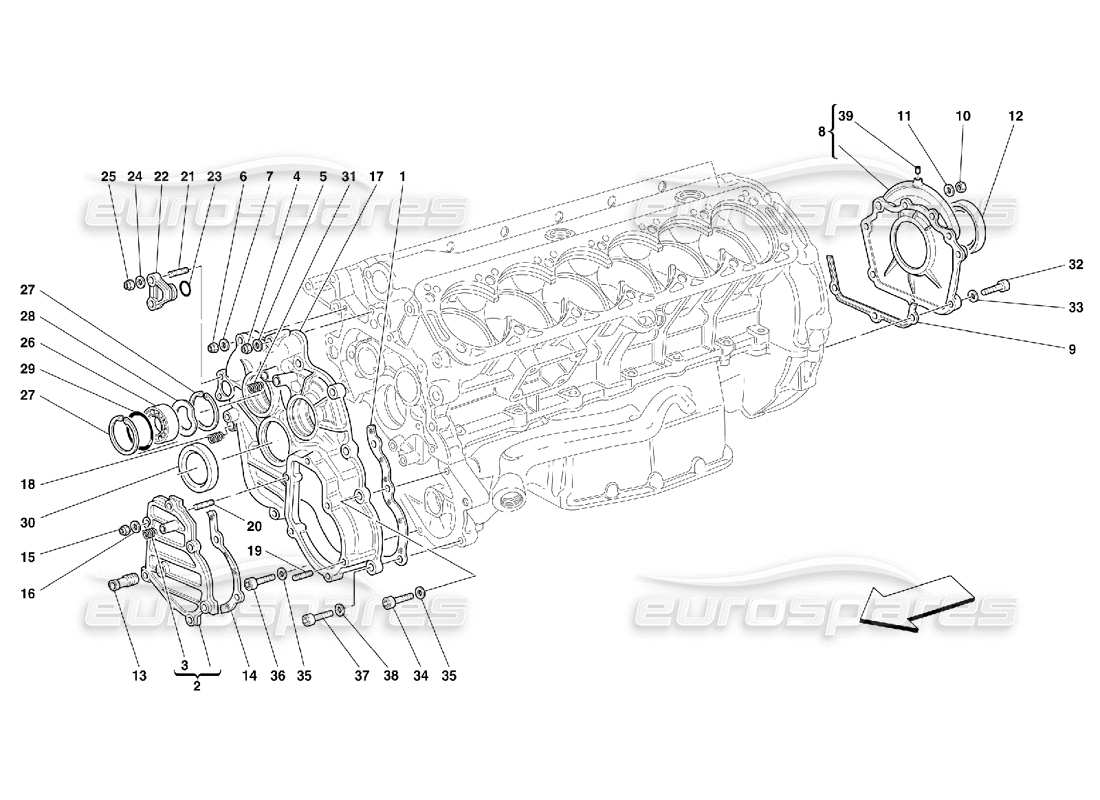

Ferrari 550 Maranello Crankcase - Covers Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 154527
GASKET
from £28.55
from £28.55
# 002
MPN: 157120
FRONT COVER
from £55.22
from £55.22
This part replaces part number 153212 - and 2 more. Click to view details
# 003
MPN: 13525570
THREADED INSERT
from £3.26
from £3.26
This part replaces part number 109668
# 004
MPN: 101139
NUT
from £0.53
from £0.53
This part replaces part number 16104425
# 005
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 006
MPN: 102741
NUT
from £0.52
from £0.52
This part replaces part number 12575411 - and 1 more. Click to view details
# 007
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 008
MPN: 141343
REAR COVER
from £162.29
from £162.29
# 009
MPN: 141291
GASKET
from £20.99
from £20.99
# 010
MPN: 15896214
NUT
from £0.53
from £0.53
This part replaces part number 15896211
# 011
MPN: 12620474
WASHER
from £0.47
from £0.47
This part replaces part number 12620479 - and 1 more. Click to view details
# 012
MPN: 200323
REAR MAIN OIL SEAL
from £24.95
from £24.95
This part replaces part number 163989 - and 1 more. Click to view details
# 013
MPN: 168951
UNION
from £5.07
from £5.07
# 014
MPN: 157121
GASKET
from £5.28
from £5.28
# 015
MPN: 102741
NUT
from £0.50
from £0.50
This part replaces part number 12575411 - and 1 more. Click to view details
# 016
MPN: 12601274
WASHER
from £0.52
from £0.52
This part replaces part number 12601221 - and 5 more. Click to view details
# 017
MPN: 157119
FRONT COVER
from £900.93
from £900.93
This part replaces part number 154528 which we have in stock
# 018
MPN: 13525470
THREADED INSERT
from £0.53
from £0.53
This part replaces part number 107333
# 019
MPN: 13541024
STUD
from £27.69
from £27.69
This part replaces part number 13541021
# 020
MPN: 13540824
STUD
from £14.21
from £14.21
This part replaces part number 13540821
# 021
MPN: 13541024
STUD
from £27.69
from £27.69
This part replaces part number 13541021
# 022
MPN: 151159
PLUG
from £10.85
from £10.85
# 023
MPN: 109724
GASKET
from £0.76
from £0.76
# 024
MPN: 12601274
WASHER
from £0.54
from £0.54
This part replaces part number 12601221 - and 5 more. Click to view details
# 025
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 026
MPN: 170787
BEARING
from £61.70
from £61.70
This part replaces part number 144690
# 027
MPN: 11060576
FLEXIBLE RING
from £1.01
from £1.01
This part replaces part number 11060575
# 028
MPN: 133377
WASHER
from £9.25
from £9.25
# 029
MPN: 136140
GASKET
from £0.71
from £0.71
# 030
MPN: 134714
OIL SEAL
from £10.35
from £10.35
This part replaces part number 110314
# 031
MPN: 13525570
THREADED INSERT
from £3.26
from £3.26
This part replaces part number 109668
# 032
MPN: 14305424
SCREW
from £0.52
from £0.52
This part replaces part number 14305421 - and 2 more. Click to view details
# 033
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 034
MPN: 14305424
SCREW
from £0.53
from £0.53
This part replaces part number 14305421 - and 2 more. Click to view details
# 035
MPN: 11197774
WASHER
from £0.53
from £0.53
This part replaces part number 11197770 - and 3 more. Click to view details
# 036
MPN: 14306024
SCREW
from £1.31
from £1.31
# 037
MPN: 14306524
SCREW
from £0.53
from £0.53
This part replaces part number 14306521
# 038
MPN: 11193874
WASHER
from £0.54
from £0.54
This part replaces part number 11193879 which we have in stock
# 039
MPN: 10275550
THREADED PLUG
from £0.78
from £0.78
