032 - Main Shaft Gears and Clutch Oil Pump

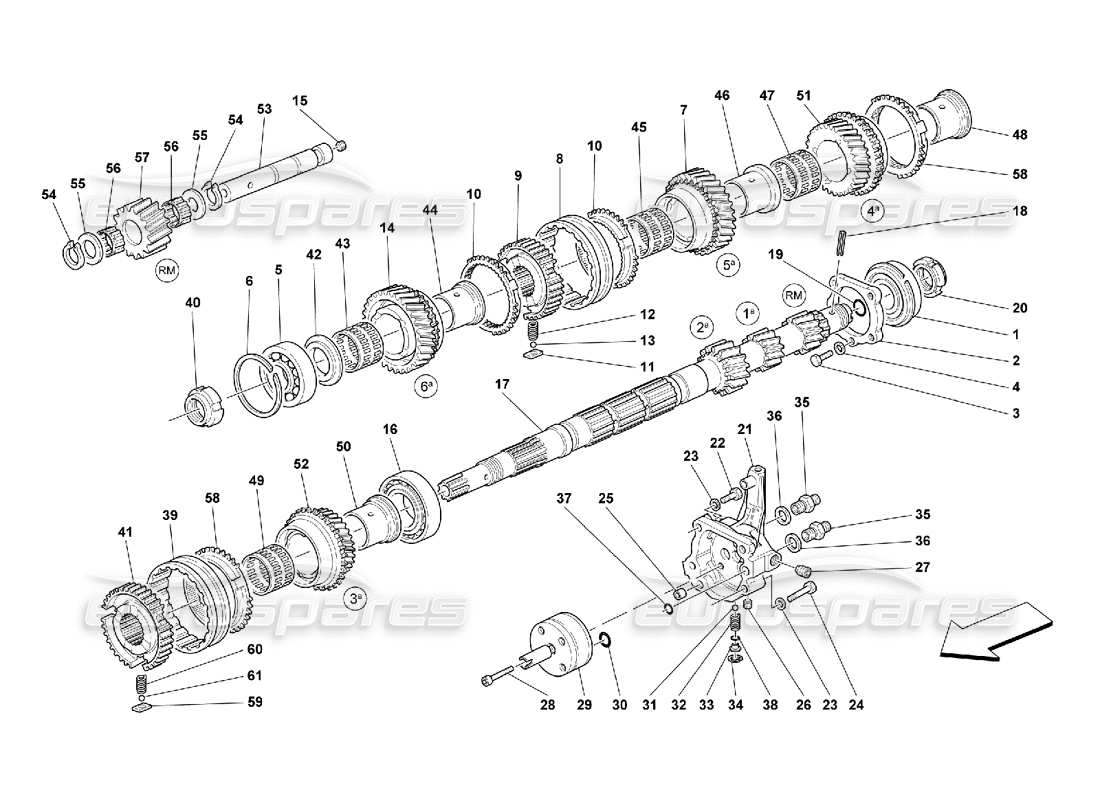

Ferrari 550 Maranello Main Shaft Gears and Clutch Oil Pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 149329
COMPLETE OIL PUMP BODY
Supersession
Supersession
# 001
MPN: 144502
BEARING FOR MAIN SHAFT PUMP OIL SIDE
from £91.39
from £91.39
# 002
MPN: 144444
SUPPORT RING
from £36.67
from £36.67
# 003
MPN: 16043424
SCREW
from £0.53
from £0.53
This part replaces part number 16043421
# 004
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 005
MPN: 103030
ROLLER BEARING
from £128.26
from £128.26
This part replaces part number 101605 - and 2 more. Click to view details
# 006
MPN: 144511
STOP RING
from £1.55
from £1.55
# 007
MPN: 167982
PINION FOR 5TH GEAR
- Valid till transmission Nr. 1881
from £171.37
from £171.37
# 007
MPN: 179113
PINION FOR 5TH GEAR
- Valid from transmission Nr. 1882
from £1,794.07
from £1,794.07
# 008
MPN: 152206
SLEEVE FOR SYNCHRONIZER
from £42.34
from £42.34
# 009
MPN: 152207
SYNCHRONIZER BODY
from £168.75
from £168.75
# 010
MPN: 152209
SYNCHRONIZER RING
from £89.66
from £89.66
# 011
MPN: 152195
SMALL BLOCK
from £0.47
from £0.47
# 012
MPN: 152196
SPRING
from £0.47
from £0.47
# 013
MPN: 152197
BALL
from £2.09
from £2.09
# 014
MPN: 167984
PINION FOR 6TH GEAR
from £633.50
from £633.50
# 015
MPN: 10269350
PLUG
from £1.00
from £1.00
# 016
MPN: 228055
ROLLER BEARING
from £47.37
from £47.37
This part replaces part number 131056 - and 1 more. Click to view details
# 017
MPN: 167968
MAIN SHAFT FOR GEAR LEVER
from £2,077.56
from £2,077.56
# 018
MPN: 14601270
FLEXIBLE PIN
from £0.53
from £0.53
# 019
MPN: 109724
O.R. GASKET
from £0.76
from £0.76
# 020
MPN: 159553
RING NUT
from £46.31
from £46.31
# 021
MPN: 171712
OIL PUMP BODY
- With complete oil pump body
from £414.75
from £414.75
# 022
MPN: 16044321
SCREW
from £0.30
from £0.30
# 023
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 024
MPN: 16044321
SCREW
from £0.30
from £0.30
# 025
MPN: 102704
CENTERING DOWEL
from £1.78
from £1.78
This part replaces part number 500805
# 026
MPN: 14326150
PLUG
from £0.51
from £0.51
This part replaces part number 12326150
# 027
MPN: 10269450
PLUG
from £16.22
from £16.22
# 028
MPN: 14303474
SCREW
from £0.53
from £0.53
# 029
MPN: 171706
COMPLETE CLUTCH OIL PUMP
Supersession
Supersession
# 030
MPN: 137192
O.R. GASKET
from £0.54
from £0.54
# 031
MPN: 135770
BALL
from £0.54
from £0.54
# 032
MPN: 171889
SPRING
from £2.29
from £2.29
# 033
MPN: 162315
SPACER
from £1.26
from £1.26
# 034
MPN: 11057576
SEEGER RING
from £0.53
from £0.53
# 035
MPN: 150577
UNION
from £10.75
from £10.75
# 036
MPN: 10257060
GASKET
from £0.47
from £0.47
This part replaces part number 10253060 - and 2 more. Click to view details
# 037
MPN: 137192
GASKET
from £0.54
from £0.54
# 038
MPN: 128702
GASKET
from £2.45
from £2.45
# 039
MPN: 152198
SLEEVE
from £198.29
from £198.29
# 040
MPN: 153000
RING NUT
from £33.69
from £33.69
This part replaces part number 131775 - and 1 more. Click to view details
# 041
MPN: 161015
SYNCHRONIZER BODY
from £226.26
from £226.26
# 042
MPN: 143886
SPACER
from £11.20
from £11.20
# 043
MPN: 107525
ROLLER CAGE
from £9.67
from £9.67
# 044
MPN: 143893
BUSHING
from £240.31
from £240.31
# 045
MPN: 107525
ROLLER CAGE
from £9.67
from £9.67
# 046
MPN: 152094
BUSHING
from £42.75
from £42.75
# 047
MPN: 107525
ROLLER CAGE
from £9.67
from £9.67
# 048
MPN: 152093
BUSHING
from £37.53
from £37.53
# 049
MPN: 109002
ROLLER CAGE
from £18.16
from £18.16
This part replaces part number 114059
# 050
MPN: 161445
BUSHING
from £77.01
from £77.01
# 051
MPN: 161993
PINION FOR 4TH GEAR
- Valid till transmission Nr. 1881
from £1,191.41
from £1,191.41
# 051
MPN: 179110
PINION FOR 4TH GEAR
- Valid from transmission Nr. 1882
from £1,140.03
from £1,140.03
# 052
MPN: 167978
PINION FOR 3RD GEAR
from £452.24
from £452.24
# 053
MPN: 159410
PIN
from £32.29
from £32.29
# 054
MPN: 158272
FLEXIBLE RING
from £0.47
from £0.47
# 055
MPN: 104249
SPACER WASHER - MM. 4,0
from £37.40
from £37.40
# 055
MPN: 158257
SPACER WASHER - MM. 4,1
from £6.41
from £6.41
# 056
MPN: 104256
ROLLER CAGE
from £5.85
from £5.85
# 057
MPN: 167973
IDLE GEAR FOR REVERSE
from £739.95
from £739.95
# 058
MPN: 155155
SYNCHRONIZER RING
from £661.02
from £661.02
# 059
MPN: 152195
SMALL BLOCK
from £0.47
from £0.47
# 060
MPN: 161016
SPRING
from £2.85
from £2.85
# 061
MPN: 152197
BALL
from £2.09
from £2.09
