041 - Brake System -Valid for GD

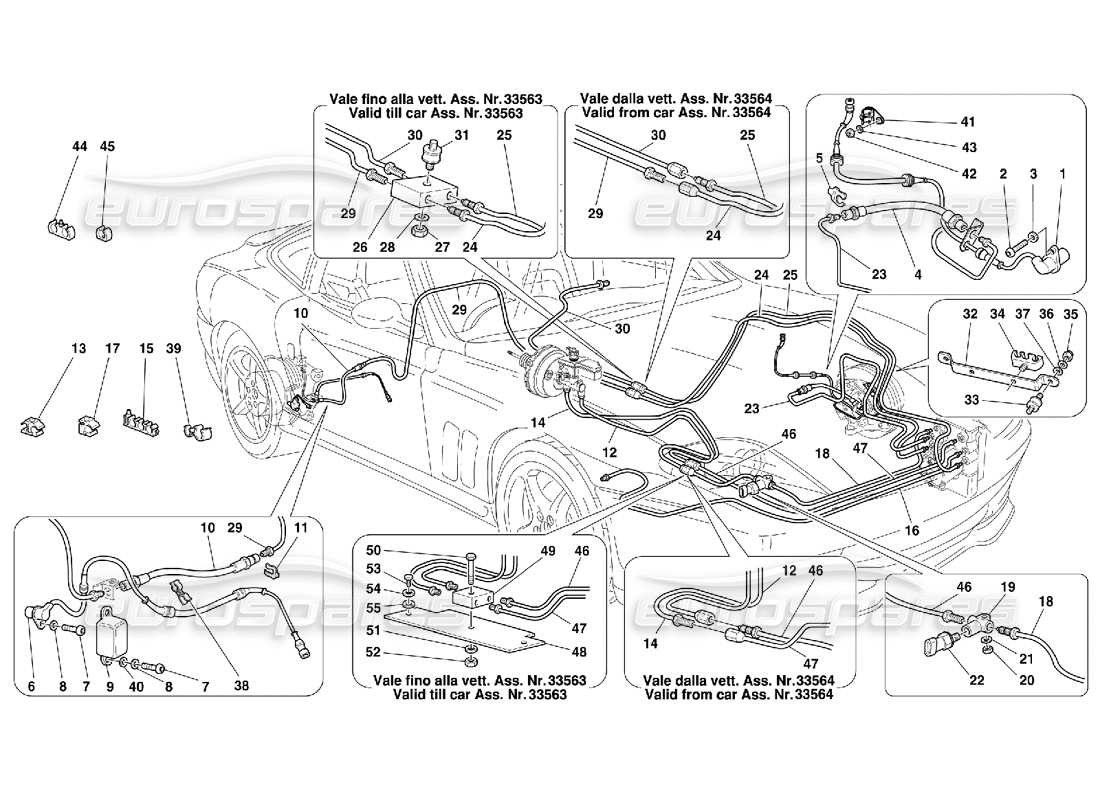

Ferrari 550 Maranello Brake System -Valid for GD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 163145
FRONT TOOTHED WHEEL SENSOR
from £82.19
from £82.19
# 002
MPN: 60909500
SCREW
from £1.37
from £1.37
# 003
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 004
MPN: 137313
HOSE
from £45.00
from £45.00
# 005
MPN: 116374
FIXING CLIP
from £1.16
from £1.16
# 006
MPN: 163146
REAR TOOTHED WHEEL SENSOR
from £81.63
from £81.63
# 007
MPN: 60909500
SCREW
from £1.34
from £1.34
# 008
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.52
from £0.52
This part replaces part number 10516470 - and 4 more. Click to view details
# 009
MPN: 168148
REAR SENSOR PROTECTION
from £17.01
from £17.01
# 010
MPN: 137313
REAR HOSE
from £45.00
from £45.00
# 011
MPN: 116374
CLIP
from £1.16
from £1.16
# 012
MPN: 169910
FRONT BRAKE PIPE FROM PUMP TO UNION
- Valid till car Ass. Nr. 33563
from £10.17
from £10.17
# 012
MPN: 178970
FRONT BRAKE PIPE FROM PUMP TO JOINT
- Valid from car Ass. Nr. 33564
from £14.25
from £14.25
# 013
MPN: 143055
FIXING CLIP
from £0.53
from £0.53
# 014
MPN: 169908
REAR BRAKE PIPE FROM PUMP TO REGULATOR
from £10.92
from £10.92
# 015
MPN: 127515
CLIP
from £0.47
from £0.47
# 016
MPN: 164068
BRAKE PIPE FROM ABS CENTER UNIT TO RH FRONT FLEXIBLE PIPE
from £11.40
from £11.40
# 017
MPN: 141505
FIXING CLIP
from £0.90
from £0.90
# 018
MPN: 169909
BRAKE PIPE FROM REGULATOR TO ABS CENTER UNIT
from £5.83
from £5.83
# 019
MPN: 101394
3-WAY UNION
from £26.78
from £26.78
This part replaces part number 680980 - and 7 more. Click to view details
# 020
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 021
MPN: 12639724
WASHER
from £0.54
from £0.54
This part replaces part number 12639725 - and 1 more. Click to view details
# 022
MPN: 154309
PRESSURE REGULATOR
from £11.68
from £11.68
# 023
MPN: 164067
BRAKE PIPE FROM ABS CENTER UNIT TO LH FRONT FLEXIBLE PIPE
from £8.95
from £8.95
# 024
MPN: 171913
BRAKE PIPE FROM ABS CENTER UNIT TO UNION FOR RH REAR BRAKE
- Valid till car Ass. Nr. 33563
from £36.02
from £36.02
# 024
MPN: 178981
BRAKE PIPE FROM ABS CENTER UNIT TO JOINT FOR RH REAR BRAKE
- Valid from car Ass. Nr. 33564
from £16.10
from £16.10
# 025
MPN: 171914
BRAKE PIPE FROM ABS CENTER UNIT TO UNION FOR LH REAR BRAKE
- Valid till car Ass. Nr. 33563
from £15.07
from £15.07
# 025
MPN: 178982
BRAKE PIPE FROM ABS CENTER UNIT TO JOINT FOR LH REAR BRAKE
- Valid from car Ass. Nr. 33564
from £14.79
from £14.79
# 026
MPN: 169152
UNION
- Valid till car Ass. Nr. 33563
from £137.18
from £137.18
# 027
MPN: 15896470
NUT
- Valid till car Ass. Nr. 33563 - (minimum order quantity = 20)
from £0.77
from £0.77
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 028
MPN: 127493
WASHER
- Valid till car Ass. Nr. 33563
from £0.53
from £0.53
This part replaces part number 106849 - and 1 more. Click to view details
# 029
MPN: 173461
BRAKE PIPE FROM UNION TO RH REAR FLEXIBLE PIPE
- Valid till car Ass. Nr. 33563
from £12.24
from £12.24
# 029
MPN: 178983
BRAKE PIPE FROM JOINT TO RH REAR FLEXIBLE PIPE
- Valid from car Ass. Nr. 33564
from £18.35
from £18.35
# 030
MPN: 173462
BRAKE PIPE FROM UNION TO LH REAR FLEXIBLE PIPE
- Valid till car Ass. Nr. 33563
from £8.36
from £8.36
# 030
MPN: 178984
BRAKE PIPE FROM JOINT TO LH REAR FLEXIBLE PIPE
- Valid from car Ass. Nr. 33564
from £15.71
from £15.71
# 031
MPN: 148835
PAD
- Valid till car Ass. Nr. 33563
from £7.66
from £7.66
# 032
MPN: 165361
BRACKET
from £2.08
from £2.08
# 033
MPN: 148835
PAD
from £7.66
from £7.66
# 034
MPN: 127515
CLIP
from £0.47
from £0.47
# 035
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.77
from £0.77
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 036
MPN: 127493
WASHER
from £0.51
from £0.51
This part replaces part number 106849 - and 1 more. Click to view details
# 037
MPN: 12637824
WASHER
from £0.47
from £0.47
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 038
MPN: 124551
CLIP
from £0.95
from £0.95
# 039
MPN: 150738
CLIP
from £0.52
from £0.52
# 040
MPN: 14496424
WASHER
Supersession
Supersession
This part replaces part number 14496401 - and 3 more. Click to view details
# 041
MPN: 128292
CLIP
from £2.01
from £2.01
# 042
MPN: 62790300
NUT
from £0.53
from £0.53
This part replaces part number 12574011 - and 1 more. Click to view details
# 043
MPN: 10519224
WASHER
from £0.53
from £0.53
This part replaces part number 10519201 which we have in stock
# 044
MPN: 169476
CLIP
from £1.56
from £1.56
# 045
MPN: 169477
CLIP
from £1.29
from £1.29
# 046
MPN: 171915
BRAKE PIPE FROM UNION TO REGULATOR
- Valid till car Ass. Nr. 33563
from £34.11
from £34.11
# 046
MPN: 178971
BRAKE PIPE FROM JOINT TO REGULATOR
- Valid from car Ass. Nr. 33564
from £6.38
from £6.38
# 047
MPN: 171916
BRAKE PIPE FROM REGULATOR TO ABS CENTER UNIT
- Valid till car Ass. Nr. 33563
from £142.66
from £142.66
# 047
MPN: 178972
BRAKE PIPE FROM JOINT TO ABS CENTER UNIT
- Valid from car Ass. Nr. 33564
from £20.84
from £20.84
# 048
MPN: 159111
BRACKET
- Valid till car Ass. Nr. 33563
from £3.97
from £3.97
# 049
MPN: 157719
UNION
- Valid till car Ass. Nr. 33563
from £141.26
from £141.26
# 050
MPN: 10903024
SCREW
- Valid till car Ass. Nr. 33563
from £1.08
from £1.08
This part replaces part number 10903021 - and 1 more. Click to view details
# 051
MPN: 12639724
WASHER
- Valid till car Ass. Nr. 33563
from £0.54
from £0.54
This part replaces part number 12639725 - and 1 more. Click to view details
# 052
MPN: 102741
NUT
- Valid till car Ass. Nr. 33563
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 053
MPN: 10902124
SCREW
- Valid till car Ass. Nr. 33563
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 054
MPN: 12601274
WASHER
- Valid till car Ass. Nr. 33563
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 055
MPN: 12643778
WASHER
- Valid till car Ass. Nr. 33563 - (minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 12643777 - and 1 more. Click to view details
