043 - Caliper for Front Brake

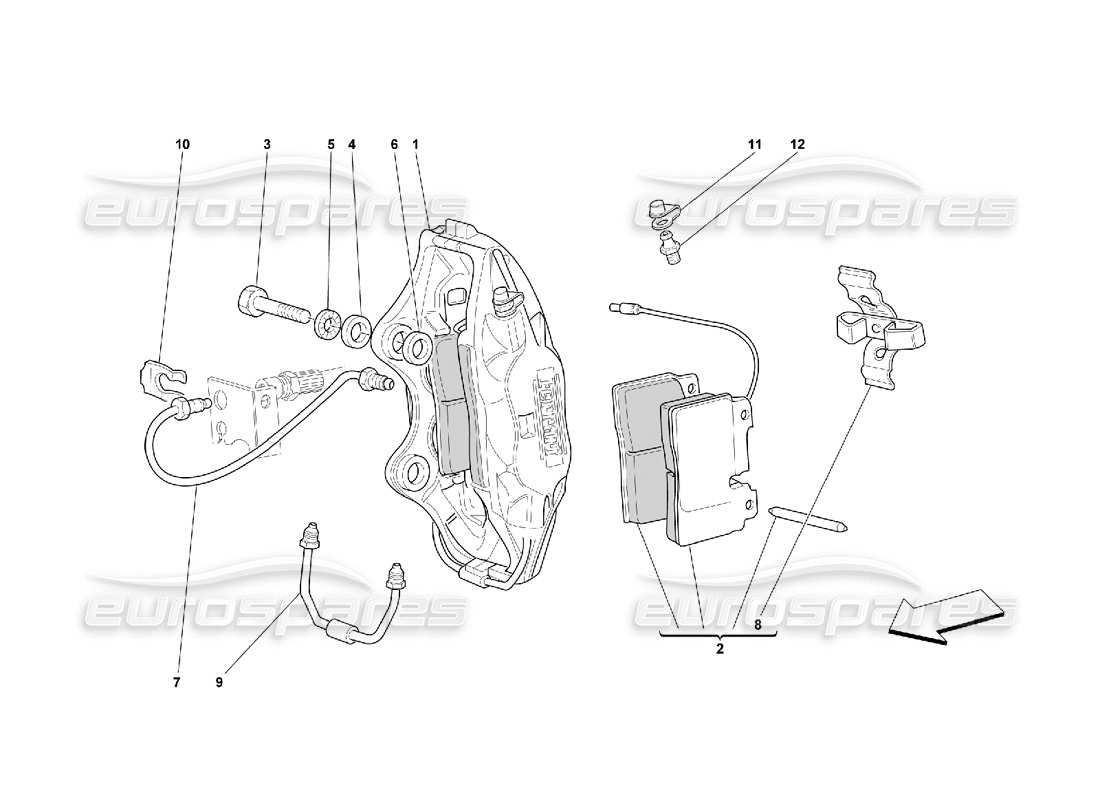

Ferrari 550 Maranello Caliper for Front Brake Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 165678
RH FRONT CALIPER UNIT WITH PADS
- Not for cars with handling Fiorano equipment
from £1,233.05
from £1,233.05
# 001
MPN: 165679
LH FRONT CALIPER UNIT WITH PADS
- Not for cars with handling Fiorano equipment
from £951.60
from £951.60
# 001
MPN: 175547
RH FRONT CALIPER UNIT
- Red - Not for cars with handling Fiorano equipment
from £748.58
from £748.58
# 001
MPN: 175548
LH FRONT CALIPER UNIT
- Red - Not for cars with handling Fiorano equipment
from £748.58
from £748.58
# 001
MPN: 175551
RH FRONT CALIPER UNIT WITH PADS
- Gold - Not for cars with handling Fiorano equipment
from £1,163.97
from £1,163.97
# 001
MPN: 175552
LH FRONT CALIPER UNIT WITH PADS
- Gold - Not for cars with handling Fiorano equipment
from £1,222.17
from £1,222.17
# 001
MPN: 175939
RH FRONT CALIPER UNIT WITH PADS
- Red - Valid for cars with handling Fiorano equipment - Optional
from £1,872.11
from £1,872.11
# 001
MPN: 175940
LH FRONT CALIPER UNIT WITH PADS
- Red - Valid for cars with handling Fiorano equipment - Optional
from £1,872.11
from £1,872.11
# 001
MPN: 176314
RH FRONT CALIPER UNIT WITH PADS
- Grey - Not for cars with handling Fiorano equipment
from £886.92
from £886.92
# 001
MPN: 176315
LH FRONT CALIPER UNIT WITH PADS
- Grey - Not for cars with handling Fiorano equipment
from £886.92
from £886.92
# 001
MPN: 186228
RH FRONT CALIPER UNIT WITH PADS
- Black - Valid for cars with handling Fiorano equipment - Optional
from £891.06
from £891.06
# 001
MPN: 186229
LH FRONT CALIPER UNIT WITH PADS
- Black - Valid for cars with handling Fiorano equipment - Optional
from £891.06
from £891.06
# 001
MPN: 186232
RH FRONT CALIPER UNIT WITH PADS
- Gold - Valid for cars with handling Fiorano equipment - Optional
# 001
MPN: 186236
LH FRONT CALIPER UNIT WITH PADS
- Gold - Valid for cars with handling Fiorano equipment - Optional
# 001
MPN: 186240
RH FRONT CALIPER UNIT WITH PADS
- Grey - Valid for cars with handling Fiorano equipment - Optional
from £748.58
from £748.58
# 001
MPN: 186241
LH FRONT CALIPER UNIT WITH PADS
- Grey - Valid for cars with handling Fiorano equipment - Optional
from £748.58
from £748.58
# 002
MPN: 70000885
KIT OF FRONT PADS WITH SPRING
- Not for cars with handling Fiorano equipment
from £59.85
from £59.85
# 002
MPN: 70000912
KIT OF FRONT PADS WITH SPRING
Use on Exhaustion of 70000952 - Valid for cars with handling Fiorano equipment - Optional
from £1,758.81
from £1,758.81
This part replaces part number 70000952
# 002
MPN: 70000952
KIT OF FRONT PADS WITH SPRING
- Valid for cars with handling Fiorano equipment - Optional
Supersession
Supersession
# 003
MPN: 174214
SCREW
from £1.58
from £1.58
This part replaces part number 132213 which we have in stock - and 3 more. Click to view details
# 004
MPN: 106616
WASHER
from £0.96
from £0.96
# 005
MPN: 10615874
WASHER
from £0.47
from £0.47
This part replaces part number 10615870 which we have in stock - and 1 more. Click to view details
# 006
MPN: 156260
THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 0.2
from £0.84
from £0.84
This part replaces part number 108918
# 006
MPN: 156261
THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 0.3
from £2.97
from £2.97
This part replaces part number 108919
# 006
MPN: 156262
THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 0.5
from £0.84
from £0.84
This part replaces part number 108920
# 006
MPN: 156263
THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 0.6
from £0.86
from £0.86
This part replaces part number 108921
# 006
MPN: 156264
THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 0.7
from £0.67
from £0.67
This part replaces part number 108922
# 006
MPN: 156265
THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 0.8
from £1.56
from £1.56
This part replaces part number 108923
# 006
MPN: 156266
THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 1.0
from £0.84
from £0.84
This part replaces part number 108924
# 007
MPN: 163151
PIPE LH FRONT CALIPER
Supersession
Supersession
# 007
MPN: 212528
PIPE RH FRONT CALIPER
from £66.81
from £66.81
This part replaces part number 163150
# 008
MPN: 172348
SPRING
from £18.79
from £18.79
# 009
MPN: 172868
CONNECTION PIPE
from £32.30
from £32.30
# 010
MPN: 116374
CLIP
from £1.16
from £1.16
# 011
MPN: 152955
PROTECTION BOOT
from £3.06
from £3.06
# 012
MPN: 152954
UNION WITH EXHAUST VALVE
from £3.30
from £3.30
