019 - Secondary Air Pump

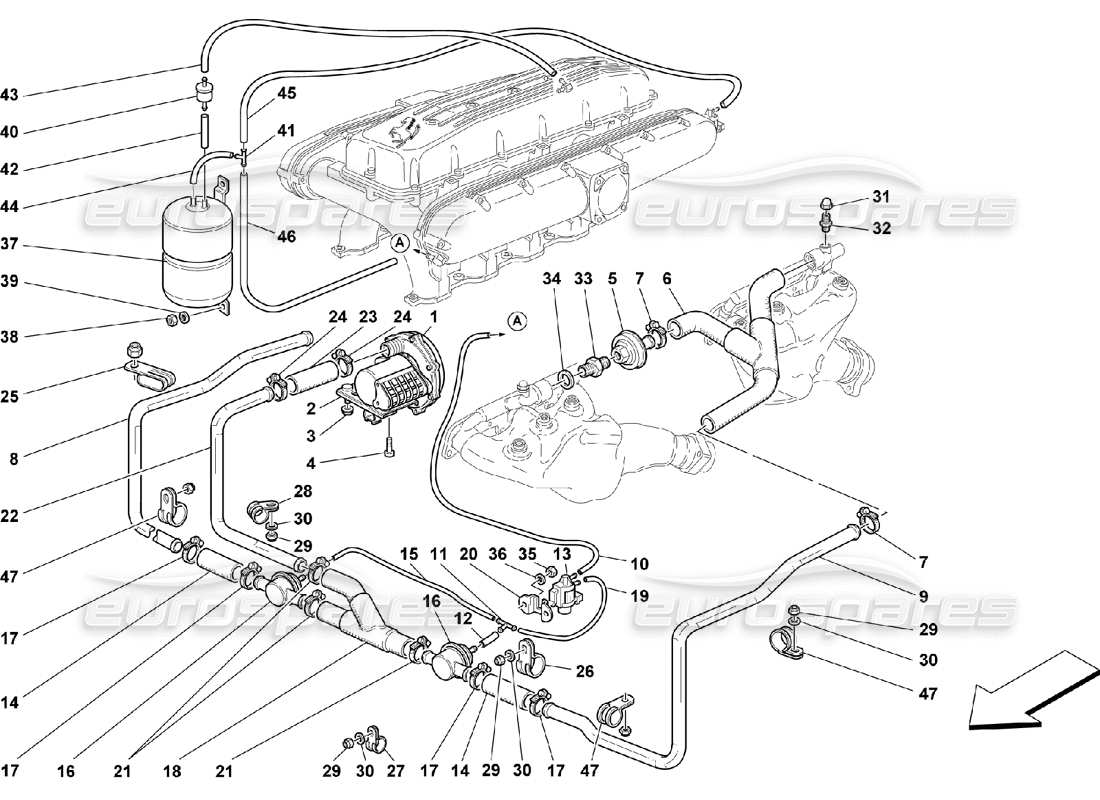

Ferrari 550 Maranello Secondary Air Pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 10441790
BRACKET WITH SHEATH
from £0.53
from £0.53
# 000
MPN: 124032
RUBBER PIPE FROM UNION TO SOLENOID VALVE
- Valid for GD
from £25.06
from £25.06
# 001
MPN: 165903
ELECTRIC AIR PUMP WITH BRACKET
from £547.55
from £547.55
# 002
MPN: 149111
BRACKET
from £17.50
from £17.50
# 003
MPN: 14058411
NUT
from £0.53
from £0.53
# 004
MPN: 14306724
SCREW
from £0.56
from £0.56
# 005
MPN: 148494
SECONDARY AIR VALVE
from £402.05
from £402.05
This part replaces part number 121769 - and 11 more. Click to view details
# 006
MPN: 154873
CONNECTION PIPE
from £150.51
from £150.51
# 007
MPN: 161490
SCREW COLLAR
from £1.30
from £1.30
# 008
MPN: 155103
RH PIPE
from £24.29
from £24.29
# 009
MPN: 168369
LH PIPE
from £100.34
from £100.34
# 010
MPN: 115665
PIPE FROM SOLENOID VALVE TO PLENUM CHAMBER
- Valid till Ass. Nr. 22937
from £19.29
from £19.29
# 010
MPN: 117170
PIPE FROM SOLENOID VALVE TO PLENUM CHAMBER
- Valid from Ass. Nr. 22938
from £8.24
from £8.24
# 011
MPN: 121793
3-WAY UNION
from £0.54
from £0.54
# 012
MPN: 121831
PIPE FROM UNION TO LH CUT-OFF VALVE
from £1.33
from £1.33
# 013
MPN: 159177
SOLENOID VALVE
from £107.31
from £107.31
This part replaces part number 154384 which we have in stock
# 014
MPN: 165446
RUBBER PIPE
from £9.67
from £9.67
This part replaces part number 155107 which we have in stock - and 6 more. Click to view details
# 015
MPN: 115412
PIPE FROM RH CUT-OFF VALVE TO UNION
from £1.33
from £1.33
This part replaces part number 169456
# 016
MPN: 147390
CUT-OFF VALVE
from £264.41
from £264.41
This part replaces part number 121751 - and 2 more. Click to view details
# 017
MPN: 13000490
SCREW COLLAR
from £0.51
from £0.51
This part replaces part number 10169090 - and 3 more. Click to view details
# 018
MPN: 154871
CONNECTION SLEEVE
from £181.88
from £181.88
# 019
MPN: 159539
PIPE FROM UNION TO SOLENOID VALVE
from £2.58
from £2.58
# 020
MPN: 145472
SMALL PLATE
from £2.75
from £2.75
# 021
MPN: 13000490
SCREW COLLAR
from £0.52
from £0.52
This part replaces part number 10169090 - and 3 more. Click to view details
# 022
MPN: 168368
PIPE
from £24.09
from £24.09
# 023
MPN: 155116
SLEEVE
from £5.58
from £5.58
# 024
MPN: 13000490
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 10169090 - and 3 more. Click to view details
# 025
MPN: 61712500
BRACKET WITH SHEATH
from £1.04
from £1.04
# 026
MPN: 10442090
BRACKET WITH SHEATH
from £0.47
from £0.47
# 027
MPN: 10441490
BRACKET WITH SHEATH
from £0.53
from £0.53
# 028
MPN: 10441990
BRACKET WITH SHEATH
from £0.53
from £0.53
# 029
MPN: 102948
NUT
from £0.53
from £0.53
This part replaces part number 12574211 - and 3 more. Click to view details
# 030
MPN: 14499324
WASHER
from £0.47
from £0.47
This part replaces part number 14499301 which we have in stock
# 031
MPN: 150595
CAP NUT
from £0.58
from £0.58
This part replaces part number 16109642
# 032
MPN: 152630
UNION
from £44.39
from £44.39
# 033
MPN: 152631
UNION
from £13.69
from £13.69
# 034
MPN: 10257460
GASKET
from £0.47
from £0.47
This part replaces part number 94702
# 035
MPN: 169180
NUT
from £0.53
from £0.53
This part replaces part number 12574121
# 036
MPN: 14496324
WASHER
from £1.39
from £1.39
This part replaces part number 14496301 which we have in stock
# 037
MPN: 175374
DEPRESSION ACCUMULATION TANK
from £154.85
from £154.85
# 038
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 039
MPN: 12646601
WASHER
from £0.71
from £0.71
# 040
MPN: 62507200
NONRETURN VALVE
from £14.63
from £14.63
This part replaces part number 61653800
# 041
MPN: 121793
UNION
from £0.54
from £0.54
# 042
MPN: 121831
RUBBER HOSE FROM VALVE TO TANK
from £1.33
from £1.33
# 043
MPN: 124347
RUBBER HOSE FROM RH SUCTION MANIFOLD TO VALVE
from £6.13
from £6.13
# 044
MPN: 121831
RUBBER HOSE FROM TANK TO UNION
from £1.33
from £1.33
# 045
MPN: 122761
RUBBER PIPE FROM UNION TO SOLENOID VALVE
from £52.04
from £52.04
This part replaces part number 169700 - and 1 more. Click to view details
# 046
MPN: 168432
RUBBER PIPE FROM UNION TO SOLENOID VALVE
- Not for GD
from £23.66
from £23.66
