026 - Rear Cooled Brakes

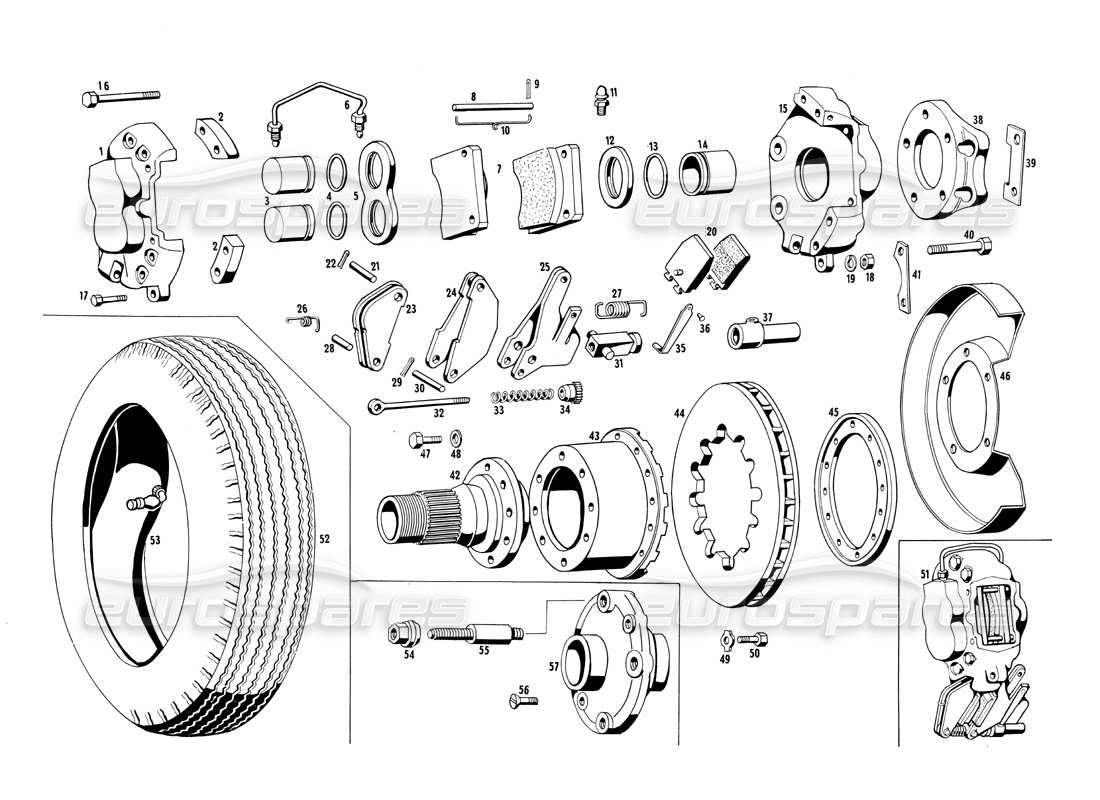

Maserati Ghibli 4.7 / 4.9 Rear Cooled Brakes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
101/10 FP 61086
SEMIPINZA POSTERIORE ESTERNA DESTRA PER CALIPER 12/3
#
001
MPN:
101/10 FP 61086
Semipinza posteriore esterna sinistra per caliper 12/3
#
002
MPN:
115 FA 64876
Distanziale per semipinze posteriori
#
003
MPN:
107 FP 58456
PISTONE Ø 30,18 PER SEMIPINZE ESTERNE
#
004
MPN:
GOM58457
SEALING RUBBER FOR SAID.
#
005
MPN:
FP 58455
REAR CALIPER REPAIR KIT (42 MM)
from
£61.92
from
£61.92
#
006
MPN:
107 FP 58452
HOSE COMPLETE WITH HALF-CALIPER CONNECTION FITTINGS
#
007
MPN:
FP 51926
REAR BRAKE PADS SET
#
008
MPN:
115 FP 64882
PIN
#
009
MPN:
CN58454
PIN ON THE PINS HOLDS THE ANCHORS
#
010
MPN:
101/9 - FP 55469
SPRING
#
011
MPN:
107 FP 58458
AIR VENT CAP
#
012
MPN:
101/9 FA 58695
GOMMINO PARAPOLVERE
from
£84.00
from
£84.00
#
013
MPN:
GOM58449
GOMMINO DI TENUTA SUL PISTONE Ø 42,82 SEMIPINZE INTERNE
#
014
MPN:
107 FP 58450
Pistone Ø 42,82 per semipinze interne
#
015
MPN:
101/10 - FP 61688
SEMIPINZA POSTERIORE INTERNA DESTRA PER CALIPER 12/3
#
015
MPN:
101/10 FP 61687
SEMIPINZA POSTERIORE INTERNA SINISTRA PER CALIPER 12/3
#
016
MPN:
BN 64883
BOLT
#
017
MPN:
BNT 34007
BOLT
#
018
MPN:
DN 47046
NUT
#
019
MPN:
RDI 58544
WASHER
#
020
MPN:
107/A FP 65987
BRAKING BLOCKS FOR HAND BRAKE.
#
021
MPN:
107 FP 58459
PIVOT
#
022
MPN:
SN 63455
PIN
#
023
MPN:
107/A FP 65989
LEVER
#
024
MPN:
107/A FP 65990
LEVER
#
025
MPN:
107/A FP 65991
LEVER
#
026
MPN:
107/A FP 65992
SPRING
#
027
MPN:
107/A FP 65993
SPRING
#
028
MPN:
107/A FP 65994
PIN
#
029
MPN:
CN. 43776
PIN FOR SAID AND FOR SUPPORT LEVER PIN
from
£0.84
from
£0.84
#
030
MPN:
107/A FP 66000
PIN
#
031
MPN:
107/A FP 65995
CROCERA PER TIRANTE REGISTRO
#
032
MPN:
107 FP 58464
TIE ROD
#
033
MPN:
107/A FP 65996
SPRING
#
034
MPN:
107/A FP 65997
NUT
#
035
MPN:
107/A FP 65998
SHEET ON THE CABLE FULCER LEVER FOR CORN. ADJUSTING NUT
#
036
MPN:
CHN 33756
Nail 4 X 7 for said .
#
037
MPN:
107/A FP 65999
CAP FOR TIE ROD AND AUTOMATIC ADJUSTMENT NUT
#
038
MPN:
11 FA 64436
SUPPORT
#
038
MPN:
115 FA 64437
SUPPORT
#
039
MPN:
107/FP 54774
DISTANZIALE FRA SUPPORTO CALIPER E CALIPER (A RICHIESTA)
#
040
MPN:
BN52041
BOLT
#
041
MPN:
101/6 14554 51501
Stop plate for said
#
042
MPN:
107/A TP 63030
MOZZO POSTERIORE DESTRO TP. 42
from
£210.00
from
£210.00
#
042
MPN:
107/A TP 63031
MOZZO POSTERIORE SINISTRO TP. 42
from
£210.00
from
£210.00
#
042
MPN:
115 TP 65630
Mozzo posteriore destro tp. 52 fino alla 300ª vettura
#
042
MPN:
115 TP 65631
Mozzo posteriore sinistro tp. 52 fino alla 300ª vettura
#
043
MPN:
115 FP 64458
Bell for rear brake disc with hubs from 52 to 300th car
#
043
MPN:
115 FP 64460
Bell for rear brake disc with stud hubs from the 301th car onwards
#
043
MPN:
115 FP 65816
Bell for rear brake disc with hubs from 42 to 300th car
#
044
MPN:
115 FP 64465
PLATE FOR REAR BRAKE DISC
#
045
MPN:
115 FP 64489
FLANGE SEALING DISC TO THE BELL.
#
046
MPN:
115 FP 65476
RIGHT REAR DISC PROTECTION SHEET
#
046
MPN:
115 FP 65477
LEFT REAR DISC PROTECTION SHEET
#
047
MPN:
BNT 64468
BOLT
#
048
MPN:
RDI55990
WASHER
#
049
MPN:
RDL 42638
WASHER
from
£2.46
from
£2.46
#
050
MPN:
BNT/47370
BOLT
from
£3.20
from
£3.20
This part replaces part number 47370
#
051
MPN:
115 FP 65070
Caliper posteriore destro 12/3
#
051
MPN:
115 FP 65071
Caliper posteriore sinistro 12/3
#
052
MPN:
PNM 54290
Pirelli tire 210 X 15 for wheels with 700 X 15 hubs 42
#
052
MPN:
PNM 65768
PIRELLI TIRE G70 VR15 FOR WHEELS WITH 71/2 X 15 HUBS 52
#
053
MPN:
PNM 54257
INNER TUBE FOR 210 X 15 TIRES
#
053
MPN:
PNM 65769
Camera d'aria per pneumatics G70 VR15
#
054
MPN:
DN/46440
NUT
#
055
MPN:
115 TP 66825
Rear wheel fixing columns. from the 301th car onwards
#
056
MPN:
VN/46441
SCREW
#
057
MPN:
107/A TP 62180
Rear hub with stud wheel attachment from the 301th car onwards
