016 - Air Intake Manifolds

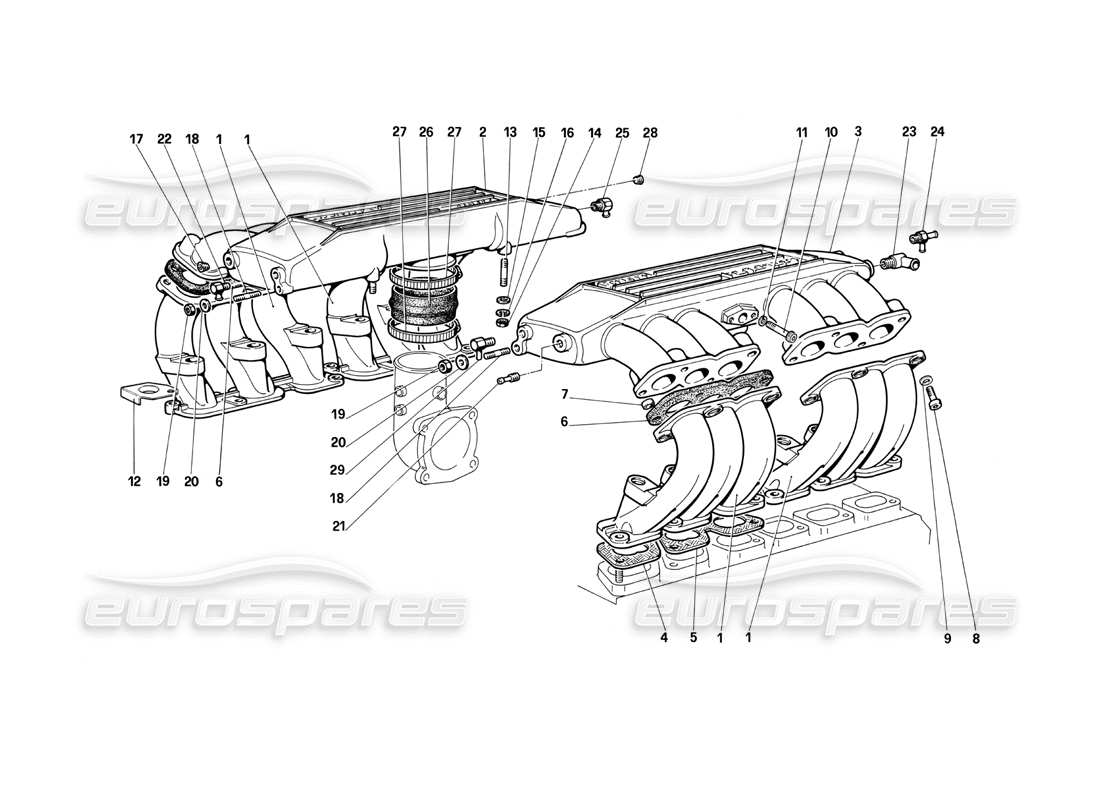

Ferrari Testarossa (1990) Air Intake Manifolds Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 121055
INTAKE MANIFOLD
from £624.75
from £624.75
This part replaces part number 121449 - and 1 more. Click to view details
# 002
MPN: 124451
RH BODY FOR AIR DELIVERY TO MANIFODS, COMPLETE
For US and C8
from £1,417.50
from £1,417.50
# 002
MPN: 131934
RH BODY FOR AIR DELIVERY TO MANIFODS, COMPLETE
for C7
from £356.85
from £356.85
# 002
MPN: 132327
RH BODY FOR AIR DELIVERY TO MANIFOLDS COMPLETE
For B1 and CAT.
from £349.27
from £349.27
# 002
MPN: 133595
RH BODY FOR AIR DELIVERY TO MANIFOLDS, COMPLETE
For SA
from £975.48
from £975.48
# 003
MPN: 124450
LH BODY FOR AIR DELIVERY TO MANIFOLDS, COMPLETE
For US and C8
from £457.69
from £457.69
# 003
MPN: 127128
LH BODY FOR AIR DELIVERY TO MANIFOLDS, COMPLETE
For B1 and CAT.
from £820.25
from £820.25
# 003
MPN: 130137
LH BODY FOR AIR DELIVERY TO MANIFOLDS, COMPLETE
For SA
from £453.93
from £453.93
# 003
MPN: 131935
LH BODY FOR AIR DELIVERY TO MANIFOLDS, COMPLETE
for C7
from £356.85
from £356.85
# 004
MPN: 134959

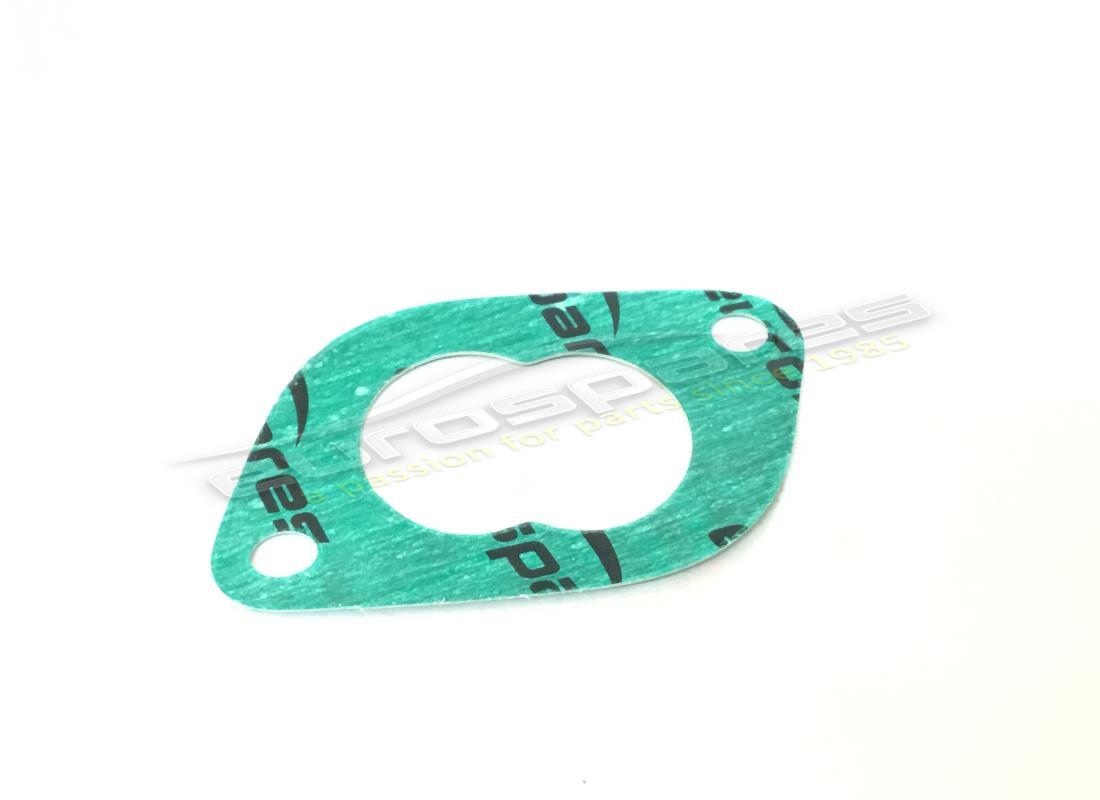

SINGLE GASKET
With Amianthus
from £2.18
from £2.18
This part replaces part number 121124
# 004
MPN: 134959
SINGLE GASKET
Without Amianthus
from £2.18
from £2.18
This part replaces part number 121124
# 005
MPN: 134958

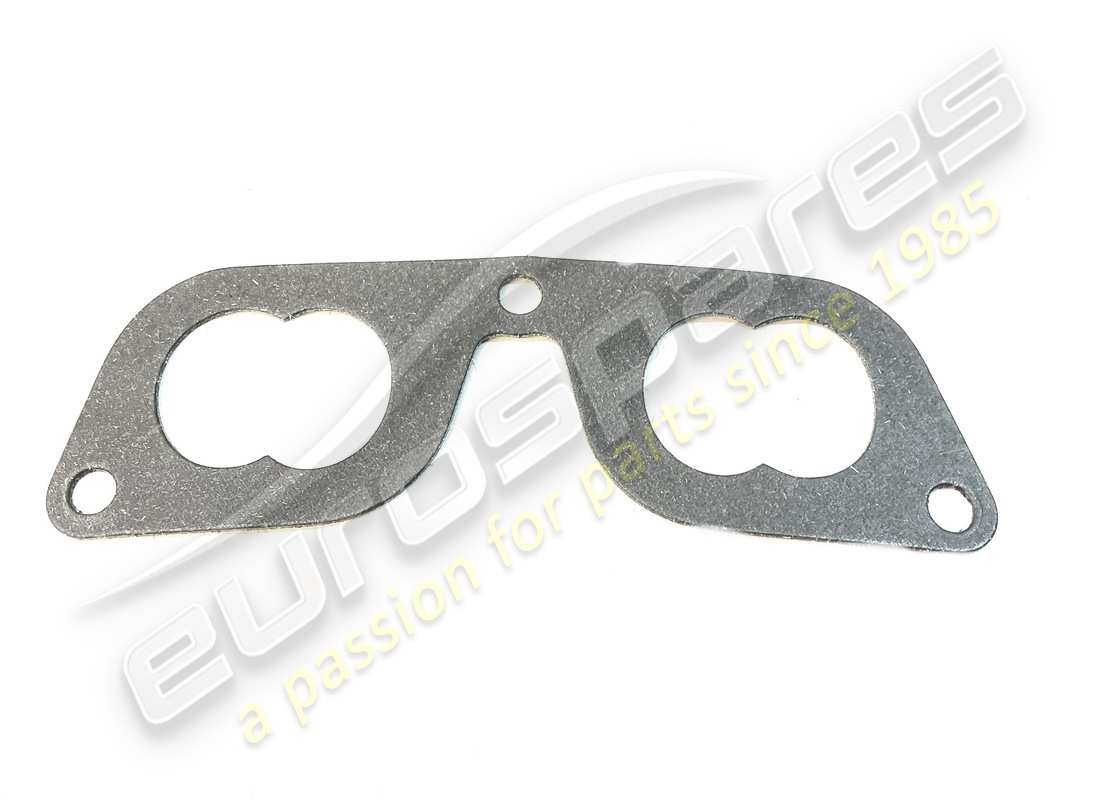

DOUBLE GASKET
from £3.04
from £3.04
This part replaces part number 121125
# 005
MPN: 134958
DOUBLE GASKET
Without Amianthus
from £3.04
from £3.04
This part replaces part number 121125
# 006
MPN: 121021

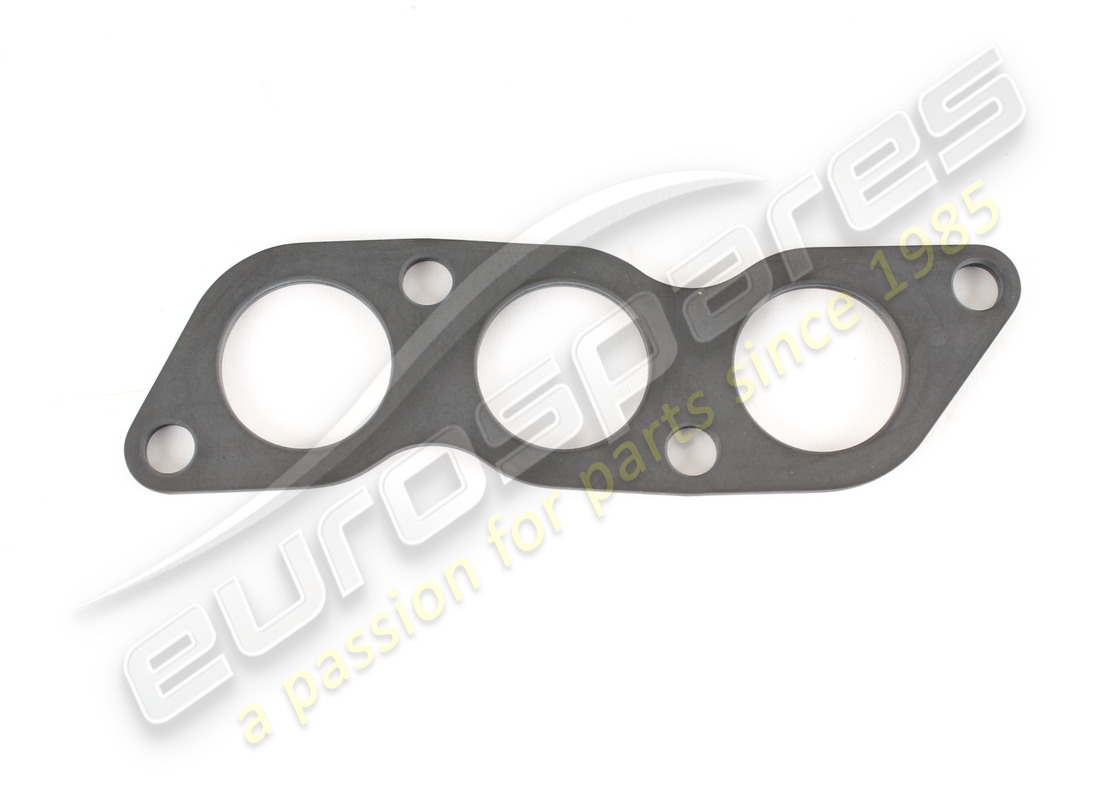

GASKET
from £29.37
from £29.37
# 007
MPN: 114984
SPACER
from £6.20
from £6.20
# 008
MPN: 14306521
SCREW
Supersession
Supersession
This part replaces part number 14306426
# 009
MPN: 12601371
WASHER
Supersession
Supersession
# 010
MPN: 14305621
SCREW
from £0.71
from £0.71
# 011
MPN: 12601279
WASHER
from £0.53
from £0.53
This part replaces part number 12601271 - and 2 more. Click to view details
# 012
MPN: 131182
BRACKET FOR CABLES
from £1.22
from £1.22
# 013
MPN: 13540721
AIR INTAKE SECURING STUD
Supersession
Supersession
# 014
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 015
MPN: 12644401
SPRING WASHER
from £0.53
from £0.53
# 016
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 017
MPN: 10269550
TAPERED PLUG
from £1.61
from £1.61
# 018
MPN: 13540721
STUD FOR EXHAUST PIPE BRACKET
Supersession
Supersession
# 019
MPN: 12574211
SELF LOCKING NUT
from £0.71
from £0.71
# 020
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 021
MPN: 113652
NIPPLE
from £2.90
from £2.90
# 022
MPN: 124341
NIPPLE
For US - C8
from £5.35
from £5.35
# 023
MPN: 124342
UNION
from £3.61
from £3.61
# 024
MPN: 118742
NIPPLE
For B1 - CAT.
from £5.84
from £5.84
# 024
MPN: 121401
NIPPLE
for C7
from £10.54
from £10.54
# 024
MPN: 125782
NIPPLE
For US - C8
from £11.31
from £11.31
# 024
MPN: 130134
NIPPLE
For SA
from £7.93
from £7.93
# 025
MPN: 124341
NIPPLE
For B1 - CAT.
from £5.35
from £5.35
# 025
MPN: 125782
NIPPLE
For US - C8
from £11.31
from £11.31
# 025
MPN: 130134
NIPPLE
For SA
from £7.93
from £7.93
# 026
MPN: 121090
SLEEVE
from £83.92
from £83.92
# 027
MPN: 12176490
CLAMP
Supersession
Supersession
# 028
MPN: 14325950
PLUG (10X1,25)
For B1 - CAT. - C7 - SA
from £4.67
from £4.67
# 028
MPN: 14326150
PLUG (8X1 ,25)
from £0.48
from £0.48
This part replaces part number 12326150
# 029
MPN: 124341
NIPPLE
For US - C8
from £5.35
from £5.35
