ferrari testarossa (1990) front suspension - wishbones (until car no. 75995) parts diagram

047 - Front SUSpension - Wishbones (Until Car No. 75995)

Ferrari Testarossa (1990) Front SUSpension - Wishbones (Until Car No. 75995) Parts Diagram

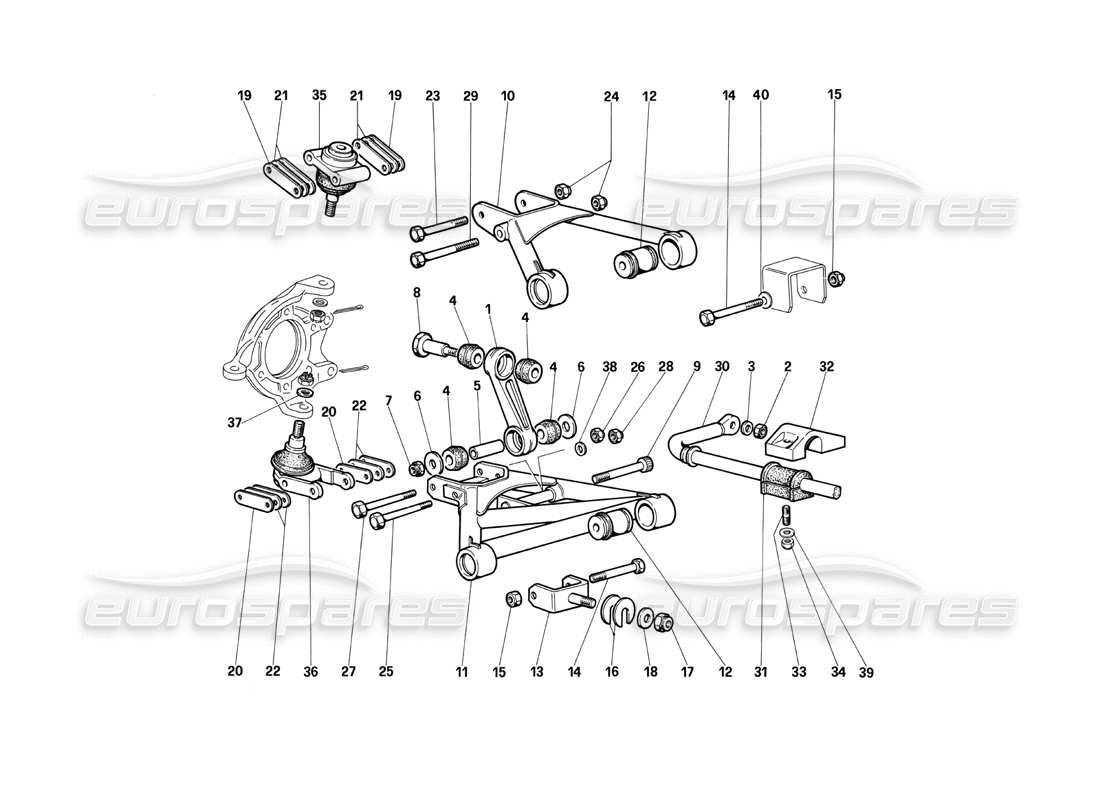

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Key
                                                                  Price

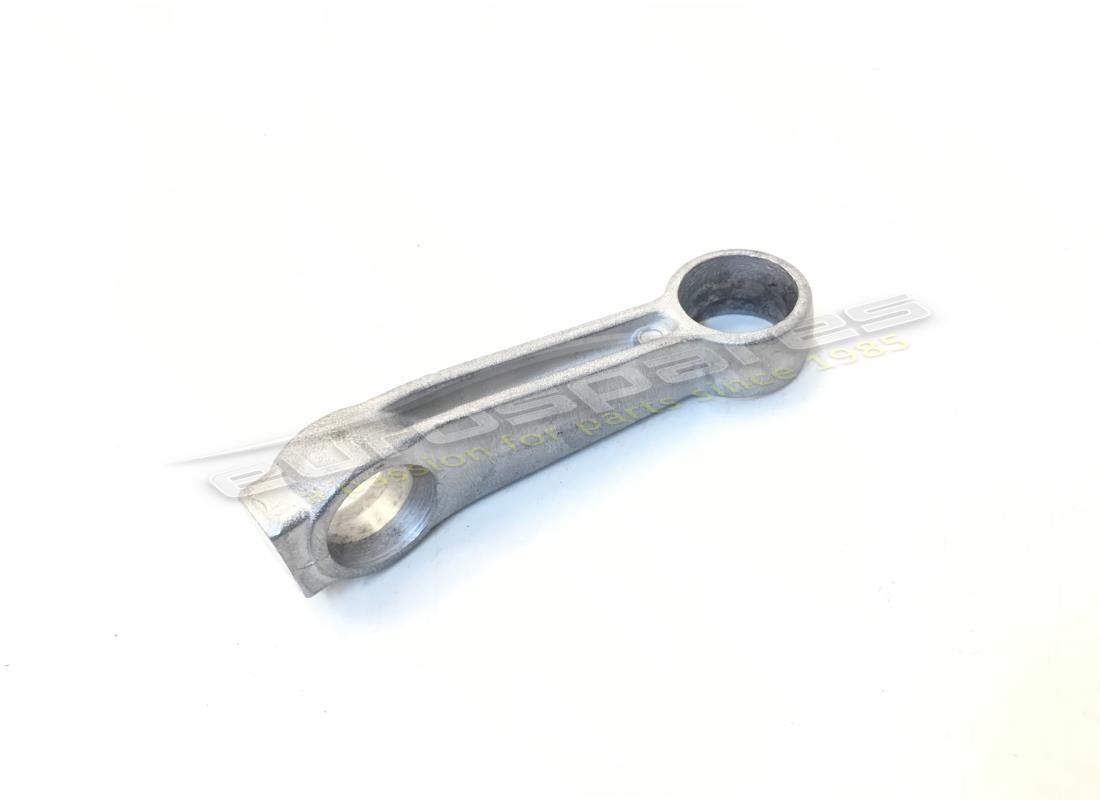

                                                                  # 001
                                                                  MPN: 114691
                                                                  ROD LINK
                                                                  from £322.83
                                                                  from £322.83
                                                                  ANTI ROLL BAR LINK Genuine Ferrari Part - New In stock
                                                                  ANTI ROLL BAR LINK Genuine Ferrari Part - Used In stock
                                                                  # 002
                                                                  MPN: 16103621
                                                                  NUT
                                                                  from £0.71
                                                                  from £0.71
                                                                  NUT 12X1.25X7 Genuine Ferrari Part - New In stock
                                                                  # 003
                                                                  MPN: 106854
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Ferrari Part (no longer available to order)
                                                                  # 004
                                                                  MPN: 100984
                                                                  GROMMET
                                                                  from £6.40
                                                                  from £6.40
                                                                  This part replaces part number 126097 - and 1 more. Click to view details
                                                                  RUBBER BUSH Genuine Ferrari Part - New (to order)
                                                                  RUBBER BUSH Eurospares Approved Part - New In stock
                                                                  # 005
                                                                  MPN: 100985
                                                                  SPACER TUBE
                                                                  from £21.06
                                                                  from £21.06
                                                                  This part replaces part number 64431
                                                                  INNER BUSH Genuine Ferrari Part - New In stock
                                                                  # 006
                                                                  MPN: 117730
                                                                  WASHER
                                                                  from £7.88
                                                                  from £7.88
                                                                  SPACER Genuine Ferrari Part - New (to order)
                                                                  # 007
                                                                  MPN: 148020
                                                                  NUT
                                                                  from £2.58
                                                                  from £2.58
                                                                  This part replaces part number 102825 - and 3 more. Click to view details
                                                                  NUT Genuine Ferrari Part - New In stock
                                                                  # 008
                                                                  MPN: 121679
                                                                  PIN
                                                                  from £80.40
                                                                  from £80.40
                                                                  BOLT Genuine Ferrari Part - New (to order)
                                                                  # 009
                                                                  MPN: 125396
                                                                  SCREW
                                                                  from £50.45
                                                                  from £50.45
                                                                  SUSPENSION BOLT Genuine Ferrari Part - New (to order)

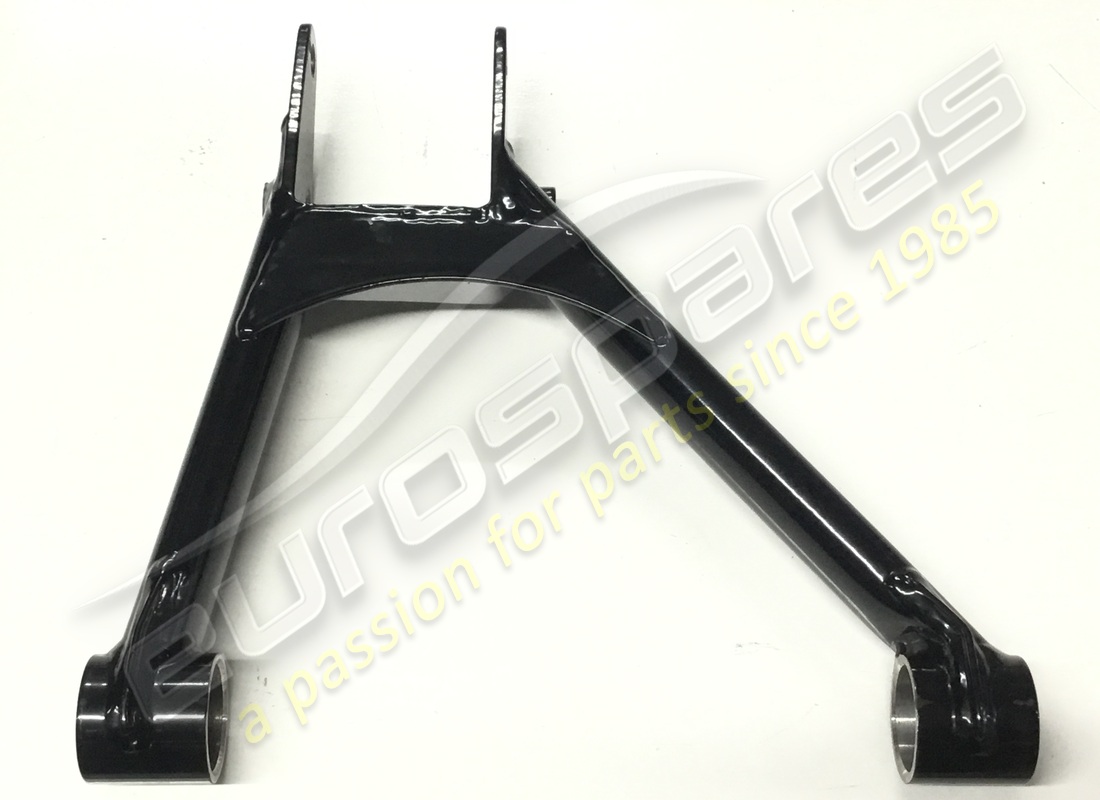

                                                                  # 010
                                                                  MPN: 121392

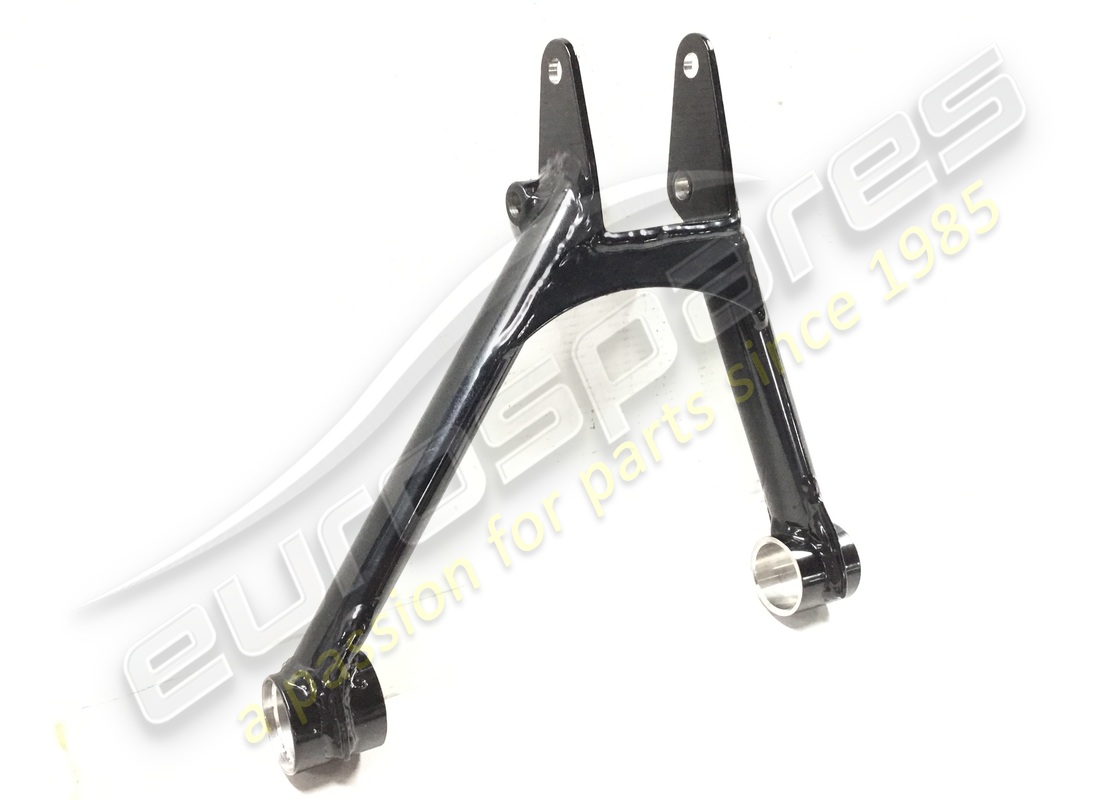

                                                                  RIGHT UPPER LEVER
                                                                  from £1,430.17
                                                                  from £1,430.17
                                                                  RH FRONT UPPER SUSPENSION LEVER Genuine Ferrari Part - New In stock
                                                                  # 010
                                                                  MPN: 121393
                                                                  LEFT UPPER LEVER
                                                                  from £1,384.03
                                                                  from £1,384.03
                                                                  LH FRONT UPPER SUSPENSION LEVER Genuine Ferrari Part - New (to order)

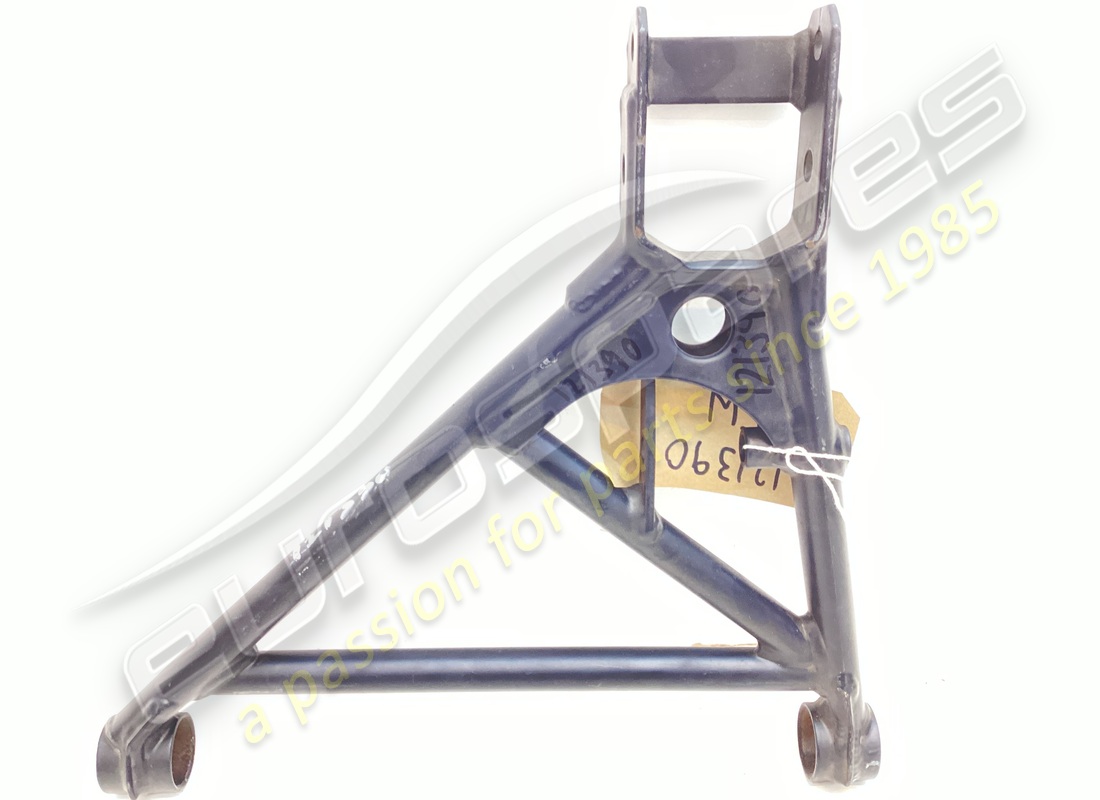

                                                                  # 011
                                                                  MPN: 121390
                                                                  RIGHT LOWER LEVER
                                                                  from £1,342.91
                                                                  from £1,342.91
                                                                  RH FRONT LOWER SUSPENSION LEVER Genuine Ferrari Part - New In stock
                                                                  # 011
                                                                  MPN: 121391
                                                                  LEFT LOWER LEVER
                                                                  from £1,299.67
                                                                  from £1,299.67
                                                                  LH FRONT LOWER SUSPENSION LEVER Genuine Ferrari Part - New (to order)
                                                                  # 012
                                                                  MPN: 154537

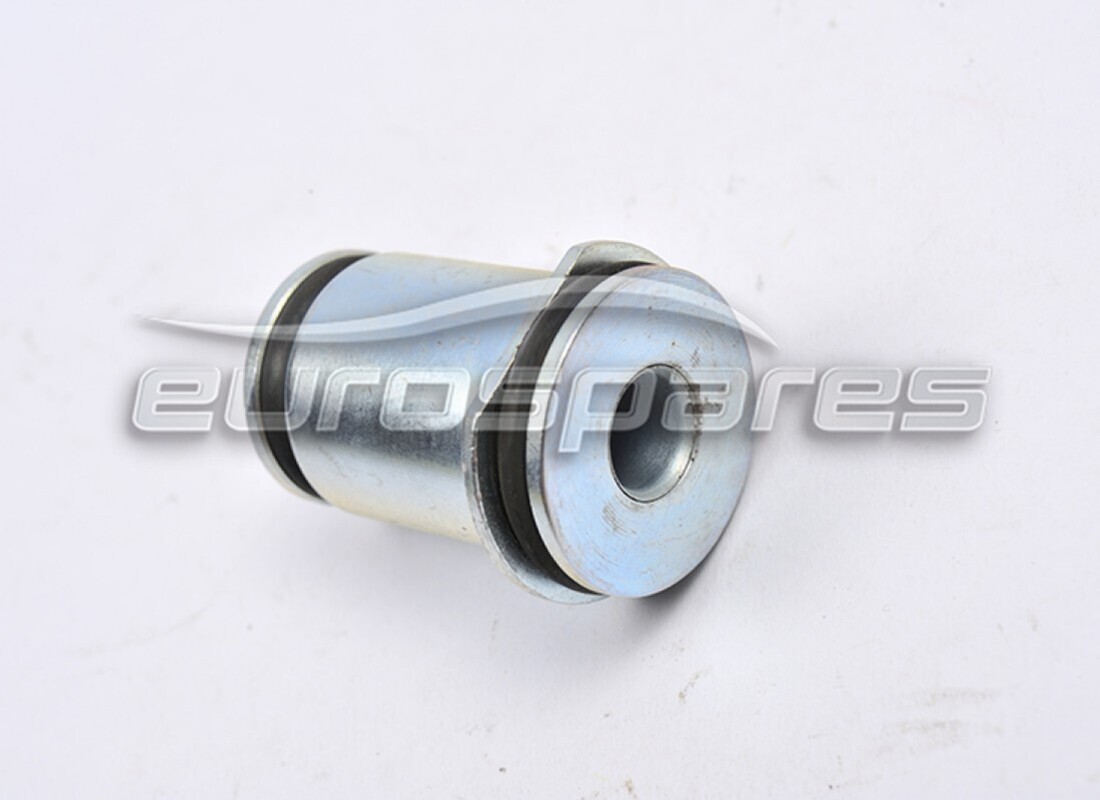

                                                                  FLAMBLOCK
                                                                  USE : 163038/154536
                                                                  from £26.36
                                                                  from £26.36
                                                                  This part replaces part number 104398 - and 1 more. Click to view details
                                                                  SUSPENSION LEVER BUSH (NON ORIGINAL) Genuine Ferrari Part - New (to order)
                                                                  SUSPENSION LEVER BUSH Eurospares Approved Part - New In stock
                                                                  # 013
                                                                  MPN: 127639

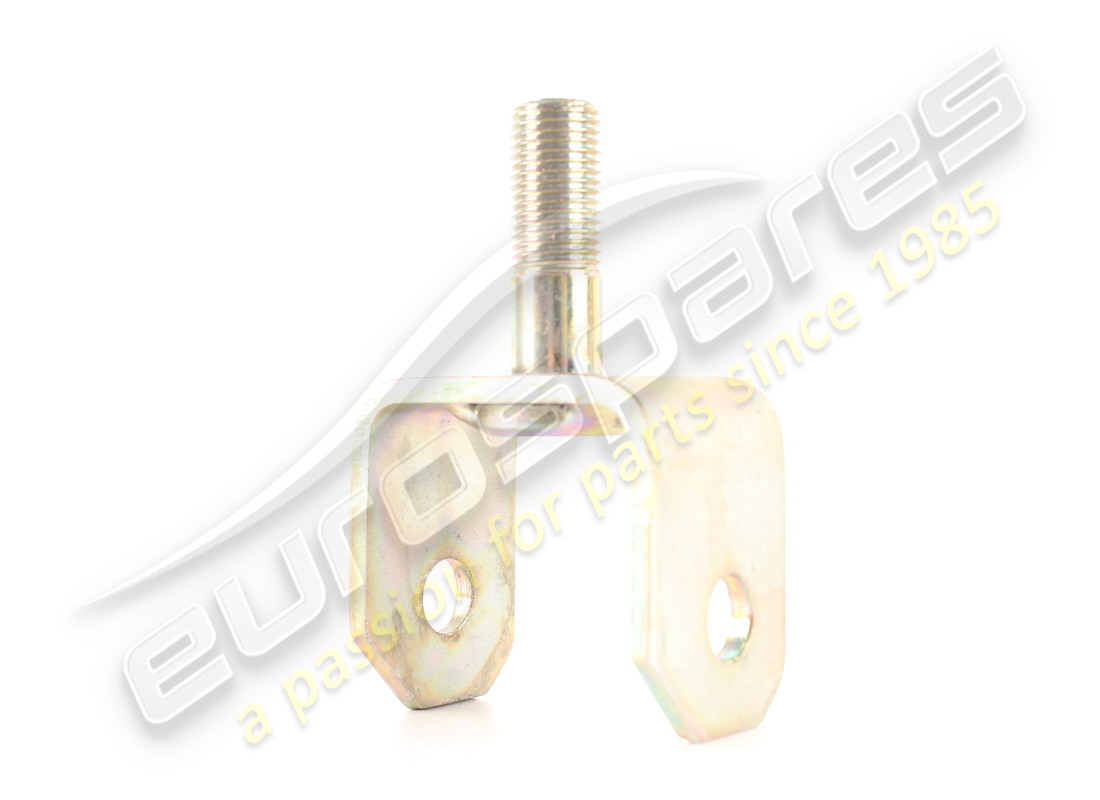

                                                                  LOWER FORK
                                                                  After exhaustion use no. 112807
                                                                  from £92.93
                                                                  from £92.93
                                                                  This part replaces part number 121651 which we have in stock
                                                                  SUSPENSION FORK Genuine Ferrari Part - New In stock
                                                                  # 014
                                                                  MPN: 106419
                                                                  SCREW
                                                                  For fork. no. 112807
                                                                  from £10.66
                                                                  from £10.66
                                                                  This part replaces part number 100808 - and 9 more. Click to view details
                                                                  BOLT Genuine Ferrari Part - New In stock
                                                                  BOLT Genuine Ferrari Part - Used In stock
                                                                  # 014
                                                                  MPN: 121693
                                                                  SCREW
                                                                  For fork no. 127639
                                                                  from £79.23
                                                                  from £79.23
                                                                  This part replaces part number 127849
                                                                  SUSPENSION BOLT Genuine Ferrari Part - New (to order)
                                                                  # 015
                                                                  MPN: 148020
                                                                  NUT
                                                                  from £2.37
                                                                  from £2.37
                                                                  This part replaces part number 102825 - and 3 more. Click to view details
                                                                  NUT Genuine Ferrari Part - New In stock
                                                                  # 016
                                                                  MPN: 101039
                                                                  SHIM FOR LOWER FORK, THICKNESS 1 MM.
                                                                  If required
                                                                  from £2.06
                                                                  from £2.06
                                                                  This part replaces part number 107025 - and 1 more. Click to view details
                                                                  SHIM WASHER 1.00MM Genuine Ferrari Part - New (to order)
                                                                  SHIM WASHER 1.00MM Eurospares Approved Part - New (to order)
                                                                  # 016
                                                                  MPN: 107338
                                                                  SHIM FOR LOWER FORK, THICKNESS 1.5 MM.
                                                                  If required
                                                                  from £13.13
                                                                  from £13.13
                                                                  This part replaces part number 107418
                                                                  WASHER (1.5mm) Genuine Ferrari Part - New In stock
                                                                  # 016
                                                                  MPN: 107339
                                                                  SHIM FOR LOWER FORK, THICKNESS 2 MM.
                                                                  If required
                                                                  from £1.18
                                                                  from £1.18
                                                                  This part replaces part number 107419
                                                                  WASHER Genuine Ferrari Part - New In stock
                                                                  # 016
                                                                  MPN: 107340
                                                                  SHIM FOR LOWER FORK, THICKNESS 2.5 MM.
                                                                  If required
                                                                  from £1.26
                                                                  from £1.26
                                                                  This part replaces part number 107420
                                                                  WASHER Genuine Ferrari Part - New In stock
                                                                  # 016
                                                                  MPN: 107341
                                                                  SHIM FOR LOWER FORK, THICKNESS 3 MM.
                                                                  If required
                                                                  from £4.50
                                                                  from £4.50
                                                                  This part replaces part number 107421
                                                                  WASHER Genuine Ferrari Part - New (to order)
                                                                  WASHER Eurospares Approved Part - New (to order)
                                                                  # 016
                                                                  MPN: 107342
                                                                  SHIM FOR LOWER FORK, THICKNESS 3,25 MM.
                                                                  If required
                                                                  from £0.54
                                                                  from £0.54
                                                                  This part replaces part number 107422
                                                                  WASHER Genuine Ferrari Part - New In stock
                                                                  # 017
                                                                  MPN: 150238
                                                                  NUT
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 12575821 - and 2 more. Click to view details
                                                                  NUT Genuine Ferrari Part - New In stock
                                                                  NYLON STOP HEX. NUT M14X1.5X14 Genuine Maserati Part - New (to order)
                                                                  # 018
                                                                  MPN: 101041
                                                                  WASHER
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 10730821
                                                                  WASHER Genuine Ferrari Part - New In stock
                                                                  # 019
                                                                  MPN: 115072
                                                                  UPPER ADJUSTING PLATE FOR CASTER ANGLE
                                                                  If required
                                                                  from £21.71
                                                                  from £21.71
                                                                  TAB Genuine Ferrari Part - New (to order)
                                                                  # 020
                                                                  MPN: 124365
                                                                  LOWER ADJUSTING PLATE FOR CASTER ANGLE
                                                                  If required
                                                                  from £5.71
                                                                  from £5.71
                                                                  SUSPENSION SHIM Genuine Ferrari Part - New (to order)
                                                                  # 021
                                                                  MPN: 103256

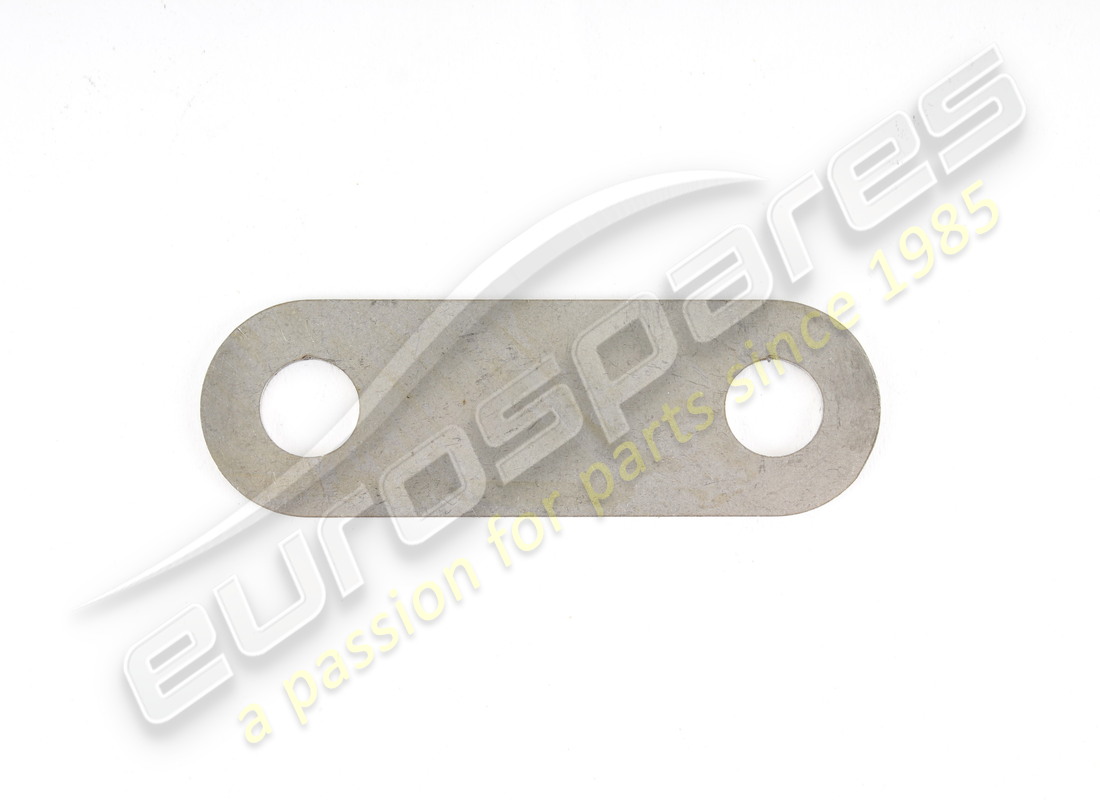

                                                                  CLEARANCE ADJUSTING PLATE, UPPER
                                                                  from £3.47
                                                                  from £3.47
                                                                  This part replaces part number 641276
                                                                  TOP SUSPENSION SHIM SPACER Genuine Ferrari Part - New (to order)
                                                                  TOP SUSPENSION SHIM SPACER Eurospares Approved Part - New (to order)
                                                                  # 022
                                                                  MPN: 125397
                                                                  CLEARANCE ADJUSTING PLATE, LOWER
                                                                  from £1.14
                                                                  from £1.14
                                                                  PLATE Genuine Ferrari Part - New (to order)
                                                                  # 023
                                                                  MPN: 109013
                                                                  SCREW
                                                                  from £45.23
                                                                  from £45.23
                                                                  SCREW Genuine Ferrari Part - New (to order)
                                                                  # 024
                                                                  MPN: 12574521
                                                                  NUT
                                                                  from £0.56
                                                                  from £0.56
                                                                  This part replaces part number 12574511
                                                                  NUT Genuine Ferrari Part - New In stock
                                                                  NYLON STOP HEX. NUT M10X1.25X12 Genuine Maserati Part - New (to order)
                                                                  # 025
                                                                  MPN: 112441
                                                                  SCREW
                                                                  from £80.01
                                                                  from £80.01
                                                                  SHOCK ABSORBER BOLT Genuine Ferrari Part - New (to order)
                                                                  # 026
                                                                  MPN: 12574521
                                                                  NUT
                                                                  from £0.57
                                                                  from £0.57
                                                                  This part replaces part number 12574511
                                                                  NUT Genuine Ferrari Part - New In stock
                                                                  NYLON STOP HEX. NUT M10X1.25X12 Genuine Maserati Part - New (to order)
                                                                  # 027
                                                                  MPN: 15971621
                                                                  SCREW
                                                                  from £7.94
                                                                  from £7.94
                                                                  This part replaces part number 104519
                                                                  BOLT Genuine Ferrari Part - New In stock
                                                                  # 028
                                                                  MPN: 148020
                                                                  NUT
                                                                  from £2.58
                                                                  from £2.58
                                                                  This part replaces part number 102825 - and 3 more. Click to view details
                                                                  NUT Genuine Ferrari Part - New In stock
                                                                  # 029
                                                                  MPN: 114818
                                                                  SCREW
                                                                  from £68.48
                                                                  from £68.48
                                                                  SCREW Genuine Ferrari Part - New (to order)

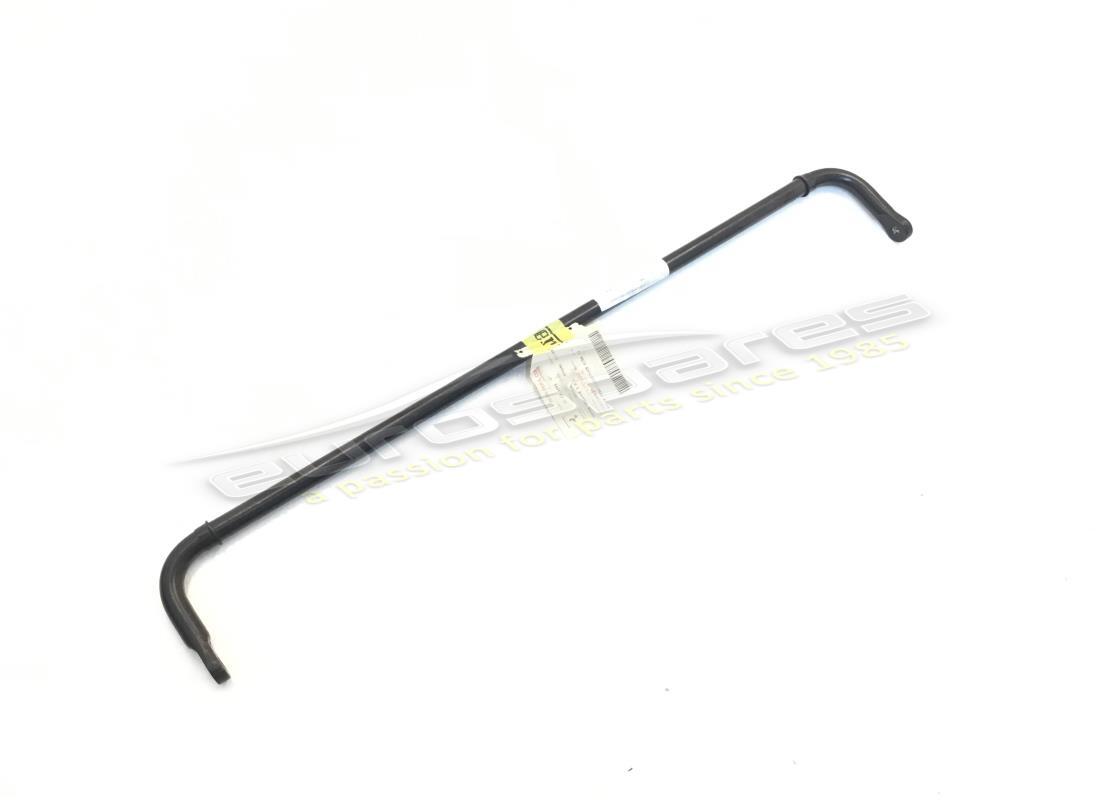

                                                                  # 030
                                                                  MPN: 124985
                                                                  STABILIZER ROD
                                                                  from £1,237.86
                                                                  from £1,237.86
                                                                  ANTI ROLL BAR FRONT Genuine Ferrari Part - New In stock

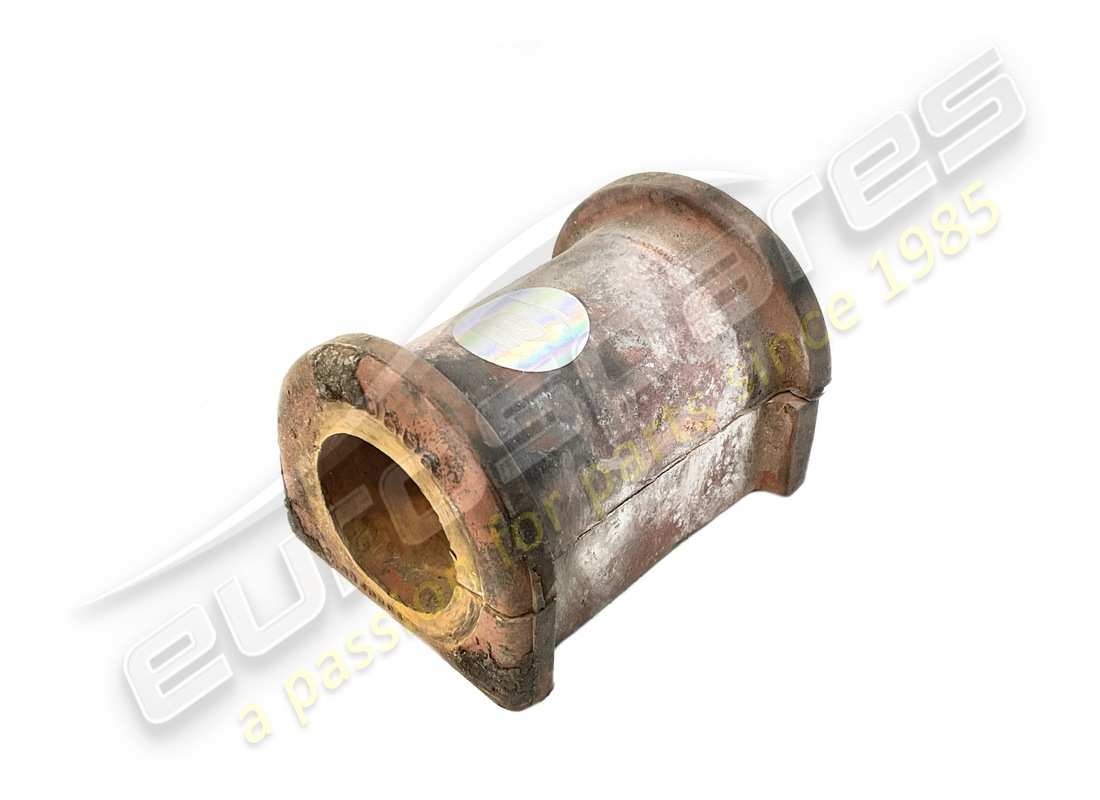

                                                                  # 031
                                                                  MPN: 130606

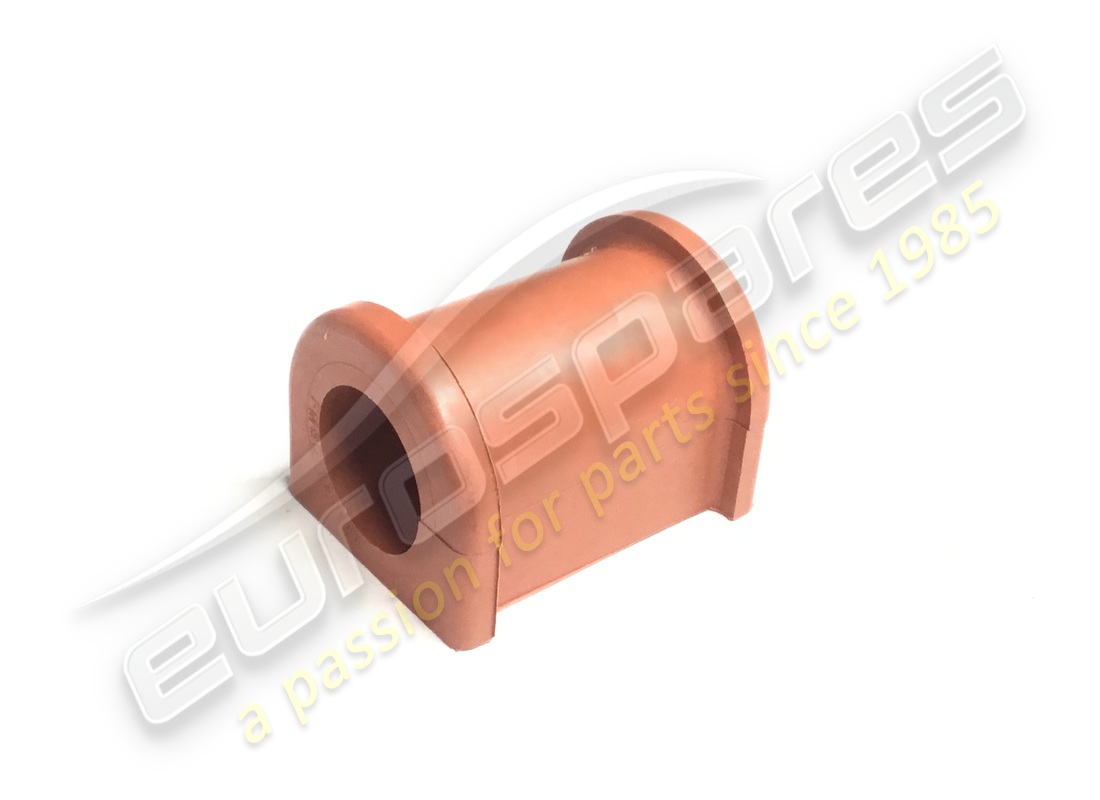

                                                                  ROD RETAINING PAD
                                                                  from £47.05
                                                                  from £47.05
                                                                  ANTI ROLL BAR D RUBBER D22MM Genuine Ferrari Part - New In stock
                                                                  ANTI ROLL BAR D RUBBER D22MM Genuine Ferrari Part - Used In stock
                                                                  # 032
                                                                  MPN: 133227
                                                                  SUPPORT FOR STABILIZER ROD
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 114702 which we have in stock - and 2 more. Click to view details
                                                                  Genuine Ferrari Part (no longer available to order)
                                                                  # 033
                                                                  MPN: 16100814
                                                                  STUD
                                                                  from £0.71
                                                                  from £0.71
                                                                  This part replaces part number 16100811 - and 1 more. Click to view details
                                                                  Genuine Ferrari Part (no longer available to order)
                                                                  NUT FOR REAR DIFFERENTIAL Genuine Maserati Part - New In stock
                                                                  # 034
                                                                  MPN: 16104411
                                                                  NUT
                                                                  from £0.53
                                                                  from £0.53
                                                                  NUT Genuine Ferrari Part - New In stock
                                                                  NYLON STOP HEX. NUT M8X8.5 Genuine Maserati Part - New In stock

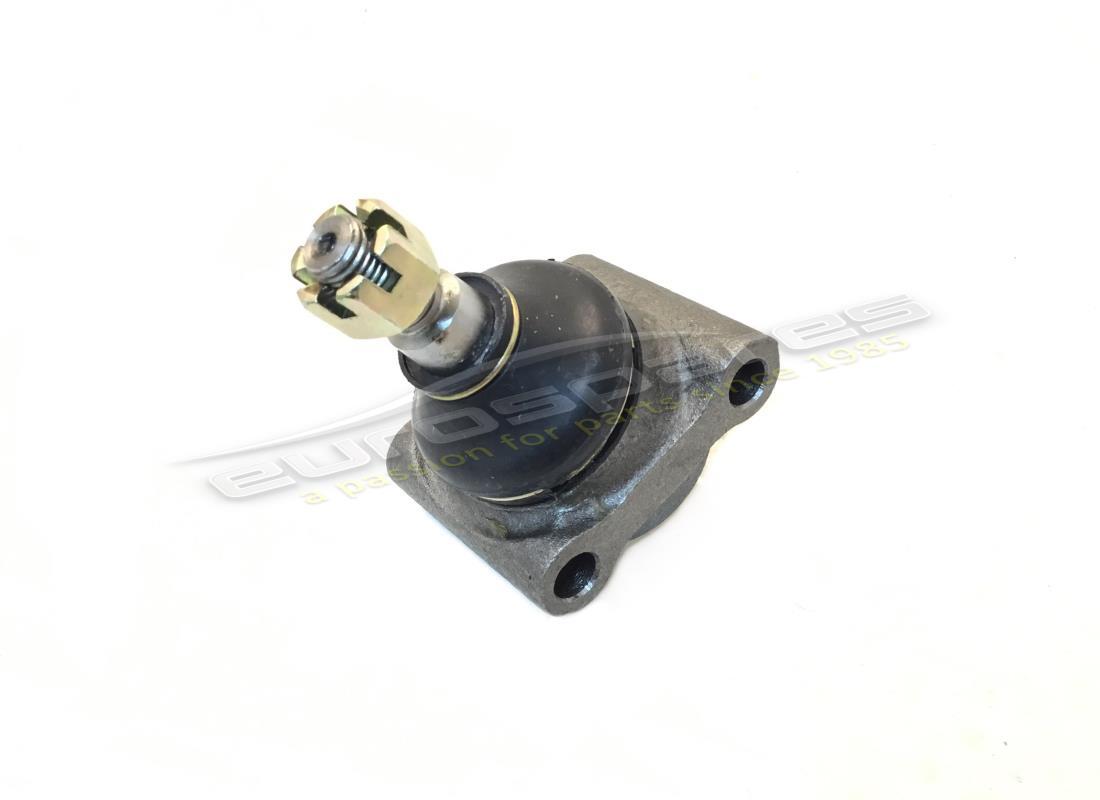

                                                                  # 035
                                                                  MPN: 116280

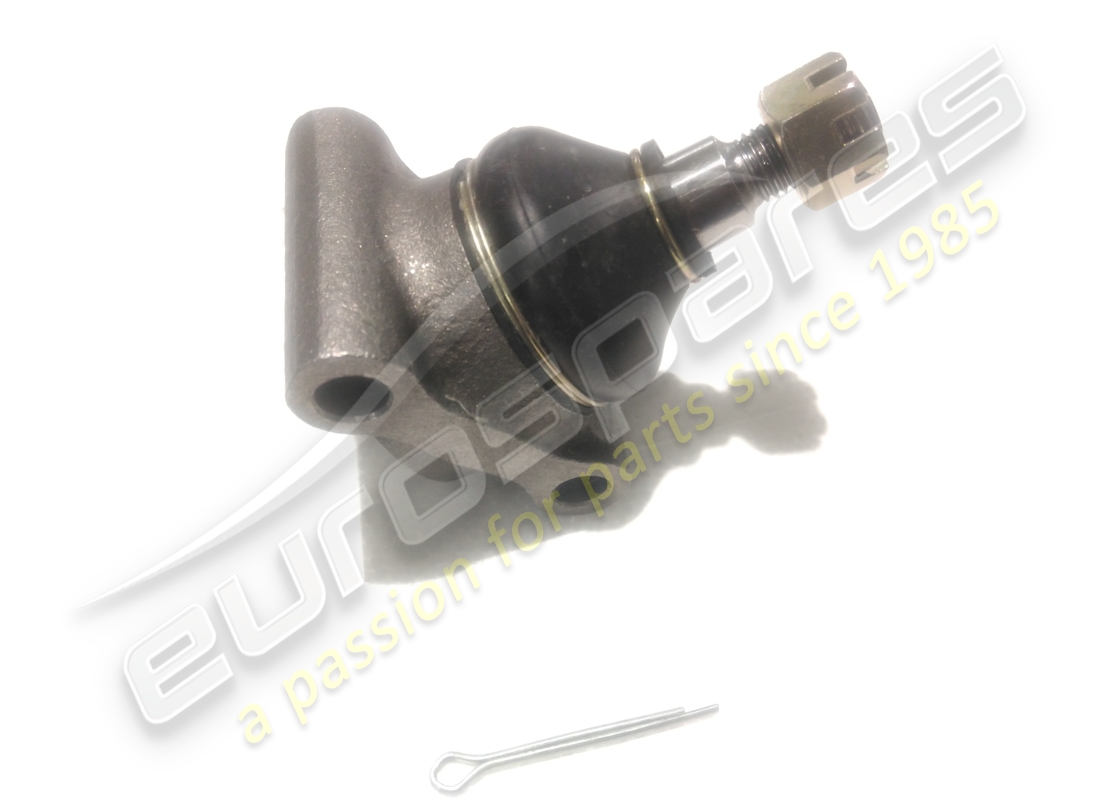

                                                                  UPPER BALL JOINT
                                                                  from £40.00
                                                                  from £40.00
                                                                  This part replaces part number 101441 - and 8 more. Click to view details
                                                                  Genuine Ferrari Part (no longer available to order)
                                                                  UPPER BALL JOINT Eurospares Approved Part - New In stock
                                                                  UPPER BALL JOINT Genuine Ferrari Part - Used In stock

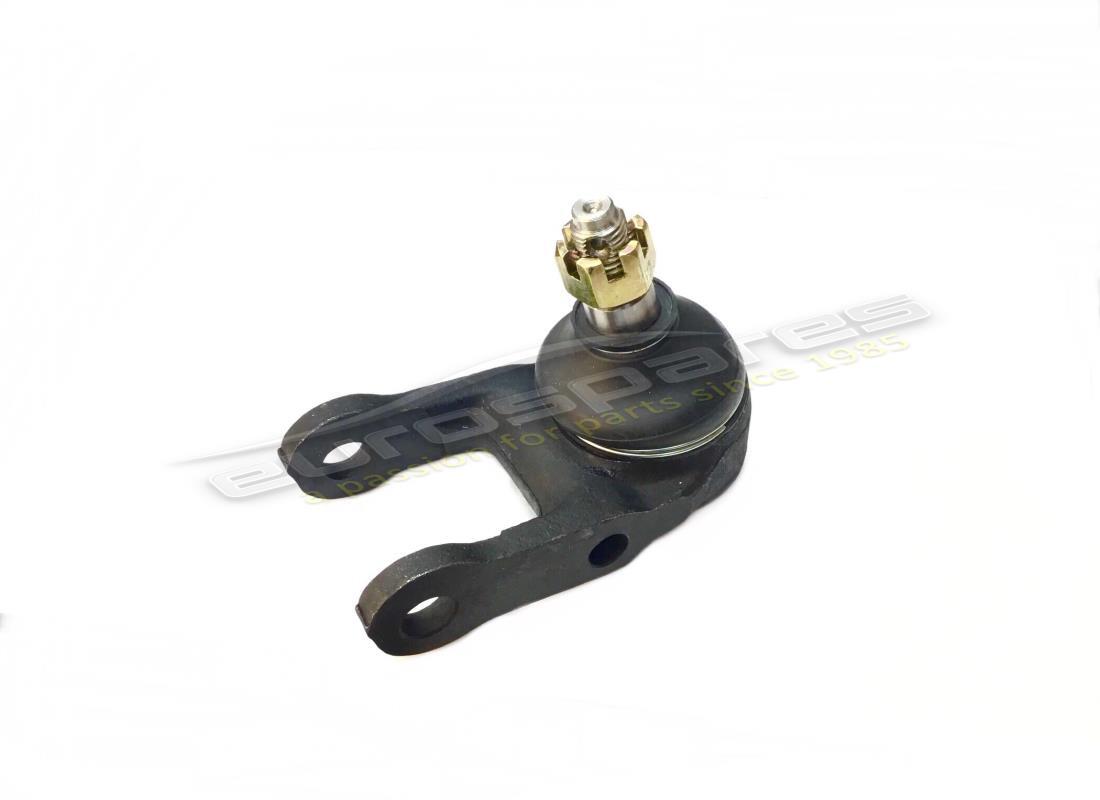

                                                                  # 036
                                                                  MPN: 133944
                                                                  LOWER BALL JOINT
                                                                  After exhaustion use no. 133944
                                                                  from £40.00
                                                                  from £40.00
                                                                  This part replaces part number 114462 - and 13 more. Click to view details
                                                                  LOWER BALL JOINT Genuine Ferrari Part - New (to order)
                                                                  LOWER BALL JOINT Eurospares Approved Part - New (to order)
                                                                  LOWER BALL JOINT Genuine Ferrari Part - Used In stock
                                                                  # 037
                                                                  MPN: 101445
                                                                  WASHER
                                                                  from £0.59
                                                                  from £0.59
                                                                  WASHER Genuine Ferrari Part - New (to order)
                                                                  # 038
                                                                  MPN: 106616
                                                                  WASHER
                                                                  from £0.80
                                                                  from £0.80
                                                                  WASHER Genuine Ferrari Part - New In stock
                                                                  # 039
                                                                  MPN: 102683
                                                                  WASHER
                                                                  from £10.44
                                                                  from £10.44
                                                                  This part replaces part number 95301
                                                                  WASHER Genuine Ferrari Part - New In stock
                                                                  # 040
                                                                  MPN: 106426
                                                                  WASHER
                                                                  For screw no. 106419
                                                                  from £2.50
                                                                  from £2.50
                                                                  WASHER Genuine Ferrari Part - New (to order)
