ferrari testarossa (1990) air conditioning system parts diagram

057 - air conditioning system

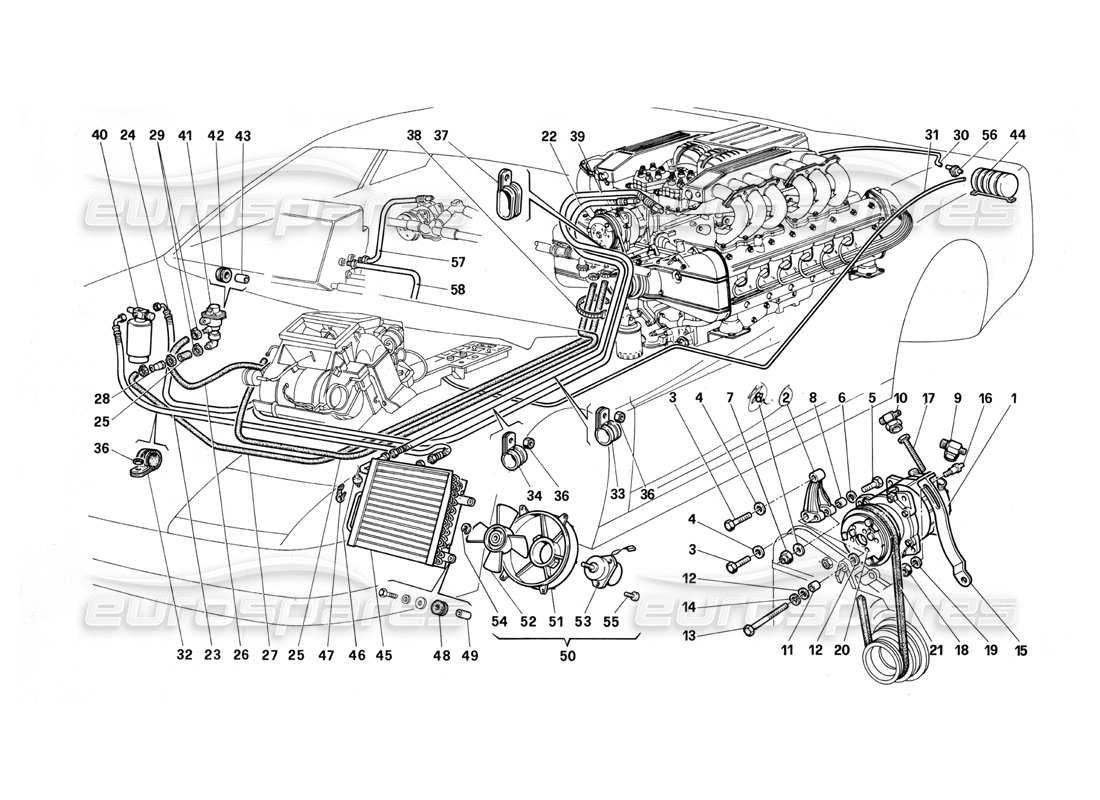

Ferrari Testarossa (1990) Air Conditioning System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                      #
                                                                                                      Part number
                                                                                                      Description
                                                                                                      Key
                                                                                                      Price
                                                                                                      # 001
                                                                                                      MPN: 123205
                                                                                                      COMPRESSOR
                                                                                                      from £838.03
                                                                                                      from £838.03
                                                                                                      AC COMPRESSOR Genuine Ferrari Part - New In stock
                                                                                                      AC COMPRESSOR Original Equipment - New In stock
                                                                                                      AC COMPRESSOR Genuine Ferrari Part - Used In stock
                                                                                                      # 002
                                                                                                      MPN: 122963
                                                                                                      COMPRESSOR SUPPORT
                                                                                                      from £40.30
                                                                                                      from £40.30
                                                                                                      SUPPORT Genuine Ferrari Part - New (to order)
                                                                                                      SUPPORT Genuine Ferrari Part - Used In stock
                                                                                                      # 003
                                                                                                      MPN: 121573
                                                                                                      SCREW
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                      # 004
                                                                                                      MPN: 12601471
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                      # 005
                                                                                                      MPN: 11288021
                                                                                                      SCREW
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                      # 006
                                                                                                      MPN: 14496601
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                      Genuine Maserati Part (no longer available to order)
                                                                                                      # 007
                                                                                                      MPN: 12574511
                                                                                                      NUT
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      NUT Genuine Ferrari Part - New In stock
                                                                                                      # 008
                                                                                                      MPN: 123180
                                                                                                      SPACER
                                                                                                      from £1.74
                                                                                                      from £1.74
                                                                                                      SPACER Genuine Ferrari Part - New (to order)
                                                                                                      # 009
                                                                                                      MPN: 124333
                                                                                                      INTAKE UNION - FOR US
                                                                                                      from £266.28
                                                                                                      from £266.28
                                                                                                      COMPRESSOR VALVE INLET Genuine Ferrari Part - New In stock
                                                                                                      # 009
                                                                                                      MPN: 127786
                                                                                                      INTAKE UNION - NOT FOR US
                                                                                                      from £61.37
                                                                                                      from £61.37
                                                                                                      UNION Genuine Ferrari Part - New (to order)
                                                                                                      UNION Genuine Ferrari Part - Used In stock
                                                                                                      # 010
                                                                                                      MPN: 126928
                                                                                                      OUTLET UNION
                                                                                                      from £42.37
                                                                                                      from £42.37
                                                                                                      UNION Genuine Ferrari Part - New (to order)
                                                                                                      UNION Genuine Ferrari Part - Used In stock
                                                                                                      # 011
                                                                                                      MPN: 121100
                                                                                                      BUSHING UNION
                                                                                                      from £2.11
                                                                                                      from £2.11
                                                                                                      BUSH Genuine Ferrari Part - New In stock
                                                                                                      # 012
                                                                                                      MPN: 103025
                                                                                                      WASHER
                                                                                                      from £23.18
                                                                                                      from £23.18
                                                                                                      WASHER Genuine Ferrari Part - New (to order)
                                                                                                      # 013
                                                                                                      MPN: 15541721
                                                                                                      SCREW
                                                                                                      from £0.91
                                                                                                      from £0.91
                                                                                                      BOLT Genuine Ferrari Part - New In stock
                                                                                                      # 014
                                                                                                      MPN: 106854
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                      # 015
                                                                                                      MPN: 123181
                                                                                                      TENSION ADJUSTING BRACKET
                                                                                                      from £45.86
                                                                                                      from £45.86
                                                                                                      AC ADJUSTMENT BRACKET Genuine Ferrari Part - New (to order)
                                                                                                      AC ADJUSTMENT BRACKET Genuine Ferrari Part - Used In stock
                                                                                                      # 016
                                                                                                      MPN: 123188
                                                                                                      PIN FOR ADJUSTING BRACKET
                                                                                                      from £214.77
                                                                                                      from £214.77
                                                                                                      ADJUSTER Genuine Ferrari Part - New (to order)
                                                                                                      # 017
                                                                                                      MPN: 125668
                                                                                                      TENSION ADJUSTING SCREW
                                                                                                      from £0.86
                                                                                                      from £0.86
                                                                                                      SCREW Genuine Ferrari Part - New (to order)
                                                                                                      SCREW Genuine Ferrari Part - Used In stock
                                                                                                      # 018
                                                                                                      MPN: 104030
                                                                                                      SELF LOCKING NUT
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      This part replaces part number 16104125
                                                                                                      LOCKING NUT Genuine Ferrari Part - New In stock
                                                                                                      LOCKING NUT M8 X 9.5 Genuine Maserati Part - New (to order)
                                                                                                      # 019
                                                                                                      MPN: 14496501
                                                                                                      WASHER
                                                                                                      from £0.85
                                                                                                      from £0.85
                                                                                                      WASHER Genuine Ferrari Part - New In stock
                                                                                                      WASHER FOR CONV. TOP HING Genuine Maserati Part - New In stock
                                                                                                      # 020
                                                                                                      MPN: 123813
                                                                                                      ELECTROMAGNETIC JOINT
                                                                                                      from £677.89
                                                                                                      from £677.89
                                                                                                      A/C ELECTROMAGNETIC CLUTCH Genuine Ferrari Part - New (to order)
                                                                                                      # 021
                                                                                                      MPN: 122973
                                                                                                      COMPRESSOR BELT
                                                                                                      from £69.24
                                                                                                      from £69.24
                                                                                                      This part replaces part number 122417
                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                      FANBELT Original Equipment - New In stock
                                                                                                      # 022
                                                                                                      MPN: 124022
                                                                                                      HOSE FROM COMPRESS/OR TO CONDESER
                                                                                                      from £457.61
                                                                                                      from £457.61
                                                                                                      AC PIPE Genuine Ferrari Part - New (to order)
                                                                                                      AC PIPE Genuine Ferrari Part - Used In stock
                                                                                                      # 023
                                                                                                      MPN: 124023
                                                                                                      HOSE FROM CONDESER TO FILTER
                                                                                                      For LHD
                                                                                                      from £78.86
                                                                                                      from £78.86
                                                                                                      AIR CON PIPE FROM CONDENSER TO FILTER LHD Genuine Ferrari Part - New (to order)
                                                                                                      # 023
                                                                                                      MPN: 125441
                                                                                                      HOSE FROM CONDESER TO FILTER
                                                                                                      For RHD
                                                                                                      from £69.29
                                                                                                      from £69.29
                                                                                                      AIR CON PIPE FROM CONDENSER TO FILTER RHD Genuine Ferrari Part - New (to order)
                                                                                                      # 024
                                                                                                      MPN: 124024
                                                                                                      HOSE FROM FILTER TO COOLER
                                                                                                      For LHD
                                                                                                      from £140.99
                                                                                                      from £140.99
                                                                                                      AIR CON PIPE FILTER TO EVAPORATOR LHD Genuine Ferrari Part - New (to order)
                                                                                                      # 024
                                                                                                      MPN: 130918
                                                                                                      HOSE FROM FILTER TO COOLER
                                                                                                      For RHD
                                                                                                      from £34.28
                                                                                                      from £34.28
                                                                                                      AIR CON PIPE FILTER TO EVAPORATOR RHD Genuine Ferrari Part - New (to order)
                                                                                                      # 025
                                                                                                      MPN: 124027
                                                                                                      HOSE FROM ENGINE TO, HEATER
                                                                                                      from £69.91
                                                                                                      from £69.91
                                                                                                      HOSE Genuine Ferrari Part - New (to order)
                                                                                                      HOSE Genuine Ferrari Part - Used In stock
                                                                                                      # 026
                                                                                                      MPN: 125445
                                                                                                      HOSE FROM HEATER TO VALVE
                                                                                                      For RHD
                                                                                                      from £61.53
                                                                                                      from £61.53
                                                                                                      AIR CON PIPE FROM HEATER TO VALVE RHD Genuine Ferrari Part - New (to order)
                                                                                                      # 026
                                                                                                      MPN: 61615000
                                                                                                      HOSE FROM HEATER TO VALVE
                                                                                                      For LHD
                                                                                                      from £60.83
                                                                                                      from £60.83
                                                                                                      AIR CON PIPE FROM HEATER TO VALVE LHD Genuine Ferrari Part - New (to order)
                                                                                                      # 027
                                                                                                      MPN: 124029
                                                                                                      HOSE FROM VALVE TO ENGINE
                                                                                                      from £116.07
                                                                                                      from £116.07
                                                                                                      WATER HOSE Genuine Ferrari Part - New (to order)
                                                                                                      # 028
                                                                                                      MPN: 124030

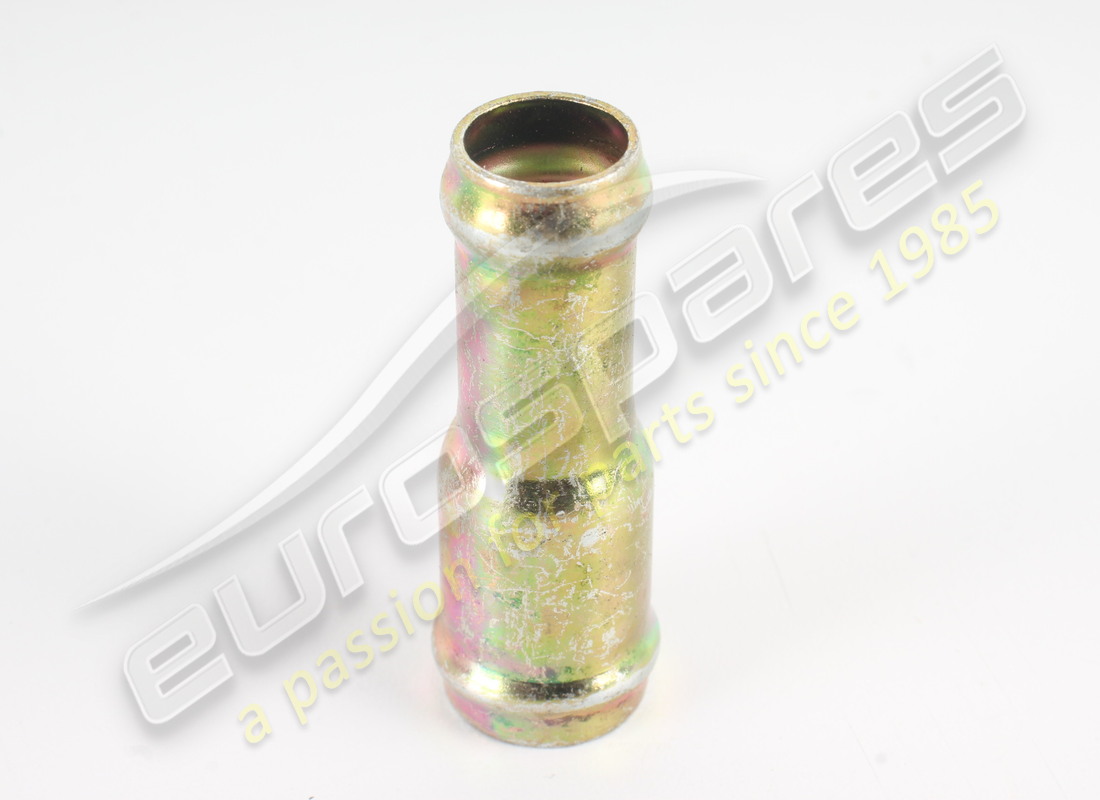

                                                                                                      METAL UNDERSIZE TO ENGINE
                                                                                                      from £5.72
                                                                                                      from £5.72
                                                                                                      UNION Genuine Ferrari Part - New In stock
                                                                                                      UNION Genuine Ferrari Part - Used In stock
                                                                                                      # 029
                                                                                                      MPN: 13000490
                                                                                                      CLAMP
                                                                                                      from £0.51
                                                                                                      from £0.51
                                                                                                      This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                                      CLAMP Genuine Ferrari Part - New In stock
                                                                                                      SCREW COLLAR Genuine Maserati Part - New (to order)
                                                                                                      # 030
                                                                                                      MPN: 124031
                                                                                                      HOSE FROM ENGINE TO VACUUM RESERVOIR
                                                                                                      Not for US and CAT.
                                                                                                      from £7.58
                                                                                                      from £7.58
                                                                                                      VACUUM HOSE Genuine Ferrari Part - New (to order)
                                                                                                      VACUUM HOSE Genuine Ferrari Part - Used In stock
                                                                                                      # 030
                                                                                                      MPN: 127455
                                                                                                      HOSE FROM ENGINE TO VACUUM RESERVOIR
                                                                                                      For US and CAT.
                                                                                                      VACUUM HOSE Genuine Ferrari Part - New (to order)
                                                                                                      # 031
                                                                                                      MPN: 124032
                                                                                                      HOSE FROM RESERVOIR TO PUSH-BUTTON PANEL
                                                                                                      from £25.06
                                                                                                      from £25.06
                                                                                                      PIPE Genuine Ferrari Part - New (to order)
                                                                                                      PIPE Genuine Ferrari Part - Used In stock
                                                                                                      # 032
                                                                                                      MPN: 10441490
                                                                                                      HOSE FASTENING BRACKET
                                                                                                      from £0.51
                                                                                                      from £0.51
                                                                                                      CLAMP Genuine Ferrari Part - New In stock
                                                                                                      BRACKET Genuine Maserati Part - New (to order)
                                                                                                      # 033
                                                                                                      MPN: 10441890
                                                                                                      HOSE FASTENING BRACKET
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      BRACKET Genuine Ferrari Part - New In stock
                                                                                                      PIPE BRACKET WITH SHEATH Genuine Maserati Part - New In stock
                                                                                                      # 034
                                                                                                      MPN: 119463
                                                                                                      HOSE FASTENING BRACKET
                                                                                                      from £29.85
                                                                                                      from £29.85
                                                                                                      BRACKET P CLIP Genuine Ferrari Part - New In stock
                                                                                                      # 035
                                                                                                      MPN: 125003
                                                                                                      SLEEVE
                                                                                                      from £17.53
                                                                                                      from £17.53
                                                                                                      HOSE Genuine Ferrari Part - New (to order)
                                                                                                      # 036
                                                                                                      MPN: 12574211
                                                                                                      NUT
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                      NYLON STOP HEX. NUT M6X7.8 Genuine Maserati Part - New In stock
                                                                                                      # 037
                                                                                                      MPN: 61712500
                                                                                                      HOSE FASTENING BRACKET
                                                                                                      from £1.04
                                                                                                      from £1.04
                                                                                                      BRACKET WITH SHEATH Genuine Ferrari Part - New In stock
                                                                                                      # 038
                                                                                                      MPN: 125727
                                                                                                      HOSE SUPPORTING CLAMP
                                                                                                      from £734.69
                                                                                                      from £734.69
                                                                                                      SHAFT WITH RIGHT HUB Genuine Ferrari Part - New In stock
                                                                                                      # 039
                                                                                                      MPN: 127787
                                                                                                      HOSE FROM EVAPORATOR TO COMPRESSOR
                                                                                                      Not for US - C8 - SA and CAT
                                                                                                      from £166.57
                                                                                                      from £166.57
                                                                                                      This part replaces part number 125446 - and 1 more. Click to view details
                                                                                                      TUBE Genuine Ferrari Part - New (to order)
                                                                                                      TUBE Genuine Ferrari Part - Used In stock
                                                                                                      # 040
                                                                                                      MPN: 129101
                                                                                                      DRYER FILTER
                                                                                                      from £104.52
                                                                                                      from £104.52
                                                                                                      This part replaces part number 114730 - and 5 more. Click to view details
                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                      DRYER FILTER LHD Genuine Ferrari Part - Used In stock
                                                                                                      # 040
                                                                                                      MPN: 129101/A
                                                                                                      DRYER FILTER
                                                                                                      from £96.71
                                                                                                      from £96.71
                                                                                                      This part replaces part number 129101 which we have in stock - and 7 more. Click to view details
                                                                                                      ALTERNATIVE AC DRYER BOTTLE WITHOUT SWITCH Genuine Ferrari Part - New (to order)
                                                                                                      ALTERNATIVE AC DRYER BOTTLE WITHOUT SWITCH Original Equipment - New In stock
                                                                                                      ALTERNATIVE AC DRYER BOTTLE WITHOUT SWITCH Genuine Ferrari Part - Used In stock
                                                                                                      ALTERNATIVE AC DRYER BOTTLE WITHOUT SWITCH Genuine Ferrari Part - Used In stock
                                                                                                      # 040
                                                                                                      MPN: 129102
                                                                                                      PRESSOSTAT
                                                                                                      For filter - no. 129101
                                                                                                      from £37.27
                                                                                                      from £37.27
                                                                                                      This part replaces part number 114730/S - and 1 more. Click to view details
                                                                                                      PRESSOSTAT Genuine Ferrari Part - New In stock
                                                                                                      PRESSOSTAT Original Equipment - New In stock
                                                                                                      PRESSOSTAT Genuine Ferrari Part - Used In stock
                                                                                                      # 041
                                                                                                      MPN: 61079000
                                                                                                      ELECTROMAGNETIC VALVE
                                                                                                      from £1,697.63
                                                                                                      from £1,697.63
                                                                                                      This part replaces part number 63241600
                                                                                                      HEATER VALVE Genuine Ferrari Part - New (to order)
                                                                                                      # 042
                                                                                                      MPN: 103549
                                                                                                      RUBBER BUSH
                                                                                                      from £0.69
                                                                                                      from £0.69
                                                                                                      RING Genuine Ferrari Part - New In stock
                                                                                                      CABLE GROMMET Genuine Maserati Part - New (to order)
                                                                                                      # 043
                                                                                                      MPN: 103550
                                                                                                      SPACER
                                                                                                      from £1.92
                                                                                                      from £1.92
                                                                                                      This part replaces part number 4130913
                                                                                                      BUSH Genuine Ferrari Part - New In stock
                                                                                                      # 044
                                                                                                      MPN: 61642700
                                                                                                      VACUUM RESERVOIR COMPLETE WITH VALVE
                                                                                                      from £191.49
                                                                                                      from £191.49
                                                                                                      This part replaces part number 60662500 - and 3 more. Click to view details
                                                                                                      AIR TANK Genuine Ferrari Part - New In stock
                                                                                                      AIR TANK Genuine Ferrari Part - Used In stock
                                                                                                      # 045
                                                                                                      MPN: 61400300
                                                                                                      CONDENSER
                                                                                                      from £569.89
                                                                                                      from £569.89
                                                                                                      CONDENSER Genuine Ferrari Part - New (to order)
                                                                                                      CONDENSER Genuine Ferrari Part - Used In stock
                                                                                                      CONDENSER Genuine Ferrari Part - Damaged In stock
                                                                                                      SENSOR HAS BROKEN OFF PIPE & TWO STUDS HAVE BROKEN
                                                                                                      # 046
                                                                                                      MPN: 61047900
                                                                                                      BIMETALLIC THERMOCONTACT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      Genuine Ferrari Part (no longer available to order)
                                                                                                      # 047
                                                                                                      MPN: 60815000
                                                                                                      CLIP
                                                                                                      from £2.00
                                                                                                      from £2.00
                                                                                                      CLIP Genuine Ferrari Part - New (to order)
                                                                                                      # 048
                                                                                                      MPN: 103549
                                                                                                      RUBBER BUSH
                                                                                                      from £0.69
                                                                                                      from £0.69
                                                                                                      RING Genuine Ferrari Part - New In stock
                                                                                                      CABLE GROMMET Genuine Maserati Part - New (to order)
                                                                                                      # 049
                                                                                                      MPN: 113550
                                                                                                      SPACER
                                                                                                      from £76.09
                                                                                                      from £76.09
                                                                                                      LH WATER PIPE Genuine Ferrari Part - New (to order)
                                                                                                      # 050
                                                                                                      MPN: 176447
                                                                                                      FAN ASSEMBLY
                                                                                                      from £151.83
                                                                                                      from £151.83
                                                                                                      This part replaces part number 124040 which we have in stock - and 3 more. Click to view details
                                                                                                      MOTOR+FAN+CONVEYOR Genuine Ferrari Part - New (to order)
                                                                                                      MOTOR+FAN+CONVEYOR Genuine Ferrari Part - Used In stock
                                                                                                      # 051
                                                                                                      MPN: 60870300
                                                                                                      AIR CONVEYOR
                                                                                                      from £87.70
                                                                                                      from £87.70
                                                                                                      FAN CONVEYOR Genuine Ferrari Part - New (to order)
                                                                                                      FAN CONVEYOR Genuine Ferrari Part - Used In stock
                                                                                                      # 052
                                                                                                      MPN: 122953
                                                                                                      FAN
                                                                                                      from £42.27
                                                                                                      from £42.27
                                                                                                      FAN BLADE Genuine Ferrari Part - New (to order)
                                                                                                      FAN BLADE Genuine Ferrari Part - Used In stock
                                                                                                      # 053
                                                                                                      MPN: 117546
                                                                                                      MOTOR
                                                                                                      from £463.62
                                                                                                      from £463.62
                                                                                                      FAN MOTOR Genuine Ferrari Part - New (to order)
                                                                                                      FAN MOTOR Genuine Ferrari Part - Used In stock
                                                                                                      # 054
                                                                                                      MPN: 11087876
                                                                                                      STOP RING
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      CIRCLIP Genuine Ferrari Part - New (to order)
                                                                                                      # 055
                                                                                                      MPN: 123298
                                                                                                      SCREW
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      PAN HEAD SELF TAPPING SCREW Genuine Ferrari Part - New In stock
                                                                                                      # 056
                                                                                                      MPN: 62507200
                                                                                                      SINGLE-ACTION VALVE
                                                                                                      from £14.63
                                                                                                      from £14.63
                                                                                                      This part replaces part number 61653800
                                                                                                      SINGLE ACTION VALVE Genuine Ferrari Part - New (to order)
                                                                                                      Genuine Maserati Part (no longer available to order)
                                                                                                      # 057
                                                                                                      MPN: 125851
                                                                                                      HOSE FROM EXCHANGER TO COMPRESSOR
                                                                                                      For US - C8 - SA and CAT.
                                                                                                      from £74.73
                                                                                                      from £74.73
                                                                                                      AC HOSE Genuine Ferrari Part - New (to order)
                                                                                                      # 058
                                                                                                      MPN: 125852
                                                                                                      HOSE FROM EVAPORATOR TO EXCHANGER
                                                                                                      For US - C8 - SA and CAT
                                                                                                      from £460.93
                                                                                                      from £460.93
                                                                                                      AC HOSE Genuine Ferrari Part - New (to order)
                                                                                                      # 058
                                                                                                      MPN: 145539
                                                                                                      HOSE FROM EVAPORATOR TO EXCHANGER GDE
                                                                                                      from £149.11
                                                                                                      from £149.11
                                                                                                      PIPE Genuine Ferrari Part - New (to order)
                                                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
