maserati biturbo 2.5 (1984) water pump and oil pump parts diagram

009 - Water Pump and Oil Pump

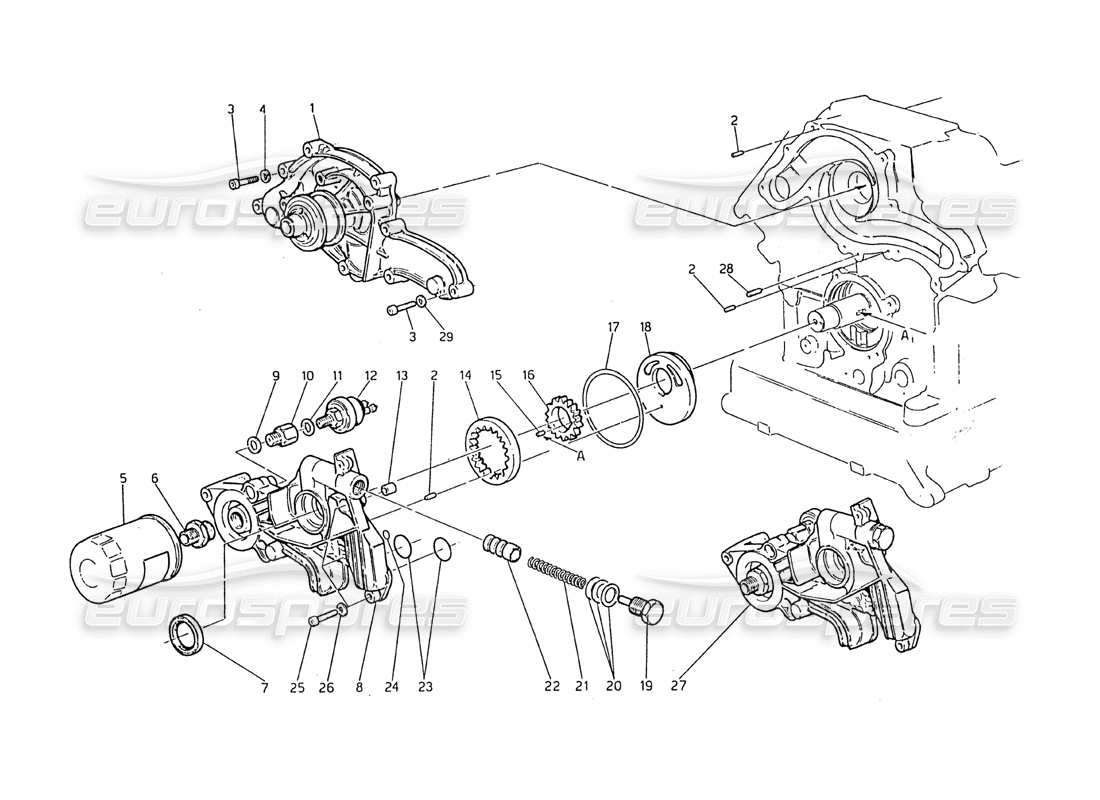

Maserati Biturbo 2.5 (1984) Water Pump and Oil Pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 470045900
                                                          WATER PUMP + GASKET
                                                          from £309.75
                                                          from £309.75
                                                          This part replaces part number 314020012
                                                          # 002
                                                          MPN: 314020329
                                                          ROLLER
                                                          from £2.08
                                                          from £2.08
                                                          # 005
                                                          MPN: 311820100

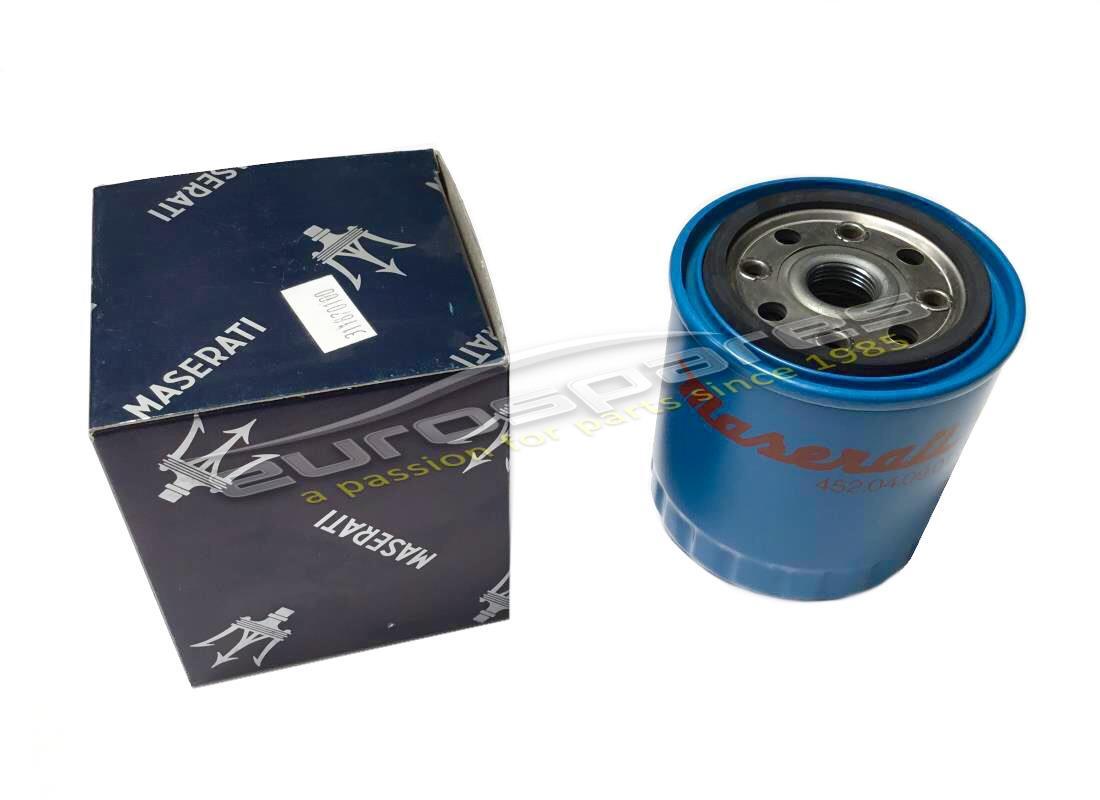

                                                          OIL FILTER
                                                          from £30.40
                                                          from £30.40
                                                          # 007
                                                          MPN: 311020368
                                                          OIL SEAL
                                                          from £9.72
                                                          from £9.72
                                                          This part replaces part number 190400351
                                                          # 008
                                                          MPN: 311820322
                                                          HOUSING
                                                          from £171.13
                                                          from £171.13
                                                          # 009
                                                          MPN: 311820302
                                                          SEAL
                                                          from £2.00
                                                          from £2.00
                                                          # 010
                                                          MPN: 311820303
                                                          ADAPTER
                                                          from £23.24
                                                          from £23.24
                                                          # 011
                                                          MPN: 311820304
                                                          SEAL
                                                          from £1.60
                                                          from £1.60
                                                          # 012
                                                          MPN: 30361105
                                                          OIL PRESSURE SWITCH
                                                          # 013
                                                          MPN: 311820308
                                                          BUSH
                                                          from £0.72
                                                          from £0.72
                                                          # 014
                                                          MPN: 311820324
                                                          DRIVEN GEAR
                                                          from £4.63
                                                          from £4.63
                                                          # 015
                                                          MPN: 311820311
                                                          ROLLER
                                                          from £0.72
                                                          from £0.72
                                                          # 016
                                                          MPN: 311820323
                                                          DRIVING GEAR
                                                          from £6.20
                                                          from £6.20
                                                          # 017
                                                          MPN: 192420395
                                                          RUBBER RING
                                                          # 018
                                                          MPN: 311820316
                                                          OIL PUMP COVER
                                                          from £21.37
                                                          from £21.37
                                                          # 020
                                                          MPN: 311820317
                                                          SEAL
                                                          from £0.72
                                                          from £0.72
                                                          # 022
                                                          MPN: 311820319
                                                          VALVE
                                                          from £11.95
                                                          from £11.95
                                                          # 023
                                                          MPN: 14454181
                                                          RUBBER RING
                                                          from £1.20
                                                          from £1.20
                                                          # 024
                                                          MPN: 14452981
                                                          RUBBER RING
                                                          from £0.86
                                                          from £0.86
                                                          # 026
                                                          MPN: 138410080
                                                          SPRING WASHER
                                                          from £2.25
                                                          from £2.25
                                                          # 027
                                                          MPN: 311820002
                                                          OIL PUMP, ASSY
                                                          (includes parts n. 6-9-10-11-12-14-18-19-20-22)
                                                          from £283.69
                                                          from £283.69
                                                          # 028
                                                          MPN: 107406008
                                                          DOWEL
