maserati biturbo 2.5 (1984) front shock absorbers parts diagram

037 - Front Shock Absorbers

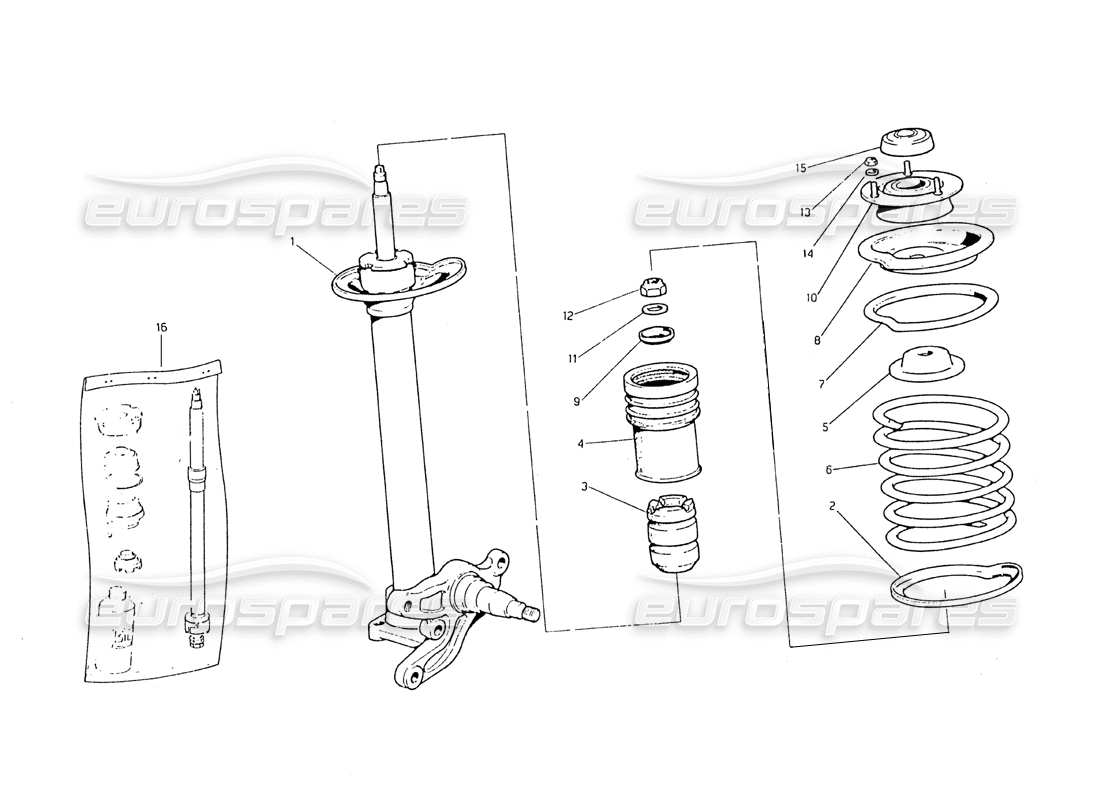

Maserati Biturbo 2.5 (1984) Front Shock Absorbers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 001
                              MPN: 316620101
                              LH TELESCOPIC STRUT
                              Supersession
                              Supersession
                              Genuine Maserati Part (no longer available to order)
                              # 001
                              MPN: 316621102
                              RH TELESCOPIC STRUT
                              from £271.05
                              from £271.05
                              RH SHOCK ABSORBER Genuine Maserati Part - New (to order)
                              # 002
                              MPN: 316620322
                              LOWER RING
                              from £2.29
                              from £2.29
                              RING Genuine Maserati Part - New (to order)
                              # 003
                              MPN: 316620328
                              BUFFER
                              from £10.66
                              from £10.66
                              RUBBER BUSHING Genuine Maserati Part - New (to order)
                              # 004
                              MPN: 316620329
                              BELLOWS
                              from £22.80
                              from £22.80
                              BELLOWS Genuine Maserati Part - New (to order)
                              # 005
                              MPN: 316620330
                              SPRING CAP
                              from £28.60
                              from £28.60
                              COUPLING F. SHOCK ABS. ROD P Genuine Maserati Part - New (to order)
                              # 006
                              MPN: 316620323
                              SPRING
                              Supplied in two pieces
                              Supersession
                              Supersession
                              Genuine Maserati Part (no longer available to order)
                              # 007
                              MPN: 316620324
                              UPPER SPRING
                              from £13.60
                              from £13.60
                              RING Genuine Maserati Part - New In stock
                              # 008
                              MPN: 316620325
                              UPPER SPRING CAP
                              from £6.31
                              from £6.31
                              SUSPENSION CUP Genuine Maserati Part - New (to order)
                              # 009
                              MPN: 316620331
                              CAP
                              from £0.69
                              from £0.69
                              SUSPENSION CAP Genuine Maserati Part - New In stock
                              # 010
                              MPN: 316620107
                              ELASTIC SUPPORT
                              from £9.88
                              from £9.88
                              SUPPORT Genuine Maserati Part - New (to order)
                              # 011
                              MPN: 316620335
                              WASHER
                              from £1.07
                              from £1.07
                              WASHER Genuine Maserati Part - New (to order)
                              # 012
                              MPN: 127800180
                              SELF LOCKING NUT
                              Maserati PART 127800180 Genuine Maserati Part - New (to order)
                              # 013
                              MPN: 128300080
                              SELF LOCKING NUT
                              Maserati PART 128300080 Genuine Maserati Part - New (to order)
                              # 015
                              MPN: 316620334
                              PLUG
                              from £1.07
                              from £1.07
                              SHOCK ABSORBER CAP Genuine Maserati Part - New (to order)
                              # 016
                              -
                              SHOCK ABSORBER REPAIR KIT
                              NLA
