maserati biturbo 2.5 (1984) clutch parts diagram

026 - clutch

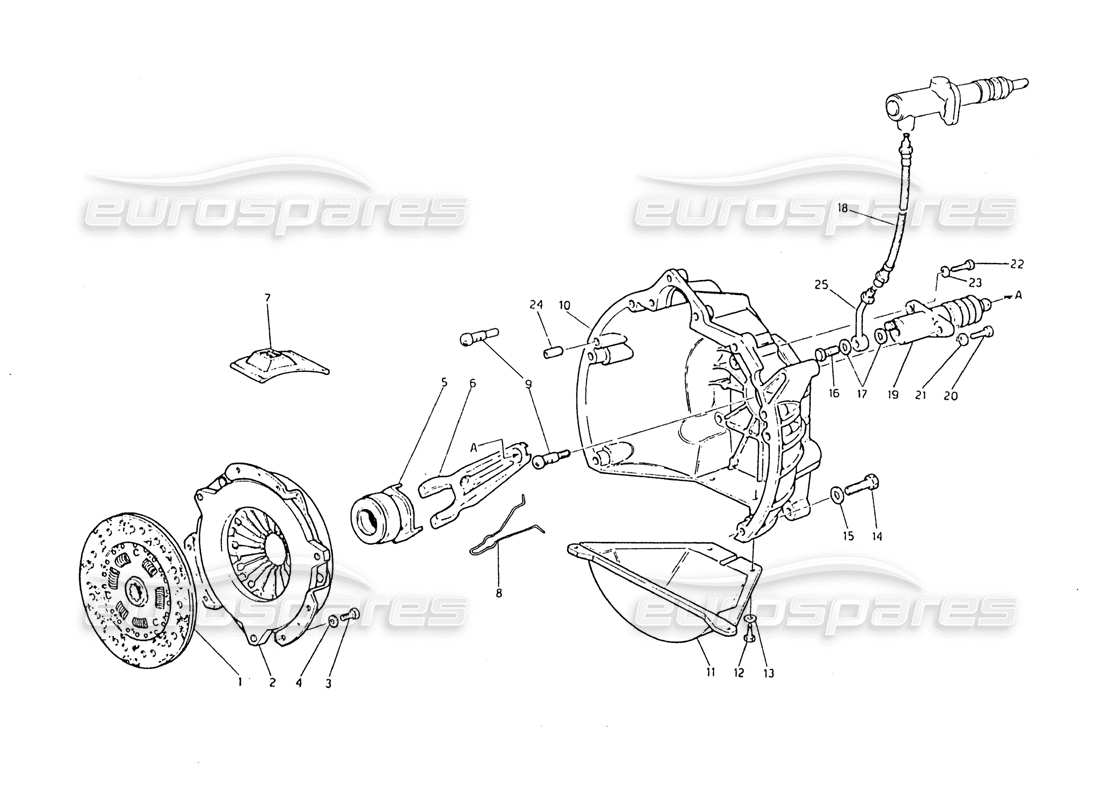

Maserati Biturbo 2.5 (1984) Clutch Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 000
                                                  MPN: AE1072K

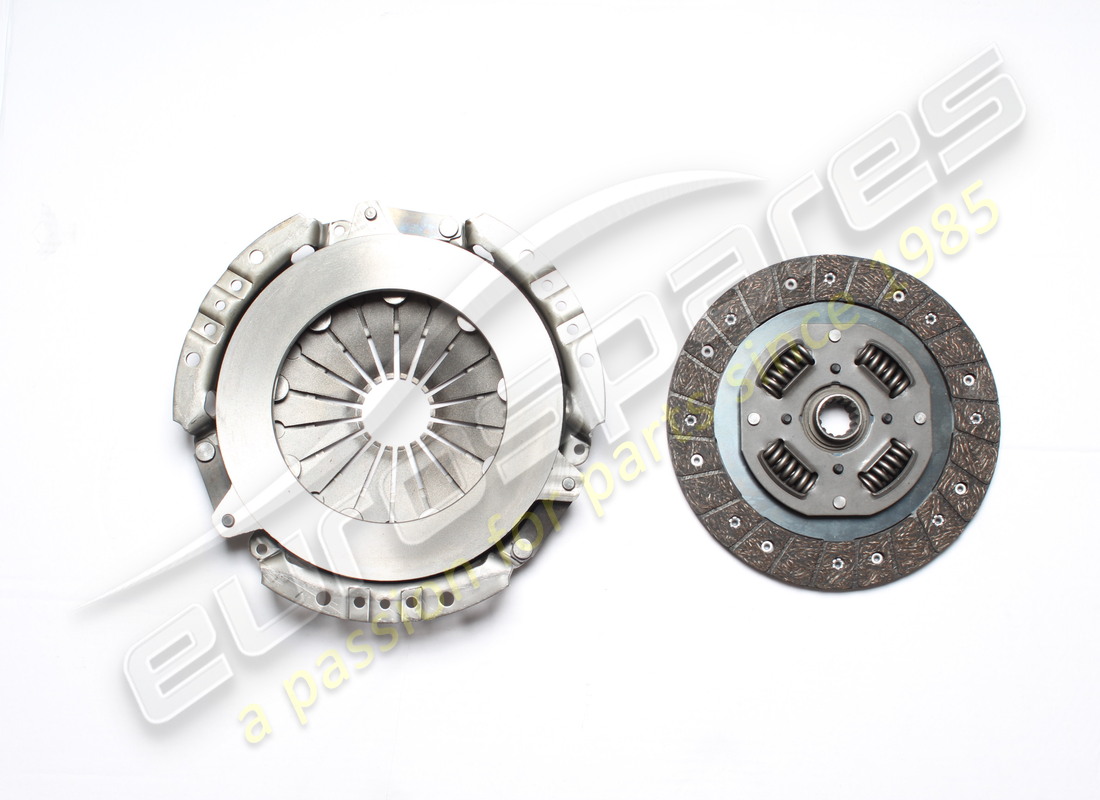

                                                  Complete Clutch kit (215 mm)
                                                  Valid for 2.0cc / Includes Disc, Cover & Bearing.
                                                  from £502.10
                                                  from £502.10
                                                  # 001
                                                  MPN: 314620105
                                                  CLUTCH PLATE
                                                  (2.0 - 2.5 ltr 3v. only) 215 mm
                                                  from £168.08
                                                  from £168.08
                                                  This part replaces part number 314620104
                                                  # 002
                                                  MPN: 314620100
                                                  CLUTCH DEVICE
                                                  Supersession
                                                  Supersession
                                                  # 005
                                                  MPN: 314620108
                                                  THRUST BEARING
                                                  from £65.25
                                                  from £65.25
                                                  # 006
                                                  MPN: 314620302
                                                  THRUST LEVER
                                                  from £162.90
                                                  from £162.90
                                                  # 007
                                                  MPN: 314620301
                                                  DUST COVER
                                                  from £1.68
                                                  from £1.68
                                                  # 008
                                                  MPN: 314620307
                                                  SPRING
                                                  from £1.01
                                                  from £1.01
                                                  # 009
                                                  MPN: 314620306
                                                  PLUNGER
                                                  from £1.68
                                                  from £1.68
                                                  # 010
                                                  MPN: 314620312
                                                  FLYWHEEL HOUSING
                                                  from £94.07
                                                  from £94.07
                                                  # 011
                                                  MPN: 314620317
                                                  FASTENER
                                                  from £2.00
                                                  from £2.00
                                                  # 013
                                                  MPN: 135600060
                                                  WASHER
                                                  from £0.79
                                                  from £0.79
                                                  # 016
                                                  MPN: 318220320
                                                  PIPE UNION
                                                  from £6.23
                                                  from £6.23
                                                  # 017
                                                  MPN: 318220321
                                                  GASKET
                                                  from £0.72
                                                  from £0.72
                                                  # 018
                                                  MPN: 318220112
                                                  PIPE
                                                  from £64.44
                                                  from £64.44
                                                  # 019
                                                  MPN: 318220104

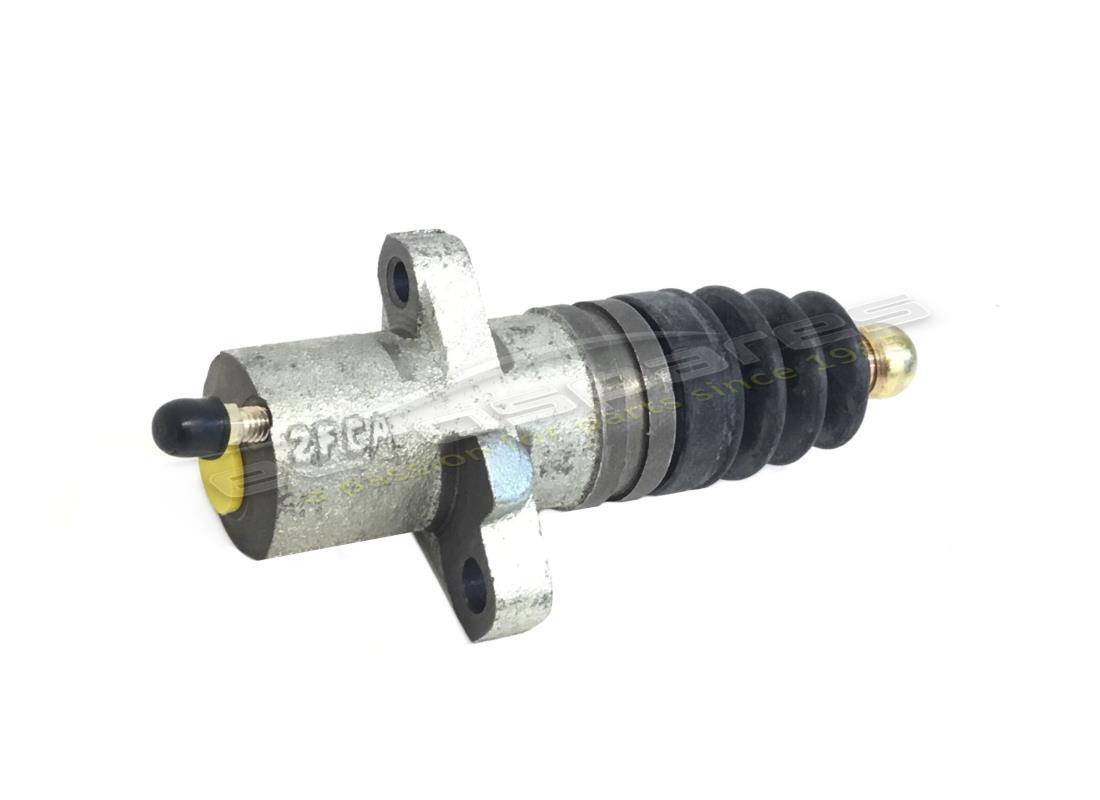

                                                  CLUTCH CYLINDER
                                                  from £131.25
                                                  from £131.25
                                                  # 023
                                                  MPN: 135600060
                                                  WASHER
                                                  from £0.79
                                                  from £0.79
                                                  # 024
                                                  MPN: 310420311
                                                  DOWEL
                                                  from £9.98
                                                  from £9.98
                                                  # 025
                                                  MPN: 318220110
                                                  EYELET CONNECTOR
                                                  from £1.17
                                                  from £1.17
