maserati biturbo 2.5 (1984) bonnet - hinges and bonnet release parts diagram

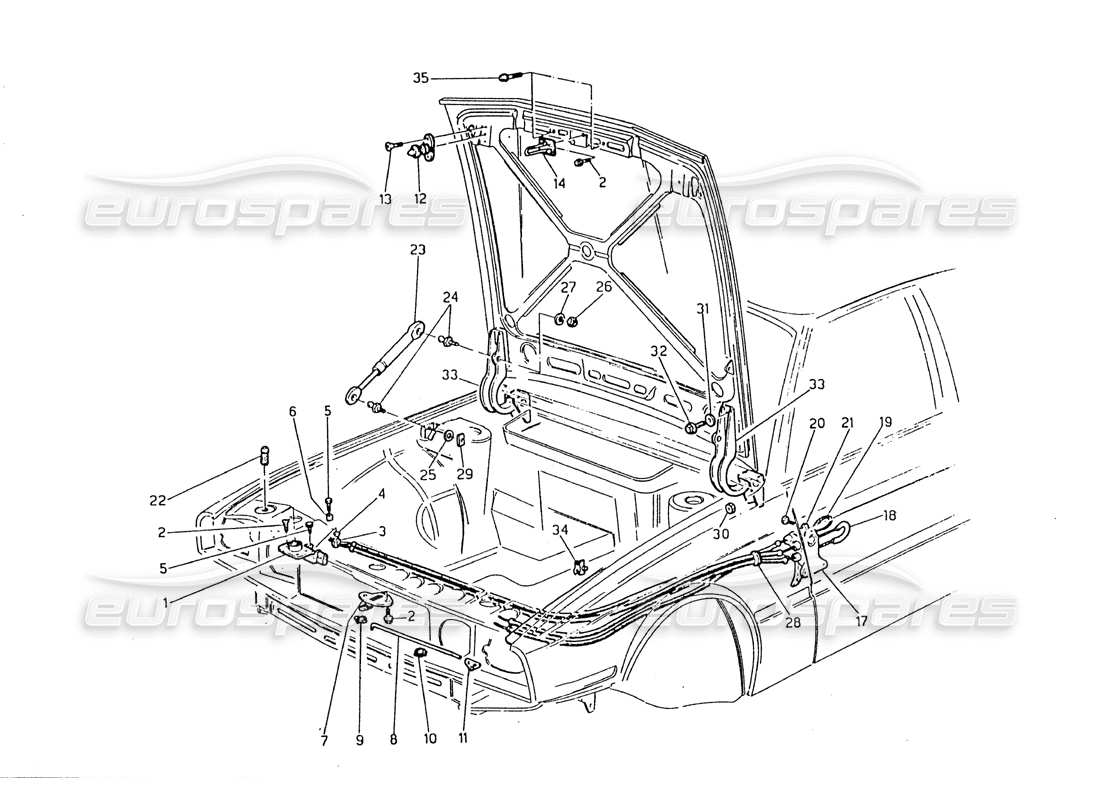

048 - Bonnet - Hinges and Bonnet Release

Maserati Biturbo 2.5 (1984) Bonnet - Hinges and Bonnet Release Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Key
                                                                    Price
                                                                    # 001
                                                                    MPN: 314320005
                                                                    LH LOCK FOR ENGINE HOOD
                                                                    from £85.19
                                                                    from £85.19
                                                                    BONNET LOCK Genuine Maserati Part - New (to order)
                                                                    # 002
                                                                    MPN: 314320345
                                                                    BOLT
                                                                    from £41.51
                                                                    from £41.51
                                                                    ENGINE COMPT. LID FASTENING SCREW Genuine Maserati Part - New (to order)
                                                                    # 003
                                                                    MPN: 314320379
                                                                    CLAMP FOR CONTROL CABLE
                                                                    from £1.90
                                                                    from £1.90
                                                                    CLAMP Genuine Maserati Part - New (to order)
                                                                    # 004
                                                                    MPN: 30431380
                                                                    DISC FOR CLAMP
                                                                    from £0.69
                                                                    from £0.69
                                                                    CLAMP PAD Genuine Maserati Part - New (to order)
                                                                    # 006
                                                                    MPN: 53431306
                                                                    CLAMP FOR EMERGENCY CABLE
                                                                    from £2.51
                                                                    from £2.51
                                                                    CONTROL GABLE CLIP Genuine Maserati Part - New (to order)
                                                                    # 007
                                                                    MPN: 314320131
                                                                    LOCK ASSEMBLY
                                                                    from £213.42
                                                                    from £213.42
                                                                    ENGINE COMPT. LID SAFETY LOC Genuine Maserati Part - New (to order)
                                                                    # 008
                                                                    MPN: 314320398
                                                                    SHIFT ROD
                                                                    from £0.69
                                                                    from £0.69
                                                                    ROD Genuine Maserati Part - New (to order)
                                                                    # 009
                                                                    MPN: 314320351
                                                                    SPRING FOR SHIFT ROD
                                                                    from £1.07
                                                                    from £1.07
                                                                    CLIP Genuine Maserati Part - New (to order)
                                                                    # 010
                                                                    MPN: 314320352
                                                                    SPRING
                                                                    from £0.77
                                                                    from £0.77
                                                                    CLIP Genuine Maserati Part - New (to order)
                                                                    # 011
                                                                    MPN: 53451330
                                                                    PULL KNOB TO CONTROL LOCK
                                                                    PULL KNOB TO CONTROL LOCK Genuine Maserati Part - New (to order)
                                                                    # 012
                                                                    MPN: 314320008
                                                                    LOCK PIN
                                                                    from £27.46
                                                                    from £27.46
                                                                    PIN FOR ENGINE COMPT. LID LOCK Genuine Maserati Part - New (to order)
                                                                    # 014
                                                                    MPN: 314320130
                                                                    LOCK PIN
                                                                    from £34.80
                                                                    from £34.80
                                                                    STRIKER PLATE ON LID SAFETY LOCK Genuine Maserati Part - New (to order)
                                                                    # 017
                                                                    MPN: 314320107
                                                                    HOOD RELEASE HANDLE
                                                                    from £4.13
                                                                    from £4.13
                                                                    HANDLE Genuine Maserati Part - New (to order)
                                                                    # 018
                                                                    MPN: 314320010
                                                                    EMERGENCY CONTROL CABLE
                                                                    from £7.90
                                                                    from £7.90
                                                                    EMERGENCY OPENING CABLE Genuine Maserati Part - New In stock
                                                                    # 019
                                                                    MPN: 314320009
                                                                    CONTROL CABLE TO OPEN ENGINE HOOD
                                                                    from £6.97
                                                                    from £6.97
                                                                    FRONT LID OPENING CONTROL CA Genuine Maserati Part - New (to order)
                                                                    # 021
                                                                    MPN: 14105001
                                                                    WASHER
                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                    # 022
                                                                    MPN: 374330426
                                                                    BUFFER TO ADJUST ENGINE HOOD
                                                                    from £1.07
                                                                    from £1.07
                                                                    This part replaces part number 53431319
                                                                    TAMPONCINO Genuine Maserati Part - New In stock
                                                                    # 023
                                                                    MPN: 314320122

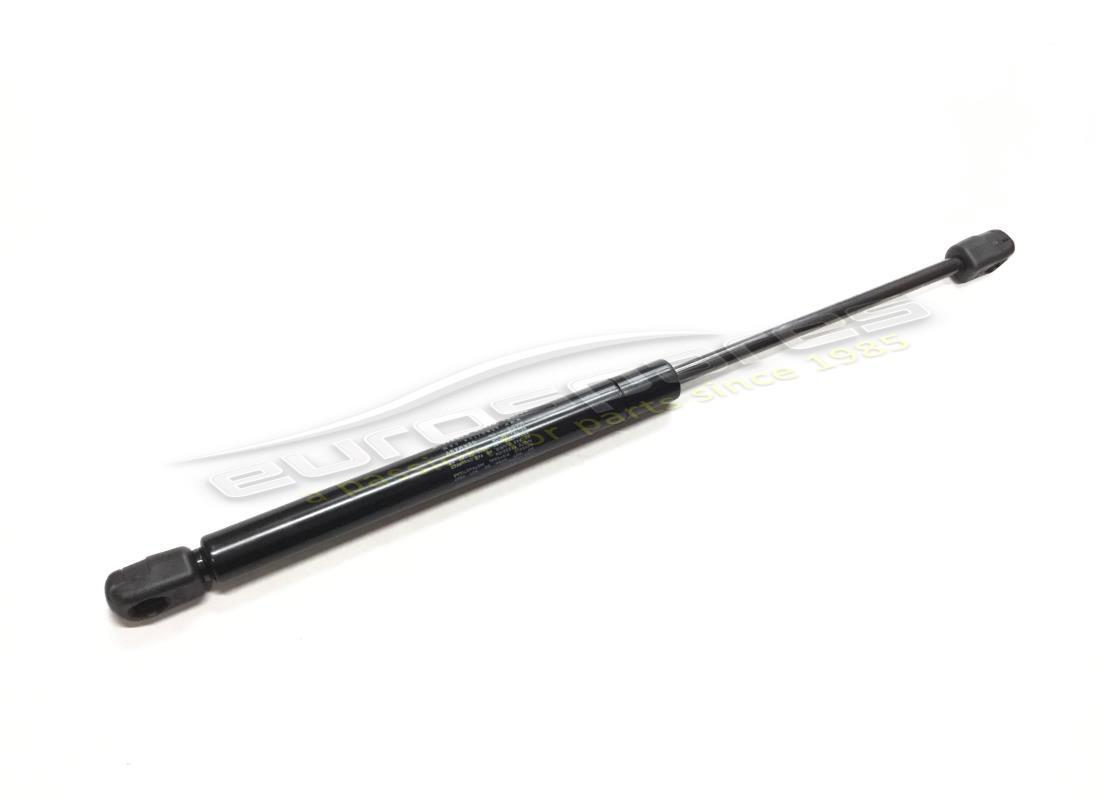

                                                                    ENGINE COVER STRUT
                                                                    from £26.20
                                                                    from £26.20
                                                                    ENGINE COMPT. LID GAS SPRING Genuine Maserati Part - New In stock
                                                                    # 024
                                                                    MPN: 30471311
                                                                    GAS SPRING PIN
                                                                    from £3.81
                                                                    from £3.81
                                                                    BALL PIN FOR GAS STRUTS Genuine Maserati Part - New (to order)
                                                                    # 025
                                                                    MPN: 135600060
                                                                    SPRING WASHER
                                                                    from £0.77
                                                                    from £0.77
                                                                    WASHER 6.15X11.8 Genuine Maserati Part - New In stock
                                                                    # 026
                                                                    MPN: 128350060
                                                                    SELF LOCKING NUT
                                                                    Maserati PART 128350060 Genuine Maserati Part - New (to order)
                                                                    # 028
                                                                    MPN: 314320355
                                                                    GROMMET
                                                                    from £0.69
                                                                    from £0.69
                                                                    CABLE HOLDER FOR ENGINE LID OPENI Genuine Maserati Part - New (to order)
                                                                    # 029
                                                                    MPN: 314320330
                                                                    PLATE
                                                                    from £1.52
                                                                    from £1.52
                                                                    PLATE Genuine Maserati Part - New (to order)
                                                                    # 030
                                                                    MPN: 314320326
                                                                    NUT
                                                                    from £1.07
                                                                    from £1.07
                                                                    HINGES FASTENING NUT Genuine Maserati Part - New In stock
                                                                    # 031
                                                                    MPN: 136110090
                                                                    WASHER
                                                                    from £1.07
                                                                    from £1.07
                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                    # 032
                                                                    MPN: 314320325
                                                                    BOLT
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Maserati Part (no longer available to order)
                                                                    # 033
                                                                    MPN: 314320003
                                                                    LH HINGE FOR ENGINE HOOD
                                                                    from £114.24
                                                                    from £114.24
                                                                    This part replaces part number 314320004
                                                                    RH/LH ENGINE COMPT. LID HINGE Genuine Maserati Part - New (to order)
                                                                    # 033
                                                                    MPN: 314320004
                                                                    RH HINGE FOR ENGINE HOOD
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Maserati Part (no longer available to order)
                                                                    # 034
                                                                    MPN: 314520419
                                                                    SPRING
                                                                    from £0.69
                                                                    from £0.69
                                                                    SPRING Genuine Maserati Part - New In stock
                                                                    # 035
                                                                    MPN: 314320124
                                                                    BUFFER
                                                                    from £1.50
                                                                    from £1.50
                                                                    ENGINE COMPT.LID BUFFER Genuine Maserati Part - New (to order)
