maserati biturbo 2.5 (1984) alternator and bracket parts diagram

016 - Alternator and Bracket

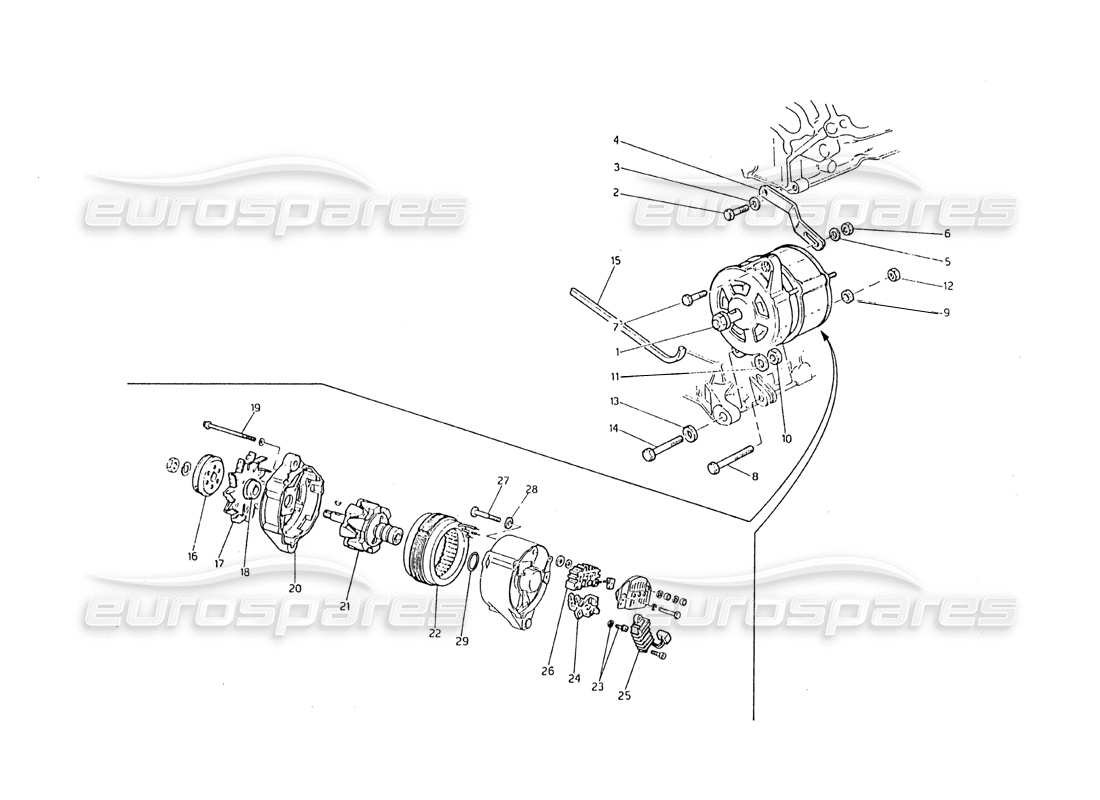

Maserati Biturbo 2.5 (1984) Alternator and Bracket Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 001
                                                            MPN: 313020210
                                                            ALTERNATOR
                                                            # 003
                                                            MPN: 135500080
                                                            WASHER
                                                            from £0.79
                                                            from £0.79
                                                            # 005
                                                            MPN: 313020414
                                                            WASHER
                                                            from £11.66
                                                            from £11.66
                                                            # 007
                                                            MPN: 100710035
                                                            BOLT
                                                            # 008
                                                            MPN: 313020416
                                                            BOLT
                                                            from £2.00
                                                            from £2.00
                                                            # 011
                                                            MPN: 313020411
                                                            WASHER
                                                            from £0.47
                                                            from £0.47
                                                            # 012
                                                            MPN: 125300120
                                                            NUT
                                                            from £1.12
                                                            from £1.12
                                                            # 013
                                                            MPN: 313020415
                                                            WASHER
                                                            from £9.98
                                                            from £9.98
                                                            # 015
                                                            MPN: 313020421
                                                            ALTERNATOR BELT
                                                            from £9.95
                                                            from £9.95
                                                            # 016
                                                            MPN: 313020212
                                                            ALTERNATOR PULLEY
                                                            # 017
                                                            MPN: 313020418
                                                            ALTERNATOR FAN
                                                            from £4.30
                                                            from £4.30
                                                            # 018
                                                            MPN: 313020419
                                                            SPACER
                                                            # 019
                                                            MPN: 313020403
                                                            SCREW
                                                            # 020
                                                            MPN: 313020203
                                                            BRACKET
                                                            from £92.66
                                                            from £92.66
                                                            # 021
                                                            MPN: 313020204
                                                            ROTOR
                                                            from £146.24
                                                            from £146.24
                                                            # 022
                                                            MPN: 313020205
                                                            STATOR
                                                            from £118.77
                                                            from £118.77
                                                            # 023
                                                            MPN: 313020206
                                                            SCREW WITH WASHER
                                                            # 024
                                                            MPN: 313020207
                                                            BRUSH HOLDER
                                                            from £2.39
                                                            from £2.39
                                                            # 025
                                                            MPN: 313020208
                                                            VOLTAGE REGULATOR
                                                            from £16.47
                                                            from £16.47
                                                            # 026
                                                            MPN: 313020209
                                                            RECTIFIER
                                                            from £20.53
                                                            from £20.53
                                                            # 027
                                                            MPN: 313020404
                                                            SCREW
                                                            from £1.60
                                                            from £1.60
                                                            # 028
                                                            MPN: 313020405
                                                            INSULATOR
                                                            from £0.69
                                                            from £0.69
                                                            # 029
                                                            MPN: 313020406
                                                            GASKET
