0020 - HEADER TANK

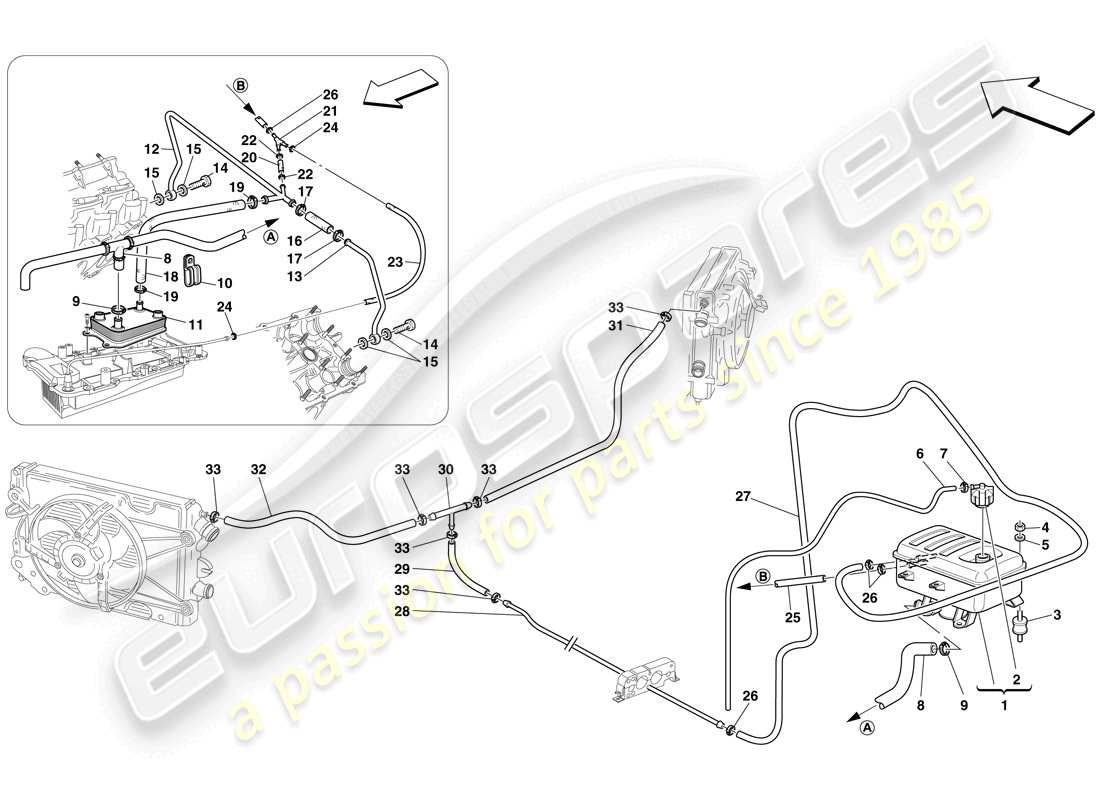

Ferrari F430 Spider (Europe) HEADER TANK Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 199868
COMPLETE HEADER TANK
from £184.02
from £184.02
# 002
MPN: 145030
HEADER TANK CAP
from £12.74
from £12.74
# 003
MPN: 142202
VIBRATION DAMPER
from £14.37
from £14.37
# 004
MPN: 15896214
NUT
from £0.53
from £0.53
This part replaces part number 15896211
# 005
MPN: 12643724
WASHER
from £0.51
from £0.51
This part replaces part number 109684 - and 3 more. Click to view details
# 006
MPN: 179280
VENT PIPE
from £103.42
from £103.42
# 007
MPN: 183919
COLLAR CLAMP
from £0.72
from £0.72
# 008
MPN: 214250
COMPLETE PIPE
from £130.33
from £130.33
# 009
MPN: 183126
CLAMP
from £0.86
from £0.86
# 010
MPN: 10450790
BRACKET WITH SHEATH
from £0.53
from £0.53
# 011
MPN: 200161
HEAT EXCHANGER
Supersession
Supersession
# 012
MPN: 206477
RH PIPE
-No longer supplied- -Replaced by 240327-
from £62.02
from £62.02
# 012
MPN: 240327
RH PIPE
from £61.44
from £61.44
# 013
MPN: 206482
LH PIPE
-No longer supplied- -Replaced by 240329-
Supersession
Supersession
# 013
MPN: 240329
LH PIPE
from £34.03
from £34.03
This part replaces part number 206482
# 014
MPN: 203787
PIPE UNION
from £5.75
from £5.75
# 015
MPN: 10259960
GASKET
from £0.47
from £0.47
This part replaces part number 95017
# 016
MPN: 210726
SLEEVE
-No longer supplied- -Replaced by 235080-
Supersession
Supersession
This part replaces part number 203784
# 016
MPN: 235080
SLEEVE
from £34.75
from £34.75
This part replaces part number 210726 - and 1 more. Click to view details
# 017
MPN: 13433370
COLLAR FOR HOSE UNION
from £0.60
from £0.60
This part replaces part number 247921
# 017
MPN: 164015
COLLAR FOR HOSE UNION
-No longer supplied- -Replaced by 247921-
Supersession
Supersession
This part replaces part number 12181290
# 017
MPN: 178053
COLLAR FOR HOSE UNION
-No longer supplied- -Replaced by 164015-
from £0.97
from £0.97
# 017
MPN: 247921
COLLAR FOR HOSE UNION
-No longer supplied- -Replaced by 13433370-
Supersession
Supersession
# 018
MPN: 209425
RUBBER PIPE
-No longer supplied- -Replaced by 242641-
Supersession
Supersession
# 018
MPN: 242641
RUBBER PIPE
Supersession
Supersession
This part replaces part number 209425
# 019
MPN: 13433370
COLLAR FOR HOSE UNION
from £0.60
from £0.60
This part replaces part number 247921
# 019
MPN: 164015
COLLAR FOR HOSE UNION
-No longer supplied- -Replaced by 247921-
Supersession
Supersession
This part replaces part number 12181290
# 019
MPN: 178053
COLLAR FOR HOSE UNION
-No longer supplied- -Replaced by 164015-
from £0.97
from £0.97
# 019
MPN: 247921
COLLAR FOR HOSE UNION
-No longer supplied- -Replaced by 13433370-
Supersession
Supersession
# 020
MPN: 212794
RUBBER PIPE
-No longer supplied- -Replaced by 220936-
Supersession
Supersession
# 020
MPN: 220936
RUBBER PIPE
from £52.47
from £52.47
This part replaces part number 207212 - and 1 more. Click to view details
# 021
MPN: 201440
MULTIPLE CONNECTOR
from £60.05
from £60.05
# 022
MPN: 177995
CLAMP
from £0.65
from £0.65
# 023
MPN: 207211
PIPE FROM HEAT EXCHANGER
-No longer supplied- -Replaced by 220935-
Supersession
Supersession
# 023
MPN: 220935
PIPE FROM HEAT EXCHANGER
from £8.32
from £8.32
This part replaces part number 207211
# 024
MPN: 177995
CLAMP
from £0.65
from £0.65
# 025
MPN: 207212
RUBBER PIPE
Supersession
Supersession
# 026
MPN: 177995
CLAMP
from £0.63
from £0.63
# 027
MPN: 211667
RUBBER TUBE FROM HEADER TANK TO UNDERBODY
-Applicable until depletion-
Supersession
Supersession
# 027
MPN: 229968
RUBBER TUBE FROM HEADER TANK TO UNDERBODY
-Applicable after depletion of 211667-
Supersession
Supersession
This part replaces part number 211667
# 028
MPN: 209401
UNDERBODY PIPE
from £70.04
from £70.04
# 029
MPN: 205090
RUBBER PIPE
-Applicable until depletion-
Supersession
Supersession
# 029
MPN: 229986
RUBBER PIPE
-Applicable after depletion of 205090-
from £4.50
from £4.50
This part replaces part number 205090 - and 1 more. Click to view details
# 030
MPN: 181272
THREE-WAY UNION
from £34.70
from £34.70
This part replaces part number 176086 - and 2 more. Click to view details
# 031
MPN: 205089
RH RUBBER PIPE
from £5.79
from £5.79
# 032
MPN: 205088
LH RUBBER PIPE
from £8.43
from £8.43
# 033
MPN: 13000190
SCREW COLLAR
from £0.52
from £0.52
This part replaces part number 12178990 - and 1 more. Click to view details
