maserati biturbo spider starter motor marelli parts diagram

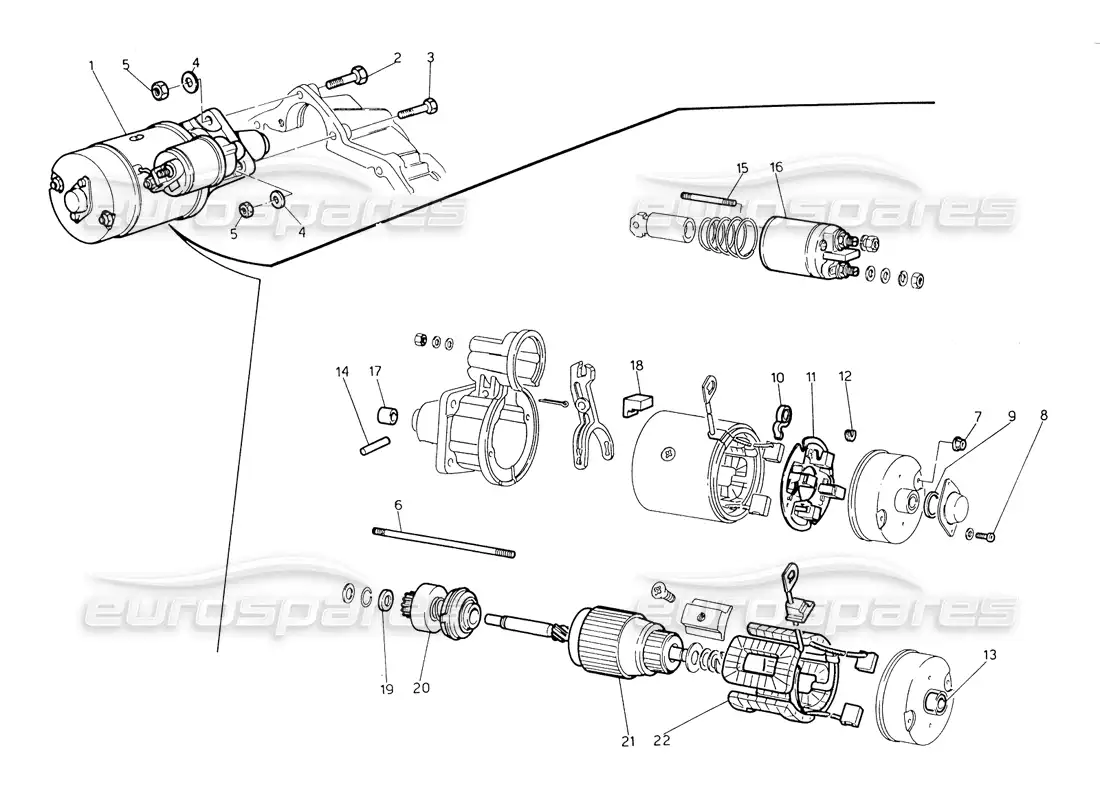

019 - Starter Motor Marelli

Maserati Biturbo Spider Starter Motor Marelli Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Key
                                              Price
                                              # 001
                                              MPN: 571082400
                                              STARTER MOTOR, ASSY
                                              from £379.40
                                              from £379.40
                                              This part replaces part number 313453201
                                              MOTORINO AVVIAMENTO M585A Genuine Maserati Part - New (to order)
                                              STARTER MOTOR Original Equipment - New In stock
                                              # 002
                                              MPN: 313420300
                                              SCREW
                                              from £3.12
                                              from £3.12
                                              SCREW Genuine Maserati Part - New (to order)
                                              # 006
                                              MPN: 313420401
                                              TIE-ROD
                                              TIE-ROD Genuine Maserati Part - New (to order)
                                              # 007
                                              MPN: 313420402
                                              SELF LOCKING NUT
                                              SELF LOCKING NUT Genuine Maserati Part - New (to order)
                                              # 008
                                              MPN: 313420403
                                              SCREW
                                              SCREW Genuine Maserati Part - New (to order)
                                              # 009
                                              MPN: 313420404
                                              GASKET
                                              from £0.69
                                              from £0.69
                                              Guarnizione Genuine Maserati Part - New (to order)
                                              # 010
                                              MPN: 313420405
                                              SPRING
                                              SPRING Genuine Maserati Part - New (to order)
                                              # 011
                                              MPN: 313420202
                                              BRUSH HOLDING PLATE
                                              from £11.26
                                              from £11.26
                                              BRUSHES HOLDER PLATE Genuine Maserati Part - New (to order)
                                              # 012
                                              MPN: 313420406
                                              GUARD
                                              GUARD Genuine Maserati Part - New (to order)
                                              # 013
                                              MPN: 313420407
                                              BUSH
                                              from £1.90
                                              from £1.90
                                              BUSH Genuine Maserati Part - New (to order)
                                              # 014
                                              MPN: 313420408
                                              LEVER PIN
                                              Lover pin Genuine Maserati Part - New (to order)
                                              # 015
                                              MPN: 313420409
                                              TIE-ROD
                                              TIE-ROD Genuine Maserati Part - New (to order)
                                              # 016
                                              MPN: 313420203
                                              SOLENOID
                                              from £16.43
                                              from £16.43
                                              ELECTROMAGNET M.63600909 Genuine Maserati Part - New (to order)
                                              # 017
                                              MPN: 313420410
                                              BUSH (PINION SIDE)
                                              from £1.52
                                              from £1.52
                                              BUSH PINION SIDE Genuine Maserati Part - New (to order)
                                              # 018
                                              MPN: 313420411
                                              PLUG FOR SUPPONT (PINION SIDE)
                                              Plug lor support (pinion side) Genuine Maserati Part - New (to order)
                                              # 019
                                              MPN: 313420412
                                              RETAINING RING
                                              RETAINING RING Genuine Maserati Part - New (to order)
                                              # 020
                                              MPN: 313420204
                                              PINION AND BARREL
                                              from £26.09
                                              from £26.09
                                              PINION AND BARREL Genuine Maserati Part - New (to order)
                                              # 021
                                              MPN: 313420205
                                              ARMATURE
                                              from £78.23
                                              from £78.23
                                              Maserati PART 313420205 Genuine Maserati Part - New (to order)
                                              # 022
                                              MPN: 313420206
                                              COIL WITH BRUSHES
                                              from £64.57
                                              from £64.57
                                              INDUCTOR COIL Genuine Maserati Part - New (to order)
