maserati biturbo spider rear shock absorber parts diagram

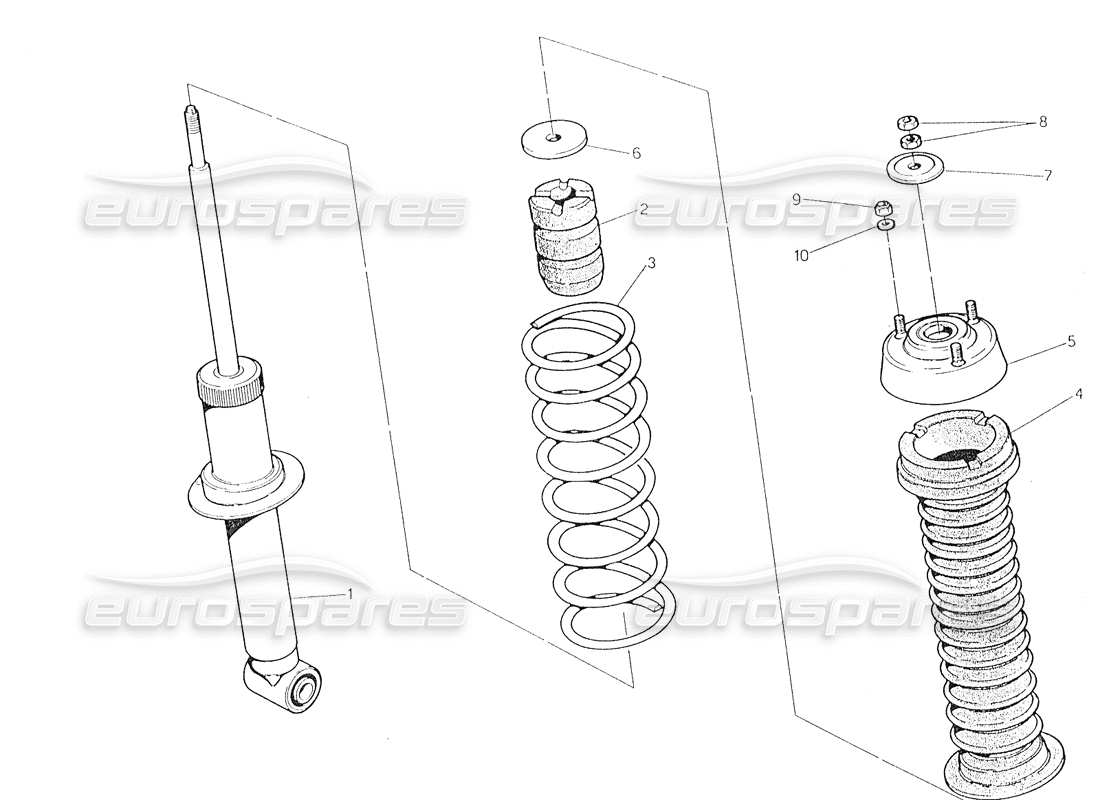

038 - REAR SHOCK ABSORBER

Maserati Biturbo Spider Rear Shock Absorber Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 397000105
                    SHOCK ABSORBER
                    Supersession
                    Supersession
                    # 002
                    MPN: 397000332
                    BUFFER
                    from £10.08
                    from £10.08
                    # 003
                    MPN: 397000333
                    SPRING
                    from £45.33
                    from £45.33
                    This part replaces part number 317021333
                    # 004
                    MPN: 317020331
                    BELLOW
                    from £6.26
                    from £6.26
                    # 005

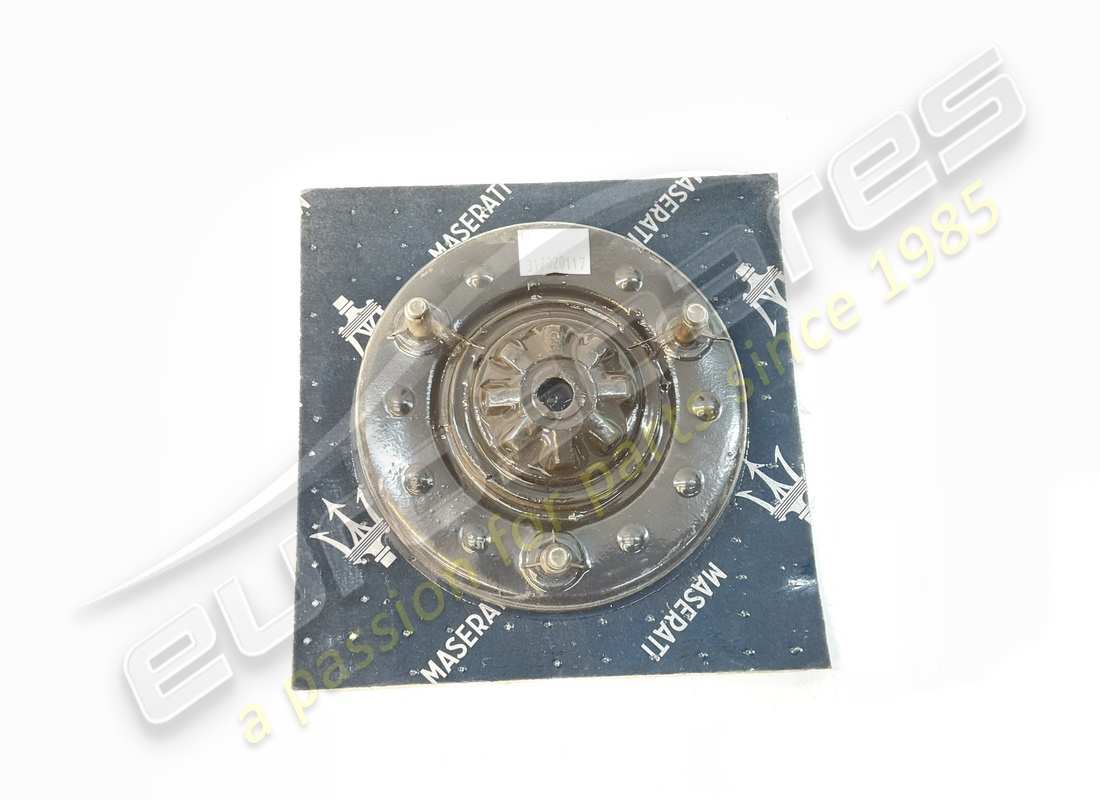

                    MPN: 317020117
                    SUPPORT
                    from £23.79
                    from £23.79
                    # 006

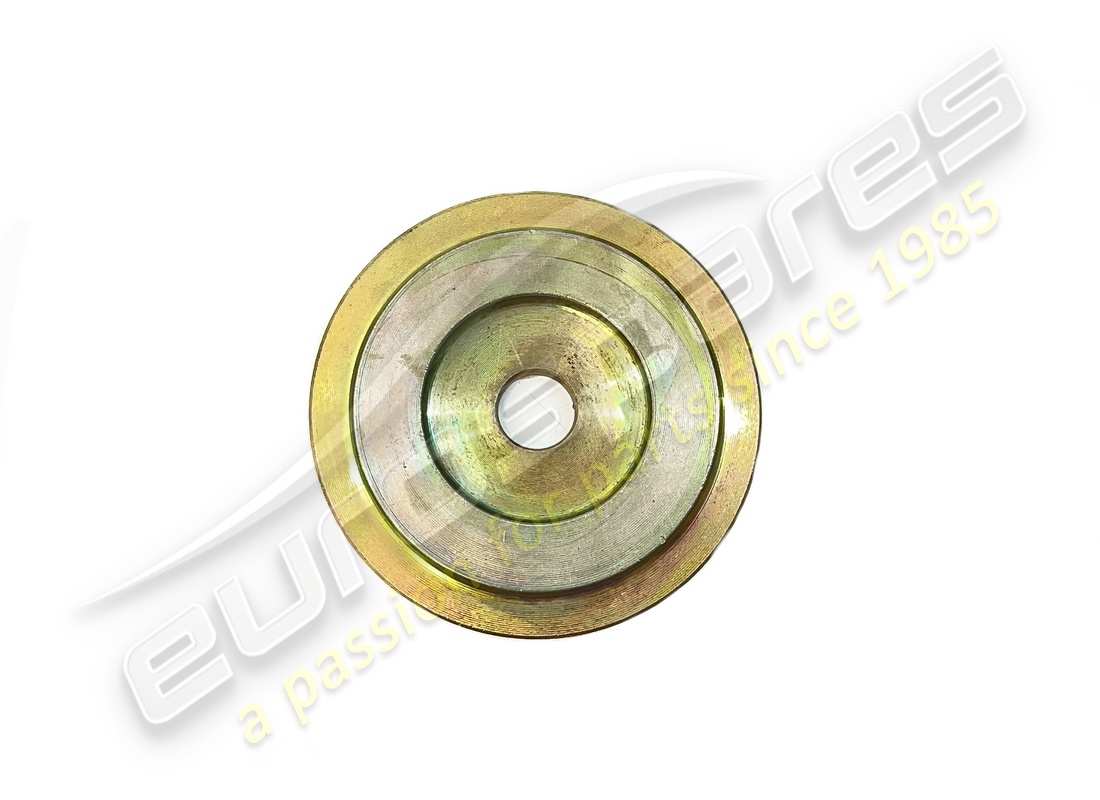

                    MPN: 327012340
                    WASHER
                    from £14.77
                    from £14.77
                    This part replaces part number 317020340
                    # 007
                    MPN: 317020349
                    UPPER CAP
                    from £0.69
                    from £0.69
                    # 008
                    MPN: 317020344
                    NUT
                    from £1.08
                    from £1.08
                    # 009
                    MPN: 128300080
                    SELF LOCKING NUT
