044 - Steering Control

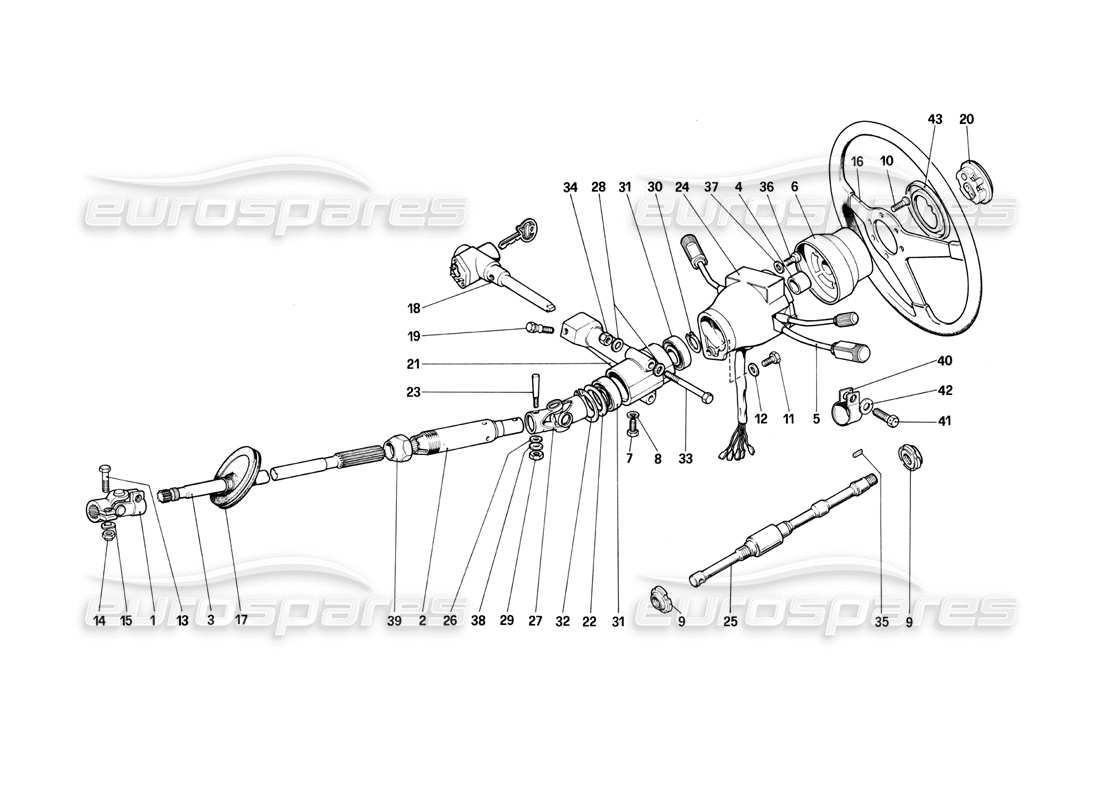

Ferrari 400i (1983 Mechanical) Steering Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
101062
GIUNTO PER ESTREMITA TUBO
from
£695.00
from
£695.00
#
002
MPN:
117379
TUBO GUIDA
from
£208.27
from
£208.27
#
003
MPN:
101066
ALBERO GUIDA
from
£219.59
from
£219.59
This part replaces part number 740532
- and 1 more. Click to view details
#
004
MPN:
101094
BUSH
from
£43.60
from
£43.60
This part replaces part number 740077
#
005
MPN:
116780
COLUMN SWITCH
from
£1,830.84
from
£1,830.84
This part replaces part number 103518
- and 2 more. Click to view details
#
005
MPN:
119317
DEVIOSGANCIO
from
£1,486.96
from
£1,486.96
#
006
MPN:
0195042
MOZZO VOLANTE GUIDA
Con I'assieme volante
#
007
MPN:
16979421
BOLT
#
008
MPN:
16414176
WASHER
#
009
MPN:
166616
RING NUT
#
010
MPN:
111189
SCREW
from
£3.24
from
£3.24
#
011
MPN:
111883
BOLT
from
£0.47
from
£0.47
#
012
MPN:
12661271
WASHER
#
013
MPN:
16644621
BOLT
#
014
MPN:
16166811
NUT
#
015
MPN:
167618
WASHER
#
016
MPN:
111187
ASSIEME VOLANTE GUIDA
#
016
MPN:
119638
DRIVER'S STEERING WHEEL
#
017
MPN:
101100
GASKET OR SEAL
from
£9.96
from
£9.96
This part replaces part number 740419
#
018
MPN:
168785
STEERING LOCK ASSY
from
£1,756.05
from
£1,756.05
This part replaces part number 106614 which we have in stock
- and 11 more. Click to view details
#
019
MPN:
166615
BOLT
#
021
MPN:
189448
SUPPORT
#
022
MPN:
107488
IDEM SP. MM. 0,4
from
£1.81
from
£1.81
#
022
MPN:
161161
WASHER
#
022
MPN:
167486
IDEM SP. MM. 0,2
#
022
MPN:
167489
IDEM SP. MM. 0,3
#
023
MPN:
112573
PIN
from
£16.05
from
£16.05
This part replaces part number 108416
#
024
MPN:
114321
CANOTTO PORTA COMMUTATORI 466 GT
from
£381.14
from
£381.14
#
024
MPN:
114322
SWITCH HOLDER 466 AUT.
from
£199.66
from
£199.66
#
025
MPN:
111184
UPPER STEERING CONTROL SHAFT
from
£420.00
from
£420.00
This part replaces part number 109446
- and 1 more. Click to view details
#
026
MPN:
112571
SPACER
from
£5.57
from
£5.57
#
026
MPN:
161671
CONTAINER AND HORN
#
027
MPN:
112572
GIUNTO CARDANICO
from
£210.00
from
£210.00
This part replaces part number 108415
- and 1 more. Click to view details
#
028
MPN:
16519681
WASHER
#
029
MPN:
12574221
SELF LOCKING NUT
Supersession
Supersession
This part replaces part number 125519 which we have in stock
- and 1 more. Click to view details
#
031
MPN:
161164
CUSCINETTO A SFERE
#
032
MPN:
11666576
SEEGER RING
#
033
MPN:
16644821
BOLT
#
034
MPN:
18164421
NUT
#
035
MPN:
161166
Key
#
036
MPN:
11667376
SEEGER RING
#
036
MPN:
18389961
SCREW
#
037
MPN:
12544171
WASHER
#
038
MPN:
16519481
WASHER
#
039
MPN:
166876
NUT
#
040
MPN:
16418861
FASCETTA F ISSAGGIO CAVI DEVIOSGANCIO
#
041
MPN:
116165
SCREW
from
£44.30
from
£44.30
#
042
MPN:
12642861
WASHER
#
043
MPN:
118646
GHIERA COPRIVITI
