014 - Antievaporation Device

Ferrari 575M Maranello Antievaporation Device Parts Diagram

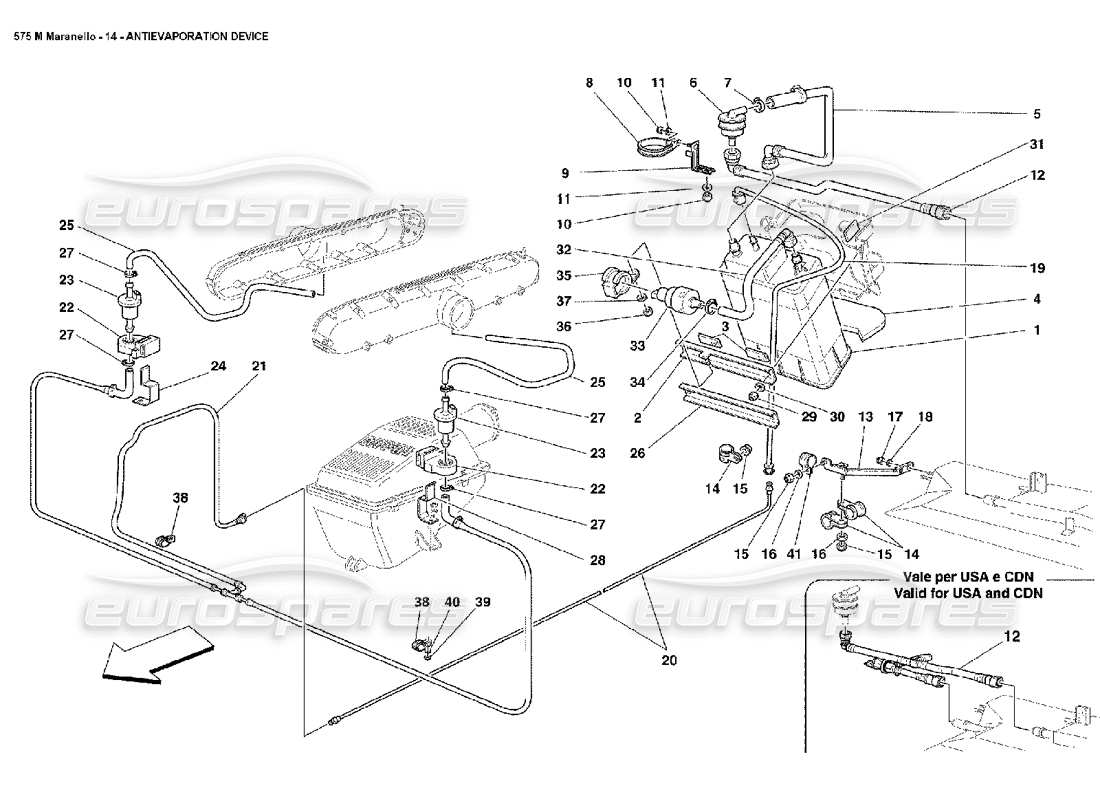

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                #
                                                                                Part number
                                                                                Description
                                                                                Price
                                                                                # 001
                                                                                MPN: 186316
                                                                                FUEL VAPOR FILTER
                                                                                from £225.83
                                                                                from £225.83
                                                                                This part replaces part number 178536
                                                                                # 002
                                                                                MPN: 182768
                                                                                BRACKET FOR VALVE
                                                                                from £4.70
                                                                                from £4.70
                                                                                # 003
                                                                                MPN: 180655
                                                                                THICKNESS
                                                                                from £3.90
                                                                                from £3.90
                                                                                # 004
                                                                                MPN: 66075700
                                                                                Insulation
                                                                                from £64.51
                                                                                from £64.51
                                                                                # 005
                                                                                MPN: 182074
                                                                                COMPLETE TUBE
                                                                                from £32.40
                                                                                from £32.40
                                                                                # 006
                                                                                MPN: 180573
                                                                                ANTI FLOWING BACK VALVE
                                                                                from £38.12
                                                                                from £38.12
                                                                                # 007
                                                                                MPN: 13433370
                                                                                SCREW COLLAR
                                                                                from £0.53
                                                                                from £0.53
                                                                                This part replaces part number 247921
                                                                                # 008
                                                                                MPN: 180426
                                                                                BRACKET WITH SHEATH
                                                                                from £3.53
                                                                                from £3.53
                                                                                # 009
                                                                                MPN: 180427
                                                                                BRACKET
                                                                                from £11.91
                                                                                from £11.91
                                                                                # 010
                                                                                MPN: 102948
                                                                                NUT
                                                                                from £0.54
                                                                                from £0.54
                                                                                This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                # 011
                                                                                MPN: 14499324
                                                                                WASHER
                                                                                from £0.49
                                                                                from £0.49
                                                                                This part replaces part number 14499301 which we have in stock
                                                                                # 012
                                                                                MPN: 181961
                                                                                COMPLETE VENT PIPE
                                                                                - Valid for USA and CDN
                                                                                from £196.44
                                                                                from £196.44
                                                                                # 012
                                                                                MPN: 186638
                                                                                COMPLETE VENT PIPE
                                                                                - Not for USA and CDN
                                                                                from £135.20
                                                                                from £135.20
                                                                                # 013
                                                                                MPN: 189268
                                                                                BRACKET
                                                                                from £14.01
                                                                                from £14.01
                                                                                # 014
                                                                                MPN: 10441290
                                                                                BRACKET WITH SHEATH
                                                                                from £0.28
                                                                                from £0.28
                                                                                # 015
                                                                                MPN: 102948
                                                                                NUT
                                                                                from £0.54
                                                                                from £0.54
                                                                                This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                # 016
                                                                                MPN: 14499324
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 14499301 which we have in stock
                                                                                # 017
                                                                                MPN: 102741
                                                                                NUT
                                                                                from £0.53
                                                                                from £0.53
                                                                                This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                # 018
                                                                                MPN: 125516
                                                                                WASHER
                                                                                from £2.56
                                                                                from £2.56
                                                                                # 019
                                                                                MPN: 188758
                                                                                PIPE FROM VAPOR FILTER TO UNDERFLOOR PIPE
                                                                                from £31.21
                                                                                from £31.21
                                                                                # 020
                                                                                MPN: 188751
                                                                                INTERMEDIATE UNDERFLOOR TUBE
                                                                                from £9.81
                                                                                from £9.81
                                                                                # 021
                                                                                MPN: 180799
                                                                                UNIONS COMPLETE TUBE
                                                                                -Not for GD
                                                                                from £110.71
                                                                                from £110.71
                                                                                # 021
                                                                                MPN: 193029
                                                                                UNIONS COMPLETE TUBE
                                                                                - Valid for GD
                                                                                from £124.20
                                                                                from £124.20
                                                                                # 022
                                                                                MPN: 174623
                                                                                PAD
                                                                                from £3.78
                                                                                from £3.78
                                                                                # 023
                                                                                MPN: 162412
                                                                                WASHER VALVE
                                                                                from £40.21
                                                                                from £40.21
                                                                                # 024
                                                                                MPN: 178792
                                                                                RH PAD SUPPORT BRACKET
                                                                                from £2.40
                                                                                from £2.40
                                                                                # 025
                                                                                MPN: 179768
                                                                                PIPE FROM AIR CAPACITY TO VALVE
                                                                                from £18.81
                                                                                from £18.81
                                                                                # 026
                                                                                MPN: 180653
                                                                                BRACKET
                                                                                from £1.12
                                                                                from £1.12
                                                                                # 027
                                                                                MPN: 13434670
                                                                                COLLAR FOR SLEEVE
                                                                                from £0.51
                                                                                from £0.51
                                                                                # 028
                                                                                MPN: 187124
                                                                                LH PAD SUPPORT BRACKET
                                                                                from £39.62
                                                                                from £39.62
                                                                                # 029
                                                                                MPN: 169180
                                                                                NUT
                                                                                from £0.53
                                                                                from £0.53
                                                                                This part replaces part number 12574121
                                                                                # 030
                                                                                MPN: 12638124
                                                                                WASHER
                                                                                from £0.53
                                                                                from £0.53
                                                                                This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
                                                                                # 031
                                                                                MPN: 180654
                                                                                THICKNESS
                                                                                from £0.53
                                                                                from £0.53
                                                                                # 032
                                                                                MPN: 190024
                                                                                COMPLETE TUBE
                                                                                from £161.49
                                                                                from £161.49
                                                                                # 033
                                                                                MPN: 179138
                                                                                ON
                                                                                from £89.90
                                                                                from £89.90
                                                                                # 034
                                                                                MPN: 13430770
                                                                                SCREW COLLAR
                                                                                from £0.54
                                                                                from £0.54
                                                                                # 035
                                                                                MPN: 181607
                                                                                BRACKET WITH SHEATH
                                                                                from £4.04
                                                                                from £4.04
                                                                                # 036
                                                                                MPN: 102948
                                                                                NUT
                                                                                from £0.54
                                                                                from £0.54
                                                                                This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                # 037
                                                                                MPN: 14499324
                                                                                WASHER
                                                                                from £0.51
                                                                                from £0.51
                                                                                This part replaces part number 14499301 which we have in stock
                                                                                # 038
                                                                                MPN: 10441790
                                                                                BRACKET WITH SHEATH
                                                                                from £0.53
                                                                                from £0.53
                                                                                # 039
                                                                                MPN: 102948
                                                                                NUT
                                                                                from £0.54
                                                                                from £0.54
                                                                                This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                # 040
                                                                                MPN: 14499324
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 14499301 which we have in stock
                                                                                # 041
                                                                                MPN: 181245
                                                                                BRACKET WITH SHEATH
                                                                                from £2.90
                                                                                from £2.90
