029 - Clutch and Controls Valid for F1

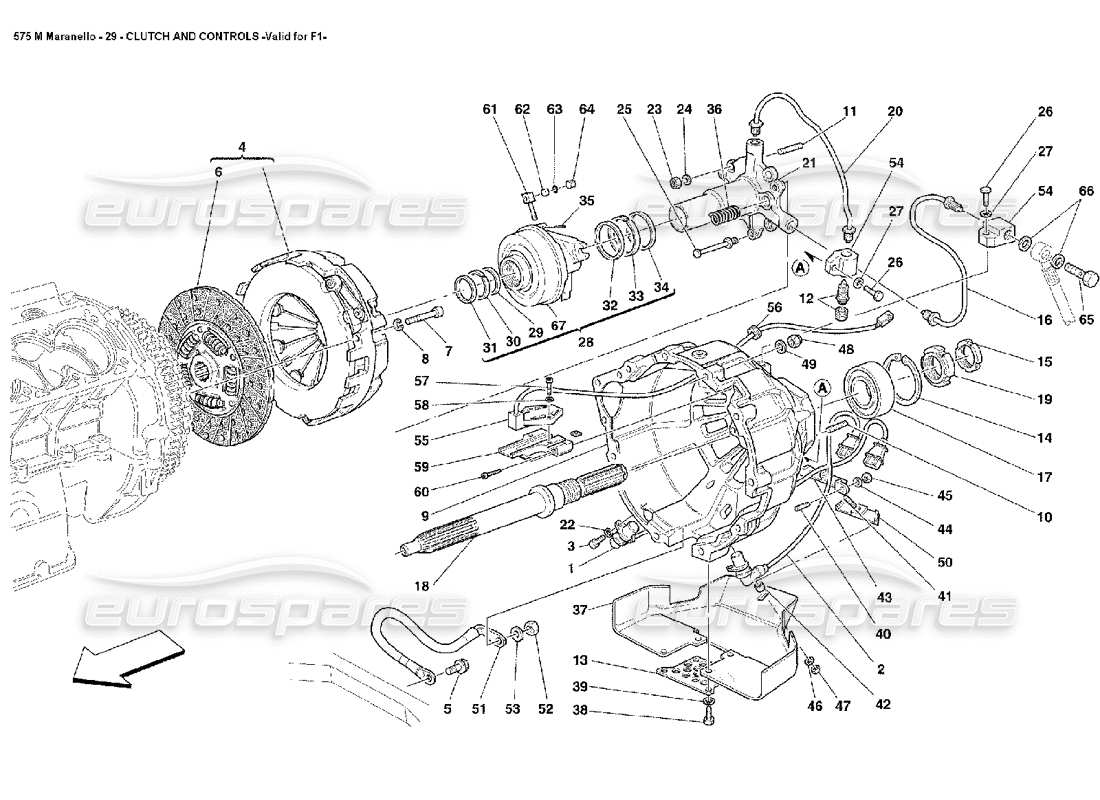

Ferrari 575M Maranello Clutch and Controls Valid for F1 Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 189548
RH SIDE ANGOLAR SPEED SENSOR
from £53.10
from £53.10
# 002
MPN: 189540
LH SIDE ANGOLAR SPEED SENSOR
from £107.73
from £107.73
# 003
MPN: 14305124
SCREW
from £0.53
from £0.53
This part replaces part number 14305121
# 004
MPN: 194775
COMPLETE CLUTCH
from £1,567.58
from £1,567.58
This part replaces part number 153724 - and 1 more. Click to view details
# 005
MPN: 16296421
SCREW
from £37.16
from £37.16
# 006
MPN: 138961
CLUTCH DISC
Supersession
Supersession
# 006
MPN: 138961
CLUTCH DISC
Supersession
Supersession
# 006
MPN: 194776
CLUTCH DISC
from £659.56
from £659.56
This part replaces part number 153721
# 007
MPN: 14305974
SCREW
from £0.48
from £0.48
This part replaces part number 85611000
# 008
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.51
from £0.51
This part replaces part number 10516470 - and 4 more. Click to view details
# 009
MPN: 151601
COMPLETE CLUTCH HOUSING
from £2,524.58
from £2,524.58
# 009
MPN: 168915
CLUTCH HOUSING
- With complete clutch housing
# 010
MPN: 13546334
STUD
from £0.60
from £0.60
This part replaces part number 13546331
# 011
MPN: 13543124
STUD
from £3.66
from £3.66
This part replaces part number 13543121
# 012
MPN: 121699
BLEEDER SCREW
from £11.66
from £11.66
# 013
MPN: 144441
CLUTCH HOUSING SMALL COVER
from £0.99
from £0.99
# 014
MPN: 144511
STOP RING
from £1.55
from £1.55
# 015
MPN: 165576
RING NUT
from £29.79
from £29.79
# 016
MPN: 165759
OIL DELIVERY TUBE
from £120.41
from £120.41
# 017
MPN: 145805
BEARING
from £73.60
from £73.60
This part replaces part number 125934
# 018
MPN: 165573
CLUTCH SHAFT
from £379.44
from £379.44
# 019
MPN: 165575
RING NUT
from £13.29
from £13.29
# 020
MPN: 165733
VENT PIPE
from £36.90
from £36.90
# 021
MPN: 170411
FLANGE FOR SERVOMECHANISM
from £688.66
from £688.66
# 022
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 023
MPN: 133989
NUT
from £0.53
from £0.53
This part replaces part number 8 D 4-UNI 207
# 024
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 025
MPN: 166650
STUD
from £24.40
from £24.40
# 026
MPN: 10902624
SCREW
from £0.53
from £0.53
This part replaces part number 10902621
# 027
MPN: 11181874
WASHER
from £0.51
from £0.51
# 028
MPN: 177205
COMPLETE THRUST BEARING
(seals not included)
from £332.00
from £332.00
This part replaces part number 192260 - and 1 more. Click to view details
# 028
MPN: 177205/A
COMPLETE THRUST BEARING
WITH SEALS
# 029
MPN: 181838
SEAL RING
from £12.46
from £12.46
# 030
MPN: 170416
RING
from £1.21
from £1.21
This part replaces part number 189183
# 031
MPN: 181837
SCRAPER RING
from £13.30
from £13.30
# 032
MPN: 181828
SEAL RING
from £15.54
from £15.54
# 033
MPN: 154507
RING
from £2.01
from £2.01
This part replaces part number 170419 which we have in stock - and 1 more. Click to view details
# 034
MPN: 181836
SCRAPER RING
from £14.64
from £14.64
# 035
MPN: 14158570
FLEXIBLE PIN
from £0.54
from £0.54
# 036
MPN: 155207
PRELOAD SPRING
from £2.25
from £2.25
# 037
MPN: 170115
SHIELD FOR FASE SENSOR PROTECTION
from £253.16
from £253.16
# 038
MPN: 10977824
SCREW
from £1.08
from £1.08
This part replaces part number 10977814 - and 1 more. Click to view details
# 039
MPN: 12601174
WASHER
from £0.53
from £0.53
This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
# 040
MPN: 13540824
STUD
from £14.21
from £14.21
This part replaces part number 13540821
# 041
MPN: 155177
STUD
from £4.22
from £4.22
# 042
MPN: 155175
SPACER
from £1.18
from £1.18
# 043
MPN: 154464
SUPPORT
from £14.60
from £14.60
# 044
MPN: 12639724
WASHER
from £0.54
from £0.54
This part replaces part number 12639725 - and 1 more. Click to view details
# 045
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 046
MPN: 11199274
WASHER
from £0.54
from £0.54
# 047
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.77
from £0.77
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 048
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 049
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 050
MPN: 146654
SUPPORT
from £46.33
from £46.33
# 051
MPN: 155918
GROUND CABLE
from £7.27
from £7.27
# 052
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.77
from £0.77
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 053
MPN: 11199274
WASHER
from £0.54
from £0.54
# 054
MPN: 139471
UNION
from £12.84
from £12.84
# 055
MPN: 243784
COMPLETE SENSOR KIT
from £320.10
from £320.10
This part replaces part number 206075
# 055
MPN: 243784
COMPLETE SENSOR KIT
from £320.10
from £320.10
This part replaces part number 206075
# 055

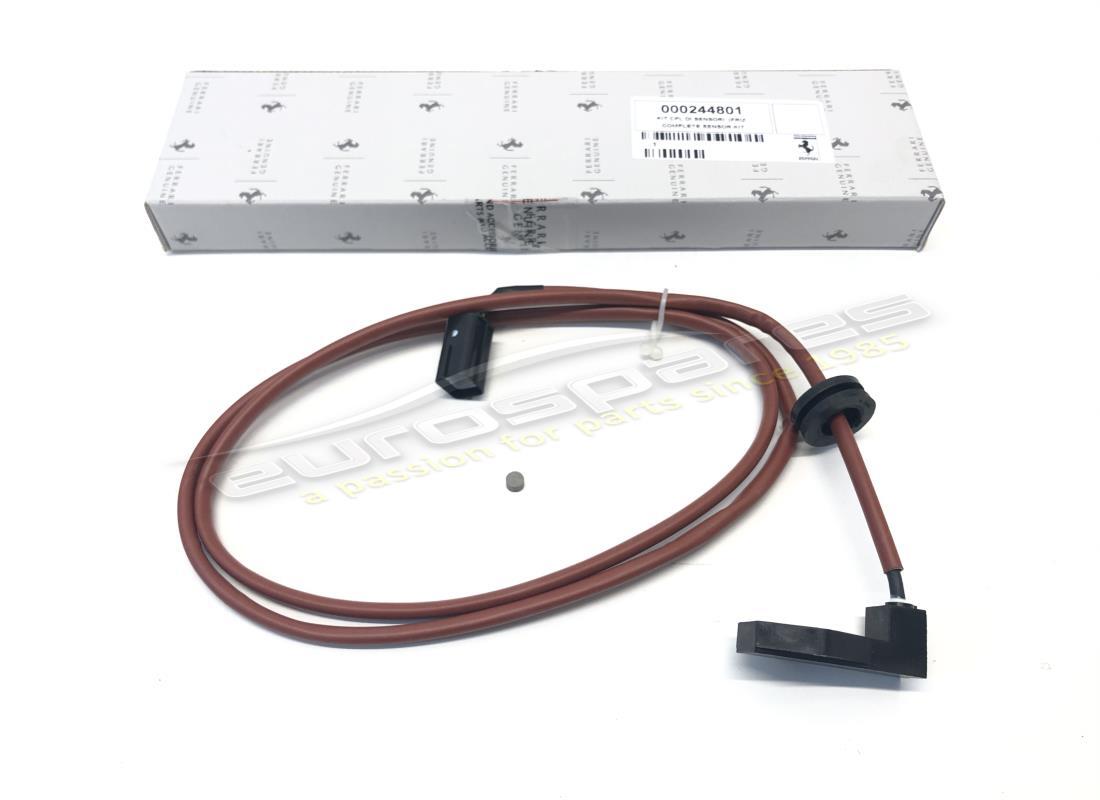

MPN: 244801
COMPLETE SENSOR KIT
from £175.04
from £175.04
This part replaces part number 182311 - and 3 more. Click to view details
# 055
MPN: 244801
COMPLETE SENSOR KIT
from £175.04
from £175.04
This part replaces part number 182311 - and 3 more. Click to view details
# 056
MPN: 10398480
CABLE GROMMET
- Not supplied
from £0.93
from £0.93
