130 - Instruments

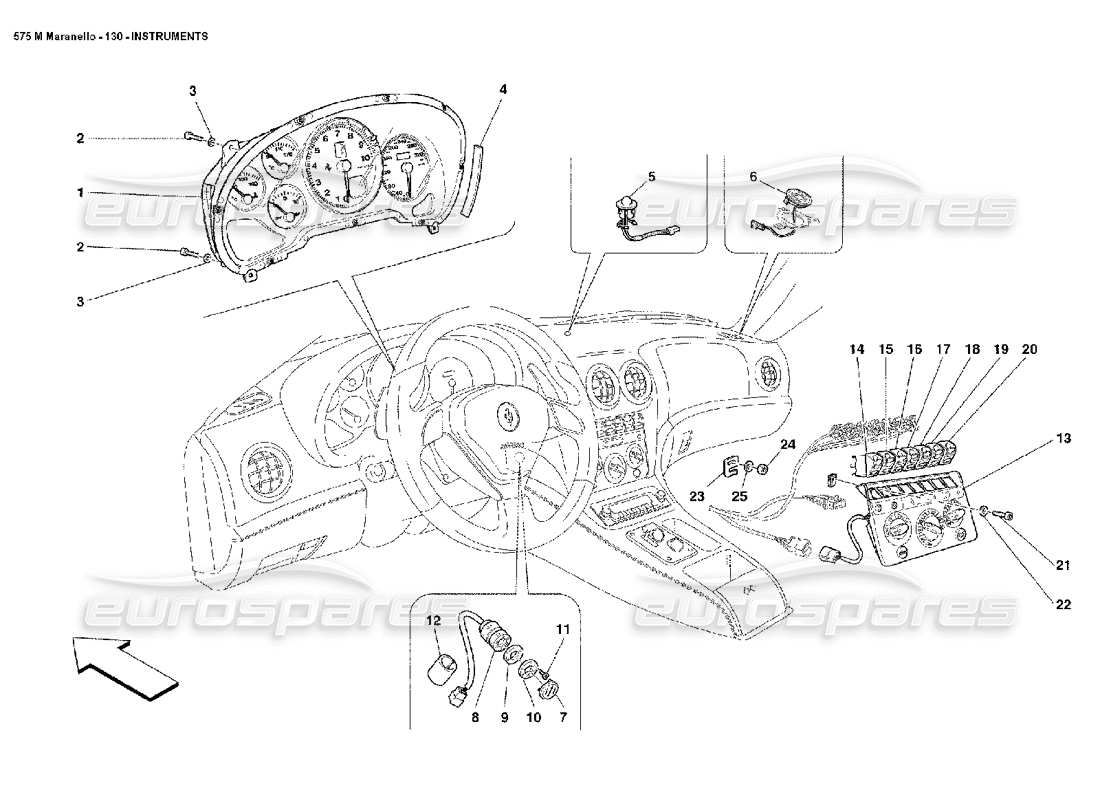

Ferrari 575M Maranello Instruments Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit

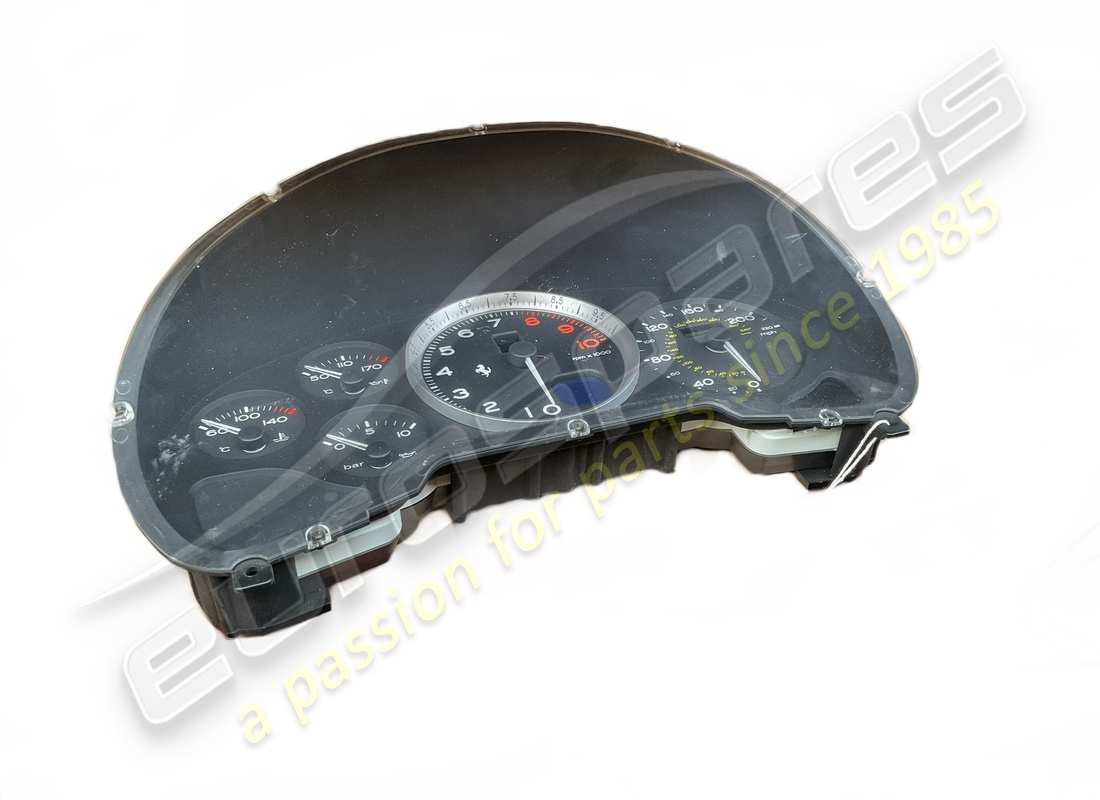

# 001
MPN: 191202
COMPLETE INSTRUMENT BOARD
- Valid for cars with metrical system - Valid till stock exhaustion
Supersession
Supersession
# 001
MPN: 192235
COMPLETE INSTRUMENT BOARD
- Valid for USA - Not for cars with metrical system - Valid till stock exhaustion
Supersession
Supersession
# 001
MPN: 197667
COMPLETE INSTRUMENT
- Valid for USA - Not for cars with metrical system - Not as spare part - Replaced by 211859
Supersession
Supersession
This part replaces part number 192235
# 001
MPN: 197668
COMPLETE INSTRUMENT BOARD
- Valid for GB - Not for cars with metrical system - Not as spare part - Replaced by 211860
from £3,144.75
from £3,144.75
This part replaces part number 192236 - and 1 more. Click to view details
# 001
MPN: 197669
COMPLETE INSTRUMENT BOARD
- Valid for cars with metrical system - Carbon - Optional - Not as spare part - Replaced by 211861
Supersession
Supersession
This part replaces part number 189433
# 001
MPN: 197671
COMPLETE INSTRUMENT BOARD
- Valid for GB - Not for cars with metrical system - Carbon - Not as spare part - Replaced by 211863
Supersession
Supersession
This part replaces part number 189435
# 001
MPN: 211858
COMPLETE INSTRUMENT BOARD
- Valid for cars with metrical system
from £3,935.79
from £3,935.79
This part replaces part number 197666
# 001
MPN: 211859
COMPLETE INSTRUMENT BOARD
- Valid for USA - Not for cars with metrical system
from £3,862.68
from £3,862.68
This part replaces part number 197667
# 001
MPN: 211860
COMPLETE INSTRUMENT BOARD
- Valid for GB - Not for cars with metrical system
from £3,314.79
from £3,314.79
This part replaces part number 197668 which we have in stock
# 001
MPN: 211861
COMPLETE INSTRUMENT BOARD
- Valid for cars with metrical system - Carbon - Optional
from £4,789.74
from £4,789.74
This part replaces part number 197669
# 001
MPN: 211862
COMPLETE INSTRUMENT BOARD
- Valid for USA - Not for cars with metrical system - Carbon
from £3,889.01
from £3,889.01
This part replaces part number 197670
# 001
MPN: 211863
COMPLETE INSTRUMENT BOARD
- Valid for GB - Not for cars with metrical system - Carbon
from £3,889.01
from £3,889.01
This part replaces part number 197671
# 001
MPN: 215313
COMPLETE INSTRUMENT BOARD
Yellow - Valid for GB - Not for cars with metrical system
from £4,895.00
from £4,895.00
# 001
MPN: 66088000
COMPLETE INSTRUMENT BOARD
from £2,113.09
from £2,113.09
This part replaces part number 660880.. - and 1 more. Click to view details
# 002
MPN: 15687270
SCREW
from £0.53
from £0.53
This part replaces part number 15642670
# 003
MPN: 14496277
WASHER
from £0.53
from £0.53
# 004
MPN: 67112700
FELT
from £0.71
from £0.71
# 005
MPN: 64692400
SOLAR RADIATION SENSOR
from £48.46
from £48.46
# 006
MPN: 184678
LOUD SPEAKER TWEETER
from £25.38
from £25.38
# 006
MPN: 184679
LOUD SPEAKER TWEETER
- Valid for high power HI FI - Optional
from £79.86
from £79.86
# 007
MPN: 63994500
SENSOR COVERING GRILL
from £2.82
from £2.82
# 008
MPN: 63934200
INNER COMPARTMENT TEMPERATURE SENSOR
from £70.07
from £70.07
# 009
MPN: 63994700
SENSOR FIXING WASHER
from £3.17
from £3.17
# 010
MPN: 63994600
SENSOR FIXING WASHER
from £4.01
from £4.01
# 011
MPN: 15915977
SCREW
from £0.71
from £0.71
This part replaces part number 64428200
# 012
MPN: 179309
SPONGE
from £2.28
from £2.28
# 013
MPN: 66280400
A.C. CONTROL DASHBOARD
- Not for USA and CDN
from £1,724.37
from £1,724.37
# 013
MPN: 66403300
A.C. CONTROL DASHBOARD
- Valid for USA and CDN
from £1,656.77
from £1,656.77
# 014
MPN: 182899
LH SWITCH FOR GLASS LIFT
from £255.34
from £255.34
# 015
MPN: 180732
ASR EXCLUSION CONTROL SWITCH
from £23.50
from £23.50
# 016
MPN: 180735
SPORT SWITCH
from £128.27
from £128.27
# 017
MPN: 180734
SWITCH FOR REAR WINDOW DEFROSTER
from £199.40
from £199.40
# 018
MPN: 180687
DUMMY SWITCH
- Valid for USA and CDN
from £167.20
from £167.20
# 018
MPN: 180733
REAR FOG LIGHT CONTROL SWITCH
- Not for USA and CDN
from £41.94
from £41.94
# 019
MPN: 182932
SWITCH FOR PARKING LIGHT
from £275.00
from £275.00
# 020
MPN: 182898
RH SWITCH FOR GLASS LIFT
from £58.89
from £58.89
# 021
MPN: 62771900
SCREW
from £0.53
from £0.53
This part replaces part number 68391900
# 022
MPN: 12637824
WASHER
from £0.47
from £0.47
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 023
MPN: 155751
CLIP
from £2.80
from £2.80
# 024
MPN: 13046011
NUT
from £0.53
from £0.53
# 025
MPN: 12637824
WASHER
from £0.47
from £0.47
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
