ferrari 575m maranello electronic accelerator pedal parts diagram

040 - Electronic Accelerator Pedal

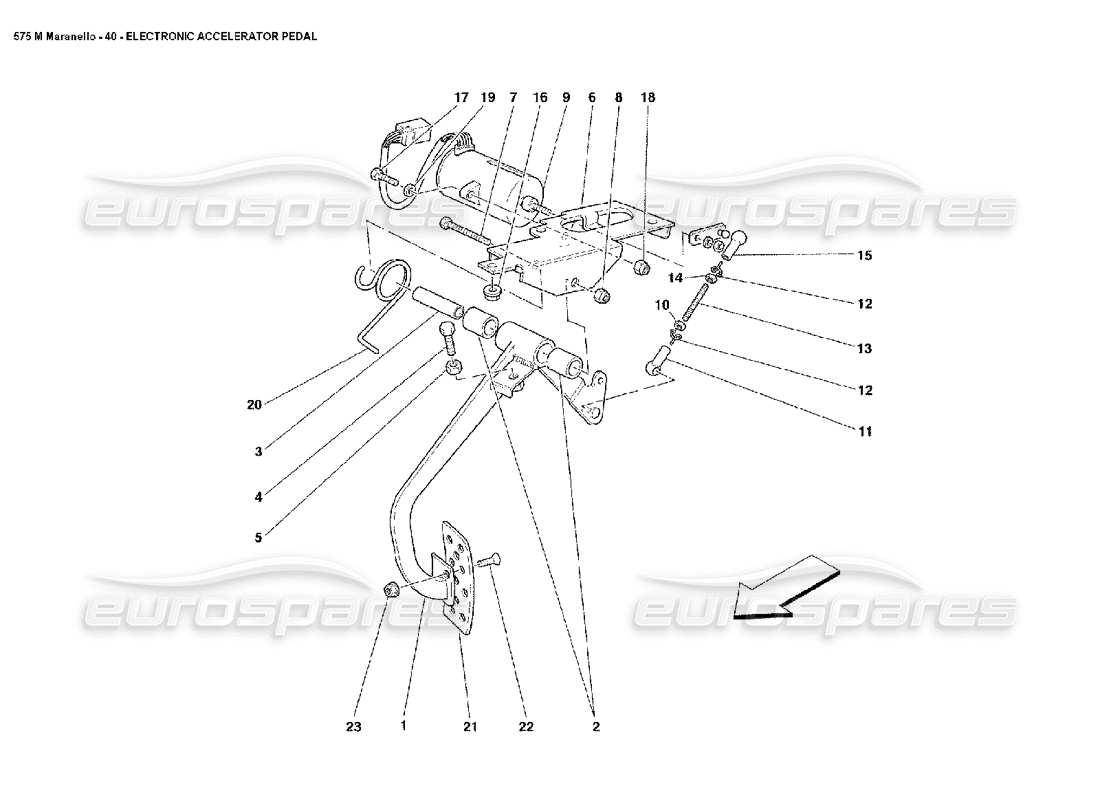

Ferrari 575M Maranello Electronic Accelerator Pedal Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 192617
                                    Accelerator Pedal
                                    - till stock exhaustion
                                    from £67.26
                                    from £67.26
                                    # 001
                                    MPN: 202747
                                    Accelerator Pedal
                                    from £150.23
                                    from £150.23
                                    This part replaces part number 192617 which we have in stock
                                    # 002
                                    MPN: 101677
                                    ROLLER BEARING
                                    from £2.02
                                    from £2.02
                                    # 003
                                    MPN: 138219
                                    CARRIER BUSH
                                    from £66.55
                                    from £66.55
                                    # 004
                                    MPN: 16043621
                                    SCREW
                                    from £1.13
                                    from £1.13
                                    # 005
                                    MPN: 16102314
                                    NUT
                                    from £0.54
                                    from £0.54
                                    This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
                                    # 006
                                    MPN: 188539
                                    ACCELERATOR PEDAL SUPPORT
                                    - as spare part now by 97108-
                                    Supersession
                                    Supersession
                                    # 006
                                    MPN: 197108
                                    ACCELERATOR SUPPORT
                                    from £40.33
                                    from £40.33
                                    This part replaces part number 188539
                                    # 007
                                    MPN: 10903621
                                    SCREW
                                    from £0.53
                                    from £0.53
                                    # 008
                                    MPN: 102741
                                    NUT
                                    from £0.53
                                    from £0.53
                                    This part replaces part number 12575411 - and 1 more. Click to view details
                                    # 009
                                    MPN: 170038
                                    ACCELERATOR
                                    - PEDAL POTENTIOMETER
                                    from £137.71
                                    from £137.71
                                    # 010
                                    MPN: 15896470
                                    NUT
                                    (minimum order quantity = 20)
                                    from £0.81
                                    from £0.81
                                    This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                    # 011
                                    MPN: 173999
                                    RH THREAD THROTTLE BALL JOINT
                                    from £4.34
                                    from £4.34
                                    This part replaces part number 105617
                                    # 012
                                    MPN: 174001
                                    CLIP
                                    from £0.47
                                    from £0.47
                                    This part replaces part number 10124776 - and 1 more. Click to view details
                                    # 013
                                    MPN: 182987
                                    THREADED
                                    - TIE ROD - THREADED NUT - JOINT HEAD
                                    from £3.19
                                    from £3.19
                                    # 014
                                    MPN: 105586
                                    LH THREAD NUT
                                    from £4.65
                                    from £4.65
                                    # 015
                                    MPN: 174000
                                    BALL
                                    from £3.78
                                    from £3.78
                                    This part replaces part number 10123911
                                    # 016
                                    MPN: 104030
                                    NUT
                                    from £0.53
                                    from £0.53
                                    This part replaces part number 16104125
                                    # 017
                                    MPN: 10902424
                                    SCREW
                                    from £0.53
                                    from £0.53
                                    This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
                                    # 018
                                    MPN: 102948
                                    NUT
                                    from £0.54
                                    from £0.54
                                    This part replaces part number 12574211 - and 3 more. Click to view details
                                    # 019
                                    MPN: 10519424
                                    WASHER
                                    from £0.54
                                    from £0.54
                                    This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                    # 020
                                    MPN: 175351
                                    SPRING
                                    from £2.26
                                    from £2.26
                                    # 021
                                    MPN: 164037
                                    ACCELERATOR
                                    - PEDAL PLATE
                                    from £43.69
                                    from £43.69
                                    # 022
                                    MPN: 14440734
                                    SCREW
                                    from £1.61
                                    from £1.61
                                    This part replaces part number 14440721 - and 1 more. Click to view details
                                    # 023
                                    MPN: 14058311
                                    NUT
                                    from £0.53
                                    from £0.53
