117 - Boot Door and Petrol Cover

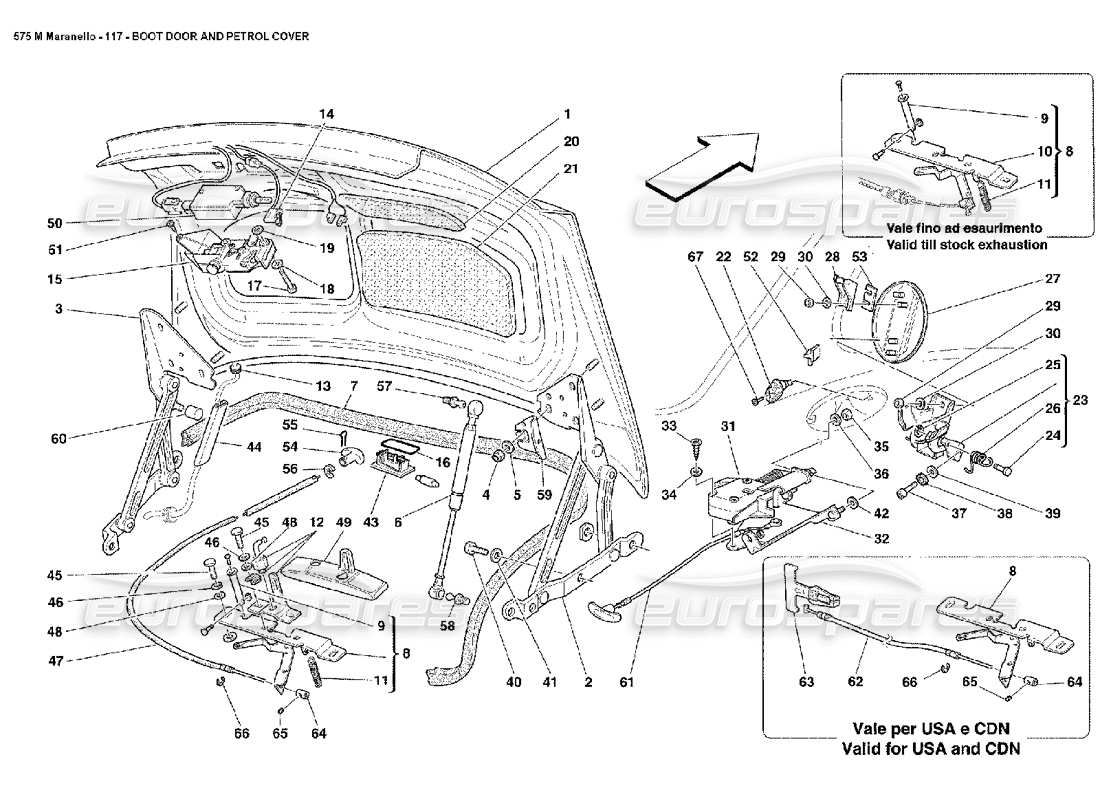

Ferrari 575M Maranello Boot Door and Petrol Cover Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 65361400

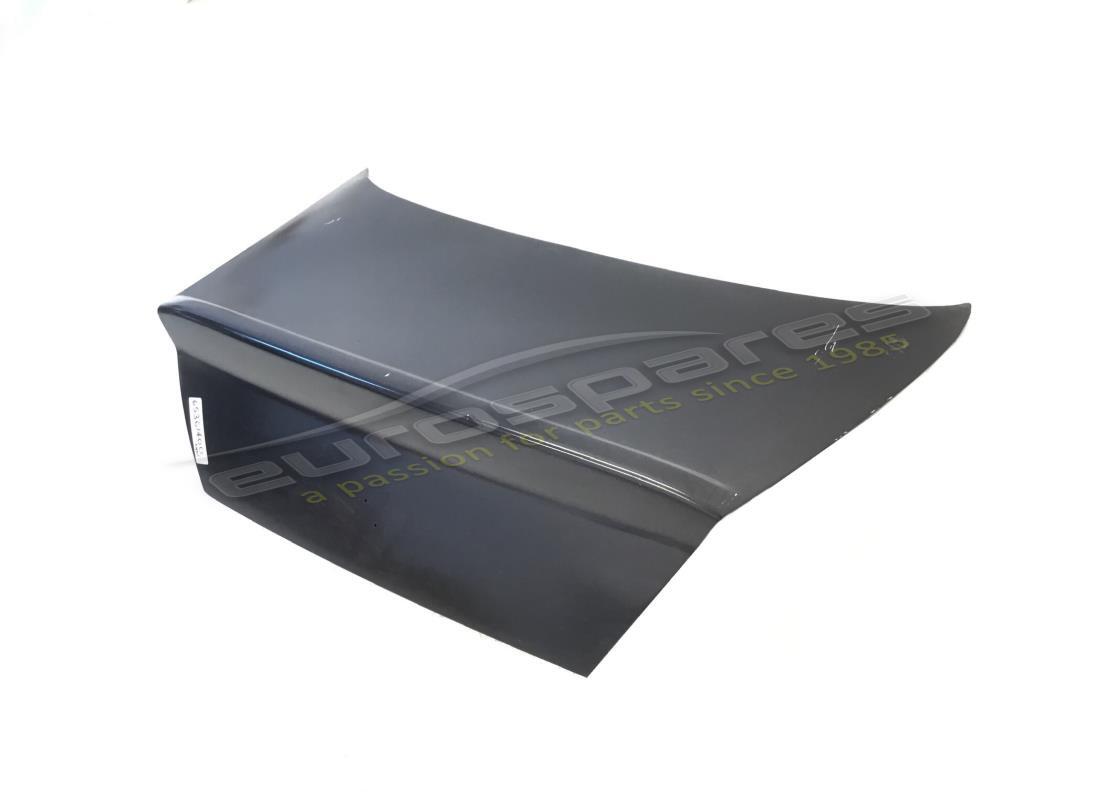

REAR HOOD BONNET
from £783.30
from £783.30
# 002
MPN: 63143000
RH LID HINGE
from £168.25
from £168.25
# 003
MPN: 63143100
LH LID HINGE
from £168.25
from £168.25
# 004
MPN: 14039614
NUT
from £0.51
from £0.51
# 005
MPN: 12643724
WASHER
from £0.50
from £0.50
This part replaces part number 109684 - and 4 more. Click to view details
# 006
MPN: 67508100
SHOCK ABSORBER FOR HOOD SUPPORT
from £104.16
from £104.16
This part replaces part number 65940000 - and 1 more. Click to view details
# 007
MPN: 64576900

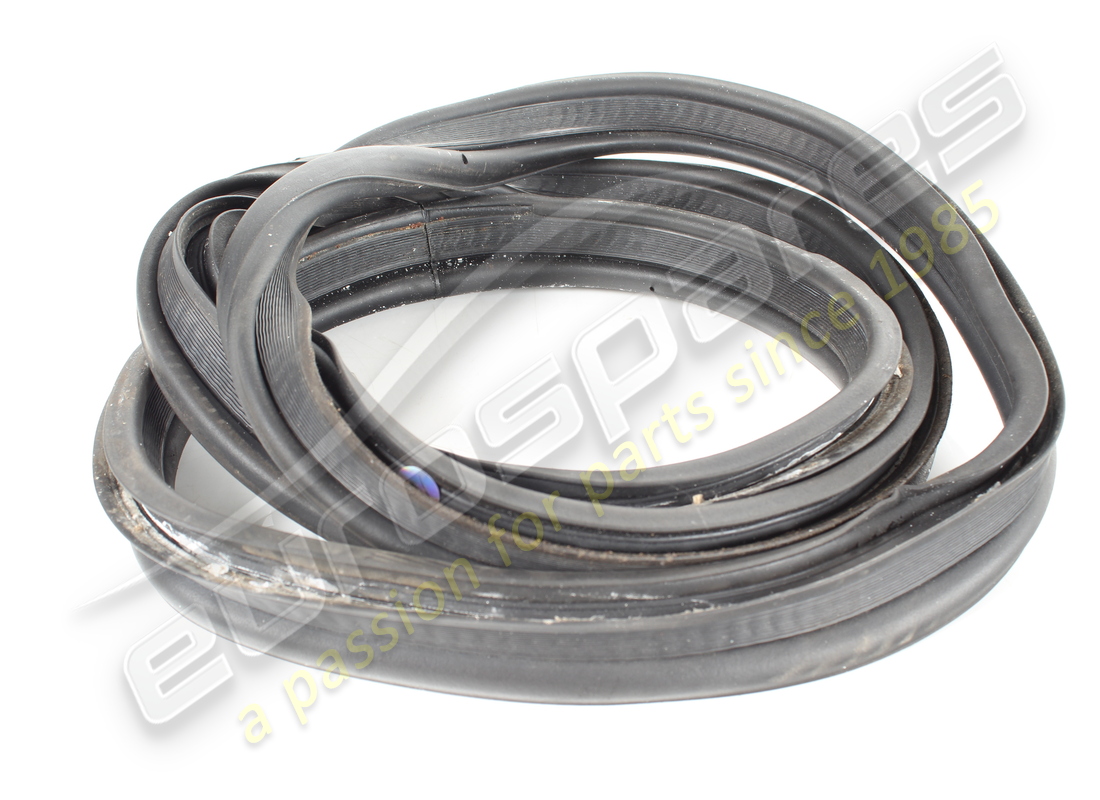

BONNET GASKET
from £393.56
from £393.56
# 008
MPN: 63872300
INNER DEVICE FOR HOOD UNLOCK
- Not for USA and CDN - Valid till stock exhaustion - Replaced by 66466000
from £8.94
from £8.94
# 008
MPN: 66466000
INNER DEVICE FOR HOOD UNLOCK
- Valid for USA and CDN - For the cars not USA and CDN valid - after stock exhaustion of 63872300
from £18.90
from £18.90
This part replaces part number 63872300 which we have in stock
# 009
MPN: 63709300
ROLL
from £13.41
from £13.41
# 010
MPN: 63709100
PLATE
- Valid till stock exhaustion
from £6.56
from £6.56
# 011
MPN: 63709500
SPRING
from £1.38
from £1.38
# 012
MPN: 63143600
STRIKER
from £21.00
from £21.00
# 013
MPN: 10396180
CABLE GROMMET
from £1.13
from £1.13
This part replaces part number 10459687
# 014
MPN: 173977
MICRO SWITCH
from £35.68
from £35.68
# 015
MPN: 63143300
BONNET LOCK
from £67.35
from £67.35
This part replaces part number 63891100 which we have in stock - and 1 more. Click to view details
# 016
MPN: 157872
GASKET
from £0.54
from £0.54
# 017
MPN: 10903224
SCREW
from £0.52
from £0.52
This part replaces part number 10903221
# 018
MPN: 10615474
WASHER
Supersession
Supersession
This part replaces part number 10615470 - and 3 more. Click to view details
# 019
MPN: 10519424
WASHER
from £0.54
from £0.54
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 020
MPN: 64981300
RH LOWER INSULATOR
from £70.18
from £70.18
# 020
MPN: 64981400
LH LOWER INSULATOR
from £70.18
from £70.18
# 021
MPN: 65369700
UPPER RH INSULATION
from £130.62
from £130.62
# 021
MPN: 65369800
UPPER LH INSULATION
from £84.13
from £84.13
This part replaces part number 64981200
# 022
MPN: 153069
SWITCH
from £2.12
from £2.12
# 023
MPN: 64575900
COMPLETE LID HINGE
from £31.50
from £31.50
# 024
MPN: 63196400
PIN
# 025
MPN: 11087676
FLEXIBLE RING
from £0.47
from £0.47
This part replaces part number 11087675
# 026
MPN: 63196500
SPRING
from £53.41
from £53.41
# 027
MPN: 64575300
FUEL INLET LID
from £22.03
from £22.03
# 028
MPN: 66679900
PLATE
from £7.36
from £7.36
# 029
MPN: 13046011
NUT
from £0.51
from £0.51
# 030
MPN: 13579101
WASHER
from £0.53
from £0.53
# 031
MPN: 65395900
LID ACTUATOR
from £45.29
from £45.29
# 032
MPN: 66679800
BRACKET
from £4.70
from £4.70
# 033
MPN: 15641275
SCREW
from £0.81
from £0.81
This part replaces part number 15641278 which we have in stock
# 034
MPN: 14496277
WASHER
from £0.53
from £0.53
# 035
MPN: 168698
NUT
from £1.08
from £1.08
This part replaces part number 14054048 which we have in stock
# 036
MPN: 12637824
WASHER
from £0.54
from £0.54
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 037
MPN: 14304124
SCREW
from £0.53
from £0.53
# 038
MPN: 12637878
WASHER
from £0.54
from £0.54
This part replaces part number 12637806
# 039
MPN: 12605274
WASHER
from £0.71
from £0.71
This part replaces part number 12605270 - and 1 more. Click to view details
# 040
MPN: 10902224
SCREW
- RH side
from £0.52
from £0.52
# 040
MPN: 10902624
SCREW
- LH side
from £0.52
from £0.52
This part replaces part number 10902621
# 041
MPN: 12647624
WASHER
from £0.50
from £0.50
This part replaces part number 12647611
# 042
MPN: 69969500
GASKET
from £0.95
from £0.95
This part replaces part number 61529400
# 043
MPN: 139517
ROOF LIGHT
from £7.52
from £7.52
# 044
MPN: 63887300
COVER FOR CABLES
from £0.47
from £0.47
# 045
MPN: 10902087
SCREW
from £0.51
from £0.51
# 046
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 047
MPN: 65248300
EMERGENCY CABLE
from £6.10
from £6.10
# 048
MPN: 12647624
WASHER
from £0.53
from £0.53
This part replaces part number 12647611
# 049
MPN: 63861700
STRIKER PLATE OVERLAP
from £37.26
from £37.26
# 050
MPN: 63191100
ACTUATOR
from £83.13
from £83.13
# 051
MPN: 15903870
SCREW
from £0.47
from £0.47
This part replaces part number 15903801
# 052
MPN: 63879900
RUBBER PAD
from £9.19
from £9.19
# 053
MPN: 66804900
SPACER
from £1.40
from £1.40
# 054
MPN: 60710900
EMERGENCY HANDLE
from £5.28
from £5.28
# 055
MPN: 60711000
CLIP
from £0.53
from £0.53
# 056
MPN: 11087676
FLEXIBLE RING
from £0.47
from £0.47
This part replaces part number 11087675
# 057
MPN: 63402800
PIN
from £0.85
from £0.85
This part replaces part number 64577200 - and 3 more. Click to view details
# 058
MPN: 63402800
PIN
from £0.85
from £0.85
This part replaces part number 64577200 - and 3 more. Click to view details
# 059
MPN: 64568600
RH BRACKET
from £5.23
from £5.23
# 059
MPN: 64568700
LH BRACKET
from £5.23
from £5.23
# 060
MPN: 67121100
RUBBER
from £0.82
from £0.82
This part replaces part number 66834200
# 061
MPN: 66678200
FUEL INLET LID SAFETY CABLE
from £19.44
from £19.44
# 062
MPN: 186500
CABLE FOR HANDLE
- Valid for USA and CDN
from £19.21
from £19.21
# 063
MPN: 66403900
HANDLE FOR SAFETY CHILDREN
- Valid for USA and CDN
from £25.04
from £25.04
# 064
MPN: 60276607
CONNECTION
- Valid for USA and CDN - Valid for USA and CDN - Q.ty 1 for cars not USA and CDN with unlock - device 66466000 ref. 8
from £12.06
from £12.06
This part replaces part number 60276707 - and 4 more. Click to view details
# 065
MPN: 60276805
DOWEL
- Valid for USA and CDN - Q.ty 1 for cars not USA and CDN with unlock - device 66466000 ref. 8
from £0.71
from £0.71
# 066
MPN: 11087676
FLEXIBLE RING
- Valid for USA and CDN - Valid for USA and CDN - Q.ty 1 for cars not USA and CDN with unlock - device 66466000 ref. 8
from £0.47
from £0.47
This part replaces part number 11087675
# 067
MPN: 15916977
SCREW
from £0.61
from £0.61
This part replaces part number 15672606 which we have in stock - and 2 more. Click to view details
