134 - Front Passengers Compartment Control Stations

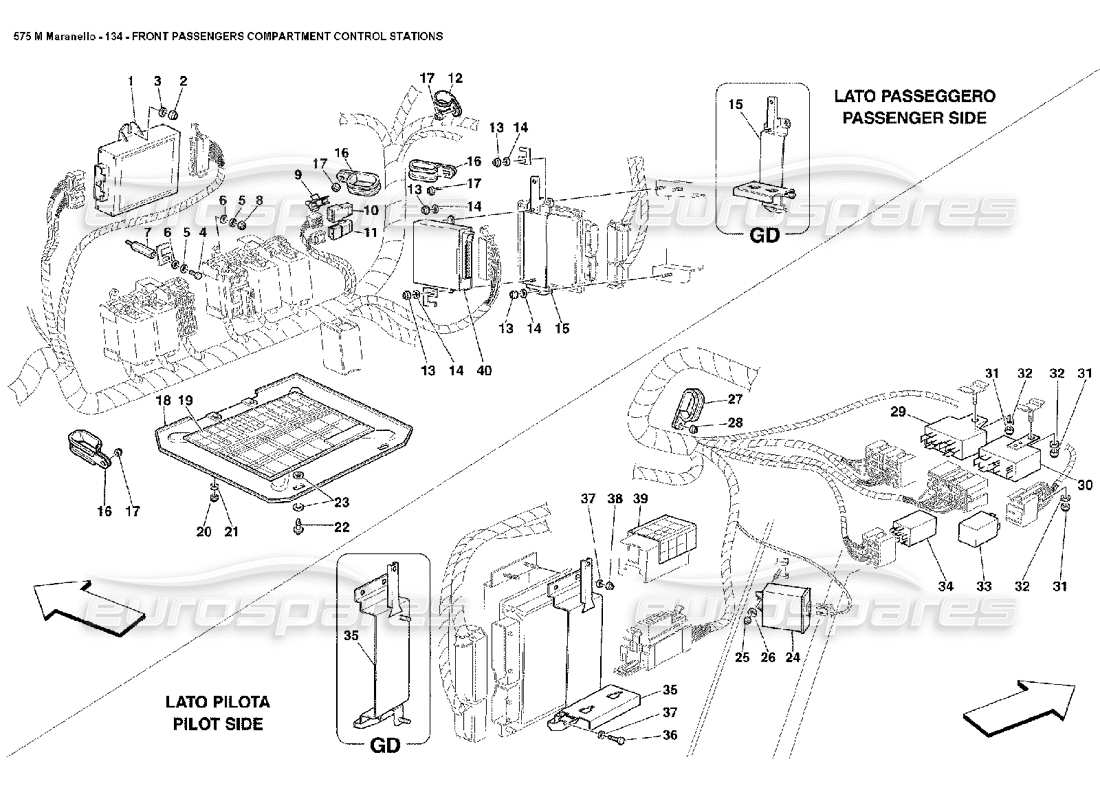

Ferrari 575M Maranello Front Passengers Compartment Control Stations Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 179080
GLASS LIFTING ELECTRONIC CONTROL STATION
from £636.23
from £636.23
This part replaces part number 174762
# 002
MPN: 169180
NUT
from £0.53
from £0.53
This part replaces part number 12574121
# 003
MPN: 12637824
WASHER
from £0.47
from £0.47
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 004
MPN: 10902124
SCREW
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 005
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 006
MPN: 10519424
WASHER
from £0.54
from £0.54
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 007
MPN: 179242
STUD
from £4.13
from £4.13
# 008
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 009
MPN: 170301
CLIP
from £0.54
from £0.54
# 010
MPN: 137671
4 WAY CONNECTOR
from £3.27
from £3.27
# 011
MPN: 146088
3 WAY CONNECTOR
- Not for CDN
from £1.00
from £1.00
# 012
MPN: 10442090
BRACKET WITH SHEATH
from £0.47
from £0.47
# 013
MPN: 169180
NUT
from £0.52
from £0.52
This part replaces part number 12574121
# 014
MPN: 12637824
WASHER
from £0.47
from £0.47
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 015
MPN: 186454
RH CONTROL UNIT FIXING BRACKET
- Not for GD
from £16.29
from £16.29
# 015
MPN: 193634
RH CONTROL UNIT FIXING BRACKET
- Valid for GD
from £205.38
from £205.38
# 016
MPN: 61712500
BRACKET WITH SHEATH
from £1.02
from £1.02
# 017
MPN: 102948
NUT
from £0.53
from £0.53
This part replaces part number 12574211 - and 3 more. Click to view details
# 018
MPN: 184866
PASSENGER FOOT PLATE REST
- Not for GD
from £18.78
from £18.78
PASSENGER FOOT-REST PLATE. Genuine Ferrari Part - Used In stock
INCLUDES ITEM 19,FOR LEFT HAND DRIVE
INCLUDES ITEM 19,FOR LEFT HAND DRIVE
# 018
MPN: 193931
PASSENGER FOOT PLATE REST
- Valid for GD
from £18.29
from £18.29
PASSENGER FOOT-REST PLATE. Genuine Ferrari Part - Used In stock
INCLUDES ITEM 19,FOR RIGHT HAND DRIVE
INCLUDES ITEM 19,FOR RIGHT HAND DRIVE
# 019
MPN: 183287
RELAYS AND FUSES NAMEPLATE
- Not for GD
from £4.04
from £4.04
# 019
MPN: 189742
RELAYS AND FUSES NAMEPLATE
- Valid for GD
from £7.15
from £7.15
# 020
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 021
MPN: 12644424
WASHER
from £0.54
from £0.54
This part replaces part number 12644401 - and 1 more. Click to view details
# 022
MPN: 61530300
FIXING ROD
from £31.53
from £31.53
# 023
MPN: 69969500
GASKET
from £0.95
from £0.95
This part replaces part number 61529400
# 024

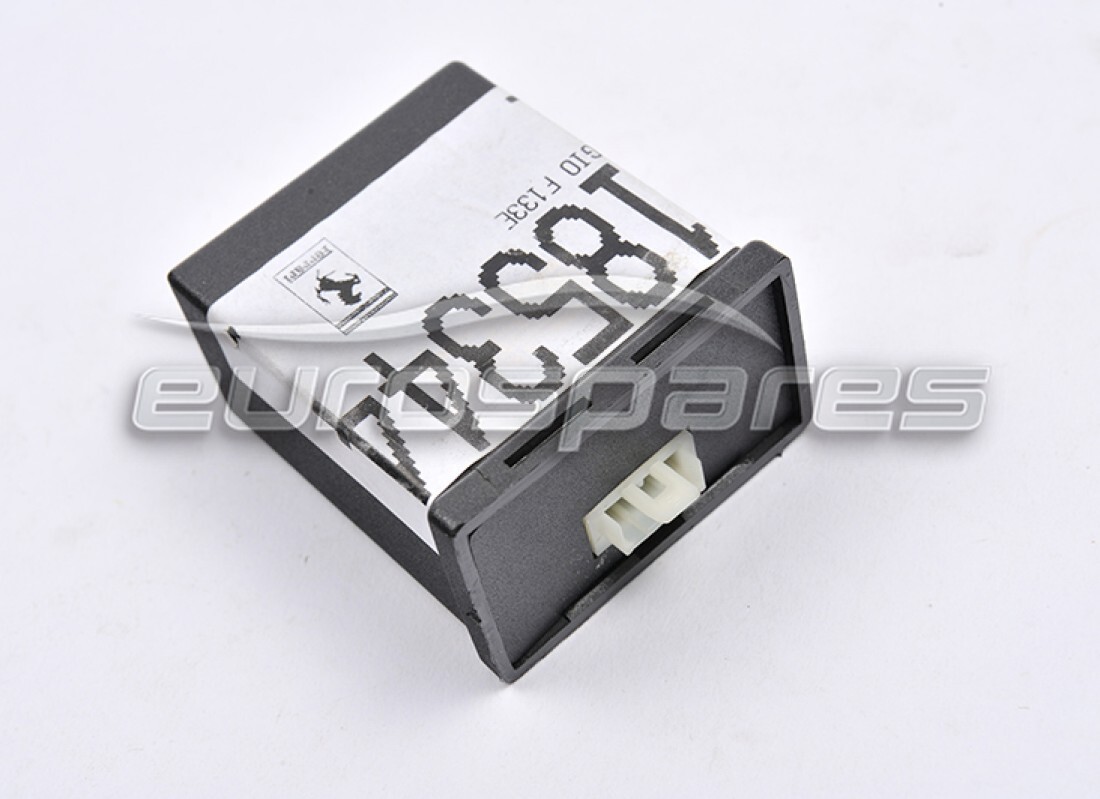

MPN: 185344
CLOCK MODULE
from £67.09
from £67.09
# 025
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 026
MPN: 12644424
WASHER
from £0.54
from £0.54
This part replaces part number 12644401 - and 1 more. Click to view details
# 027
MPN: 10442090
BRACKET WITH SHEATH
from £0.47
from £0.47
# 028
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 029
MPN: 253060
WINDSHIELD WIPER INTERMITTER
from £53.03
from £53.03
This part replaces part number 180199 which we have in stock
# 030
MPN: 184391
LOCK/UNLOCK DOORS MODULE
from £49.66
from £49.66
This part replaces part number 166851 which we have in stock - and 2 more. Click to view details
# 031
MPN: 102741
NUT
from £0.52
from £0.52
This part replaces part number 12575411 - and 1 more. Click to view details
# 032
MPN: 12644424
WASHER
from £0.54
from £0.54
This part replaces part number 12644401 - and 1 more. Click to view details
# 033
MPN: 168034
HYDRAULIC STEERING CONTROL ELECTRIC UNIT
from £74.41
from £74.41
# 033
MPN: 175891
HYDRAULIC STEERING CONTROL ELECTRIC UNIT
- Valid for cars with handling Fiorano equipment - Optional
from £1,234.88
from £1,234.88
# 034
MPN: 170762
DIRECTION RELAY EMERGENCY LIGHT
- Not for USA and CDN
from £116.39
from £116.39
This part replaces part number 153120 which we have in stock - and 2 more. Click to view details
# 034
MPN: 171375
DIRECTION RELAY EMERGENCY LIGHT
- Valid for USA and CDN
from £133.10
from £133.10
This part replaces part number 164368
# 035
MPN: 186163
LH CONTROL UNIT FIXING BRACKET
- Not for GD
from £109.56
from £109.56
# 035
MPN: 193635
LH CONTROL UNIT FIXING BRACKET
- Valid for GD
from £222.01
from £222.01
# 036
MPN: 10977624
SCREW
from £0.53
from £0.53
This part replaces part number 10977611 - and 1 more. Click to view details
# 037
MPN: 12638124
WASHER
from £0.54
from £0.54
This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
# 038
MPN: 169180
NUT
from £0.53
from £0.53
This part replaces part number 12574121
# 039
MPN: 183286
RELAYS AND FUSES NAMEPLATE
- Not for GD
from £3.50
from £3.50
# 039
MPN: 189741
RELAYS AND FUSES NAMEPLATE
- Valid for GD
from £5.59
from £5.59
# 040
MPN: 183960
SHOCK ABSORBERS ELECTRONIC CONTROL STATION
- Valid till Ass. Nr. 47497 for GD - Not as spare part - Replaced by 201673
Supersession
Supersession
# 040
MPN: 197211
SHOCK ABSORBERS ELECTRONIC CONTROL STATION
- Valid from Ass. Nr. 47498 for GD - Not as spare part - Replaced by 201674
Supersession
Supersession
# 040
MPN: 205618
SHOCK ABSORBERS ELECTRONIC CONTROL STATION
from £1,737.61
from £1,737.61
This part replaces part number 201673
# 040
MPN: 205618
SHOCK ABSORBERS ELECTRONIC CONTROL STATION
- Valid till Ass. Nr. 47497 for GD - Valid till Ass. Nr. 52555
from £1,737.61
from £1,737.61
This part replaces part number 201673
# 040
MPN: 205618
SHOCK ABSORBERS ELECTRONIC CONTROL STATION
- Valid from Ass. Nr. 52556 - Valid till Ass. Nr.55768
from £1,737.61
from £1,737.61
This part replaces part number 201673
# 040
MPN: 205619
SHOCK ABSORBERS ELECTRONIC CONTROL STATION
- Valid from Ass. Nr. 47498 for GD - Valid till stock exhaustion
from £1,737.61
from £1,737.61
This part replaces part number 201674
# 040
MPN: 205619
SHOCK ABSORBERS ELECTRONIC CONTROL STATION
- Valid from Ass. Nr. 47498 for GD - Valid after stock exhaustion of 201674 - Valid till Ass. Nr. 52555
from £1,737.61
from £1,737.61
This part replaces part number 201674
# 040
MPN: 210577
SHOCK ABSORBERS ELECTRONIC CONTROL STATION
- Valid from Ass. Nr. 55769
from £564.76
from £564.76
# 040
MPN: 210578
SHOCK ABSORBERS ELECTRONIC CONTROL STATION
- HGTC Version
from £1,277.14
from £1,277.14
