Eurospares
001 - heads gasket and rubbers

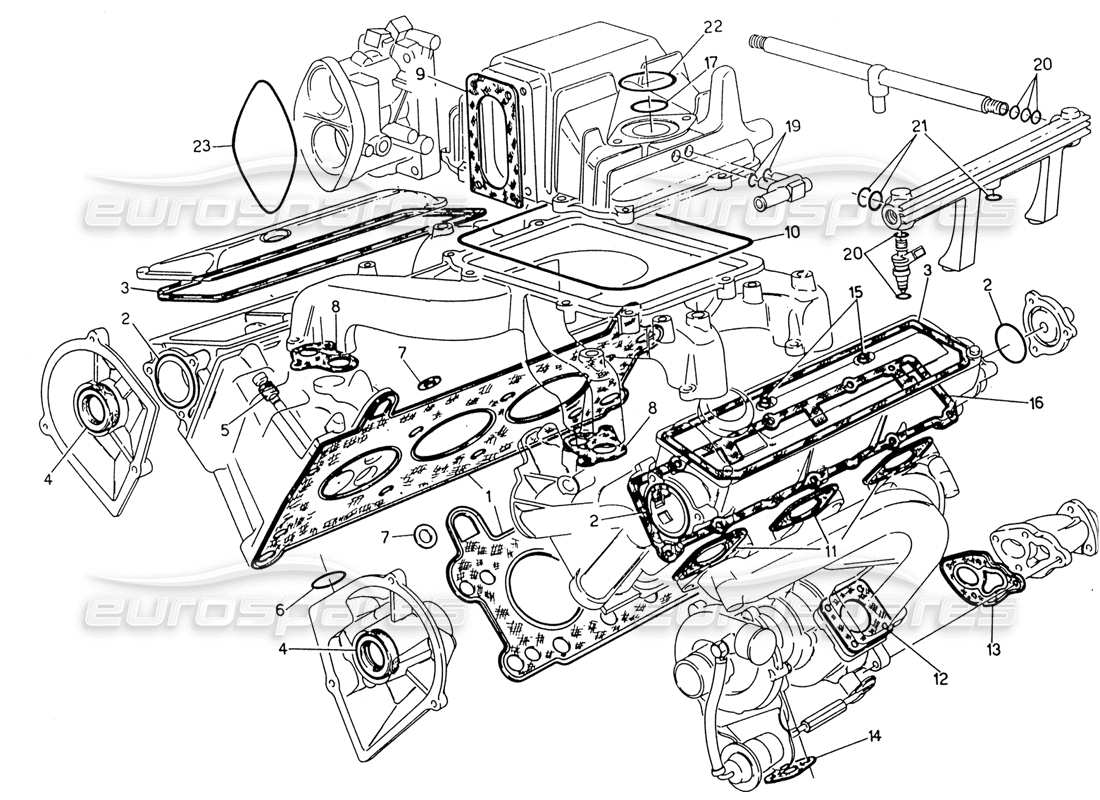

Maserati 222 / 222E Biturbo Heads Gasket and Rubbers Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 340600008/a
GASKET SET COMPLETE
(2,8 model 3v.)
# 001
MPN: 473006001
CYLINDER HEAD GASKET X 2800 C.C.
from £20.96
from £20.96
This part replaces part number 310654418
# 002
MPN: 14459880
RUBBER
*included with head gasket set
from £0.72
from £0.72
# 003
MPN: 311020321
RUBBER GASKET
from £13.60
from £13.60
# 004
MPN: 311020368
OIL SEAL
*included with head gasket set
from £8.25
from £8.25
This part replaces part number 190400351
# 005
MPN: 470002700
OIL SEAL FOR VALVES
*included with head gasket set
from £3.49
from £3.49
This part replaces part number 310620317
# 006
MPN: 192415330
DISTRIBUTOR RUBBER
*included with head gasket set
from £0.72
from £0.72
# 007
MPN: 310620364
GASKET
*included with head gasket set
from £5.70
from £5.70
# 008
MPN: 312020329
INTAKE MANIFOLD GASKET
*included with head gasket set
from £11.10
from £11.10
# 009
MPN: 470063601
GASKET
from £1.13
from £1.13
# 010
MPN: 312220309
RUBBER
# 011
MPN: 473362201
EXHAUST MANIFOLD GASKET
from £7.30
from £7.30
This part replaces part number 310650465
# 012
MPN: 312020307
GASKET
from £5.20
from £5.20
# 012
MPN: 580362400
GASKET
Valid for 54, 55, 60, 61, 70, 7 , 74, 75 / *included with head gasket set
from £9.45
from £9.45
This part replaces part number 342000303
# 013
MPN: 312020303
GASKET
from £17.40
from £17.40
# 013
MPN: 580362400
GASKET
Valid for 54, 55, 60, 61, 70, 71, 74, 75 / *included with head gasket set
from £9.45
from £9.45
This part replaces part number 342000303
# 014
MPN: 571362600
GASKET
*included with head gasket set
from £4.80
from £4.80
This part replaces part number 312020310 which we have in stock
# 015
MPN: 311020323
GASKET
*included with head gasket set
from £1.13
from £1.13
# 016
MPN: 310650421
FLAT GASKET
from £10.45
from £10.45
# 017
MPN: 313720325
SEAL RING
from £2.40
from £2.40
# 019
MPN: 14456880
RUBBER
from £0.80
from £0.80
# 020
MPN: 313720321
SEAL RING
from £4.44
from £4.44
# 021
MPN: 14453381
RUBBER
from £0.64
from £0.64
# 022
MPN: 313720324
SEAL RING
from £1.13
from £1.13
# 023
MPN: 470062500
SEAL RING
from £3.00
from £3.00
