maserati 222 / 222e biturbo automatic air-conditioner set (lh steering) parts diagram

063 - Automatic Air-Conditioner Set (LH Steering)

Maserati 222 / 222E Biturbo Automatic Air-Conditioner Set (L.H. Steering) Parts Diagram

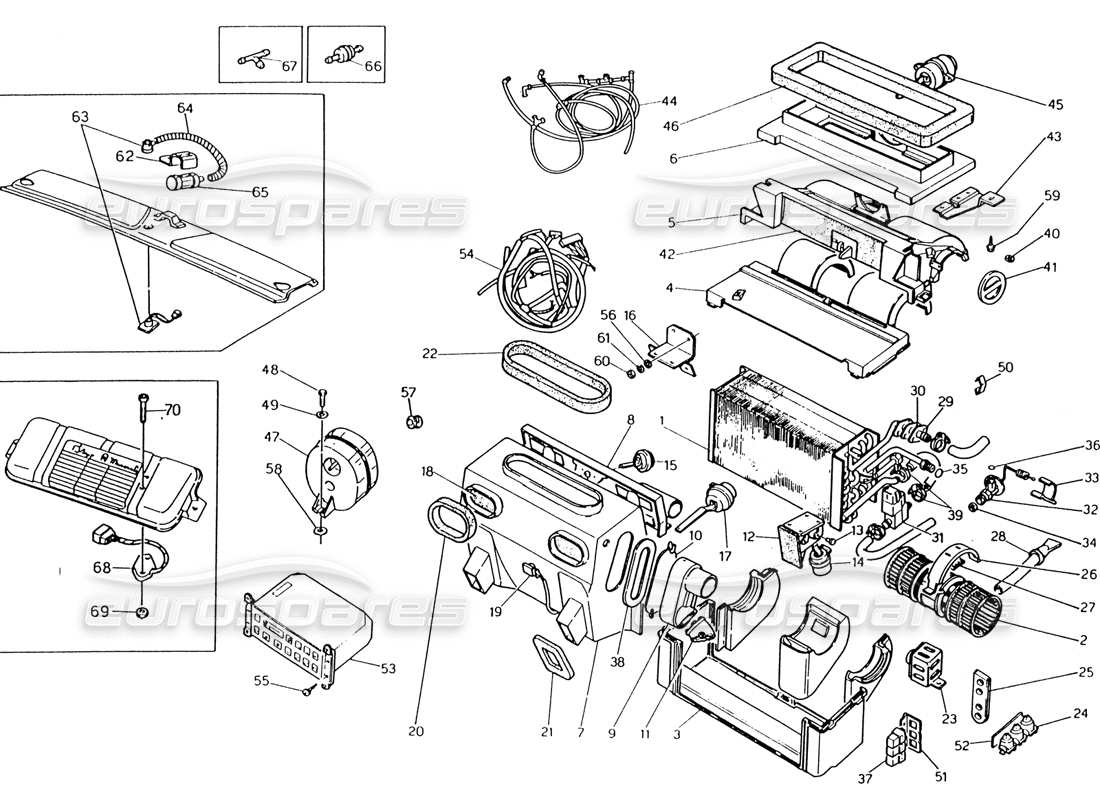

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 315550165
EVAPORATOR-HEATER
Valid for 51, 54, 55, 60, 61
from £75.19
from £75.19
EVAPORATOR HEATER Genuine Maserati Part - New (to order)
# 002
MPN: 315520167
ELECTRIC FAN
Valid for 51, 54, 55, 60, 61
from £143.70
from £143.70
ELECTRIC FAN 046851045 Genuine Maserati Part - New (to order)
# 003
MPN: 315520380
LOWER BOX
Valid for 51, 54, 55, 60, 61
from £33.84
from £33.84
LOWER BOX Genuine Maserati Part - New (to order)
# 004
MPN: 315520381
INTERMEDIATE BOX
Valid for 51, 54, 55, 60, 61
from £12.48
from £12.48
SCATOLA INTERMEDIA Genuine Maserati Part - New (to order)
# 005
MPN: 315520382
UPPER BOX
Valid for 51, 54, 55, 60, 61
from £7.61
from £7.61
UPPER BOX Genuine Maserati Part - New (to order)
# 006
MPN: 315520470
CONVEYOR
Valid for 51, 54, 55, 60, 61
from £41.30
from £41.30
CONVOGLIATORE Genuine Maserati Part - New (to order)
# 007
MPN: 315520471
Front Body
Valid for 51, 54, 55, 60, 61
from £10.80
from £10.80
This part replaces part number 315520384
Front Body Genuine Maserati Part - New (to order)
# 008
MPN: 315520472
UPPER COVER
Valid for 51, 54, 55, 60, 61
UPPER COVER Genuine Maserati Part - New (to order)
# 009
MPN: 315520474
NOZZLE FOR AIR, RH
Valid for 51, 54, 55, 60, 61
from £2.82
from £2.82
RH AIR PIPE NECK Genuine Maserati Part - New (to order)
# 010
MPN: 315520163
DOOR FOR LH NOZZLE
Valid for 51, 54, 55, 60, 61
from £3.16
from £3.16
This part replaces part number 315520129
SPORTELLO RIVESTIMENTO FIANC Genuine Maserati Part - New (to order)
# 010
MPN: 315520164
DOOR FOR RH NOZZLE
Valid for 51, 54, 55, 60, 61
from £2.70
from £2.70
This part replaces part number 315520130
RH DOOR 050.760.006 Genuine Maserati Part - New (to order)
# 010
MPN: 315520473
NOZZLE FOR AIR, LH
Valid for 51, 54, 55, 60, 61
from £1.90
from £1.90
BOCCAGLIO ARIA SX Genuine Maserati Part - New (to order)
# 011
MPN: 315520387
INNER DUCT
Valid for 51, 54, 55, 60, 61
from £9.37
from £9.37
INNER DUCT Genuine Maserati Part - New (to order)
# 012
MPN: 315520018
LOWER DOOR ASSY
Valid for 51, 54, 55, 60, 61
from £10.21
from £10.21
LOWER DOOR ASSY Genuine Maserati Part - New (to order)
# 013
-
PIN FOR DOOR (NOT SUPPLIED)
Valid for 51, 54, 55, 60, 61
# 014
MPN: 315520158
ACTUATOR TO CONTROL DOOR
Valid for 51, 54, 55, 60, 61
from £9.04
from £9.04
ACTUATOR 050.760.048 Genuine Maserati Part - New (to order)
# 015
MPN: 315520162
ACTUATOR WITH TWO POSITION
Valid for 51, 54, 55, 60, 61
from £4.49
from £4.49
ACTUATOR 050.760.045 Genuine Maserati Part - New (to order)
# 016
MPN: 315520138
PAD TO SUPPORT CONDITIONER
Valid for 51, 54, 55, 60, 61
from £3.20
from £3.20
PAD Genuine Maserati Part - New (to order)
# 017
MPN: 315520159
ACTUATOR
Valid for 51, 54, 55, 60, 61
from £12.57
from £12.57
ACTUATOR 050760047 Genuine Maserati Part - New (to order)
# 018
MPN: 315520134
DOOR THROW AIR
Valid for 51, 54, 55, 60, 61
DOOR THROW AIR Genuine Maserati Part - New (to order)
# 019
MPN: 315520206
SENSOR
Valid for 51, 54, 55, 60, 61
from £18.43
from £18.43
AIR TEMPERATURE SENSOR Genuine Maserati Part - New (to order)
# 020
MPN: 315520396
GASKET FOR NOZZLE
Valid for 51, 54, 55, 60, 61
NOZZLE GASKET Genuine Maserati Part - New (to order)
# 021
MPN: 315520397
GASKET FOR NOZZLE
Valid for 51, 54, 55, 60, 61
from £2.29
from £2.29
Guarnizione Genuine Maserati Part - New (to order)
# 022
MPN: 315520398
GASKET FOR NOZZLE
Valid for 51, 54, 55, 60, 61
from £2.29
from £2.29
Guarnizione Genuine Maserati Part - New (to order)
# 023
MPN: 315520143
RESISTANCE
Valid for 51, 54, 55, 60, 61
from £16.84
from £16.84
RESISTENZA 050760050 Genuine Maserati Part - New (to order)
# 024
MPN: 315520207
SOLENOID VALVE
Valid for 51, 54, 55, 60, 61
from £27.00
from £27.00
SOLENOID VALVE Genuine Maserati Part - New (to order)
# 025
MPN: 315520475
GASKET
Valid for 51, 54, 55, 60, 61
GASKET Genuine Maserati Part - New (to order)
# 026
MPN: 315520402
PAD
Valid for 51, 54, 55, 60, 61
PAD Genuine Maserati Part - New (to order)
# 027
MPN: 315520403
BUMPER
Valid for 51, 54, 55, 60, 61
GASKET Genuine Maserati Part - New (to order)
# 028
MPN: 315520017
DRAIN PIPE
Valid for 51, 54, 55, 60, 61
from £1.73
from £1.73
EXHAUST PIPE Genuine Maserati Part - New (to order)
# 029
MPN: 315520210
CONNECTOR
Valid for 51, 54, 55, 60, 61
from £4.42
from £4.42
SELF-CENTREING UNION Genuine Maserati Part - New (to order)
# 030
MPN: 315520482
GASKET
Valid for 51, 54, 55, 60, 61
from £1.90
from £1.90
GASKET Genuine Maserati Part - New (to order)
# 031
MPN: 315522144
COMPLEX COCK
Valid for 51, 54, 55, 60, 61
from £260.44
from £260.44
CPL. VALVE BORL.050761008 Genuine Maserati Part - New (to order)
# 032
MPN: 315520166
EXPANSION VALVE AFTER MODIF
Valid for 51, 54, 55, 60, 61
from £75.48
from £75.48
VALVOLA ESPANSIONE Genuine Maserati Part - New In stock
# 032
MPN: 315522166
EXPANSION VALVE PRE MODIF
Valid for 51, 54, 55, 60, 61
from £70.58
from £70.58
Maserati PART 315522166 Genuine Maserati Part - New (to order)
# 033
MPN: 315520408
SPRING
Valid for 51, 54, 55, 60, 61
from £1.90
from £1.90
MOLLETTA Genuine Maserati Part - New (to order)
# 034
MPN: 315520445
SEAL RING
Valid for 51, 54, 55, 60, 61
from £0.69
from £0.69
ANELLO Genuine Maserati Part - New (to order)
# 035
MPN: 315520444
SEAL RING
Valid for 51, 54, 55, 60, 61
from £0.69
from £0.69
ANELLO Genuine Maserati Part - New (to order)
# 036
MPN: 315520443
SEAL RING
Valid for 51, 54, 55, 60, 61
from £0.69
from £0.69
ANELLO TENUTA Genuine Maserati Part - New (to order)
# 037
MPN: 30331137
RELAY
Valid for 51, 54, 55, 60, 61
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 038
MPN: 315520483
GASKET
Valid for 51, 54, 55, 60, 61
from £2.51
from £2.51
SIDE VENT GASKET 050.760. Genuine Maserati Part - New (to order)
# 039
MPN: 315520415
CLAMP
Valid for 51, 54, 55, 60, 61
CLAMP Genuine Maserati Part - New (to order)
# 040
MPN: 315520417
SPRING FOR DOOR
Valid for 51, 54, 55, 60, 61
SPRING FOR DOOR Genuine Maserati Part - New (to order)
# 041
MPN: 315520416
DOOR
Valid for 51, 54, 55, 60, 61
from £9.05
from £9.05
DOOR Genuine Maserati Part - New (to order)
# 042
MPN: 315520136
AIR CONTROL DOOR
Valid for 51, 54, 55, 60, 61
AIR FLAP Genuine Maserati Part - New (to order)
# 043
MPN: 315520419
LH PAD FIX. CONDITIONER
Valid for 51, 54, 55, 60, 61
LH BRACKET FOR AIR CONDITIONER Genuine Maserati Part - New (to order)
# 043
MPN: 315520420
RH PAD FIX. CONDITIONER
Valid for 51, 54, 55, 60, 61
RH BRACKET FOR AIR CONDITIONER Genuine Maserati Part - New (to order)
# 044
MPN: 315520208
PNEUMATIC SYSTEM
Valid for 51, 54, 55, 60, 61
from £9.98
from £9.98
PNEUMATIC SYSTEM Genuine Maserati Part - New (to order)
# 045
MPN: 315520160
ACTUATOR FOR AIR DOOR
Valid for 51, 54, 55, 60, 61
from £3.77
from £3.77
ACTUATOR 050220015 A.C.55072 Genuine Maserati Part - New (to order)
# 046
MPN: 315520422
GASKET
Valid for 51, 54, 55, 60, 61
from £1.90
from £1.90
GASKET Genuine Maserati Part - New (to order)
# 047
MPN: 30551155
Tank
Valid for 51, 54, 55, 60, 61
Maserati PART 30551155 Genuine Maserati Part - New (to order)
# 048
MPN: 119148160
SCREW
Valid for 51, 54, 55, 60, 61
Maserati PART 119148160 Genuine Maserati Part - New (to order)
# 049
MPN: 169020005
WASHER
Valid for 51, 54, 55, 60, 61
from £1.07
from £1.07
WASHER Genuine Maserati Part - New (to order)
# 050
MPN: 315520423
SPRING
Valid for 51, 54, 55, 60, 61
Spring closing box Genuine Maserati Part - New (to order)
# 051
MPN: 315520477
BRACKET
Valid for 51, 54, 55, 60, 61
from £17.80
from £17.80
STAFFA RELE' BORL. 050761005 Genuine Maserati Part - New (to order)
# 052
MPN: 315520478
SOLENOID VALVE BRACKET
Valid for 51, 54, 55, 60, 61
SOLENOID VALVE SUPPORTING BRACKET Genuine Maserati Part - New (to order)
# 053
MPN: 365500201
CLIMATE CONTROL UNIT
Supersession
Supersession
This part replaces part number 315550204
Genuine Maserati Part (no longer available to order)
# 053
MPN: 365504201
CLIMATE CONTROL UNIT
from £1,250.48
from £1,250.48
This part replaces part number 365500201
CENTR. COMANDO CLIMATIZZATOR Genuine Maserati Part - New (to order)
# 054
MPN: 315520209
WIRING HARNESS
Valid for 51, 54, 55, 60, 61
from £44.59
from £44.59
CABLAGGIO BORL.050761010 Genuine Maserati Part - New (to order)
# 055
MPN: 119529130
SCREW
Valid for 51, 54, 55, 60, 61
from £1.07
from £1.07
SCREW Genuine Maserati Part - New (to order)
# 056
MPN: 169020406
WASHER
Valid for 51, 54, 55, 60, 61
from £0.77
from £0.77
FLAT WASHER Genuine Maserati Part - New In stock
# 057
MPN: 53211308
GROMMET
Valid for 51, 54, 55, 60, 61
from £0.56
from £0.56
GROMMET Genuine Maserati Part - New (to order)
# 058
MPN: 312520511
GASKET
Valid for 51, 54, 55, 60, 61
from £1.68
from £1.68
Guarnizione Genuine Maserati Part - New (to order)
# 059
MPN: 314320345
SCREW
Valid for 51, 54, 55, 60, 61
from £44.08
from £44.08
ENGINE COMPT. LID FASTENING SCREW Genuine Maserati Part - New (to order)
# 060
MPN: 125100060
NUT
Valid for 51, 54, 55, 60, 61
Maserati PART 125100060 Genuine Maserati Part - New (to order)
# 061
MPN: 135600060
WASHER
Valid for 51, 54, 55, 60, 61
from £0.77
from £0.77
WASHER 6.15X11.8 Genuine Maserati Part - New In stock
# 062
MPN: 315520465
CLAMP
Valid for 51, 54, 55, 60, 61
from £3.20
from £3.20
CLAMP Genuine Maserati Part - New (to order)
# 063
MPN: 315520199
INSIDE FEELER
Valid for 51, 54, 55, 60, 61
from £27.50
from £27.50
INSIDE TEMPERATURE SENSOR Genuine Maserati Part - New (to order)
# 064
MPN: 315520467
HOSE
Valid for 51, 54, 55, 60, 61
from £0.69
from £0.69
TUBE Genuine Maserati Part - New (to order)
# 065
MPN: 315520200
FAN
Valid for 51, 54, 55, 60, 61
from £58.96
from £58.96
SENSOR FAN Genuine Maserati Part - New (to order)
# 066
MPN: 315520153
VALVE
Valid for 51, 54, 55, 60, 61
from £8.63
from £8.63
VALVE Genuine Maserati Part - New (to order)
# 067
MPN: 315520424
UNION
Valid for 51, 54, 55, 60, 61
from £0.48
from £0.48
Y UNION Genuine Maserati Part - New (to order)
# 068
MPN: 315520196
OUTSIDE FEELER
Valid for 51, 54, 55, 60, 61
from £13.42
from £13.42
EXTERNAL AIR TEMPERATURE SENSOR Genuine Maserati Part - New (to order)
# 069
MPN: 122600060
NUT
Valid for 51, 54, 55, 60, 61
Maserati PART 122600060 Genuine Maserati Part - New (to order)
# 070
MPN: 112804016
SCREW
Valid for 51, 54, 55, 60, 61
SCREW Genuine Maserati Part - New (to order)
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
