036 - FRONT SHOCK ABSORBER

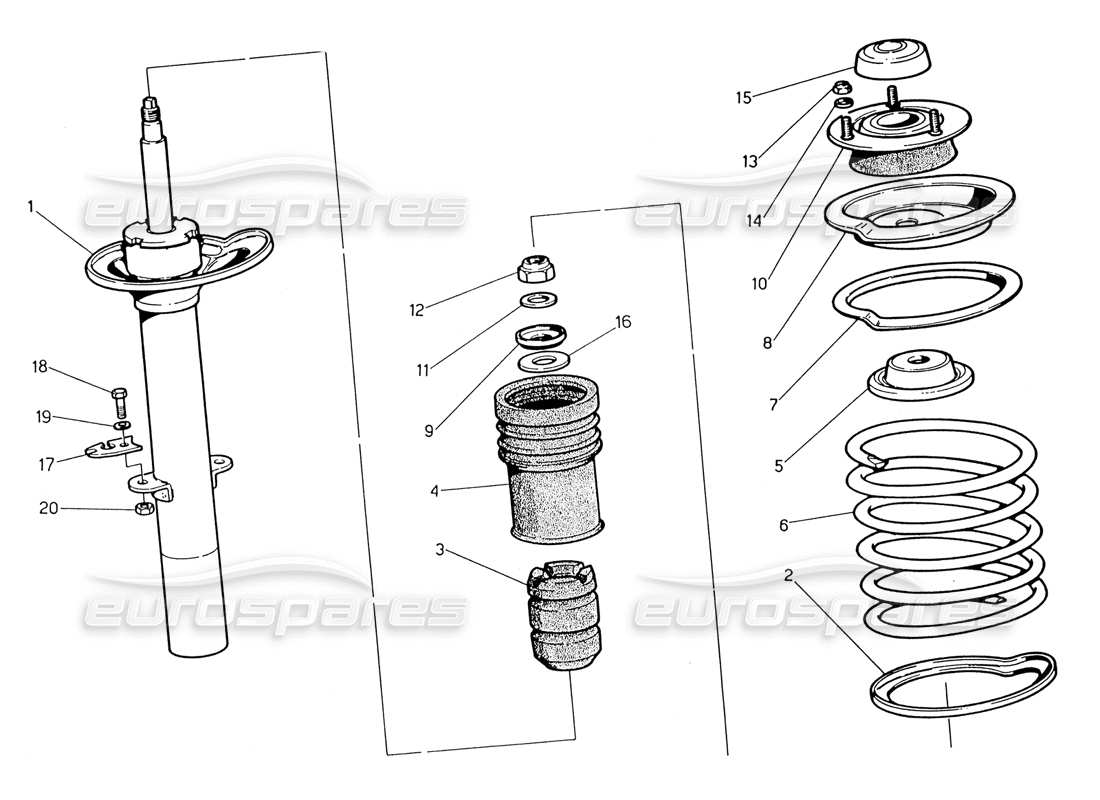

Maserati 222 / 222E Biturbo Front Shock Absorber Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 316653104
FRONT TELESCOPIC STRUT
from £515.78
from £515.78
This part replaces part number 396600104
# 002
MPN: 316620322
LOWER RING
from £2.32
from £2.32
# 003
MPN: 346601328
BUFFER
Supersession
Supersession
# 004
MPN: 316620329
BELLOWS
from £23.16
from £23.16
# 005
MPN: 316620330
SPRING CAP
from £29.06
from £29.06
# 006
MPN: 396600333
SPRING
Supplied in two pieces
from £45.33
from £45.33
# 007
MPN: 316620324
UPPER SPRING
from £13.60
from £13.60
# 008
MPN: 316620325
UPPER SPRING CAP
from £6.42
from £6.42
# 009
MPN: 316620331
CAP
from £0.69
from £0.69
# 010
MPN: 316620107
ELASTIC SUPPORT
from £10.07
from £10.07
# 011
MPN: 316620335
WASHER
from £1.08
from £1.08
# 012
MPN: 127800180
SELF -LOCKING NUT
# 013
MPN: 128300080
SELF LOCKING NUT
# 014
MPN: 135900084
WASHER
# 015
MPN: 316620334
PLUG
from £1.08
from £1.08
# 016
MPN: 316620345
SPACER
from £1.08
from £1.08
# 017
MPN: 326656370
CLAMP
from £4.30
from £4.30
# 018
MPN: 101206012
SCREW
# 019
MPN: 138420060
WASHER
# 020
MPN: 128950060
NUT
