056.1 - Front Lights (USA)

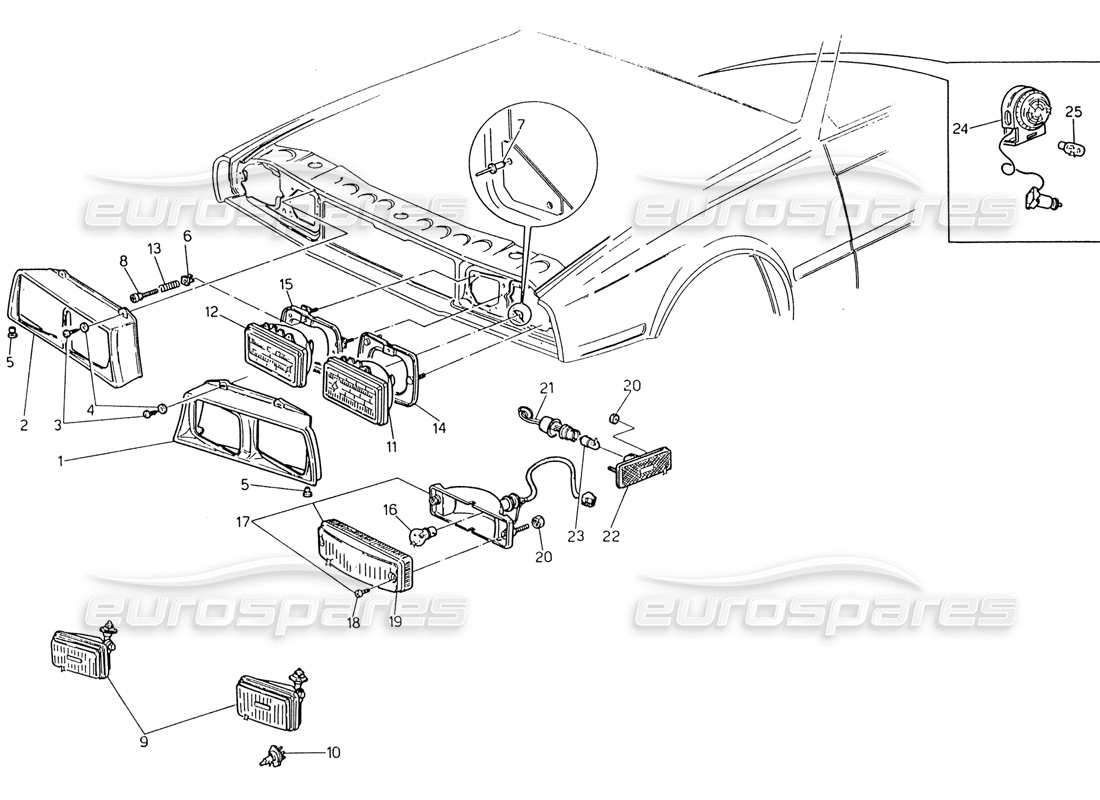

Maserati 222 / 222E Biturbo Front Lights (USA) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 328360303
LH HEADLAMP BEZEL
Valid for 60, 61
Supersession
Supersession
# 002
MPN: 328360304
RH HEADLAMP BEZEL
Valid for 60, 61
Supersession
Supersession
# 003
MPN: 167590414
SCREW
Valid for 60, 61
from £1.55
from £1.55
# 004
MPN: 135000043
WASHER
Valid for 60, 61
from £1.08
from £1.08
# 005
MPN: 31302307
PIN
Valid for 60, 61
from £0.52
from £0.52
# 006
MPN: 313130312
NUT ADJUSTING SCREW
Valid for 60, 61
from £0.66
from £0.66
# 007
MPN: 164353062
RIVET
Valid for 60, 61
# 008
MPN: 313130311
ADJUSTING SCREW
Valid for 60, 61
from £1.08
from £1.08
# 009
MPN: 323156120
FOG LIGHT, ASSY
Valid for 60, 61
from £33.84
from £33.84
# 010
MPN: 87770055
BULB
Valid for 60, 61
from £3.99
from £3.99
# 011
MPN: 313130134
SEALED BEAM EST. RH
Valid for 60, 61
from £24.69
from £24.69
# 011
MPN: 313130136
SEALED BEAM EST. LH
Valid for 60, 61
from £27.91
from £27.91
# 012
MPN: 313130135
SEALED BEAM INT. RH
Valid for 60, 61
from £26.38
from £26.38
# 012
MPN: 313130137
SEALED BEAM INT. LH
Valid for 60, 61
from £29.50
from £29.50
# 013
MPN: 30471374
SPRING, ADJUSTING SCREW
Valid for 60, 61
# 014
MPN: 313130138
PLATE
Valid for 60, 61
from £5.08
from £5.08
# 015
MPN: 313130139
PLATE, RH
Valid for 60, 61
from £10.05
from £10.05
# 015
MPN: 313130140
PLATE, LH
Valid for 60, 61
from £10.05
from £10.05
# 016
MPN: 87720521
BULB 12V 5/21W
Valid for 60, 61
from £3.06
from £3.06
# 017
MPN: 313130112
LIGHT
Valid for 60, 61
from £10.57
from £10.57
# 018
MPN: 313130315
SCREW
Valid for 60, 61
from £1.08
from £1.08
# 019
MPN: 313130314
LENT
Valid for 60, 61
from £8.22
from £8.22
# 020
MPN: 122600050
NUT
Valid for 60, 61
# 021
MPN: 31311128
LAMP HOLDER
Valid for 60, 61
# 022
MPN: 313130121
FRONT SIDE MARKER (ORANGE)
Valid for 60, 61
from £9.94
from £9.94
# 023
MPN: 87760003
BULB, 12V/3W
Valid for 60, 61
from £0.47
from £0.47
# 024
MPN: 313121112
INSPECTION LIGHT
Valid for 60, 61
from £15.28
from £15.28
# 025
MPN: 87541000
BULB
Valid for 60, 61
