maserati 222 / 222e biturbo ventilation parts diagram

062 - Ventilation

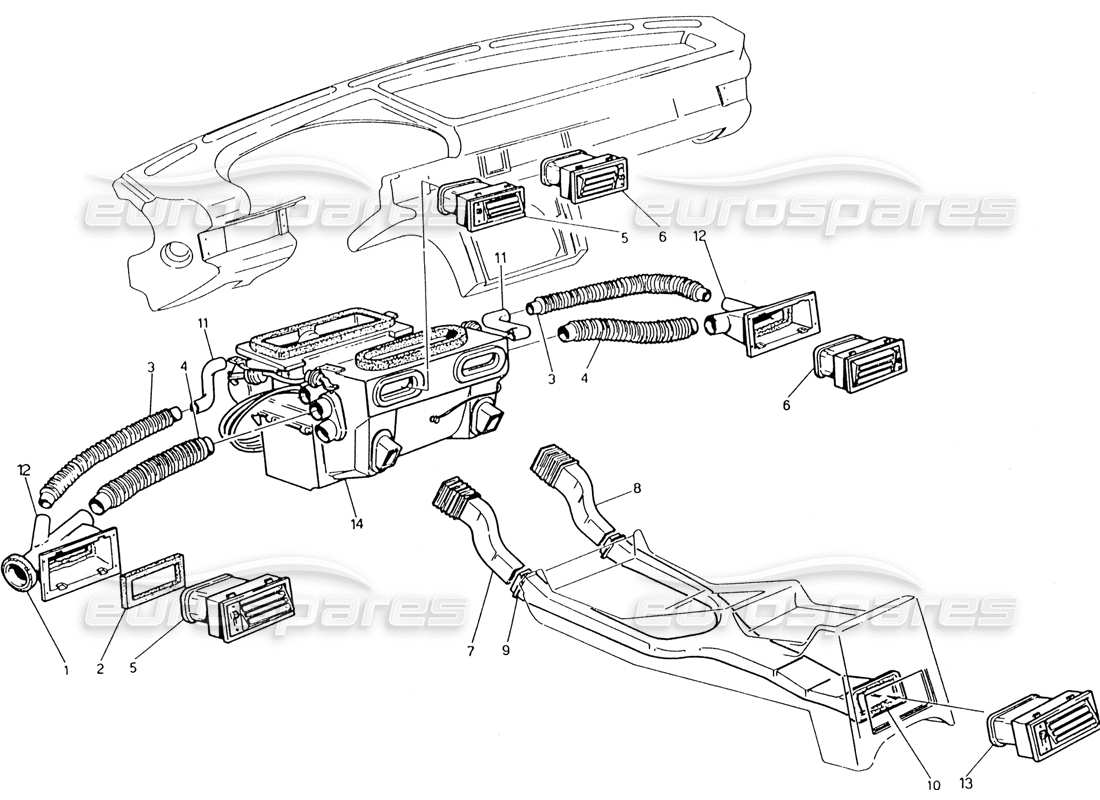

Maserati 222 / 222E Biturbo Ventilation Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 315520318
                            OUTSIDE GASKET
                            from £0.69
                            from £0.69
                            # 002
                            MPN: 315520317
                            INSIDE GASKET
                            from £0.69
                            from £0.69
                            # 003
                            MPN: 315520314
                            SIDE AIR COWLING FOR DOOR
                            from £71.72
                            from £71.72
                            # 004
                            MPN: 315520316
                            SIDE AIR COWLING FOR INSTRUMENT PANEL
                            from £85.08
                            from £85.08
                            # 005
                            MPN: 315550013
                            ADJUSTABLE AIR OUTLET LH AFTER MODIF.
                            from £26.07
                            from £26.07
                            # 005
                            MPN: 325500013
                            ADJUSTABLE AIR OUTLET LH PRE MODIF.
                            from £8.69
                            from £8.69
                            # 006
                            MPN: 315550014
                            ADJUSTABLE AIR OUTLET RH AFTER MODIF.
                            from £26.07
                            from £26.07
                            # 006
                            MPN: 325500014
                            ADJUSTABLE AIR OUTLET RH PRE MODIF.
                            from £8.69
                            from £8.69
                            # 007
                            MPN: 315520325
                            FRONT COMPONENT FOR LH AIR COWLING
                            from £22.72
                            from £22.72
                            # 008
                            MPN: 315520326
                            FRONT COMPONENT FOR RH AIR COWLING
                            from £22.72
                            from £22.72
                            # 009
                            MPN: 315520113
                            REAR AIR COWLING, ASSY
                            from £25.60
                            from £25.60
                            # 010
                            MPN: 315520329
                            GASKET FOR REAR AIR COWLING
                            from £1.04
                            from £1.04
                            # 011
                            MPN: 315520313
                            HOSE
                            from £2.97
                            from £2.97
                            # 012
                            MPN: 315520110
                            AIRDUCT
                            Supersession
                            Supersession
                            # 013
                            MPN: 315550020
                            REAR ADJUSTABLE AIR OUTLET AFTER MODIF.
                            Supersession
                            Supersession
                            # 014
                            MPN: 315520005
                            AUTOMATIC AIR CONDITIONER FOR LH STEERING
                            Valid for 51, 54, 55, 60, 61
                            # 014
                            MPN: 315527005
                            AUTOMATIC AIR CONDITIONER FOR RH STEERING
                            Valid for 70, 71, 74, 75
                            Supersession
                            Supersession
