maserati 222 / 222e biturbo water pump - oil pump parts diagram

009 - water pump - oil pump

Maserati 222 / 222E Biturbo Water Pump - Oil Pump Parts Diagram

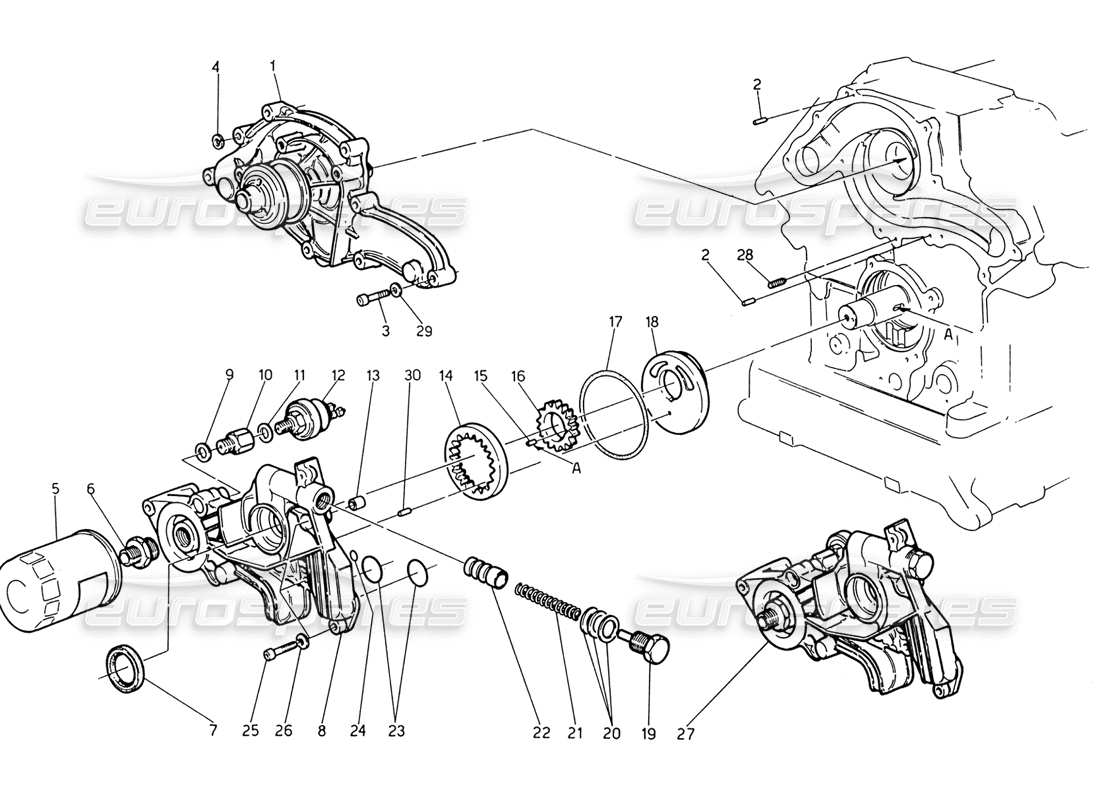

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Key
                                                            Price
                                                            # 001
                                                            MPN: 470045900
                                                            WATER PUMP + GASKET
                                                            from £309.75
                                                            from £309.75
                                                            This part replaces part number 314020012
                                                            COMPLETE WATER PUMP Genuine Maserati Part - New (to order)
                                                            WATER PUMP ASSY Eurospares Approved Part - New In stock
                                                            # 002
                                                            MPN: 314020329
                                                            ROLLER
                                                            from £1.93
                                                            from £1.93
                                                            ROLLER D.4X8 Genuine Maserati Part - New (to order)
                                                            # 005
                                                            MPN: 470040900
                                                            OIL FILTER
                                                            from £42.50
                                                            from £42.50
                                                            OIL FILTER Genuine Maserati Part - New In stock
                                                            # 007
                                                            MPN: 311020368
                                                            OIL SEAL
                                                            from £9.72
                                                            from £9.72
                                                            This part replaces part number 190400351
                                                            SEALING RING D.35X50X7 Genuine Maserati Part - New In stock
                                                            SEALING RING D.35X50X7 Eurospares Approved Part - New In stock
                                                            # 008
                                                            MPN: 311820326
                                                            HOUSING
                                                            Supersession
                                                            Supersession
                                                            Genuine Maserati Part (no longer available to order)
                                                            # 009
                                                            MPN: 311820302
                                                            SEAL PRO MODIF.
                                                            from £1.93
                                                            from £1.93
                                                            TRANSMITTER GASKET,D.16.2X21 Genuine Maserati Part - New (to order)
                                                            # 010
                                                            MPN: 311820303
                                                            ADAPTER
                                                            from £22.49
                                                            from £22.49
                                                            ADAPTER Genuine Maserati Part - New In stock
                                                            # 011
                                                            MPN: 311820304
                                                            SEAL PRO MODIF.
                                                            from £1.55
                                                            from £1.55
                                                            TRANSMITTER GASKET Genuine Maserati Part - New In stock
                                                            # 012
                                                            MPN: 313620105
                                                            OIL PRESSURE SWITCH PRE MODIF.
                                                            USE 470043300
                                                            Maserati PART 313620105 Genuine Maserati Part - New (to order)
                                                            # 012
                                                            MPN: 313650105
                                                            Oil pressure switch after modif.
                                                            USE 313620105
                                                            Oil pressure switch after modif. Genuine Maserati Part - New (to order)
                                                            # 012
                                                            MPN: 452043301
                                                            OIL PRESSURE SWITCH
                                                            from £30.69
                                                            from £30.69
                                                            This part replaces part number 470043300
                                                            OIL PRESSURE SENSOR Genuine Maserati Part - New (to order)
                                                            # 012
                                                            MPN: 470043300
                                                            OIL PRESSURE SWITCH
                                                            USE 452043301
                                                            Supersession
                                                            Supersession
                                                            Genuine Maserati Part (no longer available to order)
                                                            # 013
                                                            MPN: 311820309
                                                            BUSH
                                                            from £16.70
                                                            from £16.70
                                                            DOWEL D.12X12 Genuine Maserati Part - New (to order)
                                                            # 014
                                                            MPN: 311820324
                                                            DRIVEN GEAR
                                                            from £4.50
                                                            from £4.50
                                                            DRIVEN GEAR Genuine Maserati Part - New (to order)
                                                            # 015
                                                            MPN: 311820311
                                                            ROLLER
                                                            from £0.69
                                                            from £0.69
                                                            ROLLER Genuine Maserati Part - New (to order)
                                                            # 016
                                                            MPN: 311820323
                                                            DRIVING GEAR
                                                            from £6.01
                                                            from £6.01
                                                            PUMP DRIVING GEAR Genuine Maserati Part - New (to order)
                                                            # 017
                                                            MPN: 14465881
                                                            RUBBER RING
                                                            from £4.63
                                                            from £4.63
                                                            RUBBER WASHER D.94.84X101.90X3.53 Genuine Maserati Part - New In stock
                                                            # 018
                                                            MPN: 311820321
                                                            OIL PUMP COVER Ø 94.24 MM
                                                            Supersession
                                                            Supersession
                                                            Genuine Maserati Part (no longer available to order)
                                                            # 020
                                                            MPN: 311820317
                                                            SEAL
                                                            from £0.69
                                                            from £0.69
                                                            GASKET D.22.5X30X1 Genuine Maserati Part - New (to order)
                                                            # 022
                                                            MPN: 311820319
                                                            VALVE
                                                            from £12.19
                                                            from £12.19
                                                            PRESSURE ADJUSTMENT VALVE Genuine Maserati Part - New (to order)
                                                            # 023
                                                            MPN: 14454181
                                                            RUBBER RING
                                                            from £1.16
                                                            from £1.16
                                                            RUBBER WASHER 28.3X31.86X1.7 Genuine Maserati Part - New In stock
                                                            # 024
                                                            MPN: 14452981
                                                            RUBBER RING
                                                            from £0.78
                                                            from £0.78
                                                            O-RING D. 9.25X1 Genuine Maserati Part - New In stock
                                                            O.R.GASKET. Genuine Ferrari Part - New In stock
                                                            # 026
                                                            MPN: 138410080
                                                            SPRING WASHER (NOT SUPPLIED)
                                                            Maserati PART 138410080 Genuine Maserati Part - New (to order)
                                                            # 027
                                                            MPN: 311820006
                                                            OIL PUMP ASSY (INCLUDES PARTS N.6-8-9-10-11-12-13-14-19-20-21-22)
                                                            from £328.36
                                                            from £328.36
                                                            DARE 311820326 POMPA NUDA Genuine Maserati Part - New (to order)
                                                            # 030
                                                            MPN: 311820315
                                                            ROLLER
                                                            from £1.16
                                                            from £1.16
                                                            CENTR.ROLLER FOR OIL PUMP L=10MM Genuine Maserati Part - New (to order)
