057 - Rear Tail Light

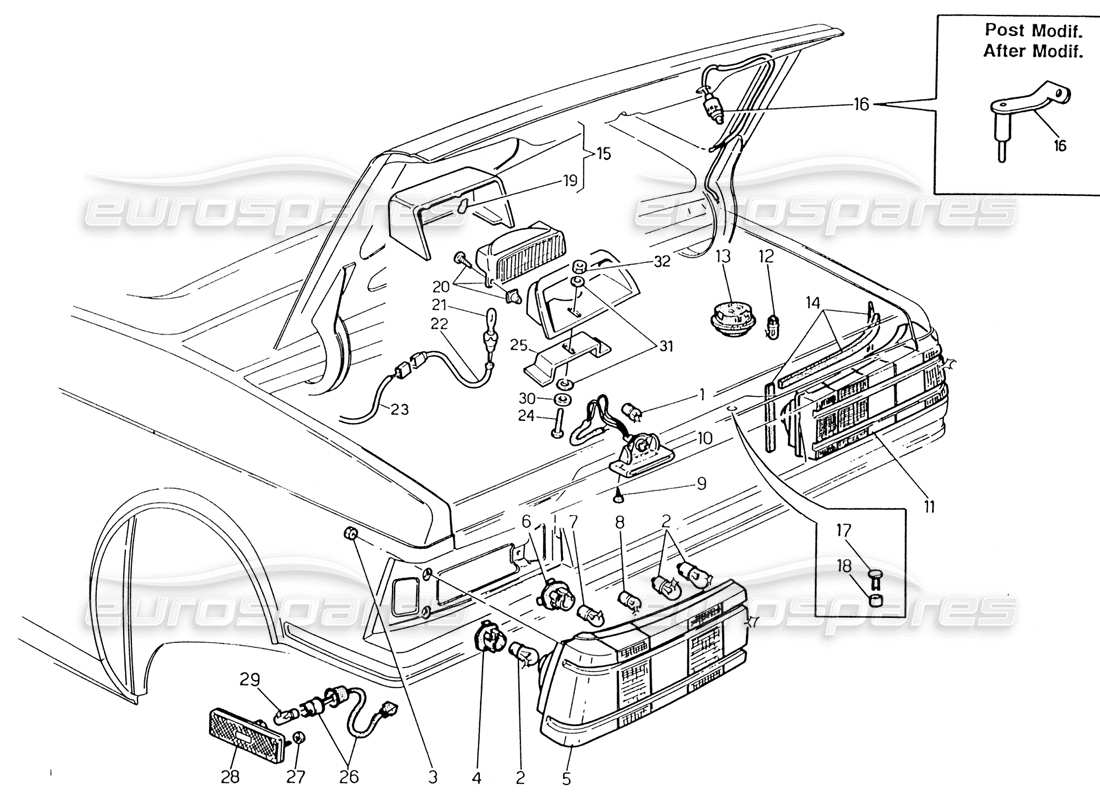

Maserati 222 / 222E Biturbo Rear Tail Light Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 87540500
BULB 12V5W
from £0.53
from £0.53
# 002
MPN: 87720021
BULB 12 V 21 W
from £1.00
from £1.00
# 003
MPN: 122600060
NUT
# 004
MPN: 313120404
BULB HOLDER
from £4.01
from £4.01
# 005
MPN: 313120138
LH REAR LAMP
Valid for 51, 54, 55, 70, 71, 74, 75
Supersession
Supersession
This part replaces part number 313120210
# 005
MPN: 313130108
LH REAR LAMP
Valid for 60, 61
from £4.77
from £4.77
# 006
MPN: 313120405
BULBHOLDER
from £0.85
from £0.85
# 007
MPN: 87720521
BULB 12 V 5/21 W
from £3.06
from £3.06
# 008
MPN: 87541000
BUIB12W10W
# 009
MPN: 119142190
SCREW
# 010
MPN: 30311111
NUMBER - PLATE LAMP
# 011
MPN: 313120137
RH REAR LAMP
Valid for 51, 54, 55, 70, 71, 74, 75
Supersession
Supersession
This part replaces part number 313120211 which we have in stock
# 011
MPN: 313130107
RH REAR LAMP
Valid for 60, 61
from £7.38
from £7.38
# 012
MPN: 87760005
BULB 12V5W
from £0.64
from £0.64
# 013
MPN: 313153118
LUGGAGE ROOM LIGHT
from £9.99
from £9.99
# 014
MPN: 313120407
GASKET FOR TAIL LIGHT
minimum order quantity = 4
from £1.55
from £1.55
# 015
MPN: 323132106
COVER WITH SPRING (BEIGE COLOR)
Valid for 60, 61, 74, 75
from £3.21
from £3.21
This part replaces part number 323160334
# 015
MPN: 323160334
COVER WITH SPRING (GREY COLOR)
Valid for 60, 61, 74, 75
Supersession
Supersession
# 016
MPN: 30331111
SWITCH AFTER MODIF.
# 016
MPN: 323356104
SWITCH PRE.MODIF.
Supersession
Supersession
# 017
MPN: 318320499
PLUG PRE MODIF.
from £0.77
from £0.77
# 018
MPN: 323356304
SPACER PRE MODIF.
from £0.69
from £0.69
# 019
MPN: 323132324
SPRING
Valid for 60, 61, 74, 75
from £0.69
from £0.69
# 020
MPN: 323132105
STOP LAMP WITH SUPPORT
Valid for 60, 61, 74, 75
from £15.71
from £15.71
# 021
MPN: 323132325
BULB
Valid for 60, 61, 74, 75
from £0.47
from £0.47
# 022
MPN: 323132104
BULB HOLDER WITH CABLE
Valid for 60, 61, 74, 75
from £3.63
from £3.63
# 023
MPN: 323132102
CABLE
Valid for 60, 61, 74, 75
from £5.57
from £5.57
# 024
MPN: 101206016
SCREW
Valid for 60, 61, 74, 75
# 025
MPN: 313137103
BRACKET
Valid for 60, 61, 74, 75
from £4.63
from £4.63
# 026
MPN: 30311128
LAMP HOLDER
Valid for 60, 61
from £3.91
from £3.91
# 027
MPN: 122600050
NUT
Valid for 60, 61
# 028
MPN: 30311122
REAR SIDE MARKER (RED)
Valid for 60, 61
from £13.03
from £13.03
# 029
MPN: 87760003
BULB, 12V/3W
Valid for 60, 61
from £0.47
from £0.47
# 030
MPN: 135600060
SPRING WASHER
Valid for 60, 61, 74, 75
from £0.77
from £0.77
# 031
MPN: 163030060
WASHER
Valid for 60, 61, 74, 75
from £1.08
from £1.08
# 032
MPN: 125100060
NUT
Valid for 60, 61, 74, 75
