Maserati Karif 2.8 Wiring Harness and Electrical Components (RH Steering Cars) Parts Diagram

059.1 - Wiring Harness and Electrical Components (RH Steering Cars)

Maserati Karif 2.8 Wiring Harness and Electrical Components (R.H. Steering Cars) Parts Diagram

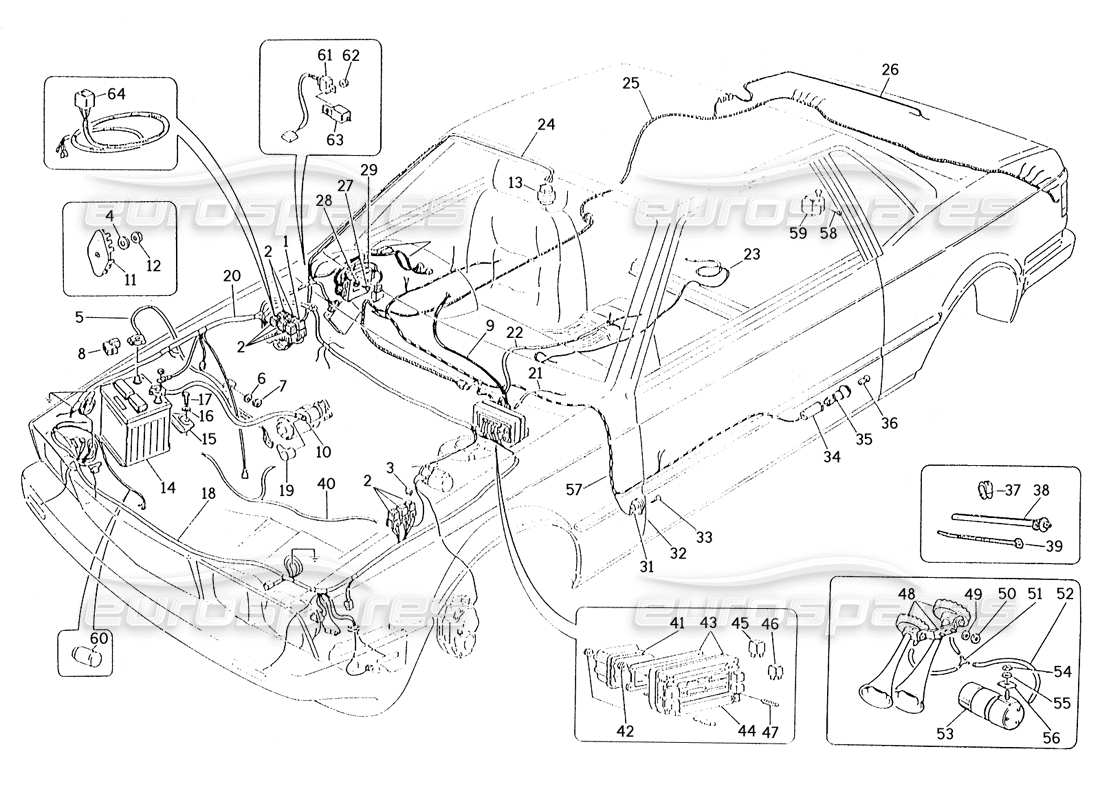

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 313320134
START RELAY
Valid for Version 20 and 24
from £18.87
from £18.87
This part replaces part number 184101
BOSCH RELE' 30 AMP.X 9468 332 Genuine Maserati Part - New In stock
# 002
MPN: 313353106
RELAY WITH FUSE
Valid for Version 20 and 24
from £5.88
from £5.88
This part replaces part number 313320106
RELAY WITH FUSE Genuine Maserati Part - New (to order)
# 003
MPN: 107202200
FUSE 20 A
Valid for Version 20 and 24
FUSE 20 A Genuine Maserati Part - New (to order)
# 004
MPN: 135700060
WASHER
Valid for Version 20 and 24
WASHER Genuine Maserati Part - New (to order)
# 005
MPN: 313750103
NEGATIVO BATTERY CABLE FOR ENGINE FRAME
Valid for Version 20 and 24
NEGATIVO BATTERY CABLE FOR ENGINE FRAME Genuine Maserati Part - New (to order)
# 006
MPN: 135600004
SPRING WASHER
Valid for Version 20 and 24
SPRING WASHER Genuine Maserati Part - New (to order)
# 007
MPN: 125100080
NUT
Valid for Version 20 and 24
from £0.86
from £0.86
DADO Genuine Maserati Part - New (to order)
# 008
MPN: 313020300
CAP
Valid for Version 20 and 24
from £1.13
from £1.13
PART Genuine Maserati Part - New (to order)
# 009
MPN: 313027107
INSTRUMENT PANEL WIRIN HARNESS
Valid for Version 20 and 24
from £164.22
from £164.22
DASHBOARD WIRING HARNESS Genuine Maserati Part - New (to order)
# 010
MPN: 313020117
POSITIVE BATTERY CABLE
Valid for Version 20 and 24
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 011
MPN: 313027326
PLATE
Valid for Version 20 and 24
from £1.13
from £1.13
GROUND PLATE Genuine Maserati Part - New (to order)
# 012
MPN: 122600060
NUT
Valid for Version 20 and 24
Maserati PART 122600060 Genuine Maserati Part - New (to order)
# 013
MPN: 313120118
ROOF LAMP
Valid for Version 20 and 24
from £1.43
from £1.43
This part replaces part number 323156116
DOME LIGHT WITH SWITCH Genuine Maserati Part - New (to order)
# 014
MPN: 313020101
BATTERY (NOT SUPPLIED)
Valid for Version 20 and 24
BATTERY (NOT SUPPLIED) Genuine Maserati Part - New (to order)
# 015
MPN: 313020314
PLATE
Valid for Version 20 and 24
from £1.60
from £1.60
BATTERY FASTENING PLATE Genuine Maserati Part - New In stock
# 016
MPN: 130200080
SPRING WASHOR
Valid for Version 20 and 24
WASHER Genuine Maserati Part - New (to order)
# 017
MPN: 101208020
SCREW
Valid for Version 20 and 24
Maserati PART 101208020 Genuine Maserati Part - New (to order)
# 018
MPN: 323027106
LH ENGINE COMPART, WIRING HARNESS
Valid for Version 20 and 24
from £130.48
from £130.48
WIRING HARNESS Genuine Maserati Part - New (to order)
# 019
MPN: 313020301
CAP
Valid for Version 20 and 24
from £14.48
from £14.48
Maserati PART 313020301 Genuine Maserati Part - New (to order)
# 020
MPN: 313320333
SPRING
Valid for Version 20 and 24
from £0.72
from £0.72
SPRING Genuine Maserati Part - New (to order)
# 020
MPN: 323047143
RH ENGINE COMPART, WIRING HARNESS
Valid for Version 20 and 24
from £200.96
from £200.96
WIRING HARNESS Genuine Maserati Part - New (to order)
# 021
MPN: 313020121
INSULATED WIRE (ONLY FOR MECHANICAL TRANSM.)
Valid for Version 20 and 24
from £9.93
from £9.93
PART Genuine Maserati Part - New (to order)
# 022
MPN: 313050110
CONSOLE WIRING HARNESS
Valid for Version 20 and 24
CONSOLE WIRING HARNESS Genuine Maserati Part - New (to order)
# 023
MPN: 313020118
LOUDSPEAKER WIRING HARNESS
Valid for Version 20 and 24
from £10.79
from £10.79
LOUDSPEAKER WIRING HARNESS Genuine Maserati Part - New (to order)
# 024
MPN: 393000112
ROOF LIGHT WIRING HARNESS
Valid for Version 20 and 24
from £11.70
from £11.70
DOME LIGHT WIRING HARNESS Genuine Maserati Part - New (to order)
# 025
MPN: 313070108
Roar wiring harness
Valid for Version 20 and 24
Roar wiring harness Genuine Maserati Part - New (to order)
# 026
MPN: 323056111
LUGGAGE ROOM WIRING HARNESS
Valid for Version 20 and 24
from £10.07
from £10.07
LUGG.COMPARTMENT WIRING HARN Genuine Maserati Part - New (to order)
# 027
MPN: 119142300
SCREW
Valid for Version 20 and 24
SCREW Genuine Maserati Part - New (to order)
# 028
MPN: 135300043
WASHER
Valid for Version 20 and 24
Maserati PART 135300043 Genuine Maserati Part - New (to order)
# 029
MPN: 313020107
CHOCK CONTROL
Valid for Version 20 and 24
from £134.30
from £134.30
WIRING HARNESS Genuine Maserati Part - New (to order)
# 030
MPN: 313020307
STRAP
Valid for Version 20 and 24
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 030
MPN: 313027113
CHECK/INSTRUMENT WIRING HARNESS
Valid for Version 20 and 24
from £21.69
from £21.69
CHECK CABLE SET Genuine Maserati Part - New (to order)
# 031
MPN: 34331114
DOOR SWITCH
Valid for Version 20 and 24
Maserati PART 34331114 Genuine Maserati Part - New (to order)
# 032
MPN: 53211305
SEAL
Valid for Version 20 and 24
from £0.72
from £0.72
GUARNIZIONE LUCE SULLE PORTE Genuine Maserati Part - New (to order)
# 033
MPN: 119535130
SCREW
Valid for Version 20 and 24
SCREW Genuine Maserati Part - New (to order)
# 034
MPN: 53311300
CAP
Valid for Version 20 and 24
from £0.72
from £0.72
DOOR LIGHT CAP Genuine Maserati Part - New In stock
# 035
MPN: 30311113
DOOR LIGHT
Valid for Version 20 and 24
from £4.26
from £4.26
DOOR INDICATOR LIGHT Genuine Maserati Part - New (to order)
# 036
MPN: 87720004
BULB
Valid for Version 20 and 24
from £0.47
from £0.47
BULB Genuine Maserati Part - New (to order)
# 037
MPN: 53471340
WIRE CLIP
Valid for Version 20 and 24
from £1.18
from £1.18
CONTROL GABLE SPRING Genuine Maserati Part - New (to order)
# 039
MPN: 313020308
STRAP
Valid for Version 20 and 24
from £0.72
from £0.72
CLAMP-200.7711101 Genuine Maserati Part - New (to order)
# 040
MPN: 313020125
WIRING HARNESS
Valid for Version 20 and 24
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 041
MPN: 313020331
FUSE BOX GUARD
Valid for Version 20 and 24
from £2.00
from £2.00
Maserati PART 313020331 Genuine Maserati Part - New (to order)
# 042
MPN: 122600060
NUT
Valid for Version 20 and 24
Maserati PART 122600060 Genuine Maserati Part - New (to order)
# 043
MPN: 313020104
FUSE BOX, ASSY
Valid for Version 20 and 24
from £173.98
from £173.98
FUSE BOX Genuine Maserati Part - New (to order)
# 044
MPN: 313020339
FUSE BOX CAP
Valid for Version 20 and 24
from £0.71
from £0.71
FUSE BOX COVER Genuine Maserati Part - New (to order)
# 045
MPN: 30331137
RELAY
Valid for Version 20 and 24
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 046
MPN: 313320136
DIODOS BRIDGE
Valid for Version 20 and 24
from £6.64
from £6.64
DIODES BRIDGE Genuine Maserati Part - New (to order)
# 047
MPN: 87200005
FUSE
Valid for Version 20 and 24
FUSE Genuine Maserati Part - New (to order)
# 047
MPN: 87200008
FUSE
Valid for Version 20 and 24
FUSE Genuine Maserati Part - New (to order)
# 047
MPN: 87200016
FUSE
Valid for Version 20 and 24
FUSE Genuine Maserati Part - New (to order)
# 048
MPN: 313320006
HORN SET
Valid for Version 20 and 24
from £19.69
from £19.69
HORNS Genuine Maserati Part - New (to order)
# 049
MPN: 130200060
WASHOR
Valid for Version 20 and 24
WASHOR Genuine Maserati Part - New (to order)
# 050
MPN: 119129095
SCREW
Valid for Version 20 and 24
Maserati PART 119129095 Genuine Maserati Part - New (to order)
# 050
MPN: 125100060
NUT
Valid for Version 20 and 24
Maserati PART 125100060 Genuine Maserati Part - New (to order)
# 051
MPN: 313320324
«THROO WAY» UNION
Valid for Version 20 and 24
from £7.44
from £7.44
THREE WAY UNION Genuine Maserati Part - New (to order)
# 052
MPN: 314020316
PIPE
Valid for Version 20 and 24
from £1.86
from £1.86
This part replaces part number 313320325
TUBAZIONE Genuine Maserati Part - New (to order)
# 053
MPN: 313320146
AIR COMPRESSOR
Valid for Version 20 and 24
from £58.31
from £58.31
HORN COMPRESSOR Genuine Maserati Part - New (to order)
# 054
MPN: 125100080
NUT
Valid for Version 20 and 24
from £0.86
from £0.86
DADO Genuine Maserati Part - New (to order)
# 055
MPN: 130200080
WASHER
Valid for Version 20 and 24
WASHER Genuine Maserati Part - New (to order)
# 056
MPN: 30631365
PLATO
Valid for Version 20 and 24
Maserati PART 30631365 Genuine Maserati Part - New (to order)
# 057
MPN: 313070119
Wiring harnoss
Valid for Version 20 and 24
Wiring harnoss Genuine Maserati Part - New (to order)
# 059
MPN: 313330135
CIRCUIT BREAKER
Valid for Version 20 and 24
from £15.67
from £15.67
INERTIA SWITCH Genuine Maserati Part - New (to order)
# 060
MPN: 323020302
CAP
Valid for Version 20 and 24
CAP Genuine Maserati Part - New (to order)
# 061
MPN: 30301124
SWITCH
Valid for Version 20 and 24
from £12.67
from £12.67
THERMIC SWITCH Genuine Maserati Part - New (to order)
# 062
MPN: 122600060
NUT
Valid for Version 20 and 24
Maserati PART 122600060 Genuine Maserati Part - New (to order)
# 063
MPN: 323320193
FUSE BOX
Valid for Version 20 and 24
from £23.84
from £23.84
DOOR ACTUATOR ECU Genuine Maserati Part - New (to order)
# 064
MPN: 313050103
RELAY WIRING HARNESS
Valid for Version 20 and 24
WIRING HARNESS Genuine Maserati Part - New (to order)
