maserati karif 2.8 rear shock absorber parts diagram

038 - REAR SHOCK ABSORBER

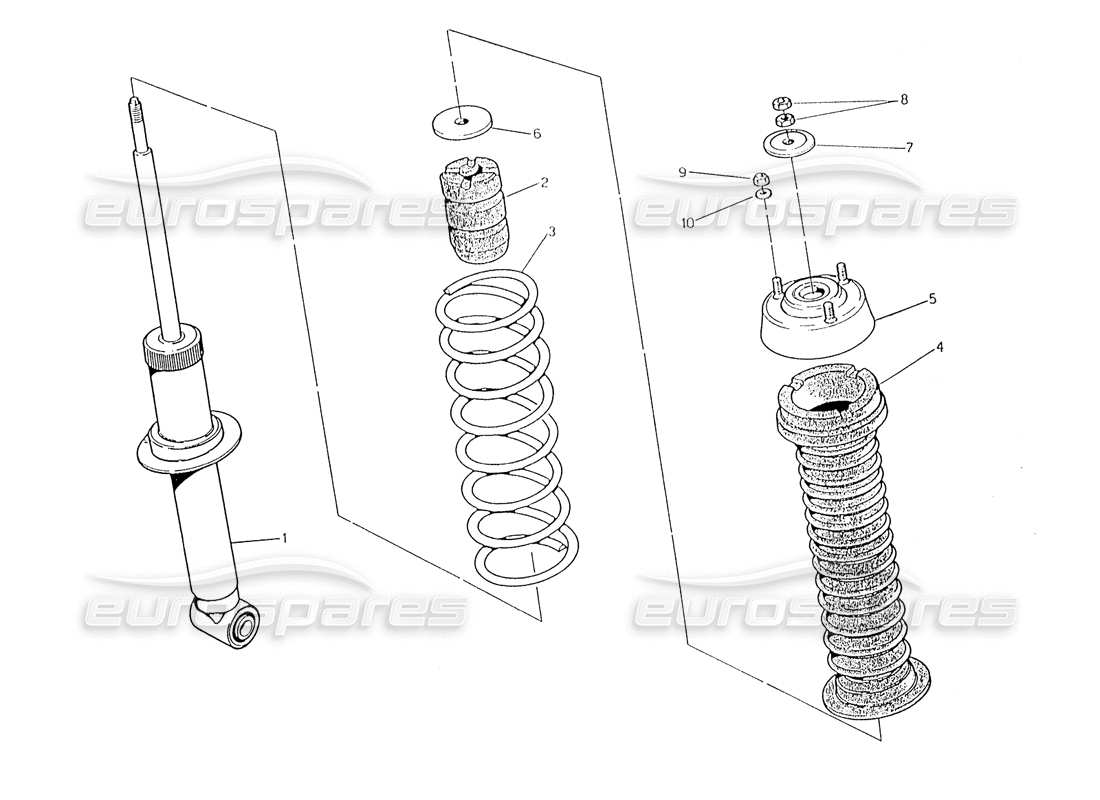

Maserati Karif 2.8 Rear Shock Absorber Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 397000105
                      SHOCK ABSORBER
                      Supersession
                      Supersession
                      # 002
                      MPN: 397000332
                      BUFFER
                      from £9.90
                      from £9.90
                      # 003
                      MPN: 397000333
                      SPRING
                      from £44.59
                      from £44.59
                      This part replaces part number 317021333
                      # 004
                      MPN: 317020331
                      BELLOW
                      from £6.17
                      from £6.17
                      # 005
                      MPN: 317020117
                      SUPPORT
                      from £23.44
                      from £23.44
                      # 006
                      MPN: 327012340
                      WASHER
                      from £14.52
                      from £14.52
                      This part replaces part number 317020340
                      # 007
                      MPN: 317020349
                      UPPER CAP
                      from £0.69
                      from £0.69
                      # 008
                      MPN: 317020344
                      NUT
                      from £1.07
                      from £1.07
                      # 009
                      MPN: 128300080
                      SELF LOCKING NUT
