maserati qtp v8 (1998) air conditioning system (rhd) parts diagram

021GD - Air Conditioning System (RHD)

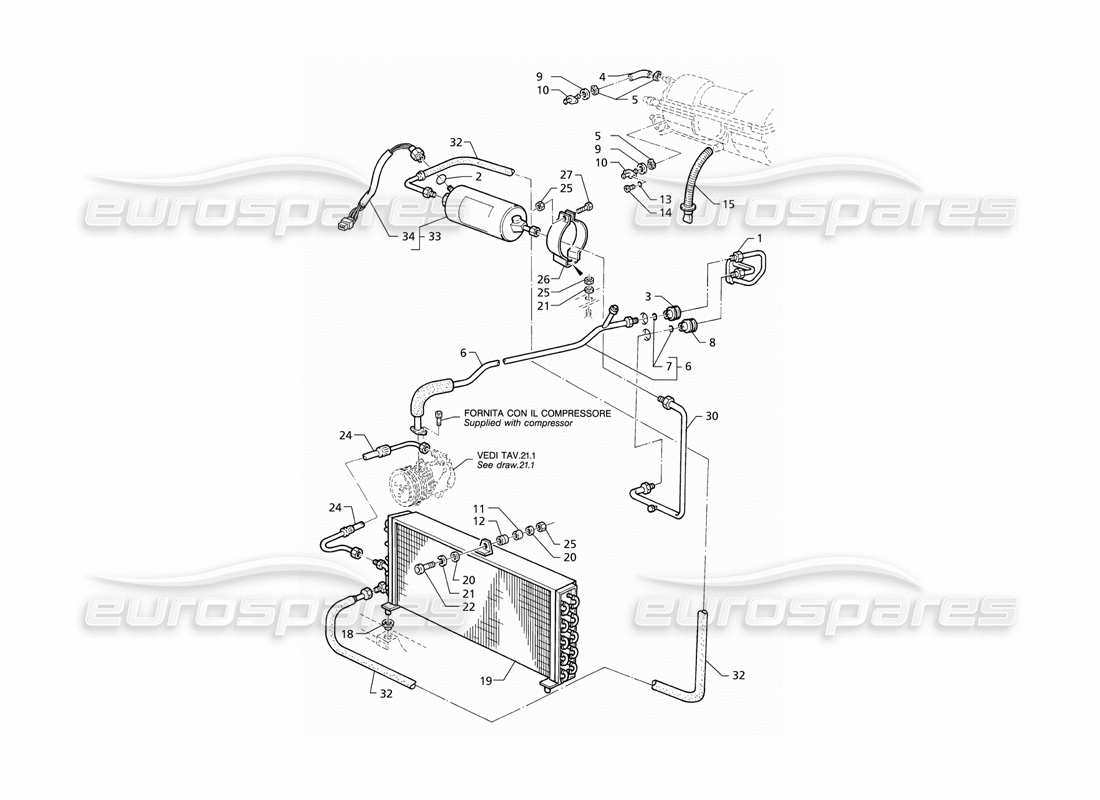

Maserati QTP V8 (1998) Air Conditioning System (RHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Key
                                                      Price
                                                      # 001
                                                      MPN: 375515111
                                                      HOSE ASSY
                                                      from £48.54
                                                      from £48.54
                                                      HOSE Genuine Maserati Part - New (to order)
                                                      # 002
                                                      -
                                                      GASKET
                                                      # 003
                                                      MPN: 375500373
                                                      FAIRLEAD
                                                      from £4.08
                                                      from £4.08
                                                      PASSACAVO PER TUBAZ.MANDATA Genuine Maserati Part - New In stock
                                                      # 004
                                                      MPN: 315520479
                                                      TUBE
                                                      from £8.18
                                                      from £8.18
                                                      SLEEVE Genuine Maserati Part - New In stock
                                                      # 005
                                                      MPN: 186402028
                                                      CLAMP
                                                      from £1.55
                                                      from £1.55
                                                      CLAMP Genuine Maserati Part - New (to order)
                                                      # 006
                                                      MPN: 375540173
                                                      FREON RETURN LINE
                                                      FREON RETURN LINE Genuine Maserati Part - New (to order)
                                                      # 007
                                                      -
                                                      GASKET
                                                      # 008
                                                      MPN: 375500371
                                                      FAIRLEAD
                                                      from £4.51
                                                      from £4.51
                                                      NUT Genuine Maserati Part - New (to order)
                                                      # 009
                                                      MPN: 315520372
                                                      GASKET
                                                      from £0.69
                                                      from £0.69
                                                      GASKET Genuine Maserati Part - New (to order)
                                                      # 010
                                                      MPN: 315520370
                                                      UNION
                                                      from £0.70
                                                      from £0.70
                                                      CONNECTING UNION Genuine Maserati Part - New (to order)
                                                      # 011
                                                      MPN: 397850624
                                                      SPACER
                                                      from £2.39
                                                      from £2.39
                                                      DISTANZIALE PER FISS.RADIAT. Genuine Maserati Part - New (to order)
                                                      # 012
                                                      MPN: 315520375
                                                      RING
                                                      Supersession
                                                      Supersession
                                                      Genuine Maserati Part (no longer available to order)
                                                      # 013
                                                      MPN: 169020005
                                                      WASHER
                                                      from £1.08
                                                      from £1.08
                                                      WASHER Genuine Maserati Part - New (to order)
                                                      # 014
                                                      MPN: 164323413
                                                      RIVET
                                                      RIVET Genuine Maserati Part - New (to order)
                                                      # 015
                                                      MPN: 315520017
                                                      CONDENSATE DRAINAGE TUBE
                                                      from £1.76
                                                      from £1.76
                                                      EXHAUST PIPE Genuine Maserati Part - New (to order)
                                                      # 018
                                                      MPN: 189453
                                                      BUSH
                                                      from £1.08
                                                      from £1.08
                                                      This part replaces part number 374030312
                                                      RUBBER BUSHING SUPPORT FO Genuine Maserati Part - New In stock
                                                      # 019
                                                      MPN: 375500220
                                                      BIRANGO CONDENSER
                                                      from £187.08
                                                      from £187.08
                                                      BIRANGO CONDENSER D52914 Genuine Maserati Part - New (to order)
                                                      # 020
                                                      MPN: 163020060
                                                      FLAT WASHER
                                                      from £2.55
                                                      from £2.55
                                                      WASHER Genuine Maserati Part - New (to order)
                                                      # 024
                                                      MPN: 375531262
                                                      FREON DELIVERY LINE
                                                      from £29.04
                                                      from £29.04
                                                      TUBO FREON DA COMPRES.A COND Genuine Maserati Part - New (to order)
                                                      # 026
                                                      MPN: 375500301
                                                      CLAMP
                                                      from £4.63
                                                      from £4.63
                                                      CLAMP Genuine Maserati Part - New (to order)
                                                      # 030
                                                      MPN: 375540182
                                                      FREON DELIVERY LINE
                                                      from £25.01
                                                      from £25.01
                                                      Maserati PART 375540182 Genuine Maserati Part - New (to order)
                                                      # 032
                                                      MPN: 375540181
                                                      FREON DELIVERY LINE
                                                      from £40.79
                                                      from £40.79
                                                      PIPE Genuine Maserati Part - New In stock
                                                      # 033
                                                      MPN: 375530174
                                                      FILTER ASSY
                                                      from £97.31
                                                      from £97.31
                                                      COMPLETE FREON FILTER Genuine Maserati Part - New In stock
                                                      COMPLETE FREON FILTER Genuine Maserati Part - Used In stock
                                                      PRESSURE SWITCH NOT INCLUDED
                                                      # 034
                                                      MPN: 375530175
                                                      MAX AND MIN. CAPACITY PRESSURE SWITCH
                                                      from £53.99
                                                      from £53.99
                                                      PRESSOSTATO (301070102 RIF.B Genuine Maserati Part - New (to order)
                                                      PRESSOSTATO (301070102 RIF.B Genuine Maserati Part - Used In stock
