maserati qtp v8 (1998) air conditioning system (lhd) parts diagram

021GS - Air Conditioning System (LHD)

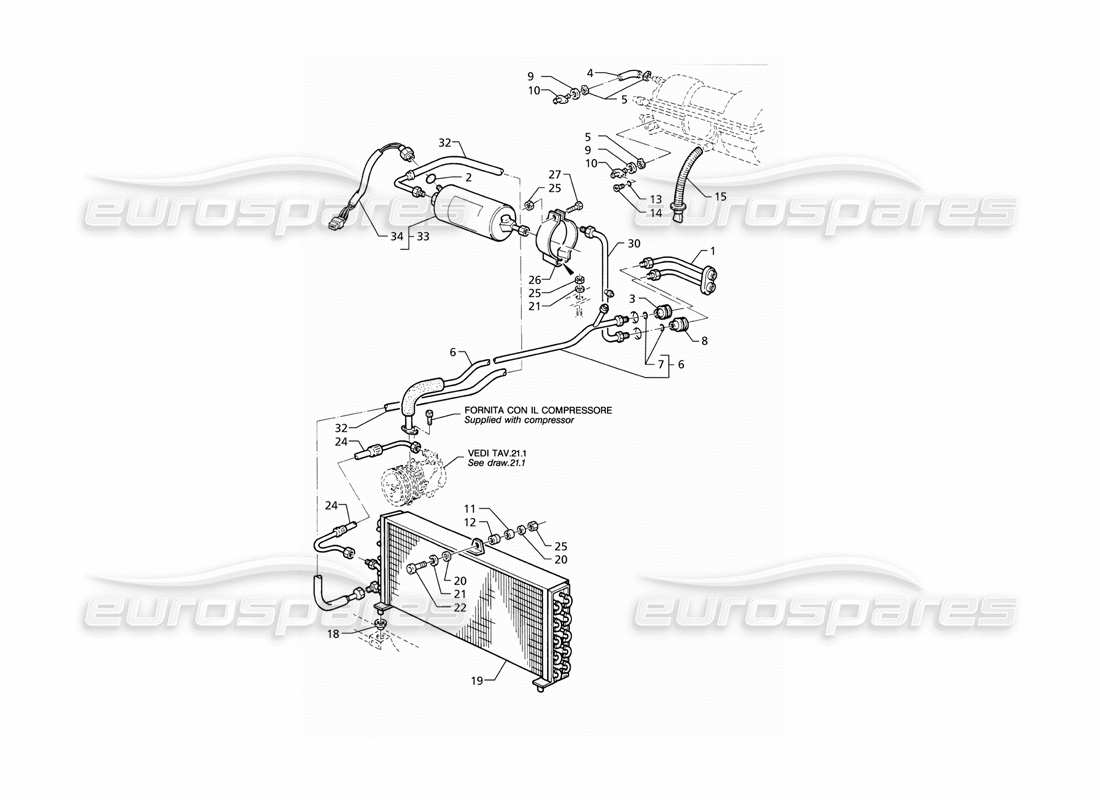

Maserati QTP V8 (1998) Air Conditioning System (LHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 375500111
HOSE ASSY
from £33.26
from £33.26
TUBAZ.SUL.VALV.D'ESP.X MAND. Genuine Maserati Part - New (to order)
# 002
-
GASKET
# 003
MPN: 375500373
FAIRLEAD
from £4.08
from £4.08
PASSACAVO PER TUBAZ.MANDATA Genuine Maserati Part - New In stock
# 004
MPN: 315520479
TUBE
from £8.18
from £8.18
SLEEVE Genuine Maserati Part - New In stock
# 005
MPN: 186402028
CLAMP
from £1.55
from £1.55
CLAMP Genuine Maserati Part - New (to order)
# 006
MPN: 375530173
FREON RETURN LINE
from £64.69
from £64.69
FREON RET.PIPE FROM EVAP.TO COMPR Genuine Maserati Part - New (to order)
# 007
-
GASKET
# 008
MPN: 375500371
FAIRLEAD
from £4.51
from £4.51
NUT Genuine Maserati Part - New (to order)
# 009
MPN: 315520372
GASKET
from £0.69
from £0.69
GASKET Genuine Maserati Part - New (to order)
# 010
MPN: 315520370
UNION
from £0.70
from £0.70
CONNECTING UNION Genuine Maserati Part - New (to order)
# 011
MPN: 397850624
SPACER
from £2.39
from £2.39
DISTANZIALE PER FISS.RADIAT. Genuine Maserati Part - New (to order)
# 012
MPN: 315520375
RING
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 013
MPN: 169020005
WASHER
from £1.08
from £1.08
WASHER Genuine Maserati Part - New (to order)
# 014
MPN: 164323413
RIVET
RIVET Genuine Maserati Part - New (to order)
# 015
MPN: 315520017
CONDENSATE DRAINAGE TUBE
from £1.76
from £1.76
EXHAUST PIPE Genuine Maserati Part - New (to order)
# 018
MPN: 189453
BUSH
from £1.08
from £1.08
This part replaces part number 374030312
RUBBER BUSHING SUPPORT FO Genuine Maserati Part - New In stock
# 019
MPN: 375500220
BIRANGO CONDENSER
from £187.08
from £187.08
BIRANGO CONDENSER D52914 Genuine Maserati Part - New (to order)
# 020
MPN: 163020060
FLAT WASHER
from £2.55
from £2.55
WASHER Genuine Maserati Part - New (to order)
# 021
MPN: 135300064
SPRING WASHER
Maserati PART 135300064 Genuine Maserati Part - New (to order)
# 022
MPN: 108006025
ALLEN SCREW
Maserati PART 108006025 Genuine Maserati Part - New (to order)
# 024
MPN: 375531262
FREON DELIVERY LINE
from £29.04
from £29.04
TUBO FREON DA COMPRES.A COND Genuine Maserati Part - New (to order)
# 026
MPN: 375500301
CLAMP
from £4.63
from £4.63
CLAMP Genuine Maserati Part - New (to order)
# 030
MPN: 375531184
FREON DELIVERY LINE
from £31.00
from £31.00
FREON DELIVERY PIPE TO EVAPOURATO Genuine Maserati Part - New (to order)
# 032
MPN: 375531181
FREON DELIVERY LINE
from £36.78
from £36.78
FREON DEL. PIPE FROM COND. TO FIL Genuine Maserati Part - New (to order)
# 033
MPN: 375530174
FILTER ASSY
from £97.31
from £97.31
COMPLETE FREON FILTER Genuine Maserati Part - New In stock
COMPLETE FREON FILTER Genuine Maserati Part - Used In stock
PRESSURE SWITCH NOT INCLUDED
# 034
MPN: 375530175
MAX AND MIN. CAPACITY PRESSURE SWITCH
from £53.99
from £53.99
PRESSOSTATO (301070102 RIF.B Genuine Maserati Part - New (to order)
PRESSOSTATO (301070102 RIF.B Genuine Maserati Part - Used In stock
