maserati qtp v8 evoluzione timing parts diagram

007 - timing

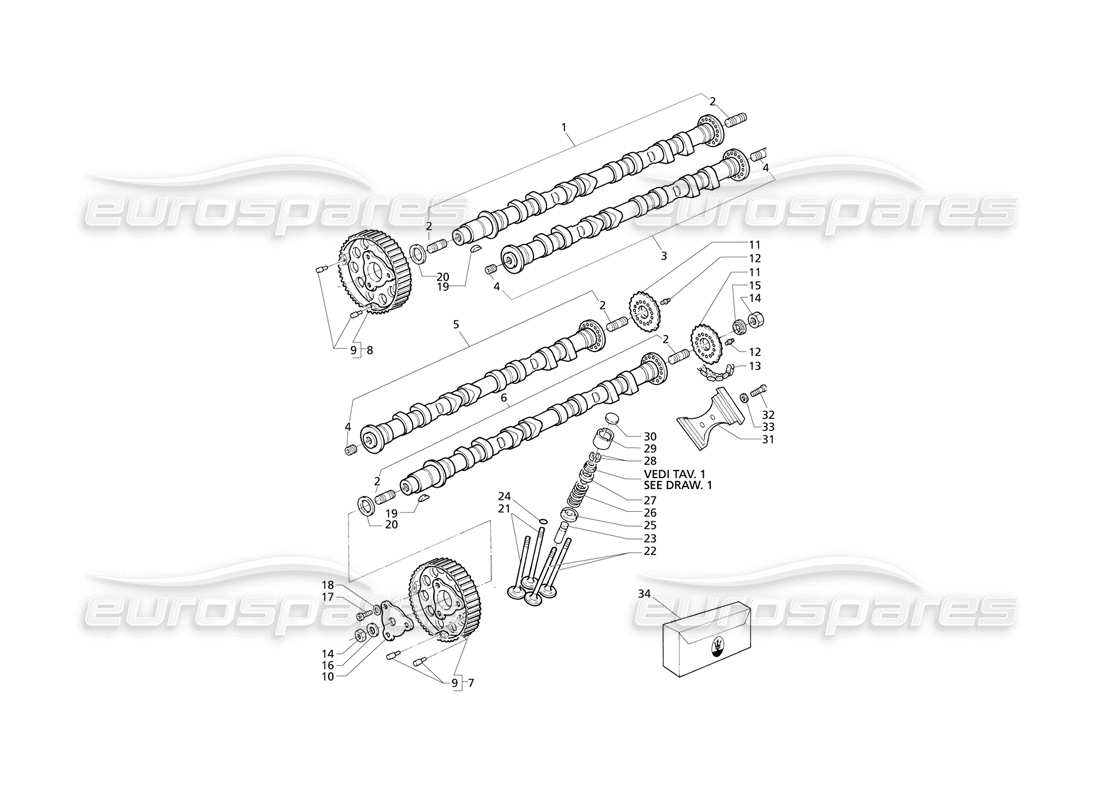

Maserati QTP V8 Evoluzione Timing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 578030200
EXHAUST CAMSHAFT, RH HEAD
from £352.04
from £352.04
HEAD EXHAUST CAMSHAFT Genuine Maserati Part - New In stock
HEAD EXHAUST CAMSHAFT Genuine Maserati Part - Used In stock
# 002
MPN: 311053402
STUD
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 003
MPN: 578030000
INTAKE CAMSHAFT, RH HEAD
from £352.04
from £352.04
ALBERO A CAMME ASPIRAZ. TEST Genuine Maserati Part - New (to order)
ALBERO A CAMME ASPIRAZ. TEST Genuine Maserati Part - Used In stock
# 004
MPN: 311053392
PLUG
from £0.74
from £0.74
SHAFT LINE CLOSING CAP Genuine Maserati Part - New (to order)
# 005
MPN: 578030100
INTAKE CAMSHAFT, LH HEAD
from £352.04
from £352.04
ALBERO A CAMME ASPIRAZ. TEST Genuine Maserati Part - New In stock
ALBERO A CAMME ASPIRAZ. TEST Genuine Maserati Part - Used In stock
# 006
MPN: 578030300
EXHAUST CAMSHAFT, LH HEAD
from £352.04
from £352.04
HEAD EXHAUST CAMSHAFT Genuine Maserati Part - New (to order)
HEAD EXHAUST CAMSHAFT Genuine Maserati Part - Used In stock
# 007
MPN: 578035500
LH PULLEY
from £22.86
from £22.86
CPL.PULEGGIA ALB.CAM.TESTA S Genuine Maserati Part - New In stock
CPL.PULEGGIA ALB.CAM.TESTA S Genuine Maserati Part - Used In stock
# 008
MPN: 479035401
RH PULLEY
from £37.25
from £37.25
PULLEY Genuine Maserati Part - New In stock
# 009
MPN: 479030601
AIR GAP
from £2.32
from £2.32
CRANKSH.PULLEY AIR GAP+CAMSH Genuine Maserati Part - New In stock
# 011
MPN: 311053450
PINION
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 012
MPN: 311053308
DOWEL
from £11.39
from £11.39
This part replaces part number 475037900 - and 1 more. Click to view details
CAMSHAFT DRIVING DOWEL Genuine Maserati Part - New In stock
CAMSHAFT DRIVING DOWEL Genuine Maserati Part - Used In stock
# 013
MPN: 479034500
CAM CONTROL CHAIN
from £132.11
from £132.11
This part replaces part number 391050377 - and 2 more. Click to view details
CATENA TRAINO CAMME CL.B Genuine Maserati Part - New (to order)
# 014
MPN: 311053393
NUT
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 017
MPN: 311053394
SCREW
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 018
MPN: 312220411
WASHER
from £0.47
from £0.47
ROSETTA Genuine Maserati Part - New (to order)
# 019
MPN: 311053460
Key
from £0.69
from £0.69
STANDARD US TAB 3X5 Genuine Maserati Part - New (to order)
# 020
MPN: 311053314
SHIM WASHER
from £9.04
from £9.04
SHIMMING WASHER Genuine Maserati Part - New In stock
# 021
MPN: 578031901
INLET VALVE
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 022
MPN: 578032001
EXHAUST VALVE
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 023
MPN: 310620005
VALVE GUIDE
from £18.00
from £18.00
This part replaces part number 310620311
VALVE GUIDE Genuine Maserati Part - New In stock
# 024
MPN: 310620314
STOP RING
from £1.07
from £1.07
ANELLO D'ARRESTO D.11,8X1 Genuine Maserati Part - New (to order)
# 025
MPN: 600032200
LOWER CAP
from £18.90
from £18.90
PIATTELLO INFERIORE MOLLE VA Genuine Maserati Part - New In stock
PIATTELLO INFERIORE MOLLE VA Genuine Maserati Part - Used In stock
# 026
MPN: 390650356
SPRING
from £2.19
from £2.19
VALVE SPRING Genuine Maserati Part - New In stock
# 027
MPN: 578032100
UPPER CAP
from £2.68
from £2.68
PLATE Genuine Maserati Part - New In stock
# 028
MPN: 571032500
COTTER
from £0.39
from £0.39
This part replaces part number 578032500 - and 1 more. Click to view details
COTTER FOR 3-GROOVE VALVE Genuine Maserati Part - New In stock
COTTER FOR 3-GROOVE VALVE Genuine Maserati Part - Used In stock

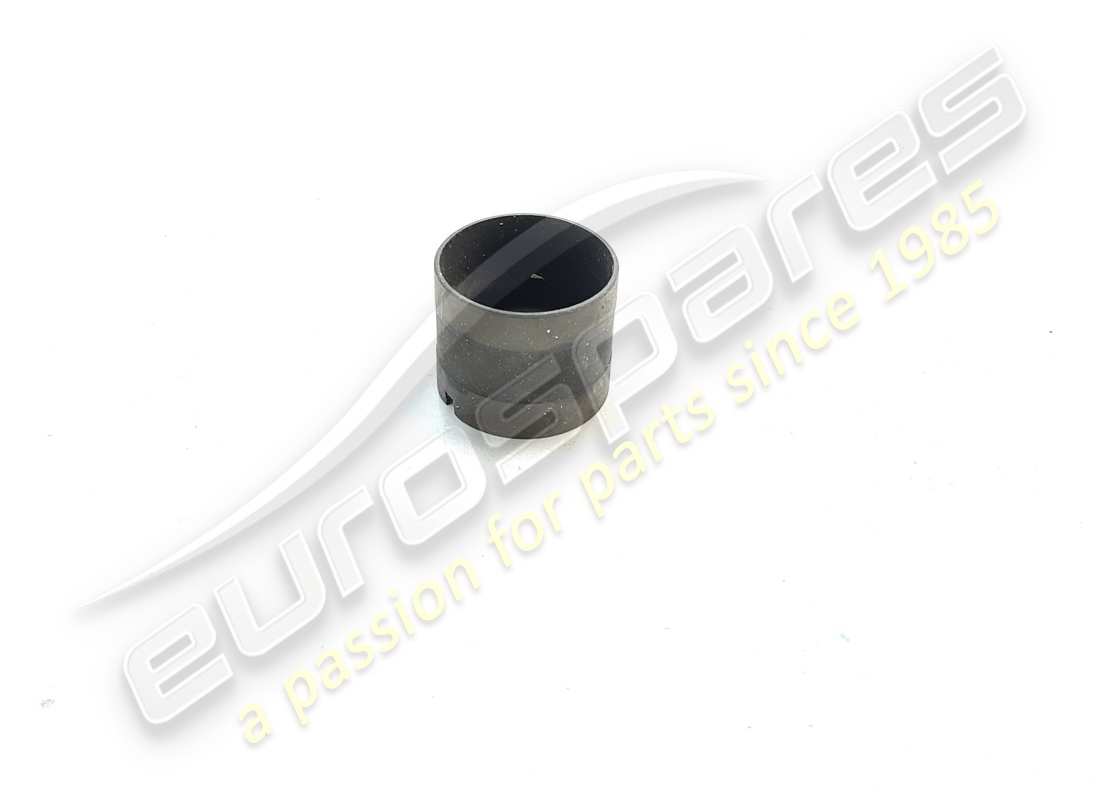

# 029
MPN: 600032803
CUP
from £8.12
from £8.12
BICCHIERINO C.DO VALV.8 CIL. Genuine Maserati Part - New In stock
BICCHIERINO C.DO VALV.8 CIL. Genuine Maserati Part - Used In stock
# 030
MPN: 600033300
VALVE CLEARANCE ADJ. CAP 2.500 THICK
- As necessary
from £7.77
from £7.77
SHIM VALVE LASH ADJ TH 0.984 Genuine Maserati Part - New In stock
# 030
MPN: 600033301
VALVE CLEARANCE ADJ. CAP 2.550 THICK
- As necessary
from £7.77
from £7.77
PAD THICK. 2.550 Genuine Maserati Part - New In stock
# 030
MPN: 600033302
VALVE CLEARANCE ADJ. CAP 2.600 THICK
- As necessary
from £7.73
from £7.73
PAD THICK. 2,600 Genuine Maserati Part - New In stock
# 030
MPN: 600033303
VALVE CLEARANCE ADJ. CAP 2.650 THICK
- As necessary
from £8.24
from £8.24
PAD THICK. 2.650 Genuine Maserati Part - New In stock
# 030
MPN: 600033304
VALVE CLEARANCE ADJ. CAP 2.700 THICK
- As necessary
from £7.77
from £7.77
PAD THICK. 2.700 Genuine Maserati Part - New In stock
# 030
MPN: 600033305
VALVE CLEARANCE ADJ. CAP 2.750 THICK
- As necessary
from £8.24
from £8.24
PAD THICK. 2,750 Genuine Maserati Part - New (to order)
# 030
MPN: 600033306
VALVE CLEARANCE ADJ. CAP 2.800 THICK
- As necessary
from £8.20
from £8.20
PAD THICK. 2.800 Genuine Maserati Part - New (to order)
# 030
MPN: 600033307
VALVE CLEARANCE ADJ. CAP 2.850 THICK
- As necessary
from £7.77
from £7.77
PAD THICK. 2.850 Genuine Maserati Part - New (to order)
# 030
MPN: 600033308
VALVE CLEARANCE ADJ. CAP 2.900 THICK
- As necessary
from £7.77
from £7.77
PAD THICK. 2,900 Genuine Maserati Part - New (to order)
# 030
MPN: 600033309
VALVE CLEARANCE ADJ. CAP 2.950 THICK
- As necessary
from £30.14
from £30.14
PASTIGLIA SPESSORE 2.950 Genuine Maserati Part - New (to order)
# 030
MPN: 600033310
VALVE CLEARANCE ADJ. CAP 3.000 THICK
- As necessary
from £4.57
from £4.57
PAD THICK. 3,000 Genuine Maserati Part - New In stock
PAD THICK. 3,000 Genuine Maserati Part - Used In stock
# 030
MPN: 600033311
VALVE CLEARANCE ADJ. CAP 3.050 THICK
- As necessary
from £5.08
from £5.08
PASTIGLIA SP.3.050 Genuine Maserati Part - New (to order)
PASTIGLIA SP.3.050 Genuine Maserati Part - Used In stock
# 030
MPN: 600033312
VALVE CLEARANCE ADJ. CAP 3.100 THICK
- As necessary
from £7.77
from £7.77
PASTIGLIA SP.3.100 Genuine Maserati Part - New (to order)
# 030
MPN: 600033313
VALVE CLEARANCE ADJ. CAP 3.150 THICK
- As necessary
from £9.24
from £9.24
PASTIGLIA SPESSORE 3.150 Genuine Maserati Part - New (to order)
# 030
MPN: 600033314
VALVE CLEARANCE ADJ. CAP 3.200 THICK
- As necessary
from £8.20
from £8.20
PAD THICK. 3.200 Genuine Maserati Part - New In stock
# 030
MPN: 600033315
VALVE CLEARANCE ADJ. CAP 3.250 THICK
- As necessary
from £8.24
from £8.24
PAD THICK. 3.250 Genuine Maserati Part - New (to order)
# 030
MPN: 600033316
VALVE CLEARANCE ADJ. CAP 3.300 THICK
- As necessary
from £8.24
from £8.24
VALVE CLEARANCE ADJ. CAP 3,300 THICK Genuine Maserati Part - New (to order)
# 030
MPN: 600033317
VALVE CLEARANCE ADJ. CAP 3.350 THICK
- As necessary
from £8.24
from £8.24
PAD THICK. 3.350 Genuine Maserati Part - New In stock
# 030
MPN: 600033318
VALVE CLEARANCE ADJ. CAP 3.400 THICK
- As necessary
from £7.73
from £7.73
PAD THICK. 3.400 Genuine Maserati Part - New In stock
# 030
MPN: 600033319
VALVE CLEARANCE ADJ. CAP 3.450 THICK
- As necessary
from £7.73
from £7.73
PAD THICK. 3,450 Genuine Maserati Part - New In stock
# 030
MPN: 600033320
VALVE CLEARANCE ADJ. CAP 3.500 THICK
- As necessary
from £8.24
from £8.24
PAD THICK. 3,500 Genuine Maserati Part - New In stock
# 030
MPN: 600033321
VALVE CLEARANCE ADJ. CAP 3.550 THICK
- As necessary
from £7.77
from £7.77
PAD THICK. 3.55 Genuine Maserati Part - New In stock
# 030
MPN: 600033322
VALVE CLEARANCE ADJ. CAP 2,925 THICK
- As necessary
from £4.27
from £4.27
PAD THICK. 2.925 Genuine Maserati Part - New In stock
PAD THICK. 2.925 Genuine Maserati Part - Used In stock
# 030
MPN: 600033323
VALVE CLEARANCE ADJ. CAP 2,975 THICK
- As necessary
from £4.53
from £4.53
PAD THICK. 2.975 Genuine Maserati Part - New In stock
PAD THICK. 2.975 Genuine Maserati Part - Used In stock
# 030
MPN: 600033324
VALVE CLEARANCE ADJ. CAP 3.025 THICK
- As necessary
from £4.51
from £4.51
PAD THICK. 3.025 Genuine Maserati Part - New In stock
PAD THICK. 3.025 Genuine Maserati Part - Used In stock
# 030
MPN: 600033325
VALVE CLEARANCE ADJ. CAP 3.075 THICK
- As necessary
from £4.51
from £4.51
PAD THICK. 3.075 Genuine Maserati Part - New (to order)
PAD THICK. 3.075 Genuine Maserati Part - Used In stock
# 030
MPN: 600033326
VALVE CLEARANCE ADJ. CAP 3.125 THICK
- As necessary
from £8.20
from £8.20
PAD THICK. 3.125 Genuine Maserati Part - New (to order)
# 030
MPN: 600033327
VALVE CLEARANCE ADJ. CAP 3.175 THICK
- As necessary
from £8.24
from £8.24
PAD THICK. 3,175 Genuine Maserati Part - New In stock
# 030
MPN: 600033328
VALVE CLEARANCE ADJ. CAP 3.225 THICK
- As necessary
from £18.55
from £18.55
PASTIGLIA SPES.3,225 Genuine Maserati Part - New In stock
# 030
MPN: 600033329
VALVE CLEARANCE ADJ. CAP 3.275 THICK
- As necessary
from £8.24
from £8.24
PAD THICK. 3.275 Genuine Maserati Part - New In stock
# 030
MPN: 600033330
VALVE CLEARANCE ADJ. CAP 3.325 THICK
- As necessary
from £9.07
from £9.07
SHIM VALVE Genuine Maserati Part - New In stock
# 030
MPN: 600033331
VALVE CLEARANCE ADJ. CAP 3.375 THICK
- As necessary
from £7.90
from £7.90
SHIM VALVE Genuine Maserati Part - New In stock
# 030
MPN: 600033332
VALVE CLEARANCE ADJ. CAP 2.425 THICK
- As necessary
from £8.53
from £8.53
PAD THICK. 2.425 Genuine Maserati Part - New In stock
# 030
MPN: 600033333
VALVE CLEARANCE ADJ. CAP 2.475 THICK
- As necessary
from £8.24
from £8.24
PASTIGLIA SP.2,475 Genuine Maserati Part - New In stock
# 030
MPN: 600033334
VALVE CLEARANCE ADJ. CAP 2.725 THICK
- As necessary
from £8.20
from £8.20
PAD THICK. 2.725 Genuine Maserati Part - New In stock
# 030
MPN: 600033335
VALVE CLEARANCE ADJ. CAP 2.775 THICK
- As necessary
from £8.20
from £8.20
PAD THICK. 2,775 Genuine Maserati Part - New In stock
# 030
MPN: 600033336
VALVE CLEARANCE ADJ. CAP 2.825 THICK
- As necessary
from £7.77
from £7.77
PAD THICK. 2,825 Genuine Maserati Part - New In stock
# 030
MPN: 600033337
VALVE CLEARANCE ADJ. CAP 2.875 THICK
- As necessary
from £8.24
from £8.24
PAD THICK. 2.875 Genuine Maserati Part - New (to order)
# 030
MPN: 600033338
VALVE CLEARANCE ADJ. CAP 3.425 THICK
- As necessary
from £8.95
from £8.95
PAD THICK. 3.425 Genuine Maserati Part - New In stock
# 030
MPN: 600033339
VALVE CLEARANCE ADJ. CAP 3.475 THICK
- As necessary
from £8.53
from £8.53
SHIM VALVE Genuine Maserati Part - New In stock
# 030
MPN: 600033340
VALVE CLEARANCE ADJ. CAP 3.525 THICK
- As necessary
from £6.81
from £6.81
SHIM VALVE Genuine Maserati Part - New In stock
# 031
MPN: 578036700
SLIDING BLOCK
from £8.66
from £8.66
CAMSHAFT DRIVING REAR CHAIN RUNNE Genuine Maserati Part - New (to order)
# 032
MPN: 14433121
SCREW
from £1.11
from £1.11
PAN SCREWS Genuine Maserati Part - New In stock
Genuine Ferrari Part (no longer available to order)
# 033
MPN: 12604279
SPRING WASHER
from £0.53
from £0.53
SPRING WASHER Genuine Maserati Part - New (to order)
Genuine Ferrari Part (no longer available to order)
# 034
MPN: 9555
PAC KIT (FROM 2.55 TO 3.5 THICK)
from £477.72
from £477.72
KIT PASTIGLIE VALVOLE 8V. Genuine Maserati Part - New (to order)
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
